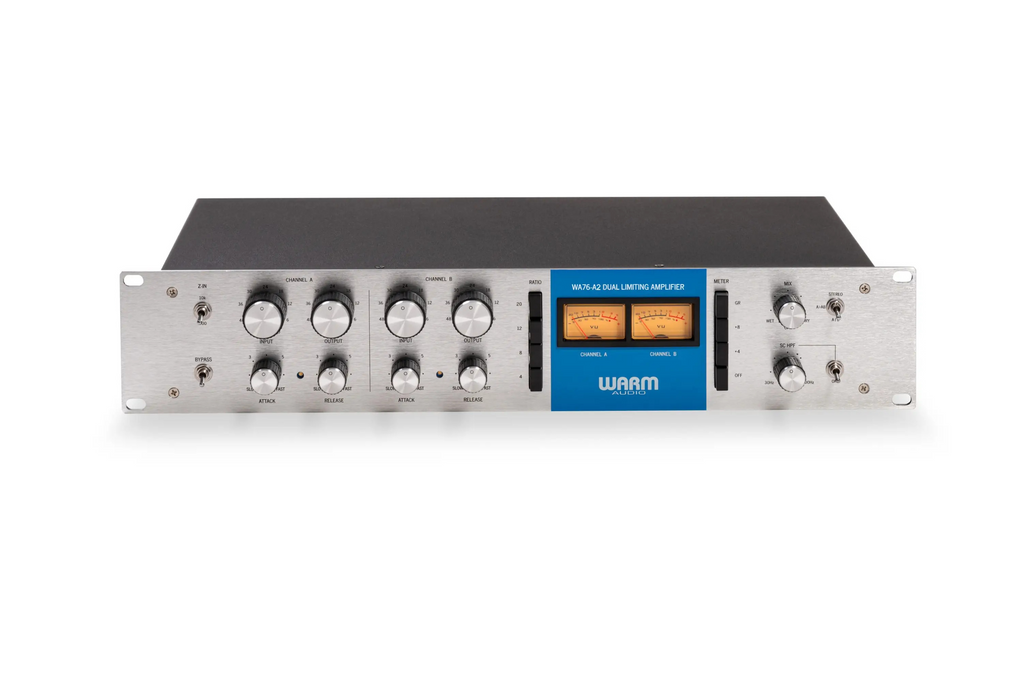

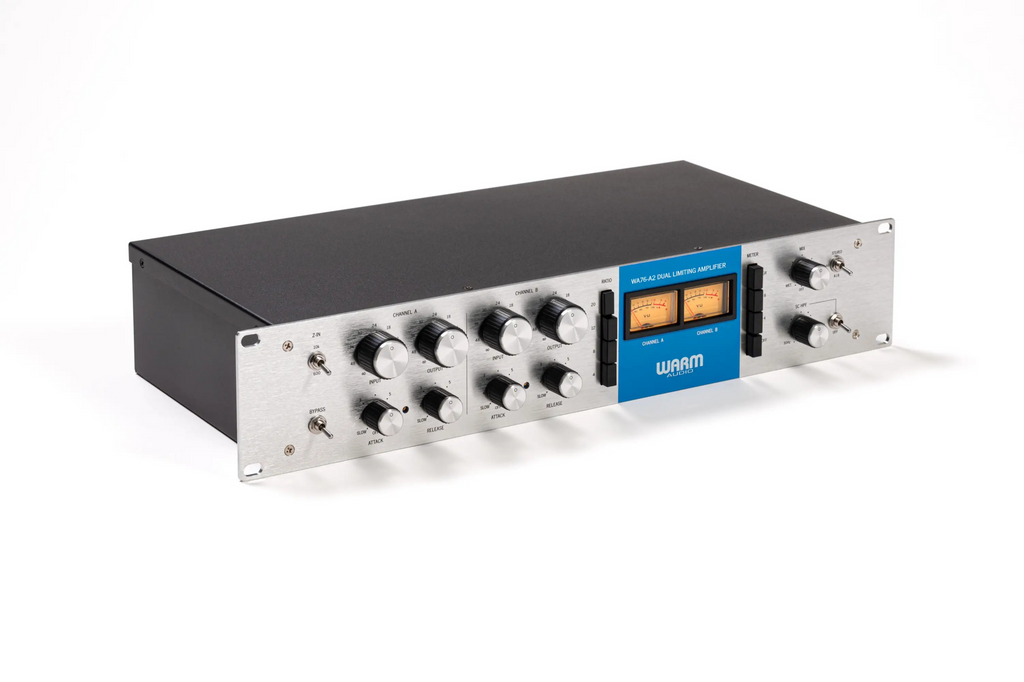

Warm Audio WA76-A2 dual channel vintage-voiced FET compressor in blue stripe, studio outboard gear with knobs and meters.

Brand: Warm Audio

Warm Audio WA76-A2 Dual Channel Vintage-Voiced FET Compressor (Blue Stripe)

SKU: WAR-WA76A2
Sale price  $1,799.00 (10% off RRP)
Regular price  RRP $1,999.00
Available to Order
Price Match
  • Rent from

  • $149.92/mth for 12 months interest free

    Fees apply

  • $449.75 Pay in 4 interest-free

    Late fees apply

  • $449.75 Pay in 4 interest-free

    No fees or interest

Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Warehouse
  • 0 Mega Music Wangara
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!

Description

The WA76-A2 combines classic 76-style compression with modern features like parallel compression, true bypass, selectable input impedance, and sidechain flexibility. Perfect for today’s recording needs, it recreates the legendary tone used by icons like Jack White, The Beatles, and Led Zeppelin, offering both vintage character and contemporary control.

Features

  • Classic Studio Compression With True Analog Grit

The WA76-A2 is a faithful recreation of the vintage 76 “blue stripe”-style 2-channel FET studio compressor with added features to meet modern recording workflows. Recreating the lauded original vintage “Blue Stripe” version of the 76 compressor known for its extra “grabby” fast attack and vintage analog grit, the WA76-A2 offers the ideal blend of vintage circuitry and modern controls to deliver ultimate flexibility without sacrificing vintage analog character.

  • Critical Classic Controls + Bonus Modern Add-Ons

WA76-A2 delivers vintage circuit design and has all of the traditional 76-style compression controls; attack, release, ratio, input, output, and meter display. In addition to the classic controls expected on a 76-style compressor, WA76-A2 is a stereo unit and has dry/wet mix for parallel compression, selectable input impedance, active & true-bypass, and variable sidechain high-pass filtering to tackle unruly bass that dominates the

  • Custom CineMag Transformers

Just like in the vintage 76-style compressors from revision “A” to D”, the WA76-A2 uses custom large-core, CineMag input & output transformers. The transformers inside the WA76-A2 use the exact same spec data and materials (nickel and steel) used by Reichenbach Engineering in the original vintage designs known for delivering vintage analog grit to any signal chain.

  • Premium Components & Accurate Blue Stripe-Style Circuitry

WA76-A2 uses premium poly film capacitors, carbon resistors, and a vintage-voiced preamp stage. These key components complete a circuit that cuts no corners in delivering an authentic vintage 76-style “blue stripe”-style compression experience.

  • Hand-Tested In Austin, TX

Like all Warm Audio gear, WA76-A2 is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.

Specifications

  • 100% Analog Discrete 2-Channel FET Compressor
  • Faithful Recreation Of The Vintage “Blue Stripe” FET Compressor With Added Recording Features
  • VU Meter Options: Gain Reduction | +8dB Output | +4dB Output | “Off” Powers off unit
  • 100-230v IEC Inlet Universal Power Supply
  • Class-A Line-Level Output Amplifiers
  • 100% Discrete Audio Signal Path Using 600Ω Input Impedance Attenuator
  • Selectable 10kΩ Input Impedance To Better Match Modern Audio Interface Specifications
  • 100% Dry-Wet Mix Control | Variable Sidechain High Pass Filter: 30 - 300Hz, 12dB/Octave
  • Active Bypass For Running Unit As Line Amplifier & True Bypass Option For A/B Comparisons
  • 3 2-Channel Operating Modes: Stereo Linked | Primary:Secondary | Dual-Mono
  • 2U 19″ Rackmount Chassis
  • Utilizes Premium O-12 Input & 5002 Output Transformers From CineMag USA
  • Vintage-Spec Attack & Release: Attack = 20 µS - 800 | Release: 50 mS - 1.1 Second
  • “All-Buttons-In” Setting For Experimental & Hard-Limiter Tones
  • Frequency Response: ± 1 dB 20 Hz - 20 kHz

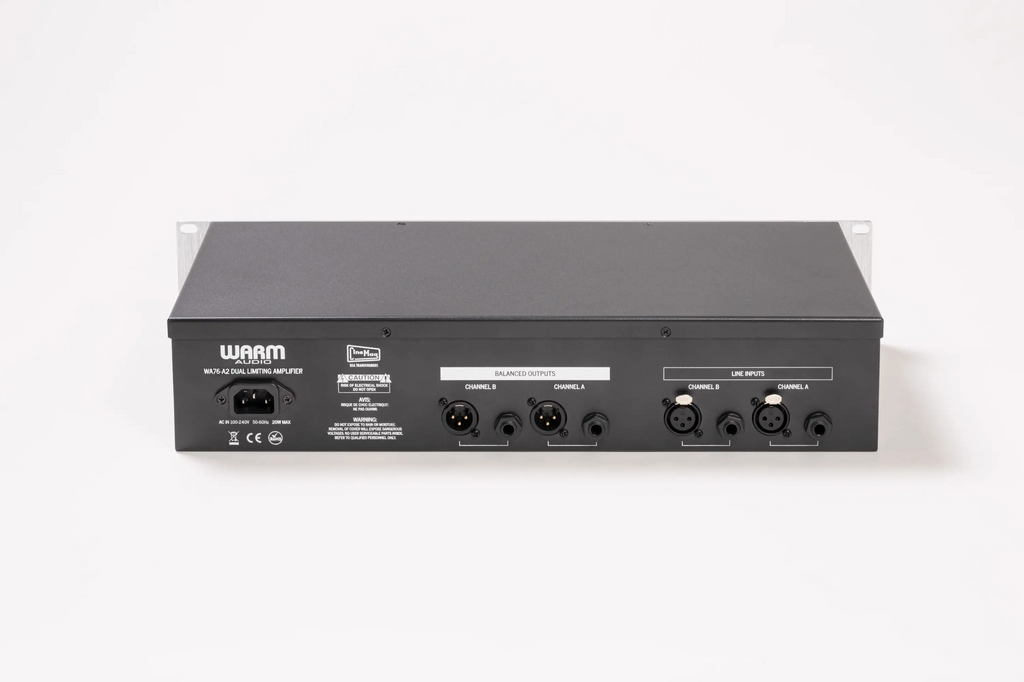

  • Balanced XLR & TRS Inputs & Outputs
  • Total Amplifier Gain: 58dB
  • Signal-To-Noise Ratio (SNR): 84dB
  • Total Harmonic Distortion (THD): -58dB (at -18dBu)
