Two Notes Torpedo Captor Compact Loadbox And Amp DI - 16 Ohm

Features

• Play at the sweet spots - Push your tube amp to the sweet spots and control the volume with the 20dB attenuator. Get pushed cleans, driving crunch or liquid high gains without flattening the front row or disturbing your neighbors and family.
• Record at the sweet spots - The reactive load box in the Torpedo Captor accurately emulates the response, dynamics, and feel of your rig. Going direct, recording your favourite tube amp and recording silently has never been easier!
• The Torpedo Captor includes built-in guitar and bass analog cab sims for standalone use or combine with the included Wall of Sound Plug-in and explore 16 DynlR virtual cabinets.

Specifications

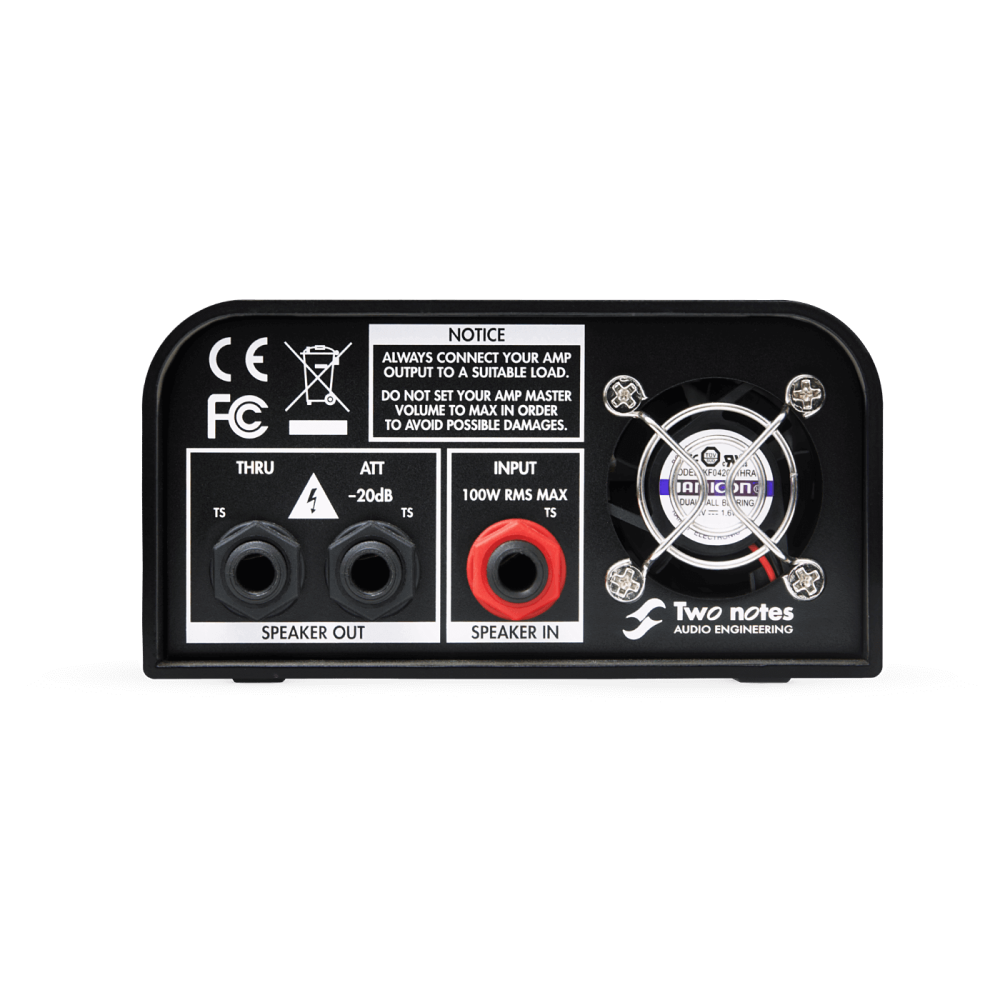

• Speaker Input : 1/4? Jack unbalanced (TS)
• Speaker Attenuated Output : 1/4? Jack unbalanced (TS) Attenuation: -20dB
• Speaker Thru* : 1/4? Jack unbalanced (TS) Directly connected to Speaker Input *Loadbox disconnected when in use

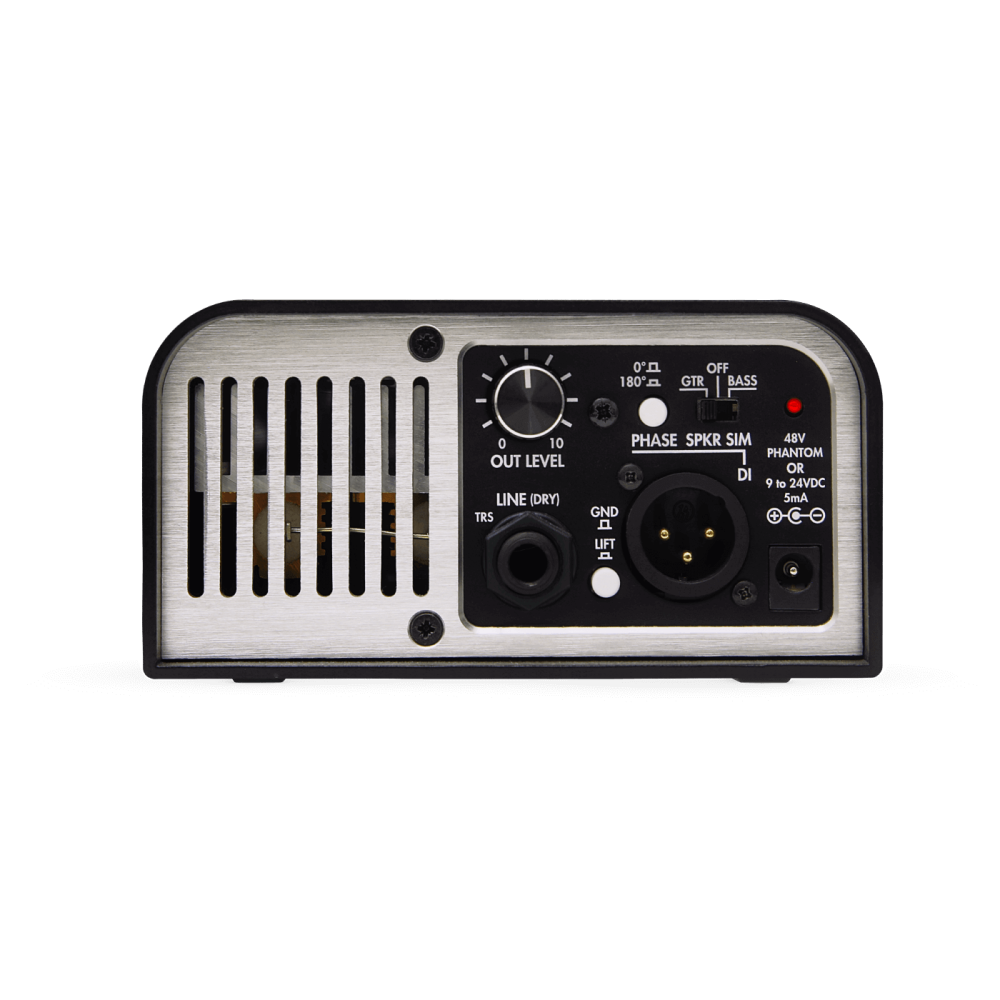

• Line Output* : 1/4? Jack balanced (TRS) Impedance: 1000 Ohms Phase switch Ground lift *Without speaker simulation
• DI Output : XLR balanced Impedance: 600 Ohms *With or without speaker simulation
• Analog speaker sim : Guitar : based on Brit VintC DynIR Cabinet – Dyn57 Microphone Bass : based on Fridge DynIR Cabinet – Cnd87 Microphone

• Impedance : 4, 8 or 16 Ohms
• Max admissible power : 100W RMS
• Safety system : Temperature-controlled fan Active thermal safety

• Input voltage : Phantom power or 9-12V DC jack, 2.1×5.5mm, negative center.
• Current draw : 5mA
• Power input connector: DC connector, 2.1mm x 5.5mm, center negative Power is required only for the XLR DI output and analog speaker sim
