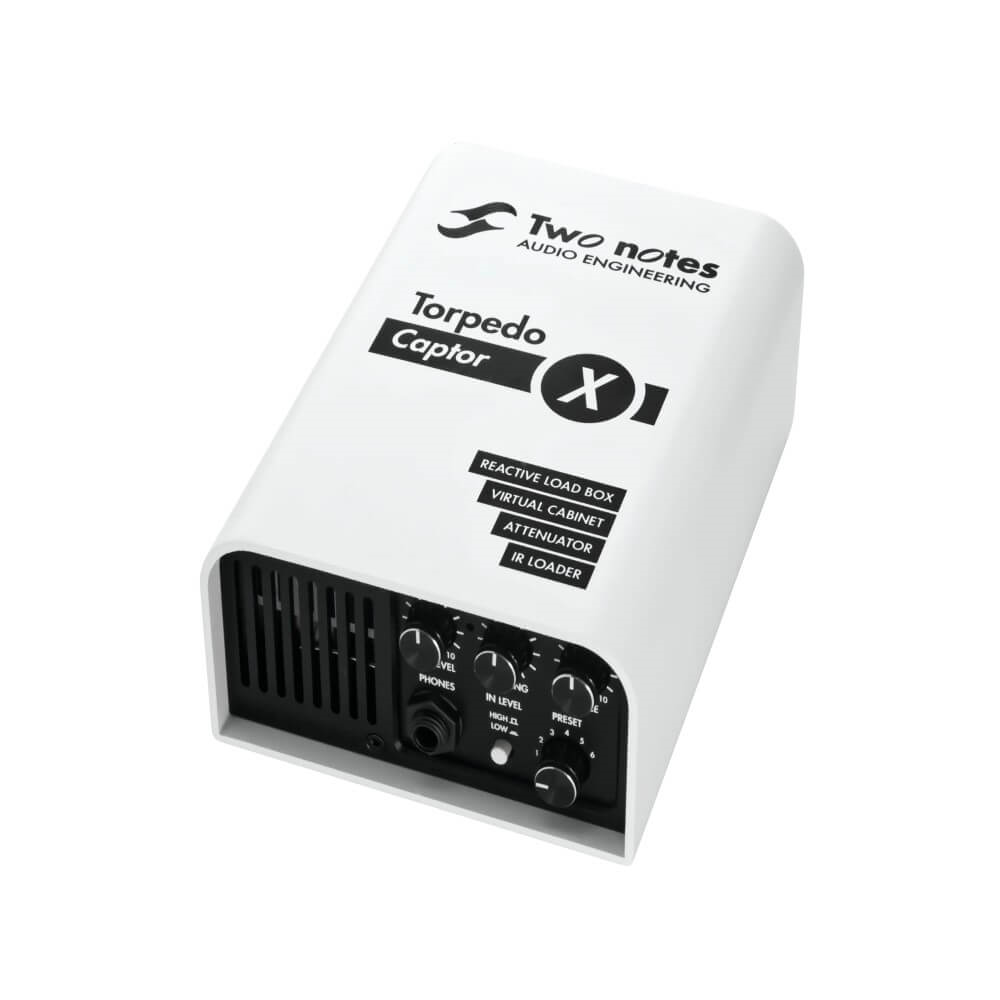

Two Notes Captor X 16 Ohm Reactive Load Box and IR Loader

Playing through a cranked tube amplifier in a great sounding room, with a world-class selection of perfectly voiced speaker cabinets and microphones, is a truly amazing and unparalleled experience. The Torpedo Captor X is for the tube amp-loving players who want this experience every time they play, regardless of the environment.

A Premium, Compact Reactive Loadbox, and More!

Enjoy the full character of a screaming 100W tube rig in it's sweet spot with the attenuation switch. Players can also play their rigs in silence via headphones with the digital load box.

Connect directly into a PA or interface with DynIR, Two Notes' coveted cab sim technology, so you can leave the cumbersome heavy cabinets at home, and never have to worry about tonal inconsistencies again.

Effortlessly Control the Miking Chain

Change the cabinet, microphone, room, EQ, reverb, or edit any parameter by pairing your phone, tablet or computer with the Torpedo Captor X via the Torpedo Remote app. No other compact reactive load box on the market offers such fine universal control over the virtual signal chain, and with dual miking per cabinet, you never have to mic a cabinet again.

Stereo, Dual Mono, Wet/Dry

Additional to the world-class stereo experience via the XLR outputs, the dual mono output mode enables dedicated levels of EQ and reverb. A perfect solution for sending independent mixes to monitors and front of house.

By engaging Wet/Dry, players can send both the DynIR and dry signal to an interface, so tones can be adjusted after recording the perfect take. Process the dry signal with the Torpedo Wall of Sound plugin inside your DAW.

Studio Grade Effects

• Enhancer - Adding a touch of magic to nail the tone of a song, Thickness provides a thump, Brilliance gives a clear and shining high end, and Body adds weight and thickens tones.
• Twin Tracker - Twin Tracker beefs up your tone, spreading it across the stereo field, acting as a virtual second guitarist.
• Stereo Reverb - From subtle room reflections to immersive lush soundscapes. Control the width of the stereo field with the hardware Space control.
• Voicing - Balance the room on the go with the Voicing knob - simultaneously controlling the cut or boost of mid frequencies in all presets.
• EQ - Fine tune the tone with instrument voiced the 5-band post EQs for guitar and bass, or discover the 6-band semi-parametric custom mode with low shelf.
• Noise Gate - Noise floor or feedback issues? Keep your tone tight with the hard/soft mode noise gate to eliminate unwanted hiss and buzz. Learn function adapts to your rig.

Low Latency IR Support

The Torpedo Captor X is capable of supporting both DynIR and static IR cabinets. Store hundreds of IRs on the unit and mix two static IR's effortlessly via Torpedo Remote. Even with a maximum IR length of 200ms, the powerful integrated DSP enables processing with minimum latency, so the sound can hit players with no audible delay.

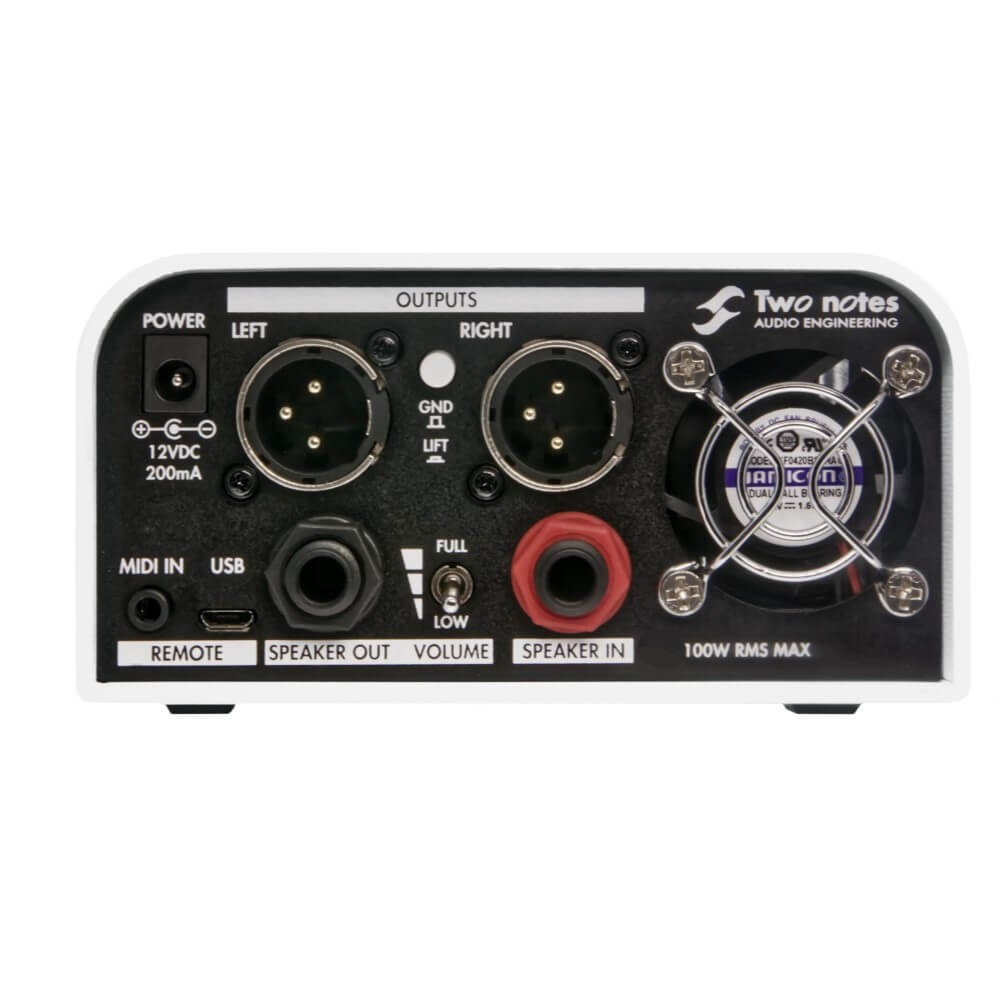

• I/O
  • Speaker Input: ¼" Jack, Unbalanced (TS)
  • Speaker Output: ¼" Jack, Unbalanced (TS)
  • Headphones Output: ¼" Jack, Balanced (TRS)
  • Left/Right Outputs: XLR, Balanced
  • Left/Right Output Max. Output Level: 15dBu
  • Left/Right Output Impedance: 600O
  • MIDI Input: 1/8" Jack, Balanced (TRS), Jack to MIDI Cable Adaptor Included
  • USB Connector: USB 2.0 Micro-B, USB Micro-B to USB-A Cable Included
• Load Box
  • Maximum Admissible Power: 1000W RMS
  • Impedance: 16O
  • Attenuation Levels: -38dB, -20dB, 0dB
• Digital Audio
  • AD/DA Converters: Studio-grade 24-bit / 96 kHz
  • Bandwidth (-1dB): 30 Hz – 19 kHz
  • Signal-to-Noise Ratio: >95dB
  • Internal Processing: 32-Bit Floating Point
  • Latency: 2.2ms (Speaker Input to Left/Right Outputs)
• Power
  • Power Input Connector: DC connector, 2.1mm x 5.5mm, center negative
  • Supplied Adaptor: 100-240v AC to 12v DC 2A
• Dimensions
  • 128mm (W) x 175mm (D) 64mm (H)
  • 1.3kg
