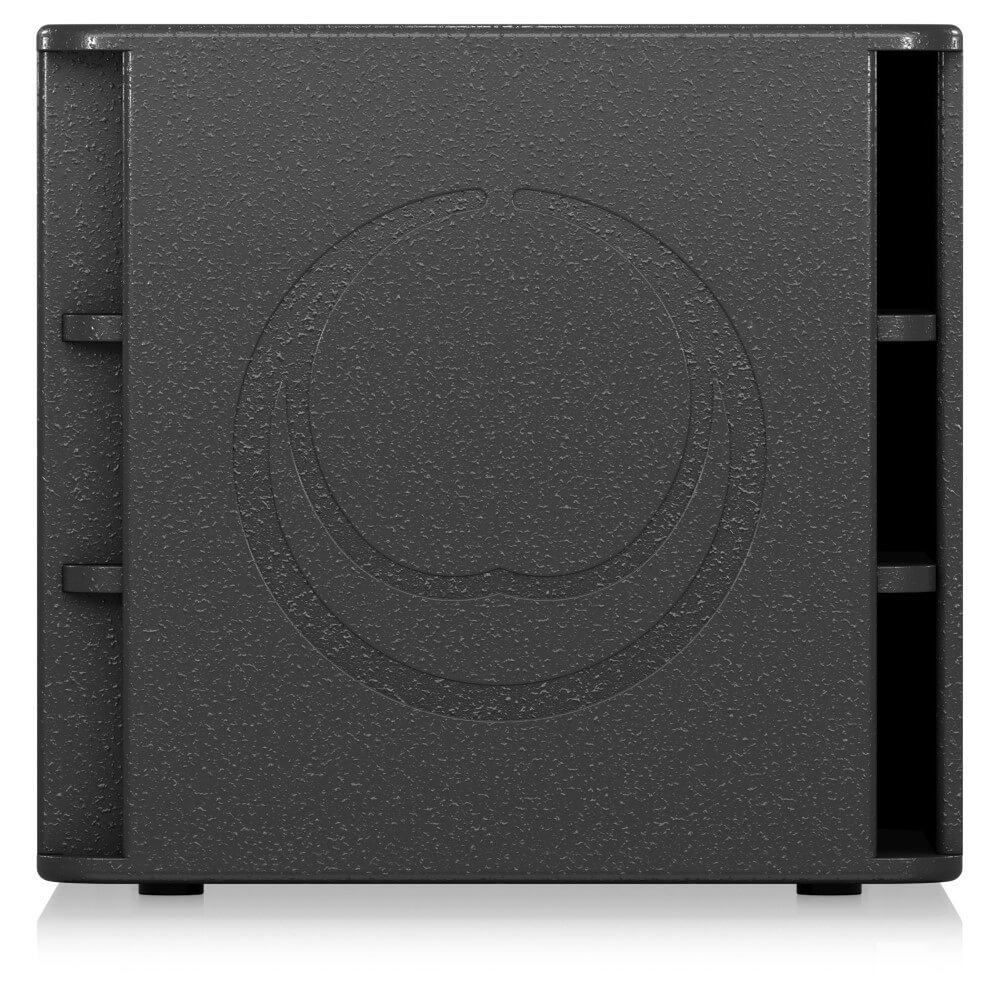

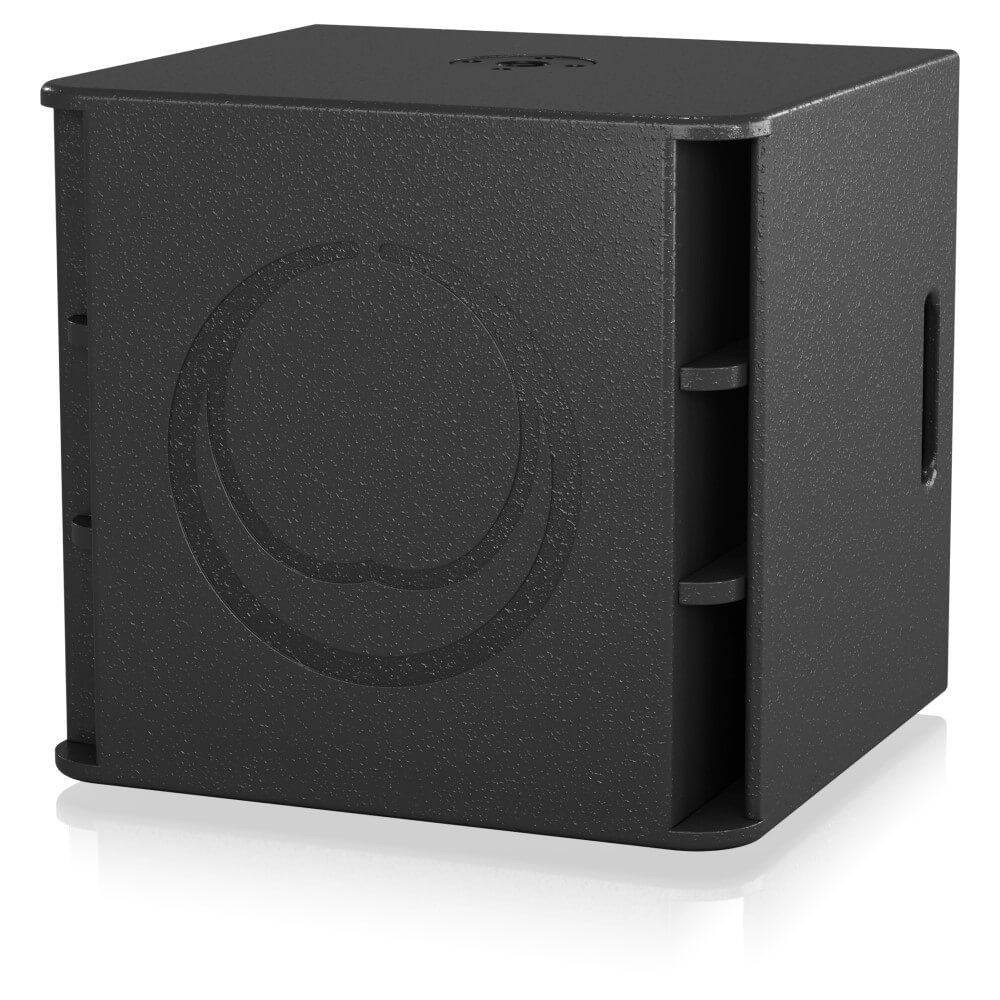

Turbosound Milan M15B 15" Powered Subwoofer

Designed for maximum bass extension for both portable and permanent install applications, the Turbosound MILAN M15B is a 2200W portable band-pass 15" powered subwoofer. Featuring discrete balanced inputs with ¼"/XLR combo jacks and a shared Level control, the M15B is perfect for a vast range of music sources from mixing consoles, low-impedance microphones, guitars and keyboards.

• Band pass powered subwoofer for portable PA and installation applications
• 2,200 Watt power featuring Klark Teknik Class-D technology
• High excursion 15" low frequency driver with 4" voice coil and double suspension
• Bass boost and polarity switch for accurate low frequency system integration
• Birch plywood enclosure with hard wearing semi matt black paint finish
• Rugged powder coated perforated steel mesh grille
• 36 mm pole mount to support satellite speaker
• Plated steel castors with rubber tyres
• Designed and engineered in the U.K.

Bandpass Enclosure Design

Bandpass enclosures are incredibly efficient, by increasing the acoustic load presented to the driver, they create the maximum bass output within a specific frequency range. The M15B utilizes a low distortion bandpass design, which reinforces the bass frequencies, and steep cut-off slopes guarantee an acoustic solution effective for use with MILAN Series full-range loudspeakers.

Class-D - Massive Power, Perfect Sound

The M15B is capable of providing 2200W of power and outstanding sonic performance in an ultra-portable and lightweight enclosure that's simple to use, thanks to the groundbreaking Class-D amplifier technology. Making all the difference, Class-D amplification offers superior energy efficiency, and eliminates the need for bulky power supplies and huge heat sinks. This incredible technology makes it possible to engineer and manufacture incredibly powerful products that are far lighter in weight than their traditional predecessors, while reducing energy usage and being more environmentally friendly.

Custom-Engineered Drivers

Known all over the globe for making some of the world's best-sounding speaker systems, Turbosound take their drivers very seriously. The internal high-excursion 15" LF driver has been designed for superior performance in conjunction with every other element for world-class results. For massive amounts of tight and articulate bass, the MILAN M15B works seamlessly with all MILAN series loudspeakers.

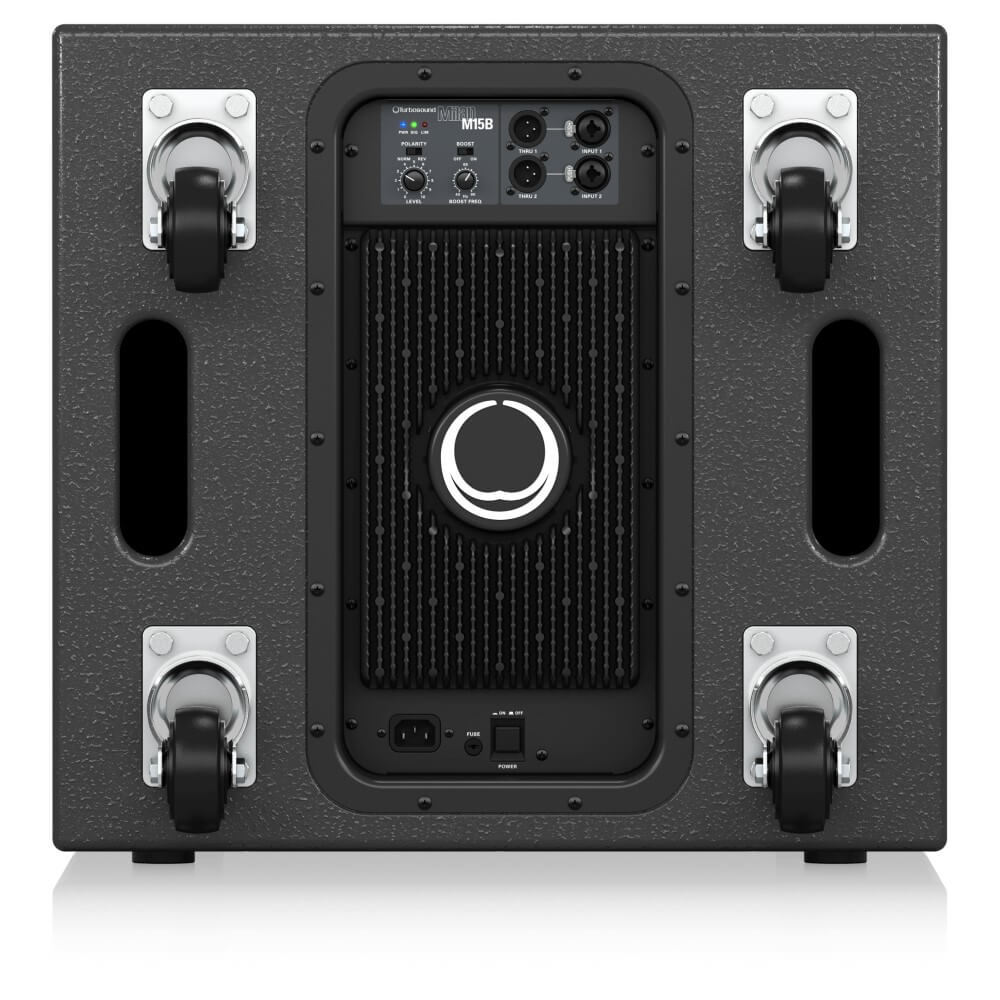

Integrated Control Center

Featuring a subwoofer Level control, a polarity switch for aligning phase with your loudspeakers, and a switchable Boost Filter (100Hz), the M15B's onboard control panel ensures seamless integration with your system. An additional filter enables users to select Speech to enhance voice intelligibility, or Music for the wider frequency range needed to accurately reproduce high-fidelity audio content. For quick and simple system expansion, the XLR Thru connector conveniently sends a both input signals to powered full-range loudspeakers, or additional powered subwoofers.

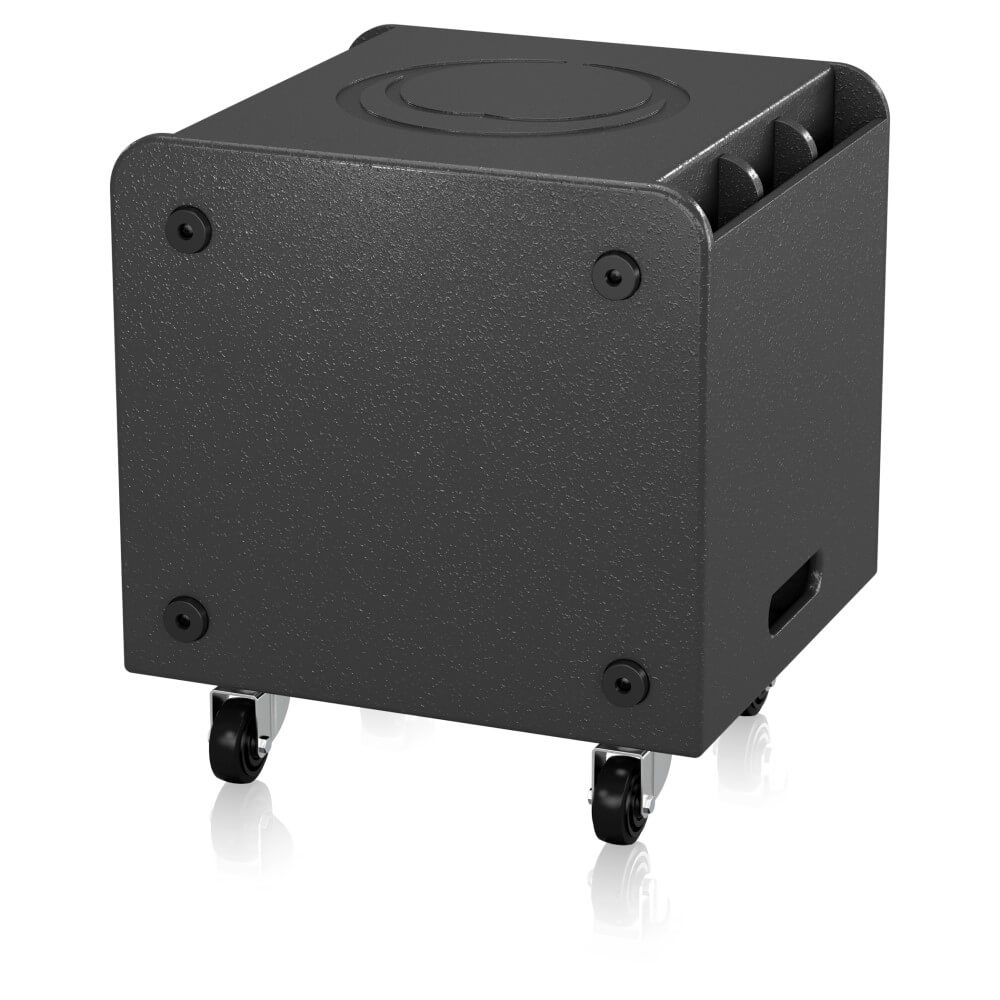

Built for Durability and Versatility

The M15B’s enclosure is constructed using solid Birch plywood with a durable semi-matte black finish, and an extensive internal and external ribbed design eliminates resonances and minimizes vibration. Plated steel castors with rubber wheels allow for easy transport, and the standard pole-mount socket enables this loudspeaker to be mounted to straight poles or speaker stands in a vertical manner, or raised higher and angled downward for optimal audience coverage.

Rock-Solid Performance

The 2200W MILAN M15B was built to deliver outstanding performance for musicians on-the-go, houses of worship, banquet facilities, and night clubs among other applications, and puts tour-grade sound quality into a scalable, portable and flexible loudspeaker system.

• Speakers: 1x 15" LF Driver
• Connectors
  • Input: 2 x female XLR wired pin 2 hot
  • Thru: 2 x male XLR wired pin 2 hot
  • IEC mains connector with integrated fuseholder
• Controls
  • Level
  • Polarity
  • Boost
  • Boost Frequency
• Frequency Range
  • 45Hz - 100Hz (±3dB)
  • 35Hz - 150Hz (-10dB)
• Max. SPL: 134dB
• Boost Frequency: +6dB @ 40Hz - 90Hz, Q=1
• Circuit Protection
  • Full short circuit
  • Thermal
  • Overcurrent
  • DC
• Max Output Power: 2200W
• Input Sensitivity: +4 dBu @ centre position for full rated power
• Dimensions
  • 495mm (H) x 530mm (W) x 480mm (D)
  • 37kg
