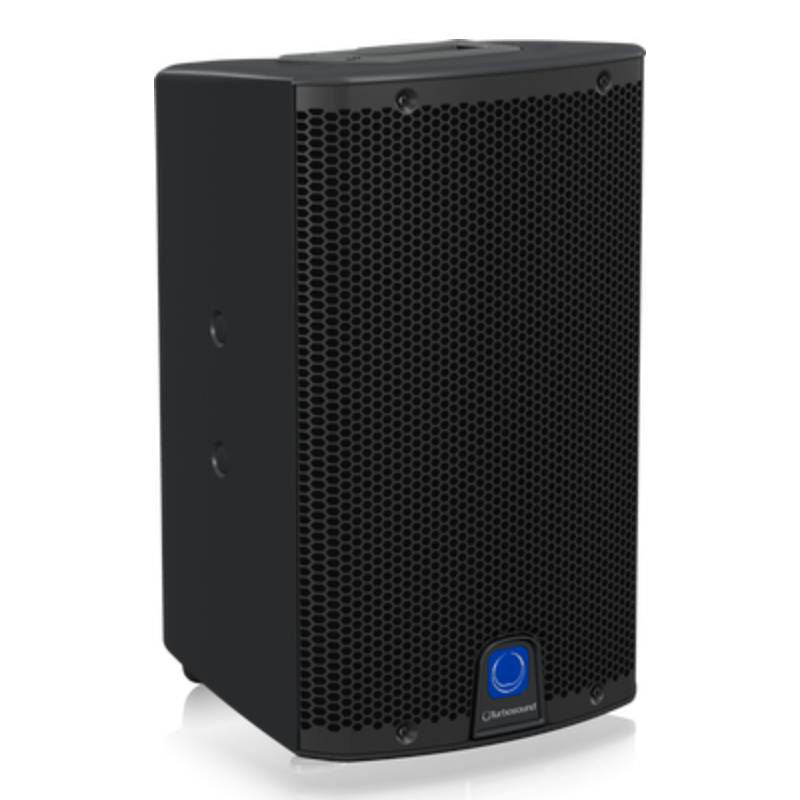

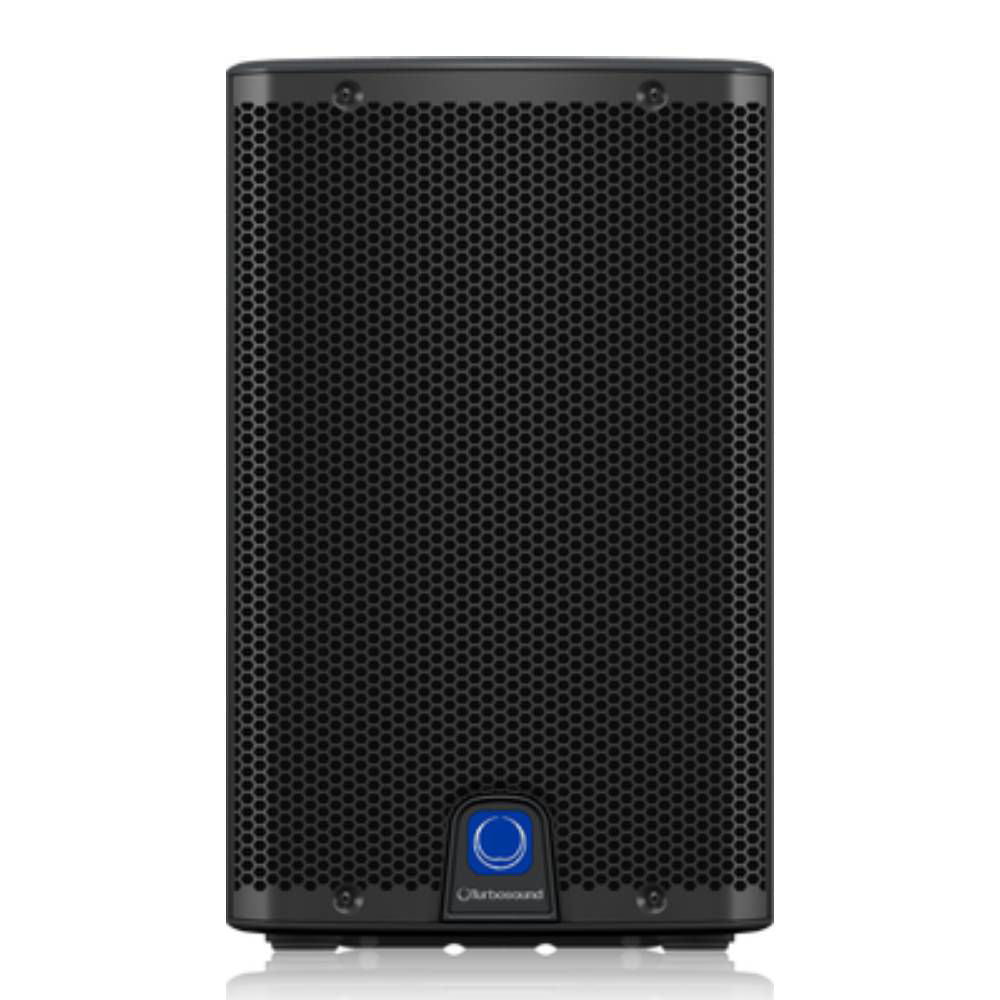

Turbosound iQ8 8 inch Powered PA Speaker

The 2,500-Watt iQ8 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The driver complement includes an 8" low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1" compression driver with copper clad aluminium voice coil for extended high frequency reproduction.

Features

• 2 way full range loudspeaker for portable PA and installation applications
• 2,500 Watt power featuring Klark Teknik Class-D technology
• Klark Teknik Digital Signal Processing for total system control
• Speaker modelling includes accurate models of industry standard speakers
• SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement
• ULTRANET digital audio networking connects to mixers and other sources
• 8" low frequency driver with low mass voice coil for improved transient response
• High temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction
• Fully featured user interface with LCD display for ease of navigation
• PC remote control software downloadable at turbosound.com
• Lightweight fibre glass reinforced composite enclosure
• Rugged powder coated perforated steel mesh grille
• Dual angle pole mount for accurate audience coverage
• Multiple internal rigging points for installation applications
• Mains input and link output on Neutrik powerCON* connectors
• 10-Year Warranty Program*
• Designed and engineered in the U.K.

Specifications

System

• Frequency Response: 60 Hz – 18 kHz ±3 dB | 55 Hz – 20 kHz -10 dB
• Nominal Dispersion: 90° H x 90° V @ -6 dB points
• Maximum SPL: 128 dB peak
• Crossover type: Active
• Transducers: 1 x 8" (208 mm) LF driver | 1 x 1" (25.4 mm) HF compression driver
• Limiter: Independent HF, LF, peak and rms

Amplifier

• Maximum output power*: 2,500 W
• Type: Class-D
• Protection: Short circuit, open circuit, thermal

Connectors

• Input A / B: 2 x combo jack/XLR
• Sensitivity: Line +4 dBu, mic -22 dBu, switchable
• Input impedance: 20 kO unbalanced, 40 kO balanced
• Maximum input level: +21 dBu
• Output A / B: 2 x XLR Linked to input
• Mix output: XLR, balanced
• Output impedance: 100 O unbalanced, 200 O balanced
• Ultranet input/link: 2 x RJ45
• Mains Supply: Neutrik powerCON input 20A and link 15A

Controls

• DSP: Rotary push-encoder Buttons for Process, Setup, Exit, Enter
• Mixer section: 2 x gain controls (channels A and B) 2 x Line/Mic switch

User DSP Functions

• Factory EQ presets: Positioning, Sound mode, Sound modeling, FBQ
• Display: LCD 128 x 32, blue backlit
• Delay: 0 - 300 ms
• Equalisation: High and low shelving EQ | 2 x parametric EQ
• Limiter: Zero attack input limiter
• Presets: 20 total presets, 19 user-definable
• Crossover: High Pass L-R 24 dB/oct
• Protection: Lock-out function for all settings

Power Supply

• Power consumption: 150 W @ 1/8 max power

Enclosure

• Dimensions (H x W x D): 457 x 279 x 279 mm (18.0 x 11.0 x 11.0")
• Net weight: 14.7 kg (32 lbs)
• Construction: Injection-moulded polypropylene enclosure
• Finish: Black painted
• Grille: Powder coated perforated steel
• Flying hardware: M10 x 3 points

Accessories

• IQ8-WB Steel wall bracket

*independent of limiters and driver protection circuits
