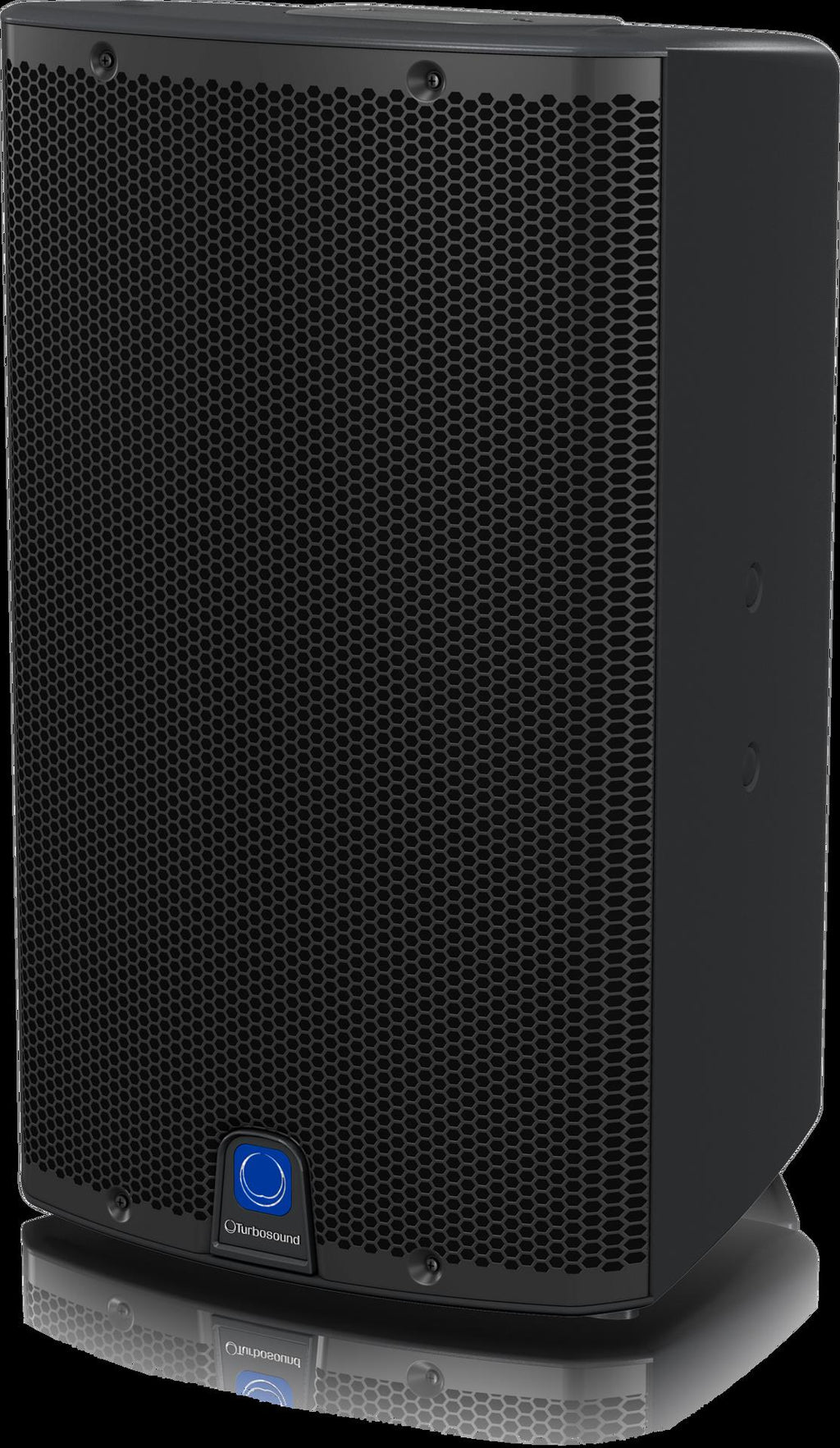

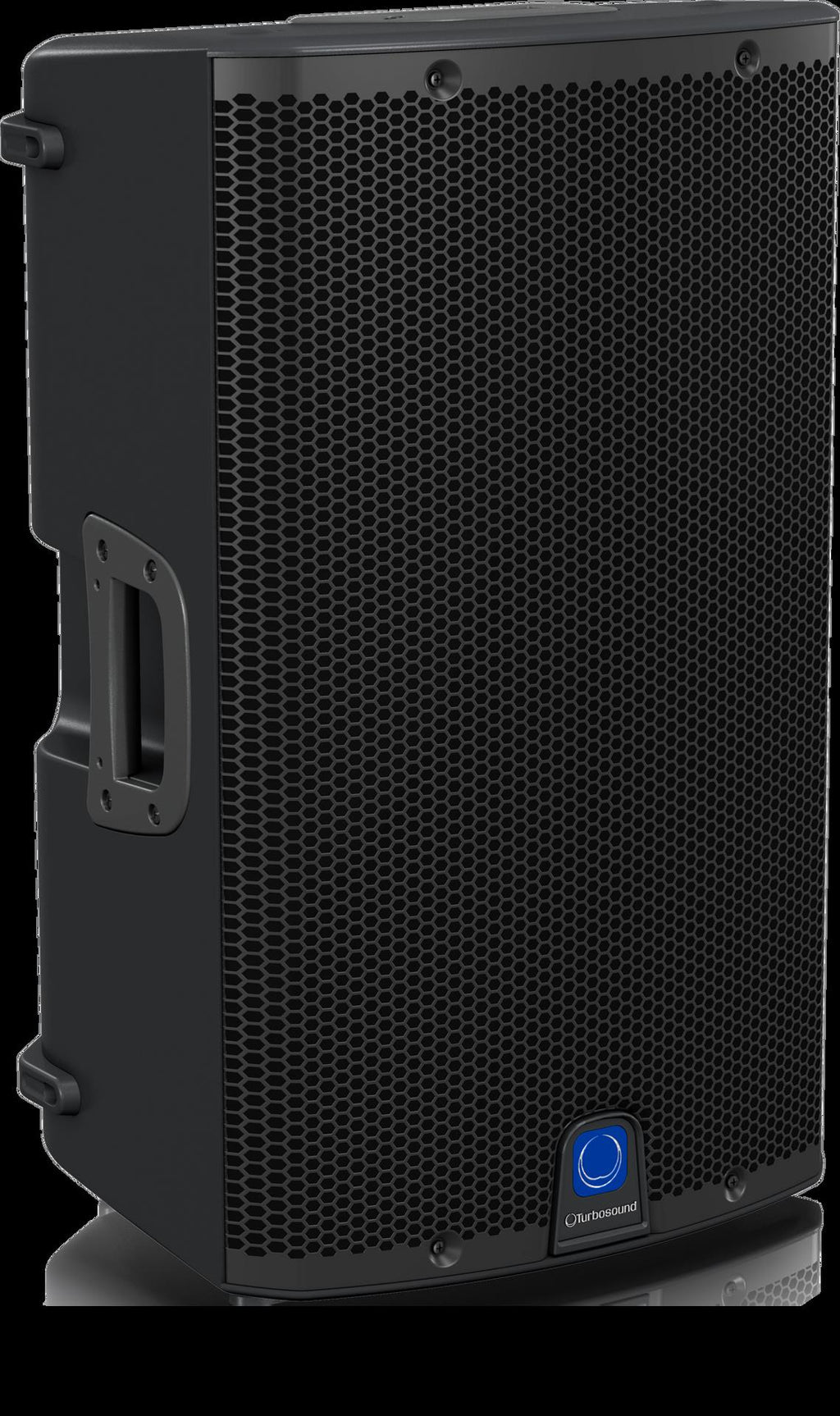

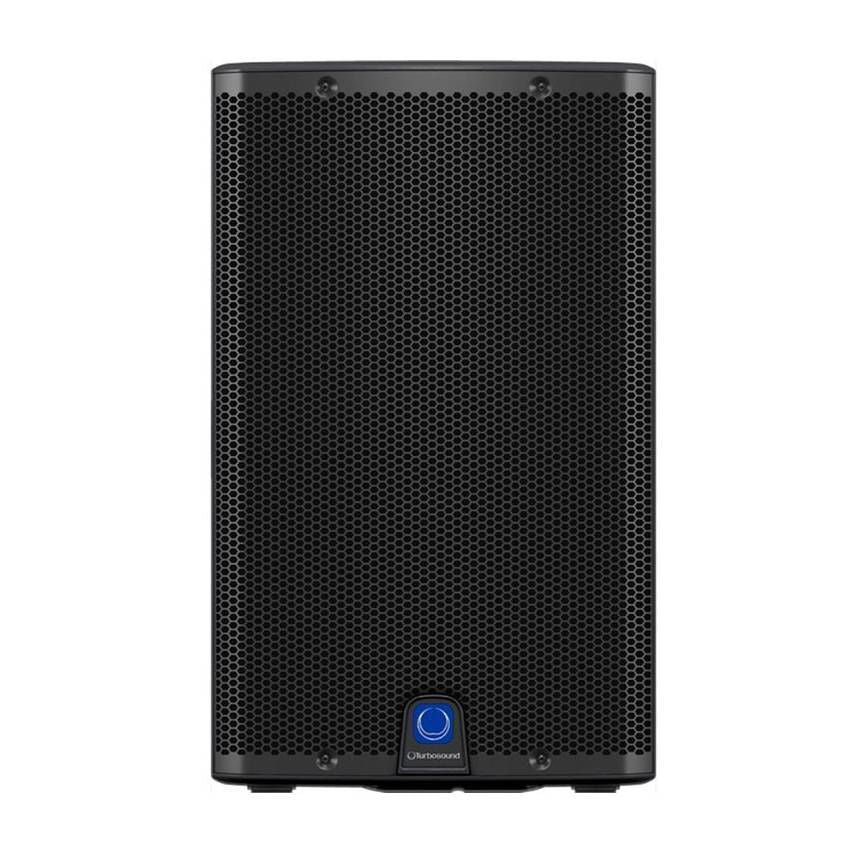

Turbosound iQ12 12 inch Powered PA Speaker

The 2,500-Watt iQ12 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications.

The driver complement includes an 12" low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction.

Equipped with a very efficient and lightweight two channel Klark Teknik Class-D power amplifier, the iQ12 provides an impressive 2,500 Watts of output power.

A high degree of control over the loudspeaker system's performance is managed by a sophisticated, but easy to use Klark Teknik Digital Signal Processor (DSP), which provides dynamic EQ for remarkable full range response at low volume levels, and transparent limiting for the utmost clarity at high output levels and long-term reliability.

iQ12's advanced DSP speaker modelling presets include detailed and accurate models of some of the audio industry's most-respected loudspeakers.

Features

• 2 way full range loudspeaker for portable PA and installation applications
• 2,500 Watt power featuring Klark Teknik Class-D technology
• Klark Teknik Digital Signal Processing for total system control
• Speaker modelling includes accurate models of industry standard speakers
• SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement
• ULTRANET digital audio networking connects to mixers and other sources
• 12" low frequency driver with low mass voice coil for improved transient response
• High temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction
• Fully featured user interface with LCD display for ease of navigation
• PC remote control software downloadable at turbosound.com
• Lightweight fibre glass reinforced composite enclosure
• Rugged powder coated perforated steel mesh grille
• Dual angle pole mount for accurate audience coverage
• Multiple internal rigging points for installation applications
• Mains input and link output on Neutrik powerCON* connectors
• 10-Year Warranty Program*
• Designed and engineered in the U.K.

Specifications

• Frequency Response: 52 Hz – 18 kHz ±3 dB; 45 Hz – 20 kHz -10 dB
• Nominal Dispersion: 80° H x 60° V @ -6 dB points
• Maximum SPL: 130 dB peak
• Crossover type: Active
• Transducers: 1 x 12" (308.5 mm) LF driver; 1 x 1" (25.4 mm) HF compression driver
• Limiter Independent: HF, LF, peak and rms
• Maximum output power*: 2,500 W
• Type: Class-D
• Protection: Short circuit, open circuit, thermal

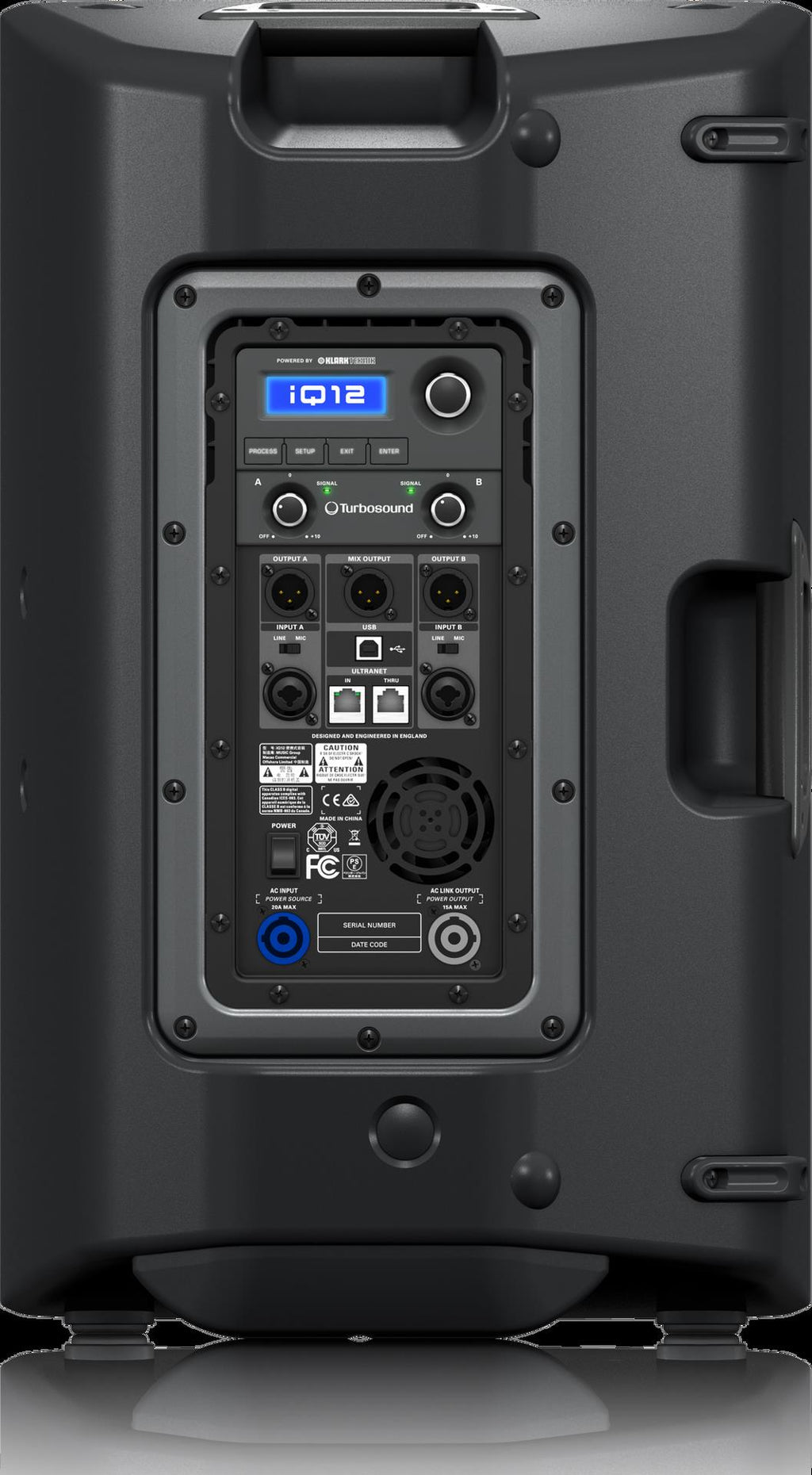

• Input A / B: 2 x combo jack/XLR
• Sensitivity: Line +4 dBu, mic -22 dBu, switchable
• Input impedance: 20 kO unbalanced, 40 kO balanced
• Maximum input level: +21 dBu
• Output A / B: 2 x XLR Linked to input
• Mix output: XLR, balanced
• Output impedance: 100 O unbalanced, 200 O balanced
• Ultranet input/link: 2 x RJ45
• Mains Supply: Neutrik powerCON input 20A and link 15A
• DSP: Rotary push-encoder Buttons for Process, Setup, Exit, Enter
• Mixer section: 2 x gain controls (channels A and B) 2 x Line/Mic switch
• Factory EQ presets: Positioning, Sound mode, Sound modeling, FBQ
• Display: LCD 128 x 32, blue backlit
• Delay: 0 - 300 ms
• Equalisation: High and low shelving EQ; 2 x parametric EQ
• Limiter: Zero attack input limiter
• Presets: 20 total presets, 19 user-definable
• Crossover: High Pass L-R 24 dB/oct
• Protection: :Lock-out function for all settings
• Power consumption: 150 W @ 1/8 max power
• Dimensions (H x W x D): 609 x 370 x 370 mm (24.0 x 14.5 x 14.5")
• Net weight: 14.7 kg (32 lbs)
• Construction: Injection-moulded polypropylene enclosure
• Finish: Black painted
• Grille: Powder coated perforated steel
• Flying hardware: M10 x 3 points
