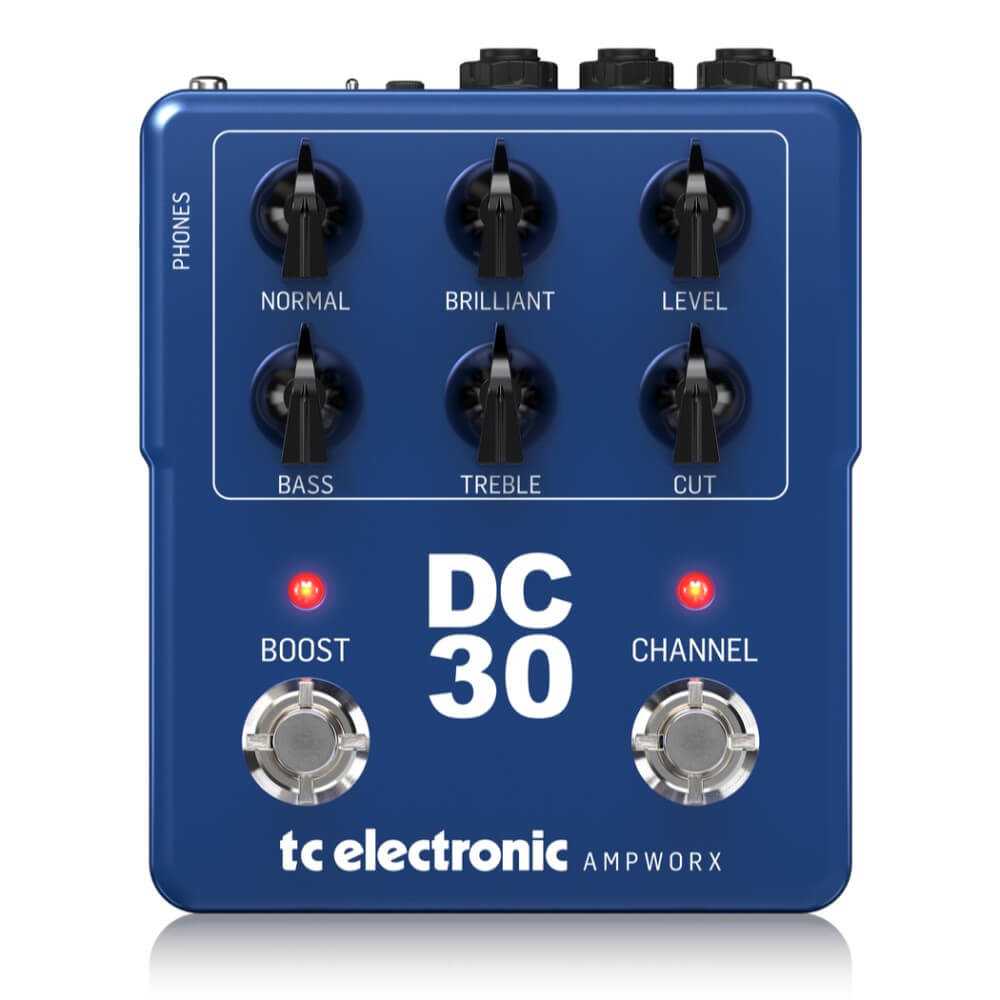

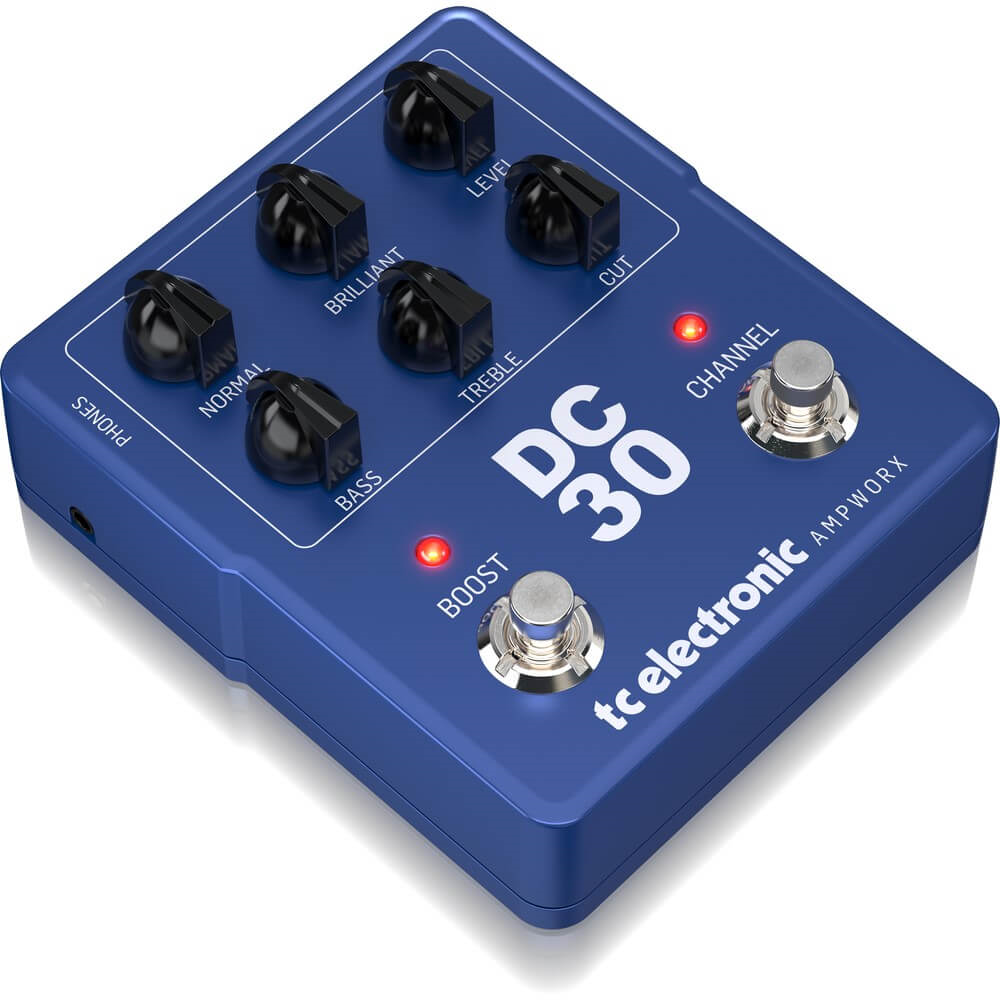

TC Electronic Ampworx Vintage Series DC30 Dual-Channel Guitar Preamp Pedal

Faithfully recreating the tone, touch and response of the iconic 1965 Top Boost AC30 Combo Amplifier, the new TC Electronic Ampworx DC30 Preamp features two channels with dedicated controls to cover all the tonal ground from gritty blues, shiny pop, or all out Brit Rock Invasion. Functioning just like the real amplifier with a jumper cable, the Normal and High inputs feature independent gain controls, and the signature AC30 high-cut control allows you to tame or hype that instantly identifiable high-end bite.

• Two channels with independent gain, volume and EQ controls for classic British rock, blues and pop tones
• Independent gain controls for Normal and High inputs, just like the real amp with a jumper cable
• Signature AC30 high cut control for taming or dialing in that unmistakable high end bite
• Integrated booster activates at the kick of a footswitch with Pre/Post option and adjustable gain level on the back panel
• Pre boost dialed in to drive the amp model harder and add a distinct mid hump like a classic overdrive pedal
• Dedicated DI output, equipped with official Celestion 2x12 Alnico Blue cab sim IR, turns your pedalboard into a gig-ready rig direct to PA system or audio interface for recording
• Dedicated headphone output, equipped with official Celestion 2x12 Alnico Blue cab sim IR, for huge tube amp tones and practice sessions that won’t disturb your neighbors
• Optional bypass or always on channel change footswitch modes
• Perfect pedalboard-friendly pedal platform takes drive pedals incredibly well

Engage the built-in booster with the kick of a footswitch, and dial to taste via the Pre/Post option and adjustable gain level on the rear panel, with the Pre boost tuned to push the amp model harder and add a recognizable mid-range hump, just like classic overdrive circuits. Thanks to the dedicated DI output and Headphone output equipped with an official 2x12 Celestion cab sim, you can connect directly into a PA system or interface for convenient, high-quality recording, or play silently with all the glorious tube tone you love, without disturbing the neighbourhood!

Utilizing TC Electronic's cutting-edge AMPWORX modeling technology, the Ampworx Vintage Series Preamps deliver authentic tone, with incredible performance and touch response - all with astonishingly low latency, and incredible dynamic range to make your playing experience as genuine as playing through the real deal. Pedalboard friendly, this preamp also takes overdrive pedals incredibly well, allowing you to push it as hard as you like, just like you would a real amplifier!

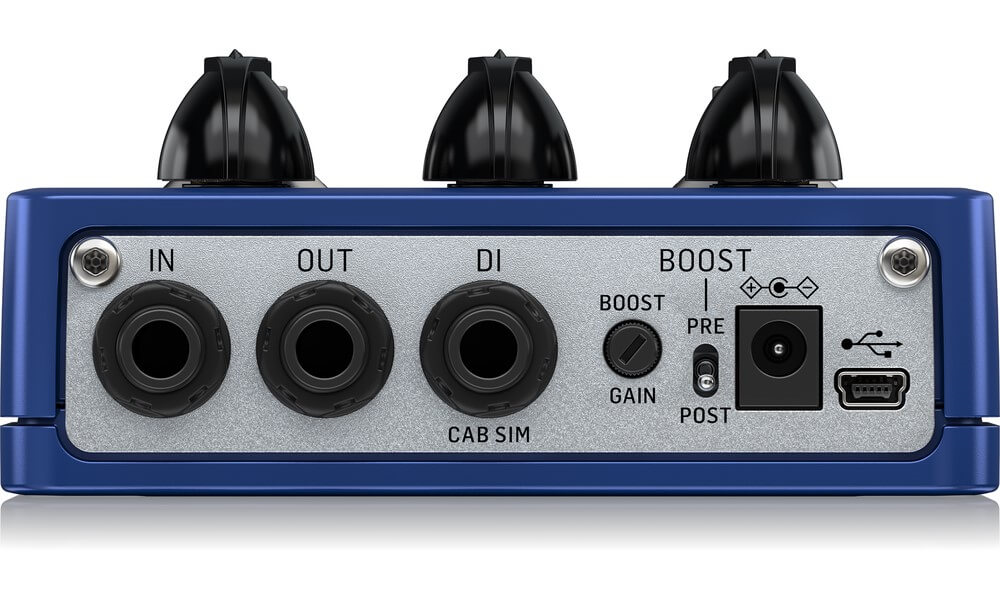

• Connectors
  • ¼" Input Jack, Unbalanced
  • ¼" Output Jack, Unbalanced
  • ¼" DI Out Jack, TRS Balanced, with Cab Sim
  • 3.5mm Phones Output Jack
  • DC IN Jack
  • USB Port
• Controls
  • NORMAL Knob
  • BRILLIANT Knob
  • LEVEL Knob
  • BASS Knob
  • TREBLE Knob
  • HI-CUT Knob
  • Boost Gain Knob (Rear Panel)
  • BOOST PRE/POST Switch (Rear Panel)
  • CHANNEL Footswitch
  • BOOST Footswitch
• Power Supply: 9V DC Power Adaptor (Center Negative)
• Dimensions
  • 185mm (L) x 186mm (W) x 103mm (H)
  • 500g
