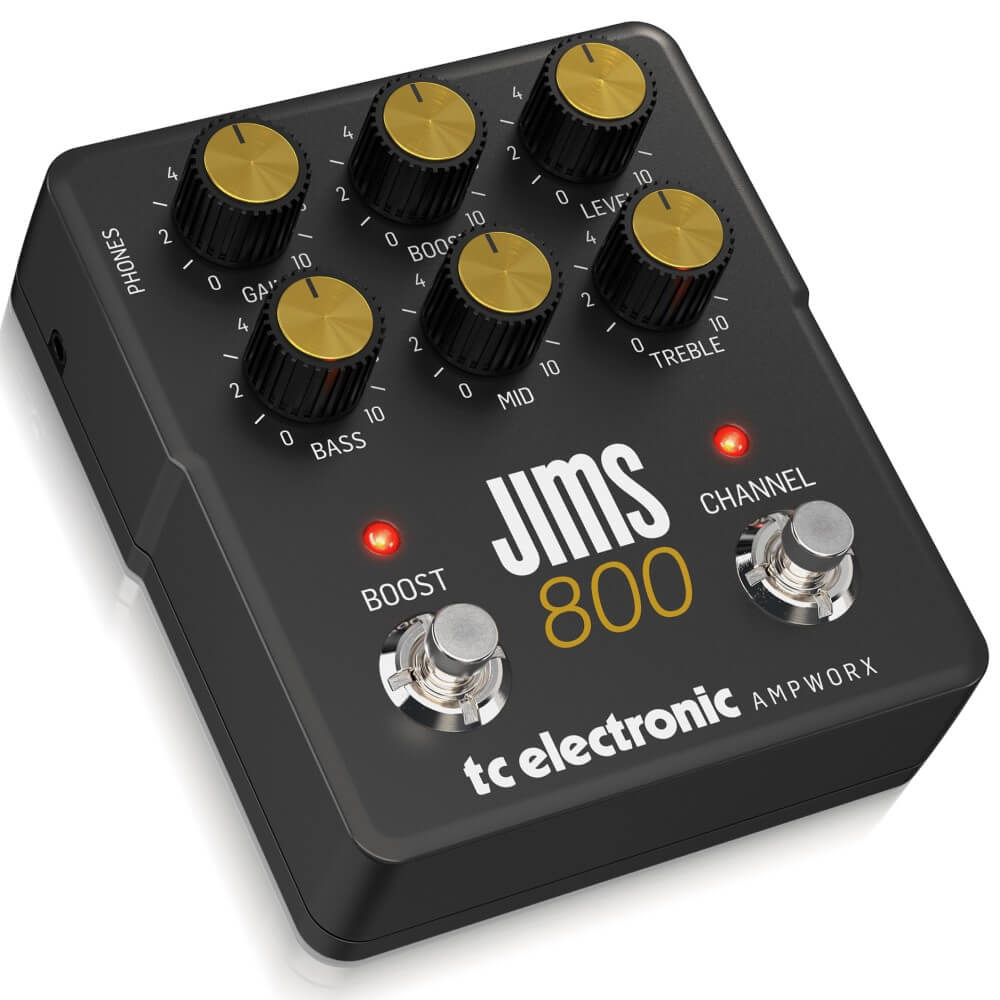

TC Electronic Ampworx Hi-Gain Series JIMS 800 Dual-Channel Guitar Preamp Pedal

The all-new TC Electronic Ampworx JIMS 800 Dual-Channel Preamp faithfully replicates the sound and feel of a modified JCM800 tube amplifier in a pedal, giving you independent channel controls, a Pre/Post Boost, and dedicated outputs for DI and headphones featuring official cab sim impulse responses from Celestion.

• Two channels with independent gain, volume and EQ controls for classic for classic 80’s clean, rock and metal tones
• Highly sought after custom shop modifications typically found from legendary amp builders of the 80’s. Including Treble Bleed, Tonestack Tweaks and 2nd Stage Gain mods
• Integrated booster activates at the kick of a footswitch with separate gain control for each channel and global Pre/Post option
• Pre boost dialed in to drive the amp model harder and add a distinct mid hump like a classic overdrive pedal
• Dedicated DI output, equipped with official Celestion 4x12 G12-65 cab sim IR, turns your pedalboard into a gig-ready rig direct to PA system or audio interface for recording
• Dedicated headphone output, equipped with official Celestion 4x12 G12-65 cab sim IR, for huge tube amp tones and practice sessions that won’t disturb your neighbors
• Master presence, set it and forget it, control on the rear panel to tailor your preamp and compensate for darker or brighter rigs and rooms
• Optional bypass or always on channel change footswitch modes
• Groundbreaking TC AMPWORX modeling technology provides low latency, huge dynamic range and feels like the real deal
• Perfect pedalboard-friendly pedal platform takes drive pedals like a champ

Dual Channel or Stompbox

JIMS 800 is set to Dual Channel mode by default - a configuration that keeps the pedal permanently engaged , giving you instant access to each channel's unique sonic profile. For those looking for a more traditional stompbox operation, JIMS 800 also includes a Bypass Mode, which allows you to choose which of the two channels you want in the chain. The JIMS 800 is incredibly flexible, delivering unparalleled power and performance to allow you to rock out however you please!

Built-In G12-65 4x12 Cab

A great speaker cabinet is absolutely crucial to a great amplifier tone, and thanks to groundbreaking advancements in convolution based impulse response technology, TC Electronic have captured the essence of incredible speaker cabinets with stunning accuracy and authenticity. Celestion have been the first choice supplier of cabinet speakers for countless legendary amplifier manufacturers throughout music history, so TC Electronic partnered with those masters of speaker craftsmanship to ensure that the Ampworx pedals delivered the authentic sound of genuine Celestion speakers. The JIMS 800 features an integrated impulse response of a 4x12 cabinet loaded with the coveted G12-65s - a perfectly matched combination to reproduce every last detail and nuance of your playing with ease.

No Time Like the Presence

With the included global PRESENCE control on the rear panel, JIMS 800 can adapt to any musical situation you might find yourself in. Realizing that players are likely to stack this pedal with a vast range of amplifiers, cabinets, and other pedals, TC Electronic included this convenient global control to allow you to dial the JIMS 800 to slot seamlessly into any existing setup or rig.

The Ins and Outs of it All

Featuring expansive output options, the DUAL WRECK's HEADPHONES and DI Outputs include an integrated cabinet impulse response to deliver genuine tone directly to an interface or mixing console - an incredibly powerful feature for silent practice, recording, and live performances. If you want to use your DUAL WRECK with a real amplifier, or use your own IR, the Line OUT option excludes the cabinet simulation- giving you the flexibility to customize and refine your sound to perfectly suit your current setup.

Gain Powerhouse

While the original amplifier's second channel is adored for it's high-gain tonal capabilities, TC Electronic have gone a step further and added a hint of additional gain. This boost is subtle, but can push your sound over the edge without sacrificing the amp's fundamental tone and feel. This slightly modified high-gain channel allows you to discover blistering tones that will mesmerize crowds and push sonic boundaries of rock guitar.

• Connectors
  • Input: 1x ¼" TS, Unbalanced
  • Input Impedance: >1MO
  • Output: 1x ¼" TRS, Balanced with Ground Sensing
  • Direct Out (Cab Sim): 1x ¼" TRS, Balanced with Ground Sensing
  • Output Impedance: 1kO
  • Headphones: 1x ?" TRS, Stereo
  • Headphones Impedance: >32O
  • USB Port: Mini-B Connector

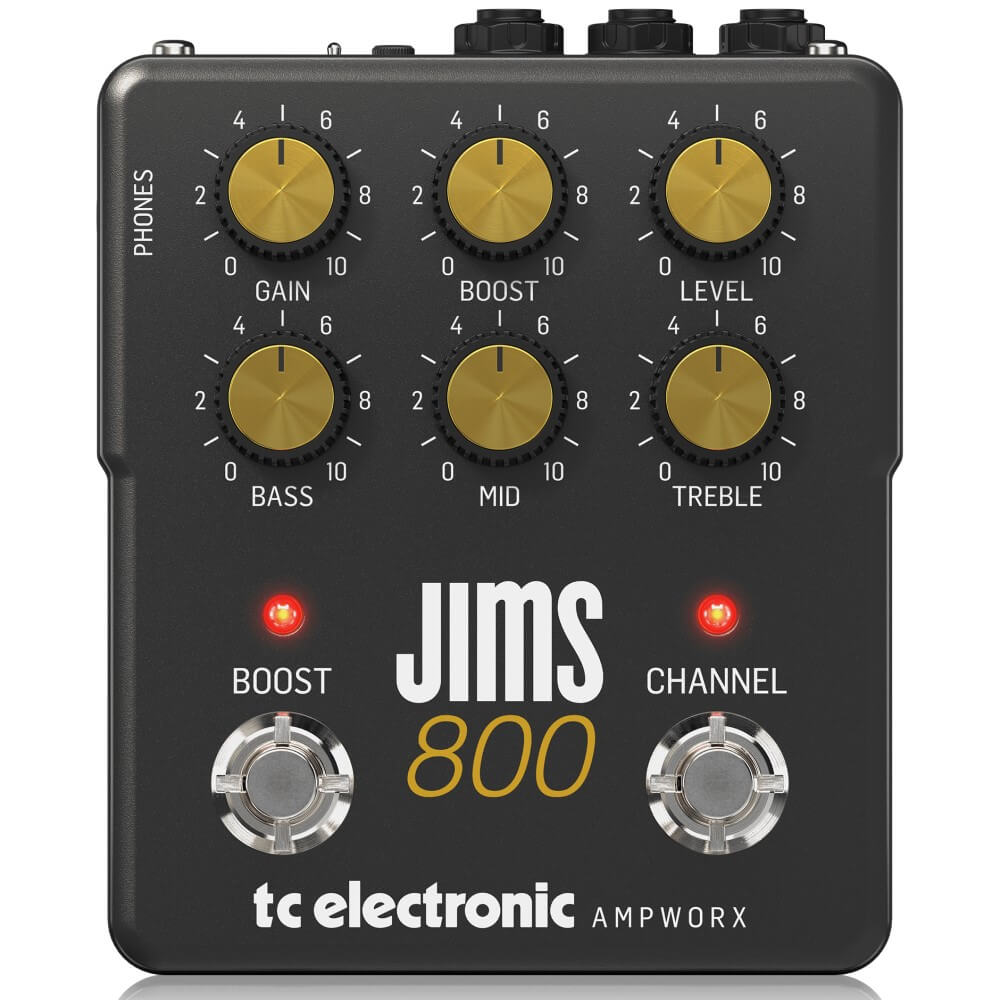

• Controls - Front Panel
  • GAIN
  • BOOST
  • LEVEL
  • BASS
  • MID
  • TREBLE

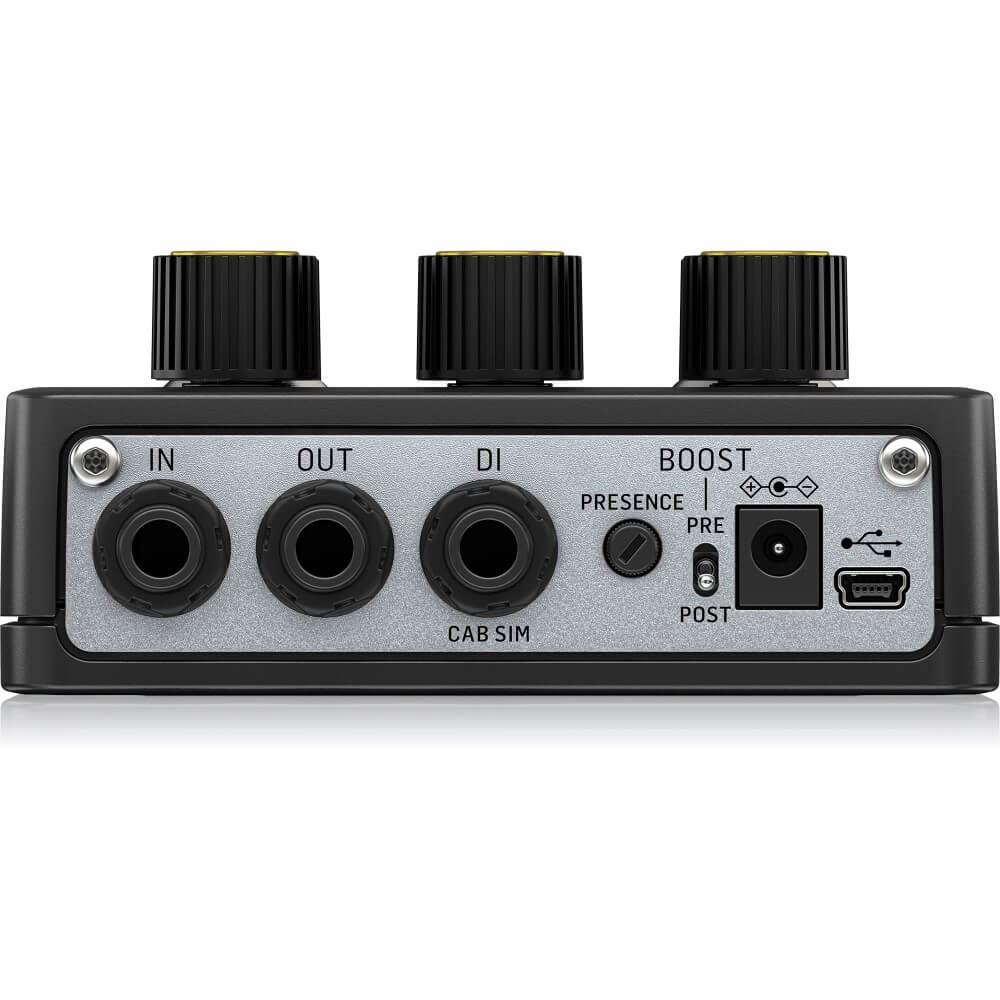

• Controls - Rear Panel
  • PRESENCE
  • BOOST Switch (PRE/POST)
• System
  • Speaker and Cab Emulation Impulse Response: Celestion G12-65, 4x12", Closed Back
  • Bypass: Buffered Bypass
• Dimensions
  • 185mm (L) x 186mm (W) x 103mm (H)
  • 540g
