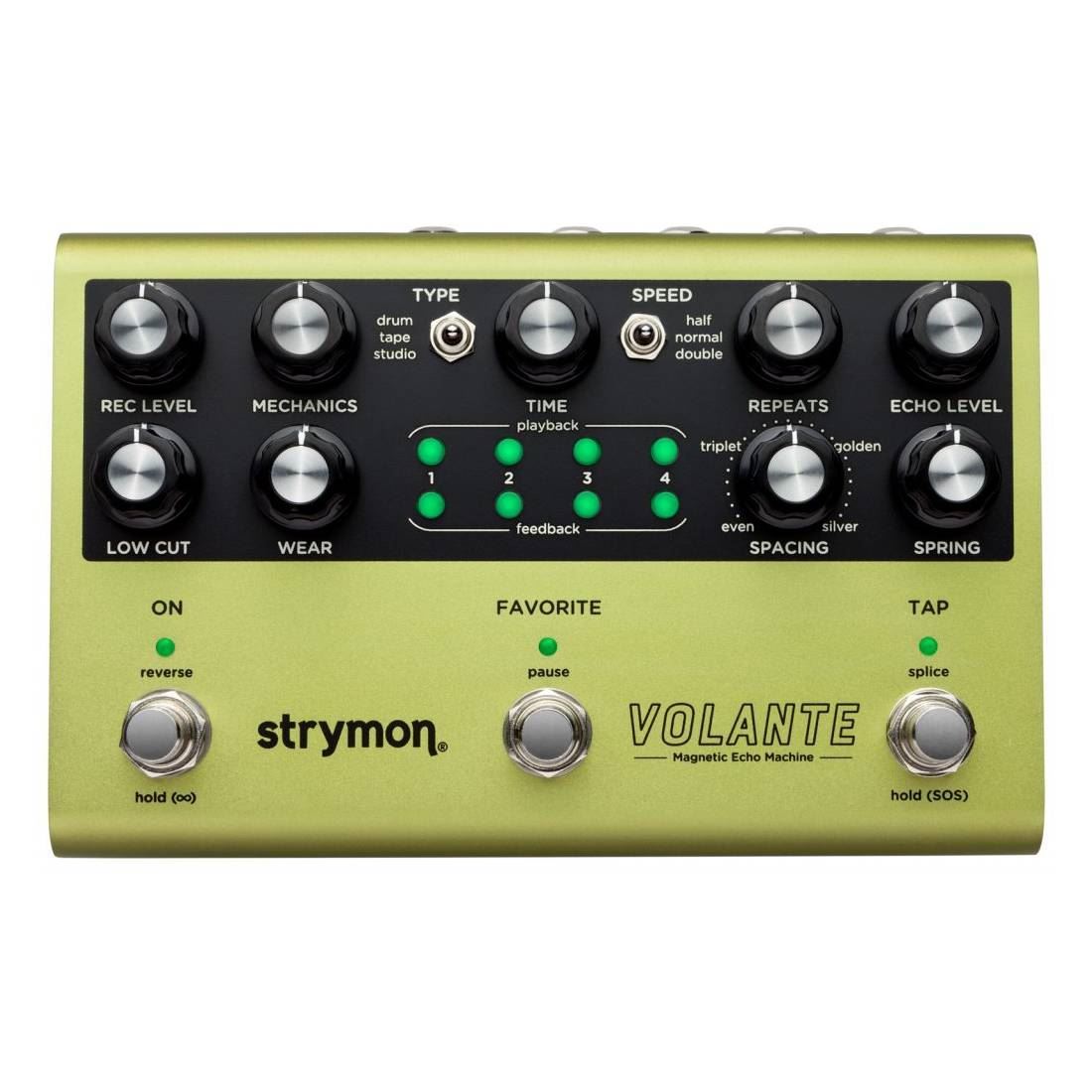

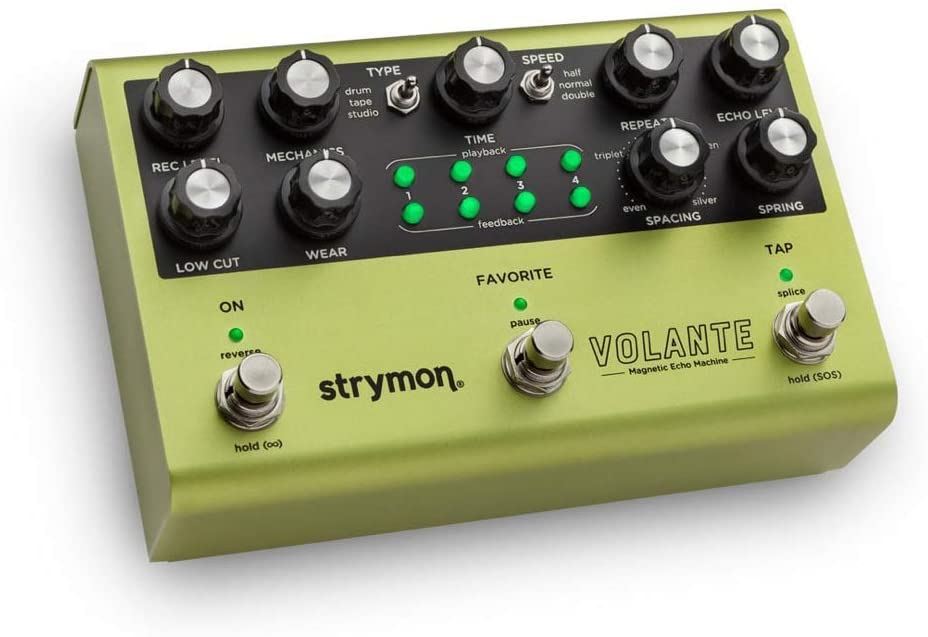

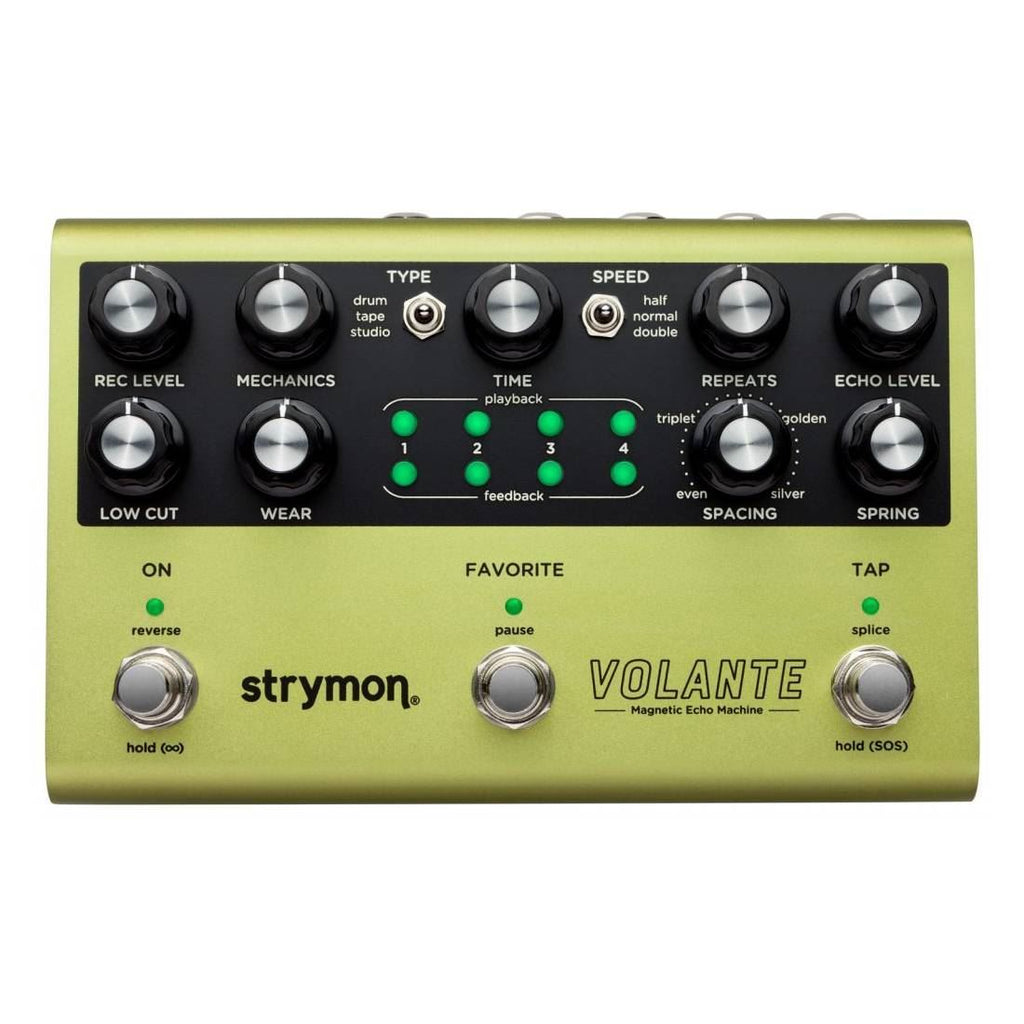

Strymon Volante Magnetic Echo Machine Guitar Effects Pedal

Activate your imagination with evolving ambient echoes and warm, organic feedback with just the right amount of grit. Sculpt your soundscape in real time as Volante becomes an extension and expansion of your musical instrument. Infuse your pedalboard with stunning vintage vibes that resonate and inspire.

Features

Drum Delay With Unprecedented Control.
Magnetic drum echoes are famous for their warmth and for their harmonically rich and saturated sounds. This is due in large part to the many tube stages present in the most sought-after units. There were tubes in the input buffer, the signal mixer, the record and playback amplifiers, the tone shaping circuit, and the output mixing circuit.

Every sonic aspect of our favorite drum echoes has been meticulously reproduced within Volante. Dial in any possible sound from the full range of the best vintage drum echo units in conditions ranging from fresh-from-factory to road-worn classic.

Classic Tape Echo Experience.
Volante gives you superbly crafted multi-head tape echoes, including the smooth tape saturation and the characteristic imperfections and nonlinearities inherent to the sound of those vintage machines.

Mechanical alignment, head wear, and tape crinkles, splices, and contaminants are all accounted for in Volante, giving you all the richness and complexity of a classic tape echo, with modern control and stability. Volante also allows you to recreate the irregular head spacing of some of the classic tape echo machines.

True Studio Tape Sound.
The professional reel-to-reel machines of the 50s and 60s were high-fidelity units built to accurately reproduce full-range audio signals. In the hands of creative engineers, these machines also doubled as some of the earliest studio effects, producing some of the fattest sounds imaginable.

Of Volante’s three magnetic echo types, the Studio Echo provides the cleanest sound, able to sustain the highest number of repeats with minimal degradation. Volante gives you a pristine studio delay with the full-bodied warmth and fidelity of reel-to-reel tape.

Specifications

Sound Design

• Multi-head magnetic media delay machine providing four playback heads with individual feedback, panning, and level controls
• Processor-intense algorithms deliver meticulously nuanced recreations of vintage magnetic echo systems (drum echo, tape echo, studio reel-to-reel echo)
• Dedicated control over echo machine tone and media: Low Cut, Mechanics, Wear
• Input Record Level for clean reproduction to warm, fat saturation
• Independent Spring Reverb
• Sound on Sound looping mode (mono) with reverse, pause, splice, and infinite repeat functions

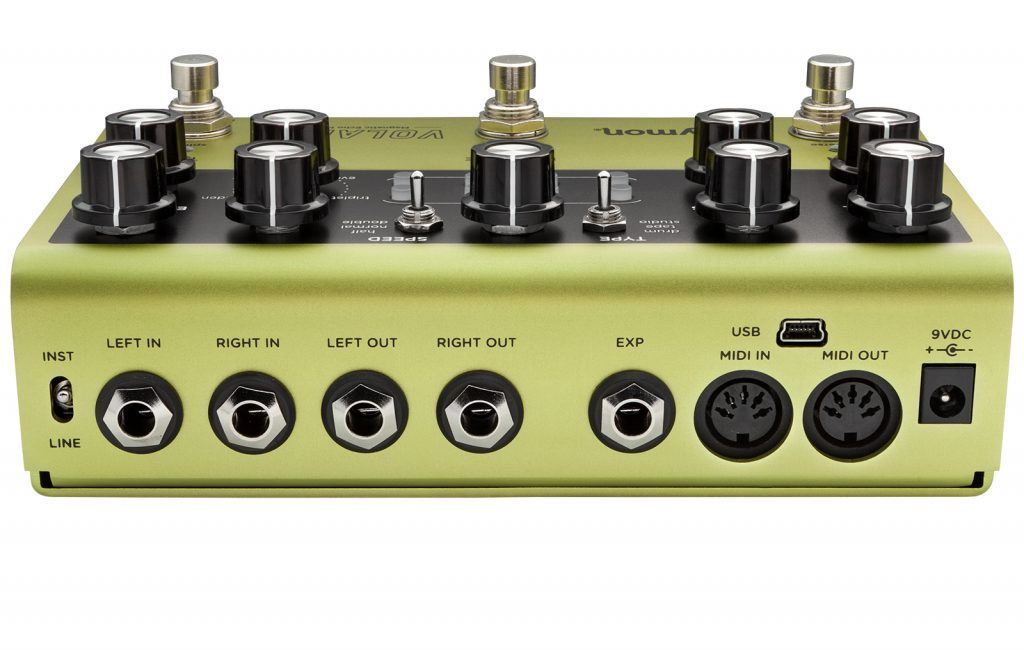

Ins, Outs, and Switches

• High impedance stereo input
• Stereo output
• Input Level switch allows for both instrument and line level signals
• On, Favorite, and Tap Tempo footswitches
• Expression pedal input allows the connection of an expression pedal, external tap pedal, 1/4″ to MIDI cable, or MultiSwitch Plus.
• Full featured MIDI in/out supporting MIDI CCs, program changes, and more
• USB jack for controlling MIDI via computer

Audio Quality

• Analog dry path for a zero latency dry signal that is never converted to digital
• Premium JFET analog front end
• Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
• Super high performance SHARC DSP
• 32-bit floating point processing
• 20Hz to 20kHz frequency response
• Audio Input Impedance: 1M Ohm
• Audio Output Impedance: 100 Ohm

Other Specs

• True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
• Strong and lightweight anodized olive green aluminum chassis
• 9V DC power supply included
• Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of current
• Dimensions:
  • 4.5″ deep x 7″ wide x 1.75″ tall
  • 114.3 mm deep x 177.3 mm wide x 44.5 mm tall
• Designed and built in the USA
