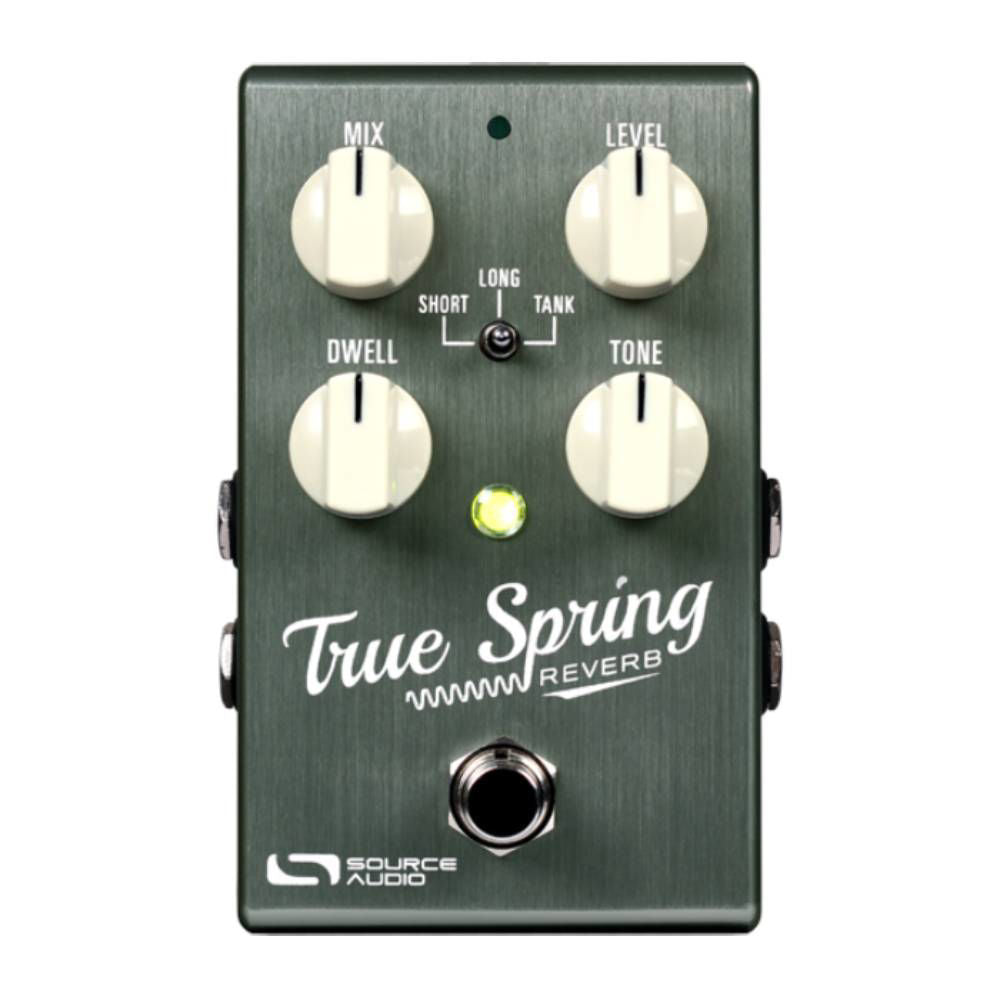

Source Audio One Series True Spring Reverb Guitar Effects Pedal (Power Supply Included)

Source Audio doesn’t depend on the off-the-shelf reverb effects processors found in many modern reverb pedals, we meticulously craft every one of our proprietary effects engines and load them to high-powered, 56-bit Sigma DSP.

Our two man engineering team of Bob Chidlaw and Jesse Remignanti put years of collective man-hours into capturing every nuance and idiosyncrasy of the spring reverb and tremolo effects from some of the music gear industry’s most iconic guitar amps and outboard gear.

The result is indisputable sound quality with magnificent tonal depth and precision.

Features

• Three Distinct Spring Reverb and Tremolo Effects.
• Two Modes of Operation – Use the pedal in Standard Mode for a classic (non-preset) stompbox experience or turn on Preset Mode and save a user preset (including reverb/tremolo effects and knob positions) to each of the three toggle switch positions.

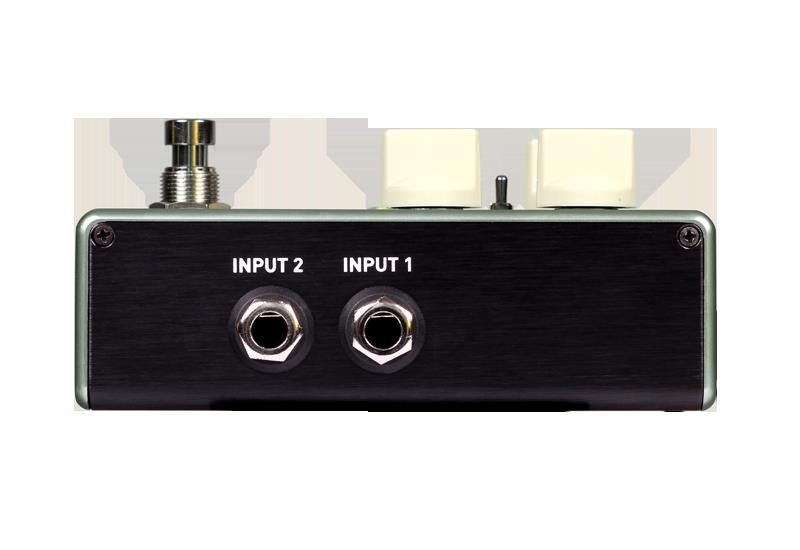

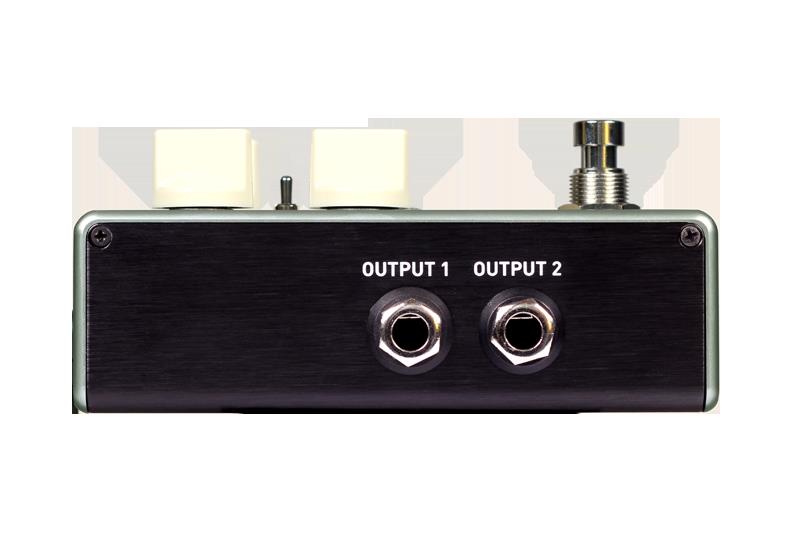

• Flexible Stereo Routing – The True Spring is equally at home in a mono or stereo rig. The pedal’s stereo inputs and outputs offer a variety of routing options such as Stereo to Stereo, Mono to Mono, Mono-to-Stereo, Stereo Sum-to-Mono and External Loop Mode.
• Universal Bypass — Select Active Analog (Buffered) or True Bypass.
• Secondary Tremolo Controls - Press and hold the CONTROL INPUT button to access the True Spring's tremolo effects (DWELL knob controls tremolo DEPTH / TONE knob controls tremolo RATE / toggle switch selects tremolo type).
• Expression Control — Compatible with Source Audio expression pedals and the Hot Hand 3 Universal Wireless Effects Controller. Assign up to three simultaneous parameters with editable depth and direction.
• External Tap Tempo – Use the Source Audio Tap Switch to tap in the tremolo rate with a choice of four different beat divisions (quarter, eighth, triplet, and sixteenth).
• External Tremolo Engage and Bypass – Use the Source Audio Tap Switch to engage or disengage the tremolo effects on top of an active spring reverb.

Specifications

Audio Performance

• Maximum Input Level: +6 dBV = 8.2 dBu = 2 V RMS = 5.6 V p-p
• Input Impedance: 1 MegaOhm (1 MΩ)
• Output Impedance: 600 Ohm (600 Ω)
• 108 dB DNR Audio Path
• 24-bit Audio Conversion
• 56-bit Digital Data Path
• Universal BypassTM (relay-based true bypass and analog buffered bypass)

Power

• 9V DC, minimum 165 mA (maximum 195 mA when connected to a power reliant external
  controller)
• Negative tip (positive sleeve) barrel power jack, 2.1 mm inner diameter, 5.5 mm outer diameter

Dimensions

• Length: 11.63 cm (4.58 inches)
• Width: 7.00 cm (2.75 inches)
• Height (not including knobs and footswitch): 3.71 cm (1.46 inches)
• Height (including knobs and footswitch): 5.61 cm (2.21 inches)

Weight

• Weight: 280 grams (0.625 pounds)

Watch: True Spring Reverb: Official Demo
