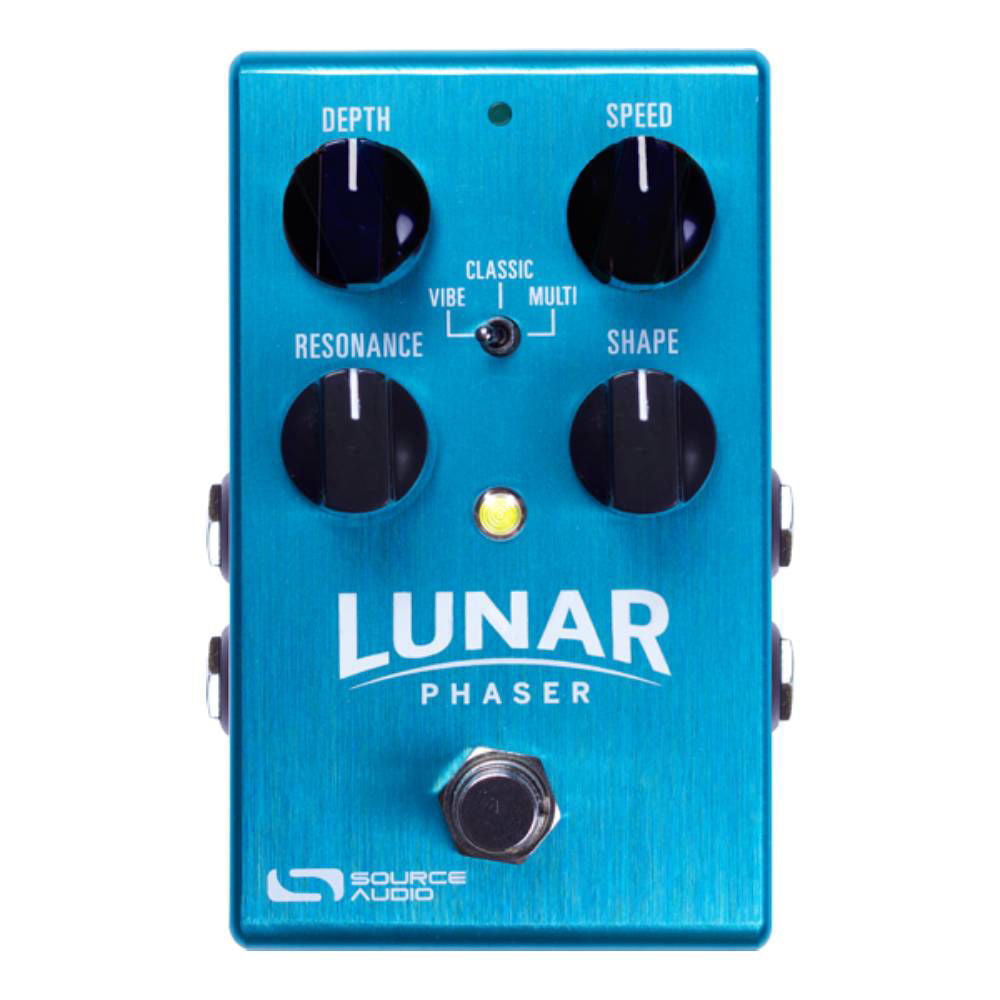

Source Audio One Series Lunar Phaser Guitar Effects Pedal (Power Supply Included)

The Lunar Phaser offers three styles of swirling stereo phase modulation. Choose from Vibe - a thumping Uni-Vibe effect, Classic - a resonant and creamy 4-stage phaser, and Multi - a highly animated, yet smooth and satisfying 8-stage phaser.

Explore the sonic landscape even further by sweeping the Shape knob to gradually morph the LFO wave shape from a smooth, undulating sine wave to an aggressive and choppy square wave.

Features

• 3 Flavors of Phase Modulation
• 3 Presets — use Preset Mode to save a different preset to each of the three toggle switch positions. When the pedal is engaged, all of the parameters instantly jump to their saved value, regardless of the knob positions.

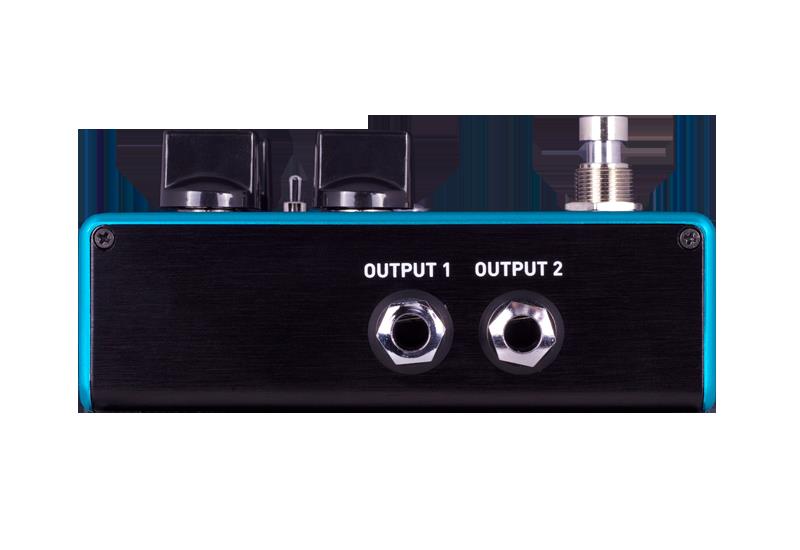

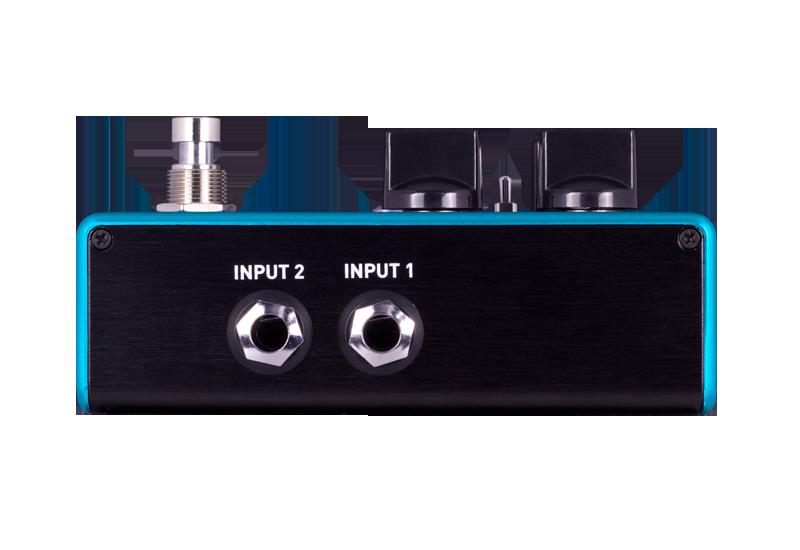

• Stereo Input and Output Jacks - Create deep and wide stereo modulation or engage one of the Lunar’s many Signal Routing options (see Neuro App Features for details).
• Universal Bypass — Select either analog buffered or relay based true bypass.
• Expression Control — Compatible with Source Audio expression pedals and the Hot Hand 3 Universal Wireless Effects Controller.
• Tap Tempo — Sync your phase modulation rate to the rest of the band with Source Audio’s External Tap Tempo switch. Set beat divisions (quarter, eighth, triplet, and 16th) with the Speed knob.

Specifications

Audio Performance

• Maximum Input Level: +6 dBV = 8.2 dBu = 2 V RMS = 5.6 V p-p
• Input Impedance: 1 MegaOhm (1 MΩ)
• Output Impedance: 600 Ohm (600 Ω)
• 108 dB DNR Audio Path
• 24-bit Audio Conversion
• 56-bit Digital Data Path
• Universal BypassTM (relay-based true bypass and analog buffered bypass)

Power

• 180 mA @ 9V DC (max 220 mA with Hot Hand Wireless Adapter)
• Negative tip (positive sleeve) barrel power jack, 2.1 mm inner diameter, 5.5 mm outer diameter

Dimensions

• Length: 11.63 cm (4.58 inches)
• Width: 7.00 cm (2.75 inches)
• Height (not including knobs and footswitch): 3.71 cm (1.46 inches)

Weight

• 280 grams (0.625 pounds)
