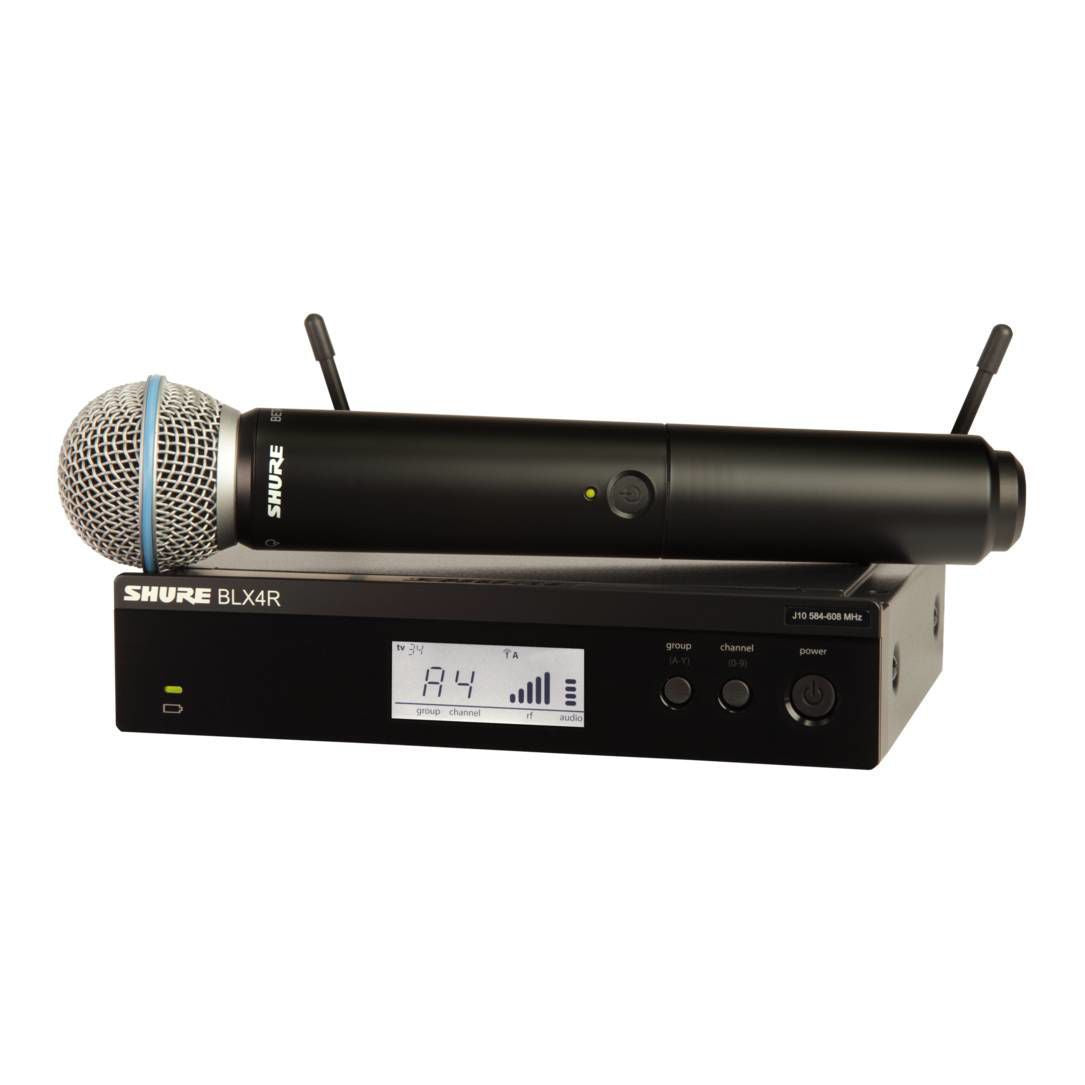

Shure BLX24R/B58 Wireless 1/2R Handheld System (M17: 662-686MHz)

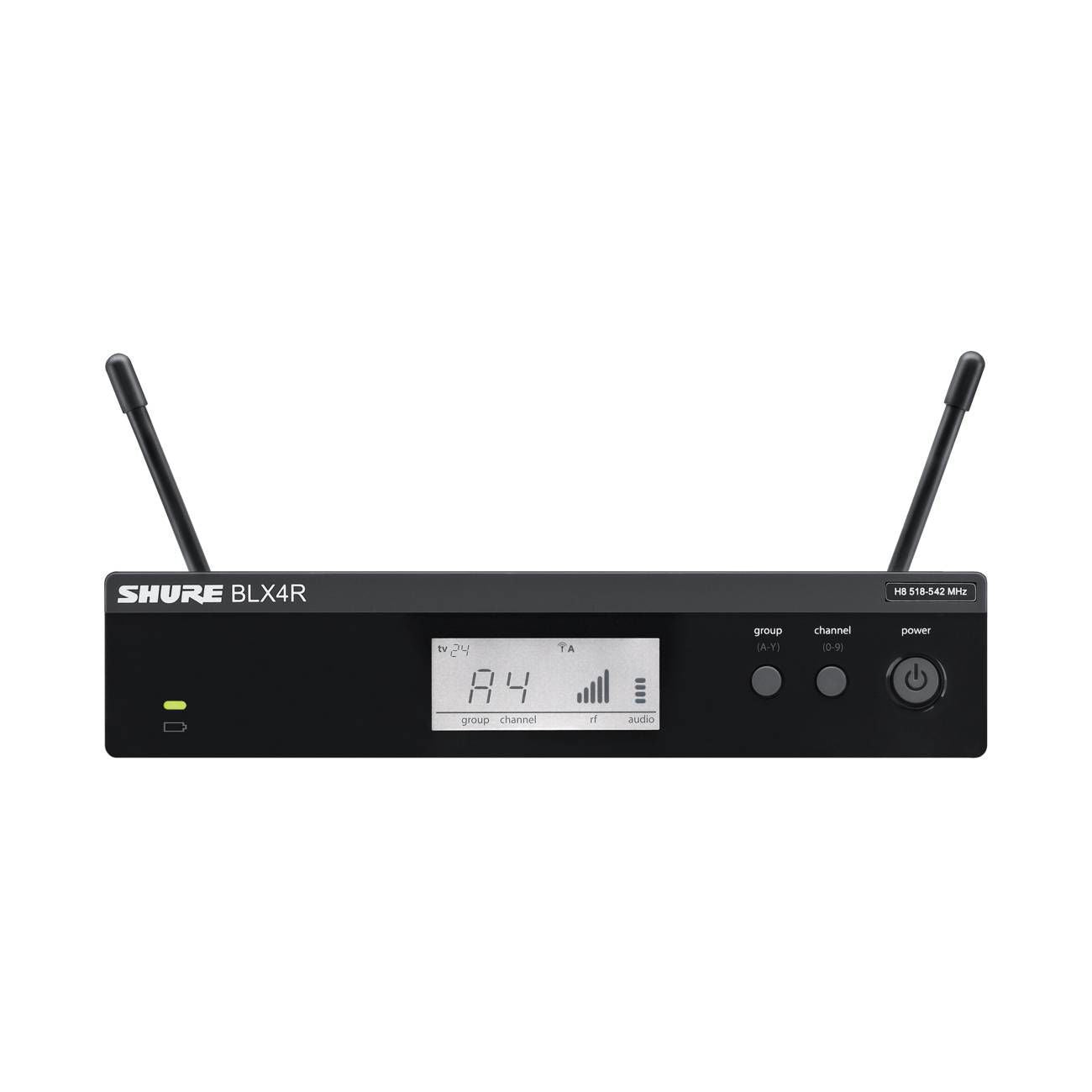

A tailored frequency response accentuates vocals, and the supercardioid pattern isolates from other sound sources. It combines simple setup and an intuitive interface in a rack-mount receiver.

Specifications

What's in the box?

• 1 - RACK MOUNT BRACKET
• 1 - LONG RACK MOUNT BRACKET
• 1 - LINK BRACKET
• 1 - HARDWARE KIT
• 1 - Swivel Adapter
• 1 - Thread Adapter
• 2 - ANTENNA/BNC,1/4 WAVE
• 2 - ADAPTER,BULKHEAD,BNC
• 1 - BAG VINYL, ZIPPERED
• 2 - CABLE,BNC,22 in.
• 1 - Power supply

Technical Specifications

• Operating Range: 300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference)
• Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)
• Audio Range: 50–15,000 Hz (dependent on microphone type)
• Transmitter RF Output Power: 10 mW, typical (varies by region)
• Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced
• Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
• Battery Life: Up to 14 hours
• Dynamic Range: 100 dB A-weighted
• System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
• Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
• Power Requirements: 12–18 V DC at 260 mA, supplied by external power supply
• Note: Performance may vary depending on country regulations and operating environment.

Beta58A

• 50hz – 16khz

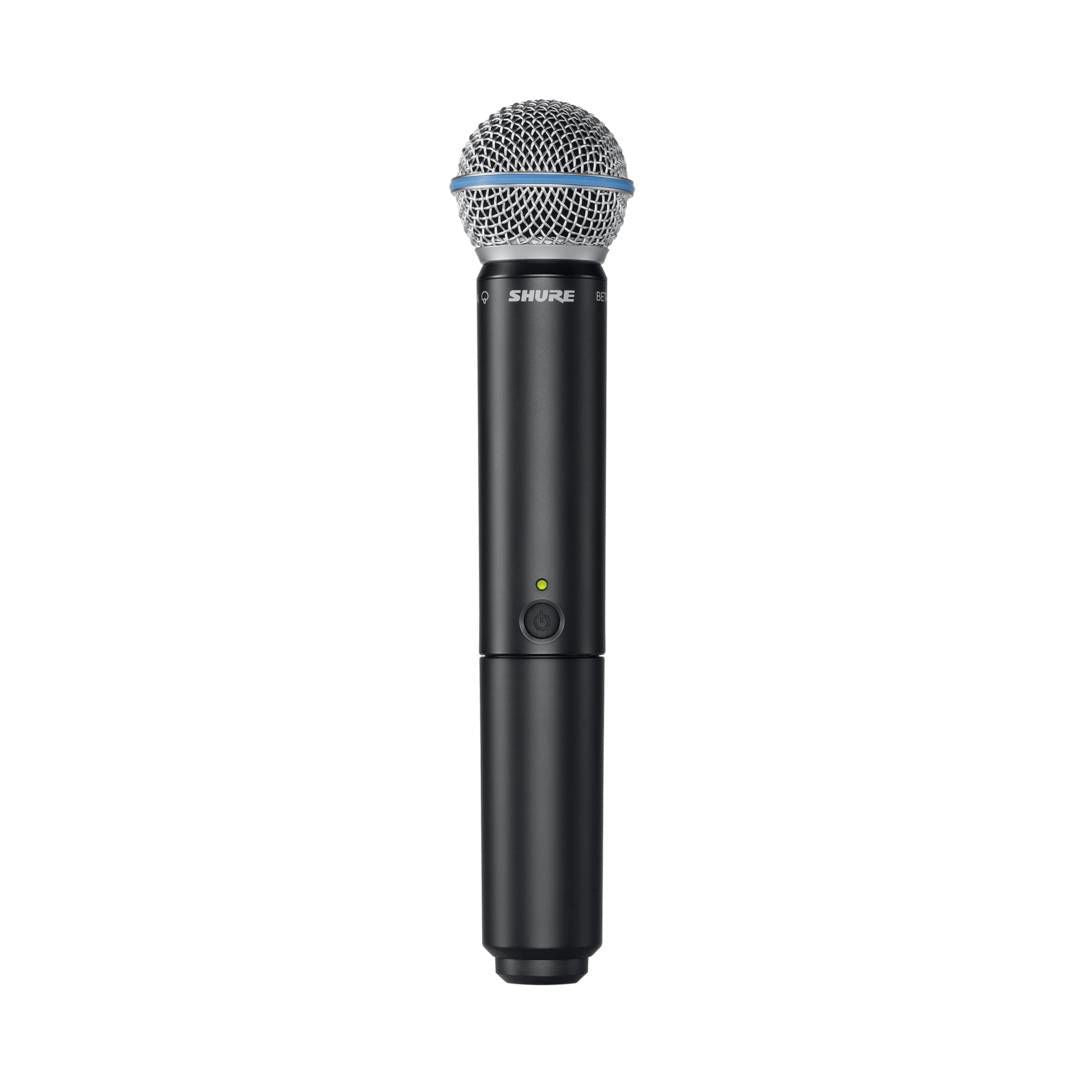

• BETA 58A® Handheld Microphone with BLX2 Transmitter
• Durable Padded Zipper Case
• Break-resistant Microphone Clip
• 2 AA Batteries
• Operating Principle: Dynamic
• Polar Pattern: SuperCardioid
• Frequency: Tailored
