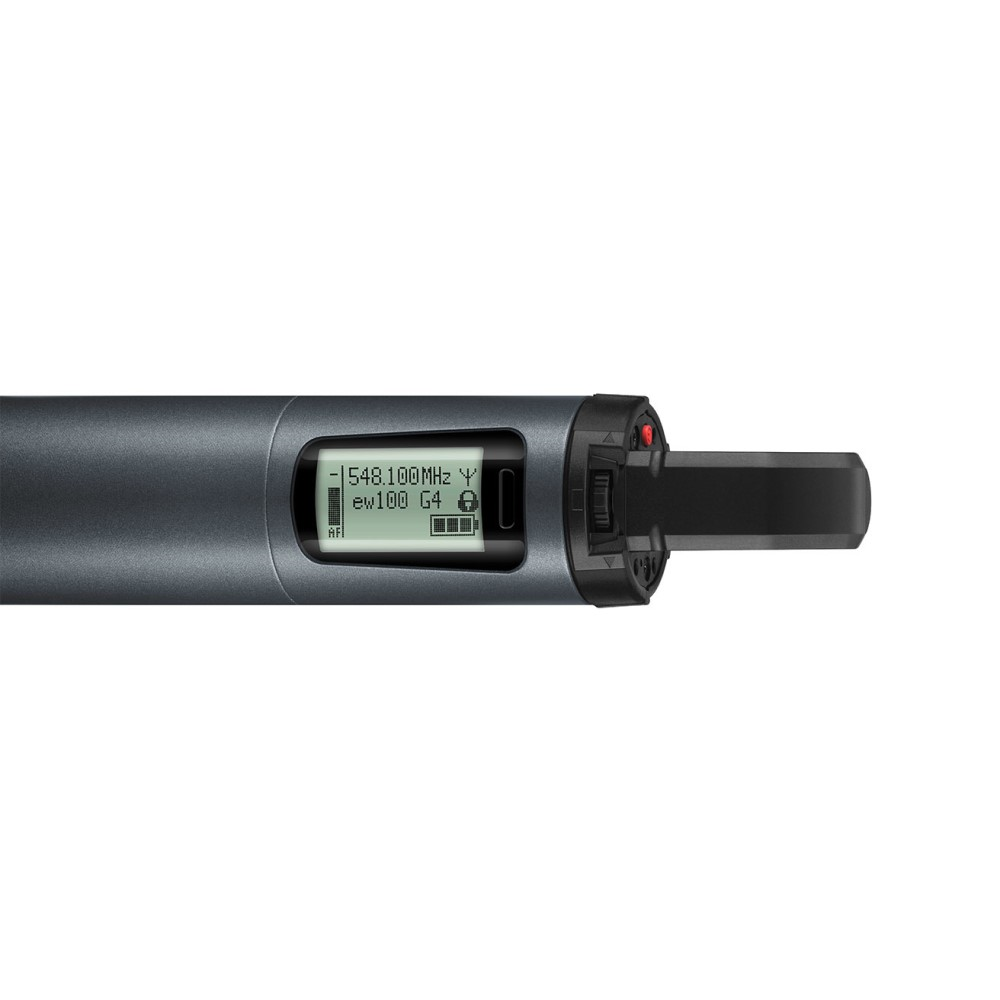

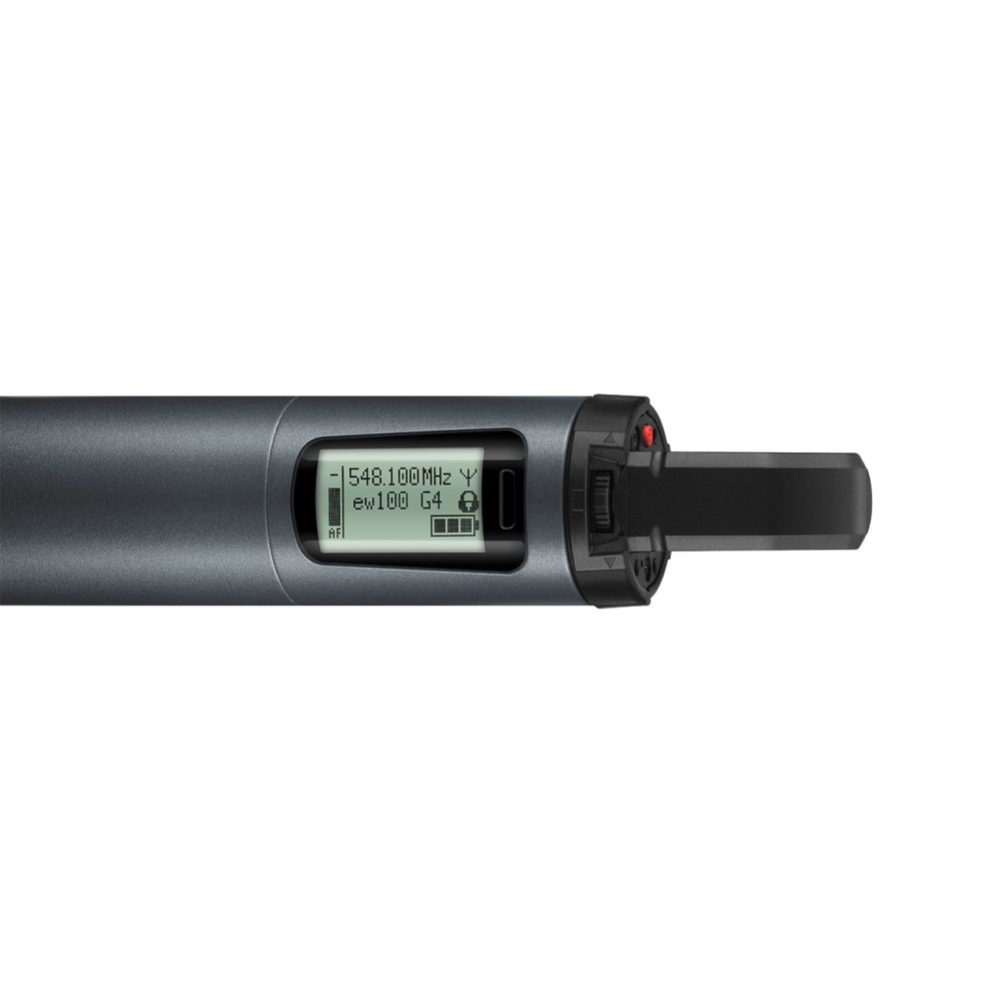

Sennheiser SKM100 G4-G Handheld Transmitter (566-608 MHz)

Name: Sennheiser SKM100 G4-G Handheld Transmitter (566-608 MHz)
Brand: Sennheiser
SKU: 509759
Price: 479.00 AUD
Availability: InStock

$479.00 AUD $559.00 AUD

Brand: Sennheiser

SKU: 509759

Rent from

Backorder

Mega Music Myaree

Available to Order In

Mega Music Wangara

Available to Order In

Mega Music Warehouse

Available to Order In

FEATURES

Your choice of Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

SPECIFICATIONS

Frequency range: G: 566 - 608 MHz
Dimensions: Approx. Ø 50 x 265 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: 0.9 %
Weight: (incl. batteries) approx. 450 g
Signal-to-noise ratio: 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA
Input impedance: 40 kΩ
Max. Input voltage: 3 V
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response: 80 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ±15 ppm
