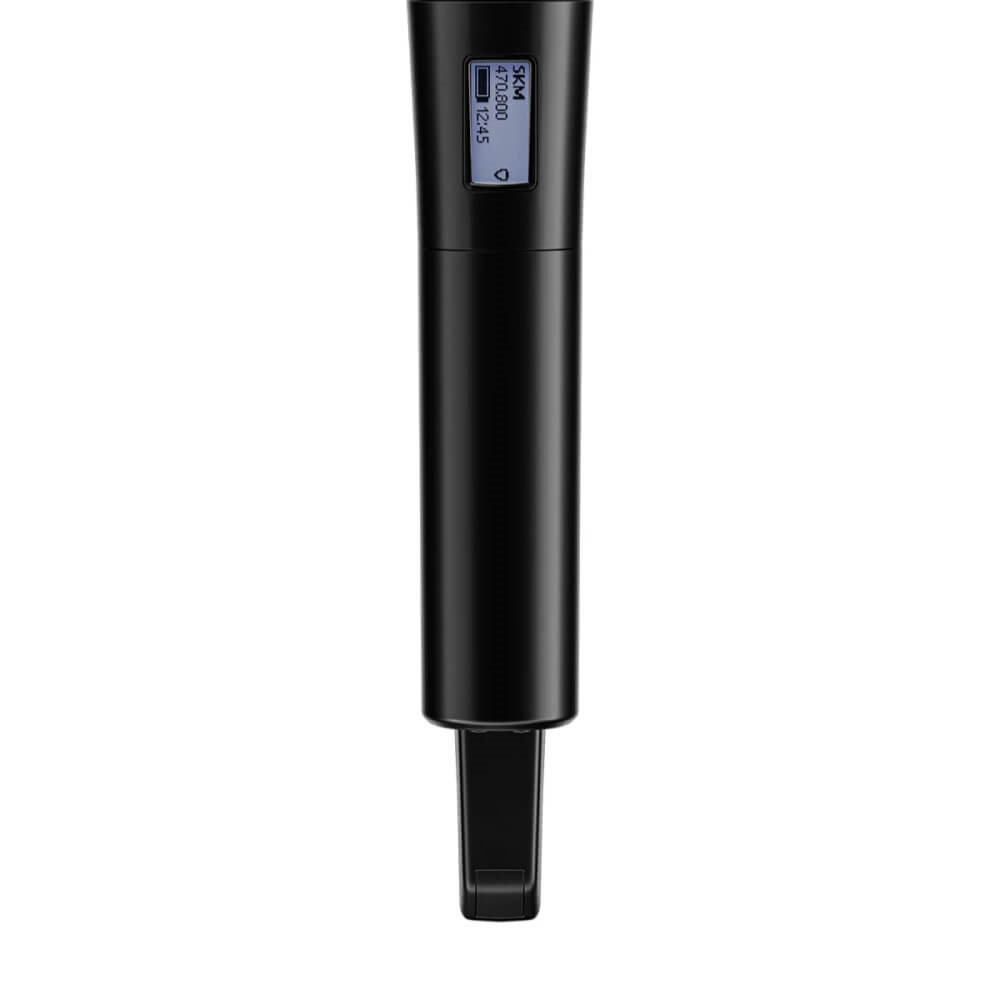

Sennheiser EW-DX SKM-S Wireless Handheld Transmitter with Switch - R1-9 (520 - 607.8MHz)

The Sennheiser EW-DX system simplifies your professional workflow using refined technologies and decades of knowledge to deliver a digital UHF system that can is easily scalable. With its advanced feature set and hardware options, classrooms, corporate environments, and live productions benefit from a network-ready system that integrates seamlessly. By quickly assessing your environment, the EW-DX system uses equidistant channel spacing to deploy frequencies, while tools such as Sennheiser's Control Cockpit, Wireless Systems Manager, and the Smart Assist App enable remote monitoring. Rounded out by in-device charging, 12-hour battery life, and switching bandwidth up to 88MHz, this system is certain to be the right tool for the job.

• 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 10mW fixed RF power for up to 100 m/328 ft of range
• Charging contacts for in-device charging with CHG 70N charger (sold separately)
• Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
• Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (sold separately)
• Programmable mute switch (AF Mute, RF Mute, no function)
• Function buttons - control all the transmitter settings directly from the handheld including button lock function
• Digital audio trim
• Test tone generator
• Switchable LED configuration (On/Off)
• Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
• Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
• Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
• Metal housing

• Audio Link Frequency Ranges: R1-9 - 520MHz - 607.8MHz
• Bluetooth Low Energy (BLE) Frequency Range: 2405MHz - 2480MHz
• Audio Frequency Response: 20Hz - 20kHz
• THD: < -60dB for 1kHz @ -3dBFS Input Level
• Dynamic Range: 134dB
• System Latency: 1.9ms
• RF Technology: Intelligent Switching Diversity
