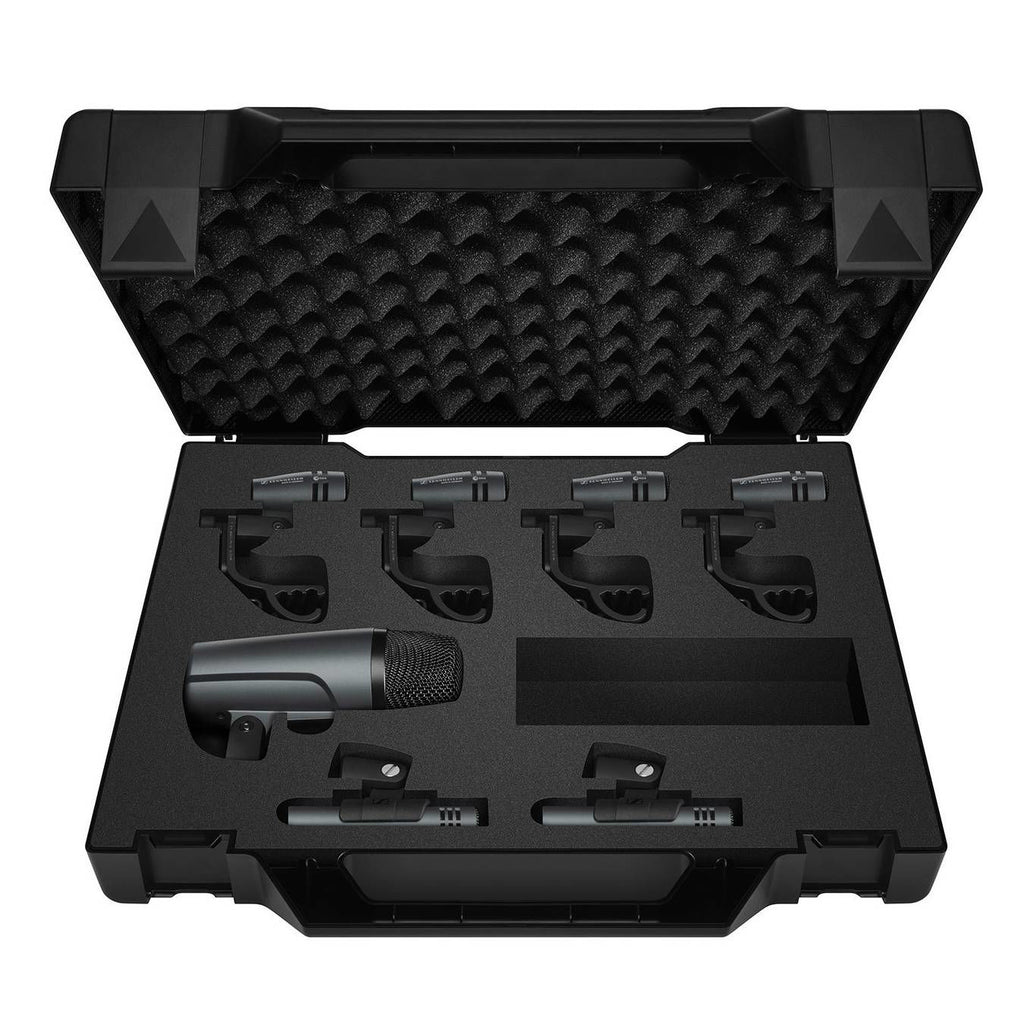

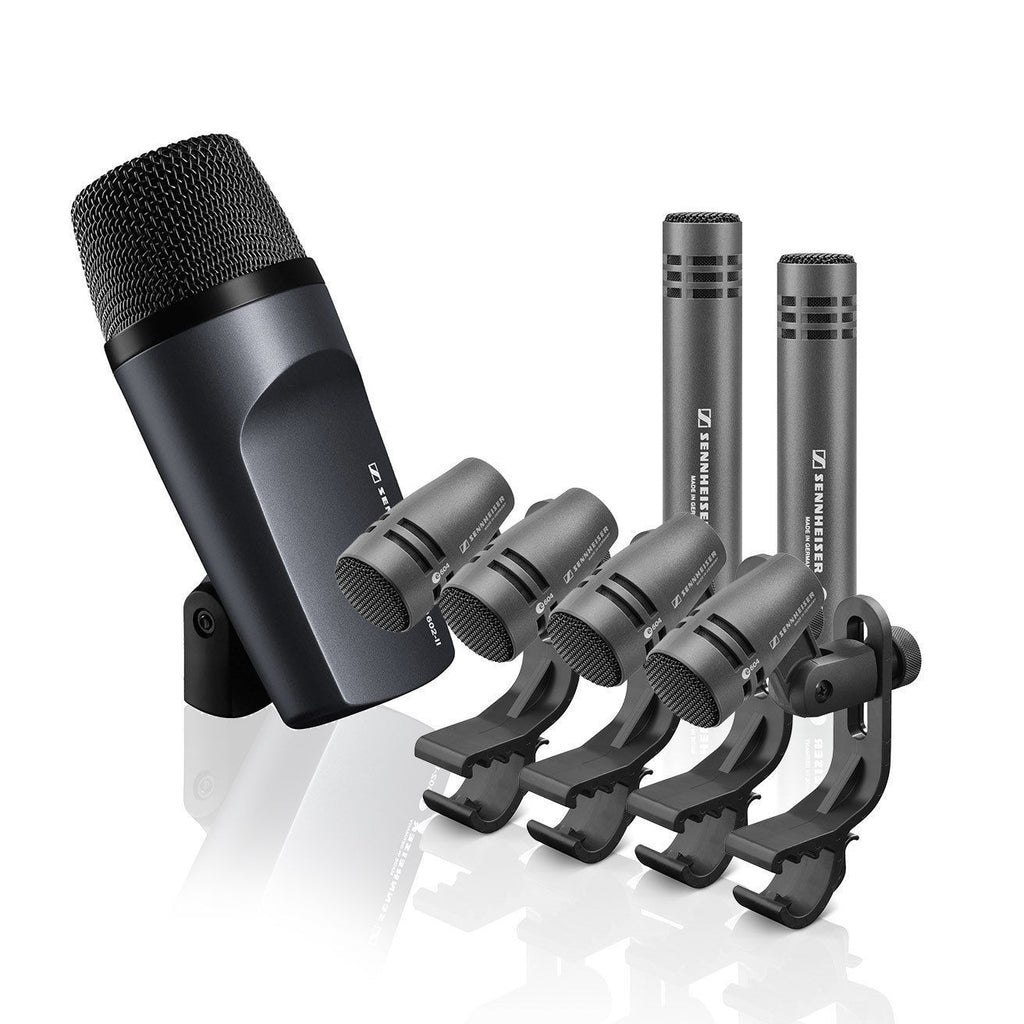

Sennheiser e600 Series Drum Mic Set with Heavy Duty Case

Features

• e 614: for demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording
• e 604: for toms, snares, and percussion, clips-on quickly and easily wherever you choose. Tough, reinforced housing, and clamp
• 602-II: for bass drums, bass guitar cabs and tubas. Solid, lightweight, and easy to position. For studios, clubs, rehearsal rooms, smaller gigs, or for home recording.

Specifications

e 614

• Dimensions: Ø 20mm, L = 100mm
• Connector: XLR-3
• Frequency response: 40 - 20000 Hz
• Max. sound pressure level: 139 dB/SPL
• Transducer principle: pre-polarised condenser microphone
• Weight: 93 g
• Pick-up pattern: super-cardioid
• Sensitivity in free field, no load (1kHz): 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
• Nominal impedance: 50 O
• Min. terminating impedance: 1000 O
• Phantom powering: 12 – 52 V / 3 mA
• Equivalent noise level: 24 dB(A)
• Equivalent noise level weighted as per CCIR 468-3: 35 dB

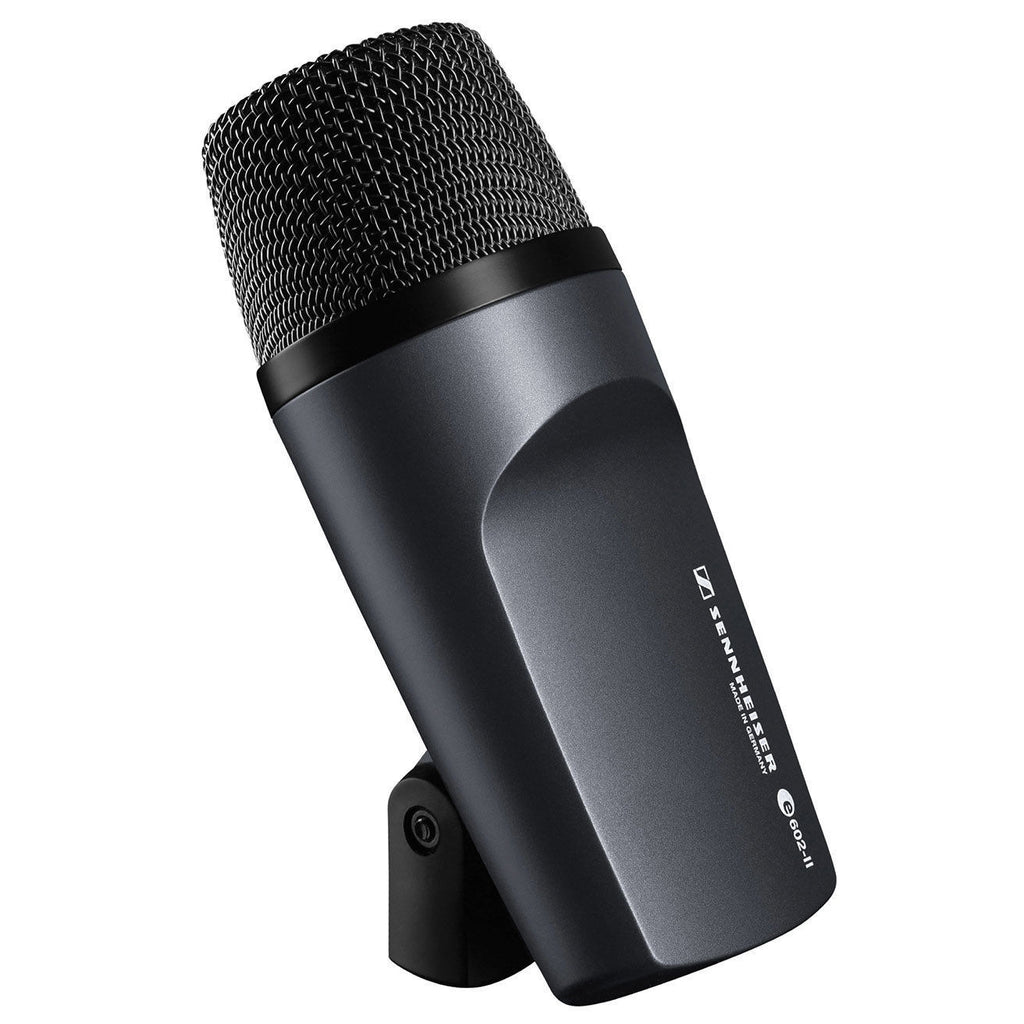

602 ii

• Dimensions: Ø 60 x 153 mm
• Connector: XLR-3
• Transducer principle (Microphone): dynamic
• Frequency response: 20 - 16000 Hz
• Weight: 318 g
• Pick-up pattern: cardioid
• Sensitivity in free field, no load (1kHz): 0,25 mV/Pa; (50 Hz) 0,9 mV/Pa
• Nominal impedance: 350 O
• Min. terminating impedance: 1000 O

e 604

• Dimensions: Ø 33 x 59 mm
• Connector: XLR-3
• Frequency response (Microphone): 40 - 18000 Hz
• Transducer principle (Microphone): dynamic
• Weight: 60 g
• Pick-up pattern: cardioid
• Sensitivity in free field, no load (1kHz): 1,8 mV/Pa
• Nominal impedance: 350 O
• Min. terminating impedance: 1000 O
• Weight w/o cable: 60 g
