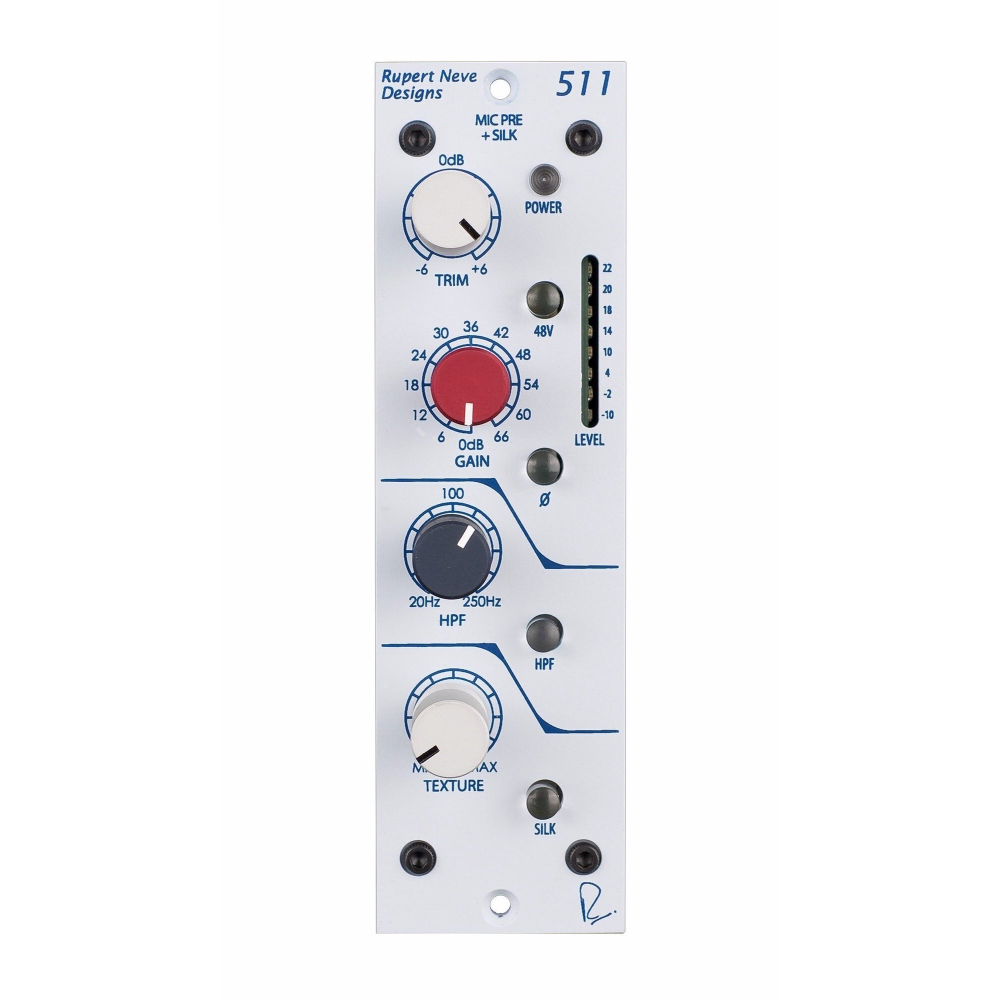

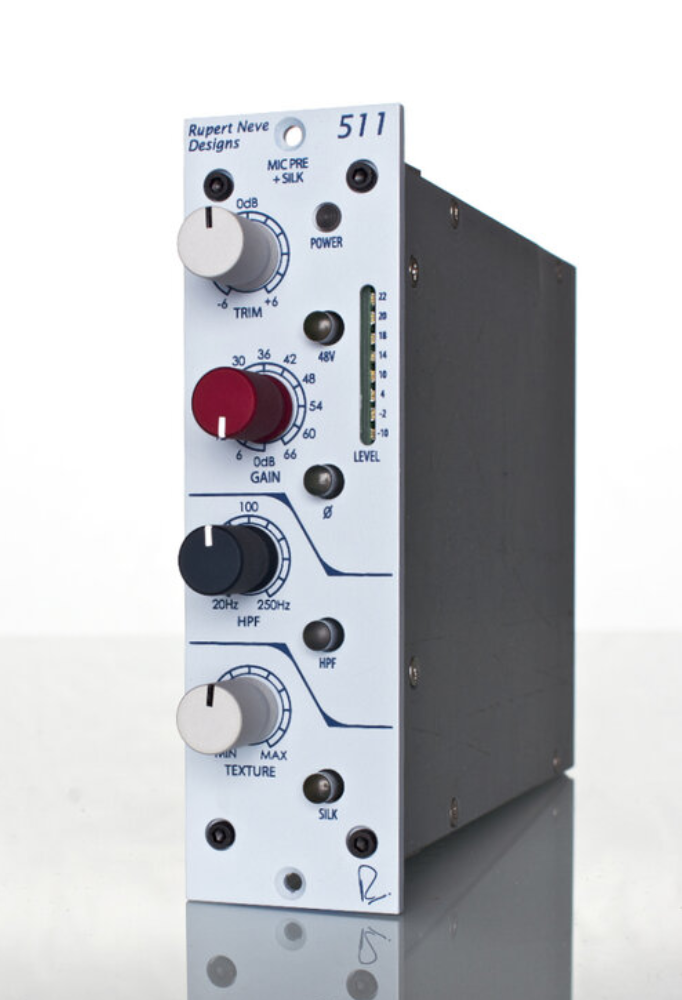

Rupert Neve Designs 511 Preamp With Silk

Brand: Rupert Neve

Rupert Neve Designs 511 Preamp With Silk

SKU: RUP-511
$1,189.00 (8% off RRP)
RRP $1,294.00
Enquire now
Enquire now
Price Match

  • Rent from

  • $99.08/mth for 12 months interest free

    Fees apply

  • $297.25 Pay in 4 interest-free

    Late fees apply

  • $297.25 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description
One of the key features of the 511 is the Silk / Texture control. The Silk circuit was initially developed for the original Portico series mic preamplifiers, and was only a single switch – on or off – that added a specified amount of musical, pleasing harmonic saturation to the unit’s output stage. Taking this concept one step further, the Texture knob is designed to adjust the actual amount of harmonic content from the source material. So how does it work? By reducing negative feedback across the output transformer and adjusting this feedback’s frequency response, the Silk / Texture circuit provides the sweet, musical saturation found in Rupert’s legendary vintage designs – but with complete & precise control over the amount of classic tone you want

Features

  • GAIN A 12-way precision rotary switch controls gain from 0 to 66 dB in 6 dB steps. When the Gain switch is set to Unity (0 dB), the 511 can handle a balanced input signal of more than +20 dBu without an input attenuator pad – this is a unique feature that allows the 511’s Silk circuit and other features to be applied to line-level sources.
  • TRIM Continuously variable +/-6 dB control to fine-tune level.
  • +48V Engages phantom power on the microphone input, as supplied by the 500 series rack.
  • LEVEL METER An eight-segment LED bar-graph meter displays output level (pre-Silk). The color range proceeds from green for lower level signals, yellow for intermediate signals, and red for high levels. When the 511 is clipped, the highest red LED will hold longer depending on how far above the clip threshold the signal was.
  • POLARITY Push button inverts the polarity of the signal path, and illuminates when engaged. The symbol “Ø” is often used to denote opposite polarity.
  • HIGH PASS FILTER The high pass filter is continuously variable from 20-250Hz and engaged by the HPF switch, which illuminates when engaged. It is a valuable aid in any signal chain, but particularly so in a microphone preamplifier. Signals below the selected frequency are attenuated at a rate of 12db / octave, getting rid of proximity effect, building rumble, air handling, motor hum, etc.
  • SILK / TEXTURE Pushing the Silk button engages the Silk Red circuit, which enhances harmonic content generated by the highs and high mids of your source. This adds a sparkly sheen to the top end, and is often ideal for sources including vocals, strings, pianos, and other acoustic instruments. With Silk / Texture engaged, the distortion characteristic and harmonic content of the unit are very reminiscent of many of Rupert’s class-A vintage designs. By manipulating the Texture control, the amount of Silk can be changed from essentially absent, to well beyond the amount of coloration found in vintage units.

Specifications

  • NOISE Measured at Main Output, un-weighted, 22 Hz - 22 kHz, source impedance 150 Ohm balanced. Noise performance can vary depending on the 500 series and / or interference from stray magnetic fields. Unity Gain: Better than -103 dBV Gain @ +66 dB: Better than -60 dBV Equivalent Input Noise: -125 dB
  • FREQUENCY RESPONSE Main output, no load. +/- 0.1 dBu from 10 Hz to 31.5 kHz -2.6 dB @ 120 kHz
  • MAXIMUM OUTPUT LEVEL +23 dBu
  • TOTAL HARMONIC DISTORTION AND NOISE, NO SILK @ 1 kHz, +20 dBu output level, no load: Better than 0.0025% @ 20 Hz, +20 dBu output level, no load: 0.025% Typical (2nd and 3rd harmonic)
  • TOTAL HARMONIC DISTORTION AND NOISE WITH SILK ENGAGED @ 100 Hz, +20 dBu input level, no load. TEXTURE @ min: 0.015%, mostly 3rd harmonic typical TEXTURE @ max: 2%, mostly 2rd harmonic typical
  • GAIN Unity up to +66 dB in 6 dB steps. Trim continuously adjustable from -6 dB to +6 dB.
  • PHANTOM POWER Supplied by the 500 series rack power supply. Switch selectable on faceplate.
  • HIGH PASS FILTER Continuously variable swept frequency from 20 Hz to 250 Hz. Slope: 12 dB/Octave
  • POWER REQUIREMENTS @ +/-16VDC, 100mA
