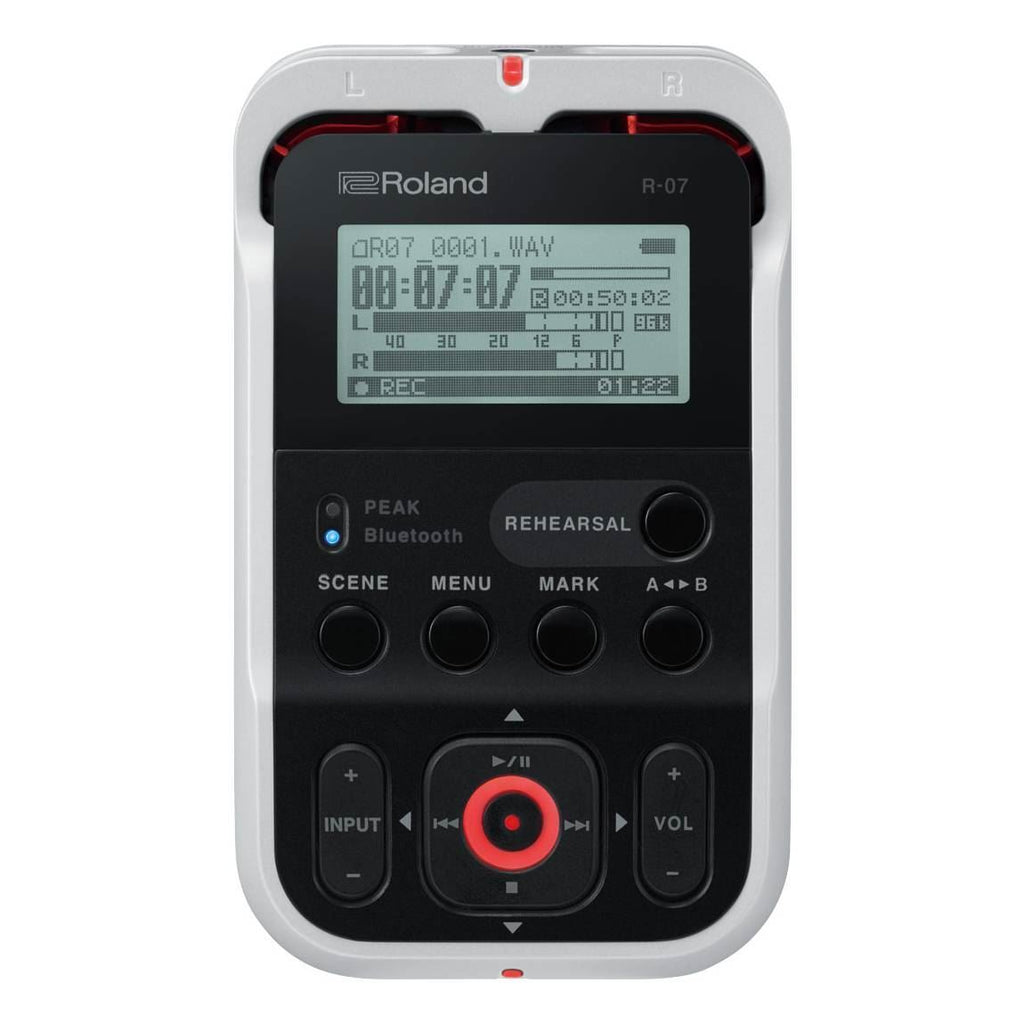

Roland R-07 High Resolution Audio Recorder in White (R07-WH)

The R-07 packs mission-critical recording features into a stylish and ultra-portable device that goes anywhere life takes you. High-resolution audio, one-touch Scene memory, and Hybrid Limiting ensure great sounding recordings no matter what the situation. And wireless listening and remote control mean you can record with less wires in more places.

Features

• WAV support: 44.1/48/88.2/96 kHz, 16/24-bit
• MP3 support: 64/96/128/160/192/224/320 kbps
• Hybrid Limiter and Dual Recording
• Bluetooth® remote control up to four units with smartphone and Apple Watch
• Wireless headphone and speaker playback
• One-touch Scene function for instant setup in any recording scenario
• Tuner and metronome for musical applications
• Rehearsal function for perfect input levels with a single touch
• 128 x 64 graphic LCD with white backlight for easy visibility
• Supports microSD cards (SD, SDHC)
• Mic/aux Input and headphone output
• Runs on batteries (AA x 2) or USB bus power
• Built-in speaker for convenient playback anywhere
• Stylish, compact design available in black, red, or white
• Simultaneous WAV and MP3 recording

Specifications

Input/Output

• Audio Inputs
  • Internal Stereo Microphone
  • MIC/AUX IN jack (Stereo miniature phone type, plug-in powered mic)
    * The Internal Mic and the MIC/AUX IN can’t be used at the same time; only the MIC/AUX IN jack is effective.
• Audio Output

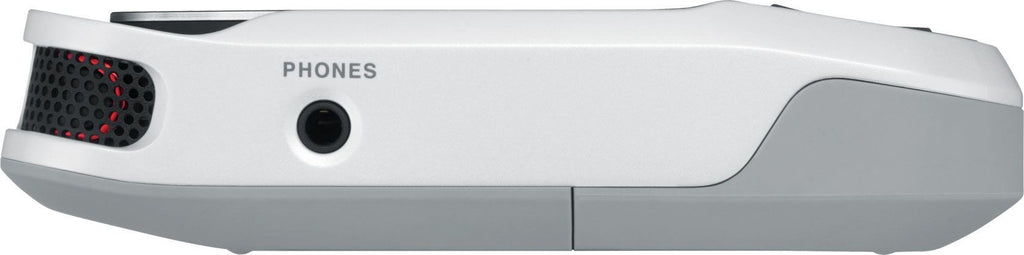

  • PHONES jacks (Stereo miniature phone type)
    Internal Speaker for playback (mono)
    * The Internal Speaker and the PHONES jack can’t be used at the same time; only the PHONES jack is effective.
• Nominal Input Level (Variable)
  • MIC/AUX IN jack: -31 dBu (Default input level)
    * 0 dBu=0.775 Vrms
• Input Impedance
  • MIC/AUX IN: 4.5 k ohms
• Output Level
  • 3 mW + 3 mW (In case 16 ohms load)
• Recommended Load Impedance
  • 16 ohms or greater
• Frequency Response
  • 20 Hz–40 kHz (+-3 dB)
• USB Interface
  • USB port: USB Micro-B type
  • Support USB 2.0/1.1 mass storage device class
• Bluetooth
  • R-07 Remote: Bluetooth technology: Bluetooth Ver 4.0
    Audio transmission: Bluetooth technology: Bluetooth Ver 3.0
    Transmitting Power: Specification Power Class 2 (Line of sight range 10 m (30 ft))
    Profile Support: A2DP, AVRCP
    CODEC Support: SBC, Qualcomm aptX Qualcomm aptX low latency

Effects

• * Playback only. Excludes playback in 88.2 kHz or 96 kHz.
  * Reverb and Speed Change can’t be used at the same time.
• Reverb
  • 4 types (HALL1, HALL2, ROOM, PLATE)
• Speed Change

  • 50–150% of playback speed

Other

• Display

  • Graphic LCD 128 x 64 dots (white backlit)
• Power Supply

  • Alkaline battery (AA, LR6) x 2,
    or Rechargeable Ni-MH battery (AA, HR6) x 2,
    or Supplied from the computer via USB
• Current Draw

  • 350 mA (MAX)
• Duration of continuous use with Alkaline battery operation

  • Playback: Approximately 15 hours
  • Recording: Approximately 15 hours
    * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
• Dimensions
  • 61 (W) x 103 (D) x 26 (H) mm
  • 2-7/16 (W) x 4-1/16 (D) x 1-1/16 (H) inches
• Weight
  • 150 g/6 oz (including batteries)
• Accessories
  • Leaflet “Read Me First”
  • Owner’s manual
  • microSD card (inserted in the R-07)
  • Batteries (two AA)
• Options
  • Microphone Stand Adaptor: OP-MSA1
  • Binaural Microphones / Earphones: CS-10EM
  • Stereo Microphone: CS-15S
    * This document explains the specifications of the product at the time that the document was issued. For the latest information, refer to the Roland website.
