Roland KDA-22 Kick-Drum Converter

This new trigger package fits to a standard 22-inch acoustic bass drum, giving you striking stage presence and acoustic-style feel thanks to Roland’s innovative air-damping mechanics working alongside the deep drum shell.

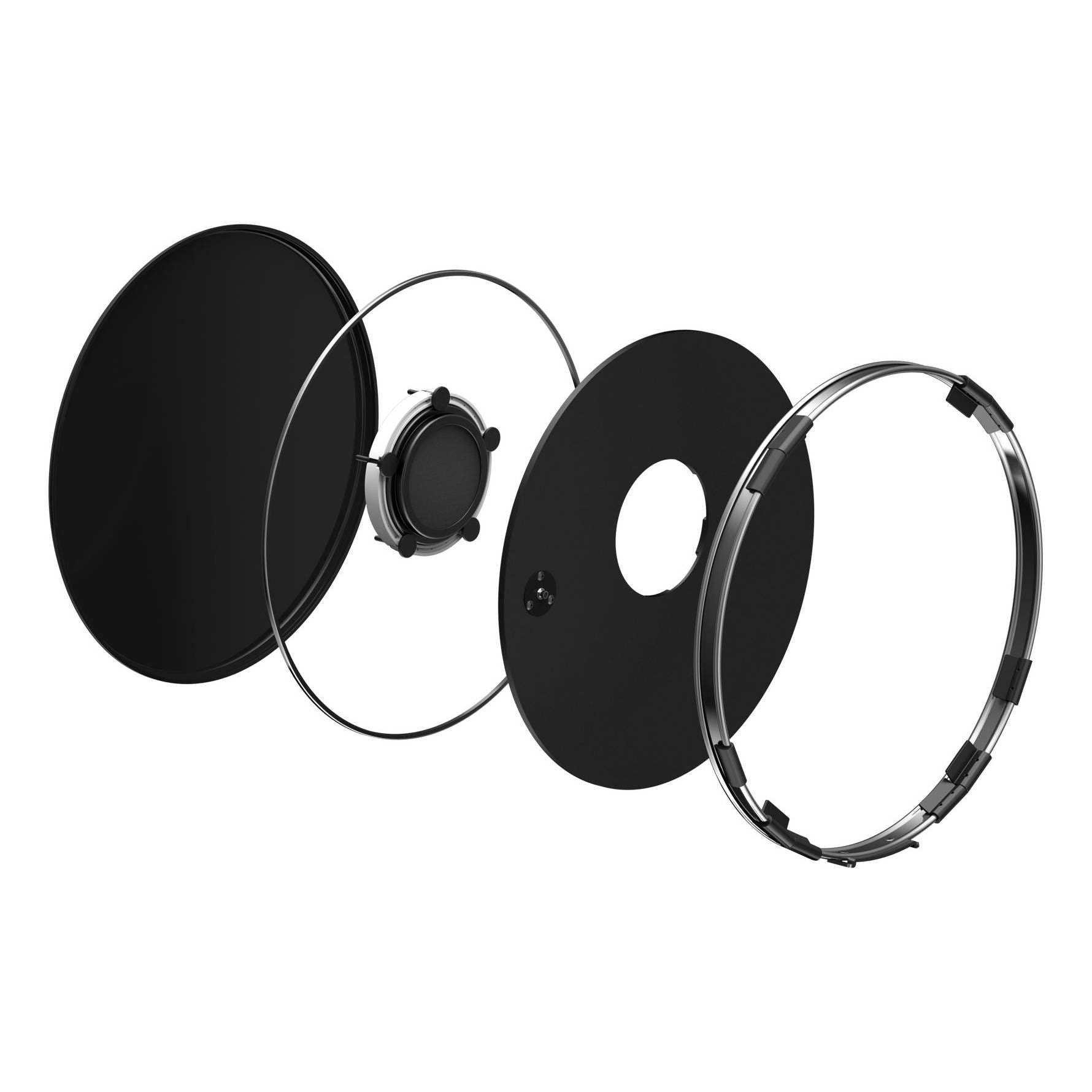

The package includes everything you need to convert your 22-inch bass drum*—a front head, a batter head with a kick-pad sensor unit, a 22-inch metal hoop, and shock-absorbing cushions. The KD-A22 provides stable, consistent, and accurate triggering for your setup, and is fully compatible with double kick pedals.

* The KD-A22 package does not include a 22-inch bass drum or kick drum pedal.
* The product design is subject to change without notice, and may vary from the images shown here.

Features

• Compatible with a standard 22-inch acoustic bass drum
• Stable and accurate triggering for single- and double-pedal kick work
• Strong visual presence on the stage

Specifications

• Compatible size of acoustic bass drum: 22 inches
• Required dimensions of bass drum

  • Height: under 590 mm, under 23-1/4 inches (*1)
  • Width : under 620 mm, under 24-7/16 inches (*1)
  • Distance of between Lug and Lug for attach Kick Pedal : over 130 mm, over 5-1/8 inches
    • *1 Using MDS-50K/MDS-50KV (drum stand), including the attached Kick Pedal and other component.
• Contents

  • Front head (black, with Roland/V-Drums logo)
  • Batter head (clear, with kick pad)
  • Batter board (black, with trigger jack)
  • Batter hoop (black, metal-made, with kick pedal holder)
• Trigger: 1
• Connector: 1/4-inch phone type
• Accessories:
• Owner''s manual

  • Connection cable
  • Drum key
    * 22-inch acoustic bass drum is not included
• Weight: 3.9 kg; 8 lbs. 10 oz.
