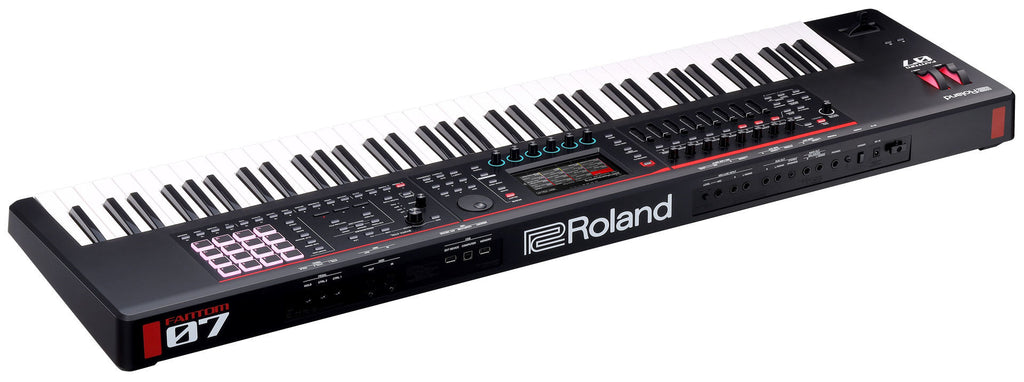

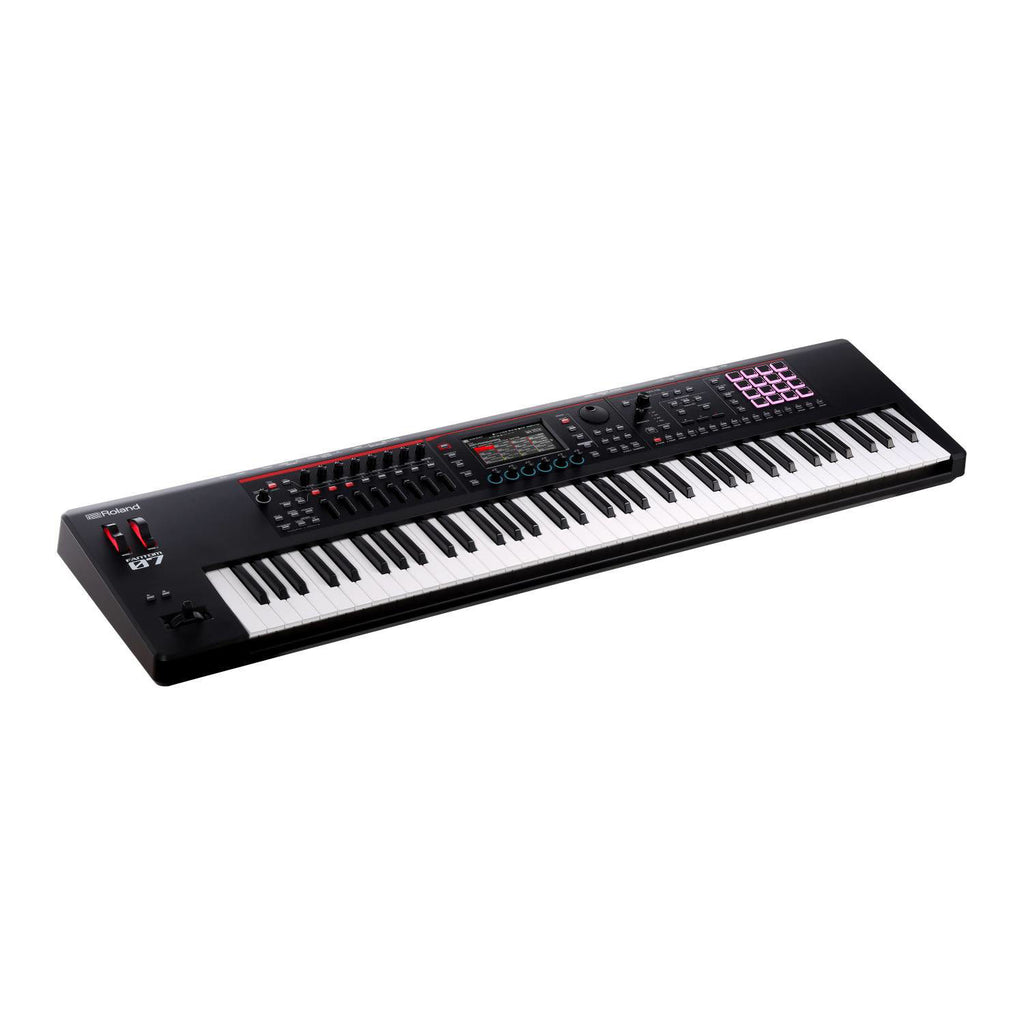

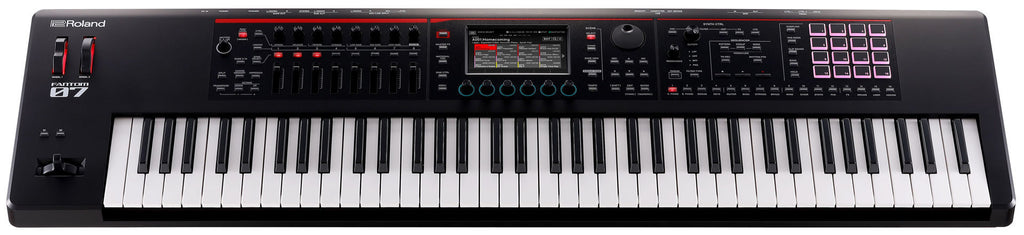

Roland FANTOM-07 Workstation Synthesizer

Play and produce with Roland’s best sounds and unleash your musical vision with a color touchscreen, hands-on controls, and deep computer integration derived from the flagship models.

FANTOM-07 has everything you need to create and perform at the highest level. And with its interactive designand expansive I/O, it blends into every workflow with ease.

Equipped with Roland’s most innovative technologies, FANTOM-07 puts a huge selection of electronic and acoustic sounds at your command. And with a growing range of expansion options from Roland Cloud, you’ll never run out of creative fuel.

FANTOM-07 supports your music every step of the way with a smooth, rapid workflow that’s completely free of confusing modes and technical frustration. Immensely powerful yet easy to use, FANTOM-07 enables continuous creation with fluid composition tools, instantly recallable setups, deep computer integration, and more.

Features

• Sounds and features inherited from the flagship FANTOM series
• Seamless workflow with no confusing modes
• Light and durable molded body design for easy transport
• Play and produce with thousands of electronic and acoustic sounds powered by Roland's advanced ZEN-Core and SuperNATURAL technologies
• New SuperNATURAL pianos with authentic acoustic grand sound and response
• Virtual ToneWheel Organ with harmonic bar control and quick-fire playability
• Deep onboard sampling features
• Scenes contain settings for all 16 layers plus effects and patterns
• Clip-based sequencing with instant pattern recording and triggering
• TR-REC sequencer inspired by classic Roland drum machines
• Color touchscreen, high-resolution knobs, sliders, RGB performance pads, and dedicated synth control section
• Pitch/mod lever and illuminated pitch and mod wheels
• Massive DSP power for plenty of polyphony and smooth sound transitions
• 4x32 USB audio interface and native integration with Logic Pro, MainStage, and Ableton Live
• Mic input and powerful onboard vocoder
• Support for Model Expansions, Sound Packs, Sample Packs, and more from Roland Cloud
• Comes with 15 Wave Expansions and 10 Sound Packs, available for download from Roland Cloud
• Compatible with FANTOM Scenes that use ZEN-Core, SuperNATURAL, and Virtual ToneWheel Organ sounds
• Newly designed 61-note keyboard with synth action

Specifications

• Keyboard: FANTOM-07: 76 Keys (with velocity)
• Sound Generator

  • TONE

    • ZEN-Core
    • SuperNATURAL Acoustic
    • SuperNATURAL Acoustic Piano (EXSN01/03 Preload)
    • SuperNATURAL Electric Piano (EXSN02 Preload)
    • VTW Organ (Only ZONE2)
      Various MODEL sound generators (Require adding EXM Series)
      * ZEN-Core Tones and Model Tones can import and export.
      * Backup file has compatibility with FANTOM-6/7/8, but it can read the enabled features only.
• Expansion

  • EXZ Series
  • EXSN Series
  • EXM Series
• Parts: 16 zones (Internal + External)
• Tones:

  • 3,500 tones or greater
  • 90 Drum kits or greater
• Tone Remain: 8 zones
• Tone Search/Scene Search: Rating, Character
• Effects

  • Multi-Effects: 16 systems, 90 types
  • Part EQ: 16 systems
  • Drum Part COMP: 6 systems
  • Insertion Effect: 2 systems, 90 types (Serial/Parallel connection selectable)
  • TFX: 1 system, 90 types
  • Input MFX: 1 system, 90 types
  • Chorus: 9 types
  • Reverb: 7 types
  • Master Compressor
  • Input Reverb: 7 types
  • Input EQ: 1 system
• Vocoder

  • Band: 13, 20, 32
  • Type: Mono, Stereo
  • Preset Setting: 10
  • User Setting: 20
• Scene Chain

  • Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
  • Set: 100
  • Marker: 36 (0-9, A-Z, a-z) per 1 Chain Set
• Pattern Sequencer

  • MIDI Tracks: 16
  • Group:16
  • Pattern: 8 (per each track)
  • Pattern Length: 64 measures
  • Recording Method: Realtime recording, Step recording, TR-REC
  • Editing Method: Piano roll edit (Touch Edit/Automation support), Microscope
  • Song: 1 (per Scene)
  • File format: Original, SMF export/import supported
    * PAD Sampler trigger data can be recorded.
• -SMF Player

  • Format: SMF (Format 0/1)
  • MIDI tracks: 16
  • Tempo range: 5-300 BPM
  • Transpose function: -5-+6 semitone
  • Track Mute: Yes
  • Track Solo: Yes
  • A/B loop function: Yes
    * The pattern sequencer and SMF player can be used in each scene.
  • They cannot be used at the same time.
• Sampler

  • Keyboard Multisample
  • Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported.
  • Number of Samples: 2,048
  • Number of Multisamples: 128
  • Sampling Time: The maximum is 2 minutes 44 second (1 Sample).
    * A total of approximately 256 MB (Share with Expansion titles)
    * Keyboard Multisample can import and export as ZEN-Core Tone.
• PAD Sampler

  • Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported
  • Maximum Polyphony: 8
  • Number of Samples: 16 pads x 4 banks
  • Sampling Time: The maximum is 60 minutes (the equivalent of approximately 660 MB).
    * A total of approximately 2 GB (including imported WAV files)
    * When you use the PAD samples as KBD Wave, then you have to manipulation it.
• Internal Storage space for files: Size: 2 GB
• Other
  • Rhythm Pattern: Yes
  • Arpeggiator: Yes
  • Chord Memory: Yes
  • Motional Pad: Yes
• PAD Mode: Sample Pad,Note Pad,Partial Sw/Sel,DAW Control,Zone Mute,Zone Solo,Kbd Sw Group,Rhythm Pattern,Pattern,Variation Play,Group Play
• AIRA LINK: * When connect to MX-1
• Controllers

  • Pitch Bend/Modulation lever *1
  • Assignable Switch x 2 (S1/S2)
  • Control knob x 8
  • Slider x 8
  • Wheel x 2 *1
  • Function knob x 6
  • Sound Modified knob x 2 *1
  • 4 x 4 Pad
    *1: 1,024 step editing support
    It can be use with Cutoff, Resonance.
• Display: Graphic Type, 5.5" (1,280 x 720 dots), backlite LCD (Color/Touch screen, Screensaver, Wallpaper support)
• Connectors

  • Headphones jack: Stereo 1/4-inch phone type
  • MAIN OUT jacks (L/MONO, R) (1/4-inch TRS type)
  • SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
  • SUB OUT STEREO (PHONES) jacks: Stereo miniature phone type PHONES Support
  • Mic Input jacks: 1/4 inch TRS type
  • Line Input jacks: (L/MONO,R) (1/4 inch phone type)
  • FOOT PEDAL jacks(HOLD, CTRL1, CTRL2)
  • MIDI connectors (IN, OUT)
  • USB MEMORY port
  • USB COMPUTER port (AUDIO/MIDI)
  • External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
• Audio Interface

  • Max 24 bit/96 KHz
  • Record 16 Stereo Channel
  • Playback 2 Stereo Channel
• External Memory: USB Flash drive (sold separately)
• Power Supply: AC Adaptor
• Power Consumption: 1,300 mAh
• Dimensions: FANTOM-07: 1,218 (W) x 323 (D) x 95 (H) mm
• Weight: FANTOM-07: 7.0 kg
• Accessories

  • Owner’s Manual
  • AC adaptor
• Options (sold separately)

  • Keyboard Stand:
  • FANTOM-07:KS-10Z, KS-12, KS-20X
  • Pedal Switch: DP series, RPU-3
  • Expression Pedal: EV-5
  • USB Flash drive
