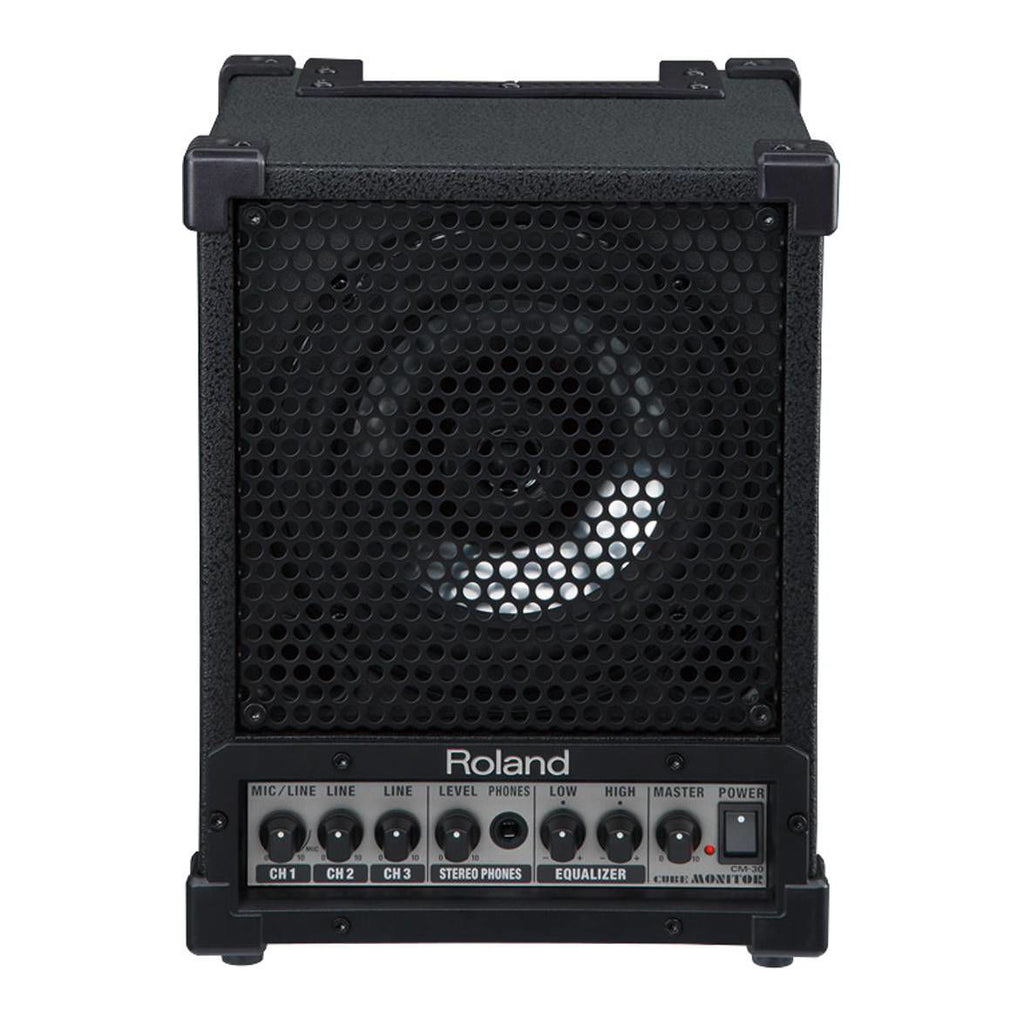

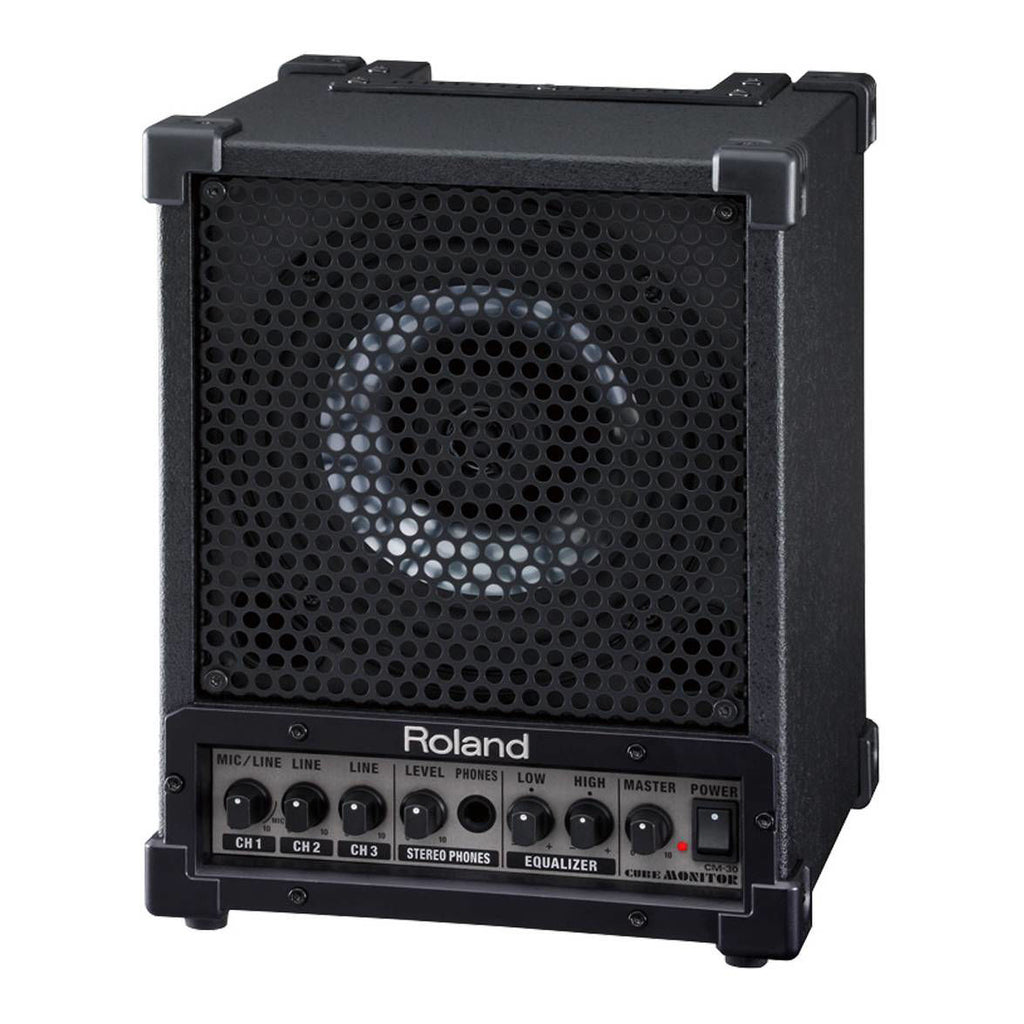

Roland CM-30 Cube Portable PA (CM30)

Like all members of the CUBE family, the CM-30 is a breeze to transport. From gig to gig, session to session, this amp travels light and performs big. It’s built to withstand the rigors of the road, thanks to its metal grill cover and protective corner covers. While the CM-30 is well suited for home studio and monitoring applications, it can be used for live monitoring onstage.

Each CM-30 is equipped with three input channels, with one XLR input for mic/line, and two additional Aux inputs that support RCA pin (L, R) and stereo mini-phone connectors. So with one CM-30 you get four stereo inputs and one mono input. The Stereo Link function allows two CM-30s to be linked for true stereo output, which enables a total of eight stereo inputs, and two mono mic/line ins. The CM-30 offers more than enough inputs to simultaneously connect a microphone, a keyboard, a rhythm machine, and a CD player, or to function as a mini PA rig.

Sculpt your sound with the CM-30’s onboard 2-band equalizer. Dedicated knobs are provided for adjusting low and high frequencies. As with all other controls, the equalizer knobs are conveniently located on the front panel for quick access.

Features

• Ultra-versatile monitor for studio, stage, and more
• 6.5" coaxial, 2-way speaker with stereo preamp
• 30-watt output
• 3 input channels, with one XLR input for mic/line and 2 additional Aux inputs
• Stereo Link function for stereo connection between two units, for a total of up to 8 stereo inputs and 2 mono mic/line inputs
• Metal grill cover, corner protectors, and handle grip for easy transport

Specifications

Rated Power Outpu

• 30 W

Nominal Input Level (1kHz)

• Channel 1(Mic/Line): -50 to -20 dBu
• Channel 2, 3 (Line): -20 dBu
• AUX IN 1, 2: -10 dBu
• Stereo Link Input: -10dBu

Nominal Output Level

• Stereo Link Out L, R: -10 dBu

Speaker

• 16 cm (6.5 inches) + Tweeter (Coaxial 2-Way)

Controls

• Channel 1 (Mic/Line) Volume Knob
• Channel 2, 3 Volume Knobs
• Stereo Phones Level Knob
• Equalizer: Low Knob, High Knob
• Volume Knob
• Power Switch

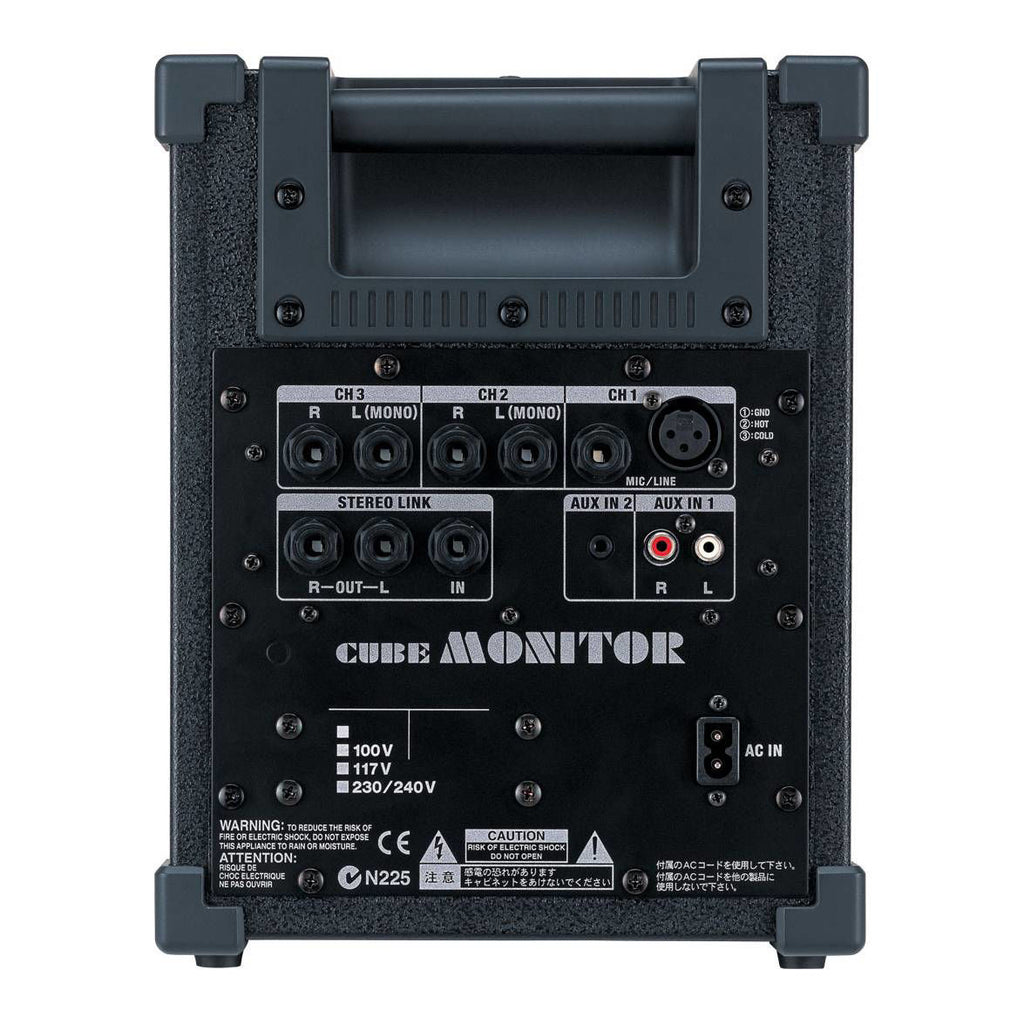

Connectors

• Channel 1 Input Jack (XLR type, 1/4" phone type)
• Channel 2, 3 Input Jack L (mono)(1/4" phone type)
• Channel 2, 3 Input Jack R (1/4" phone type)
• Aux In 1 Jack (RCA phono type)
• Aux In 2 Jack (Stereo miniature phone type)
• Stereo Link Out Jacks L, R (1/4" phone type)
• Stereo Link In Jack (1/4" phone type)
• Stereo Phones Jack (Stereo 1/4" phone type)

Power Supply

• AC 117V, 230V, 240V

Power Consumption

• 32 W

Width

• 214 mm | 8-7/16 inches

Depth

• 238 mm | 9-3/8 inches

Height

• 275 mm | 10-7/8 inches

Weight

• 5.6 kg | 12 lbs. 6 oz.
