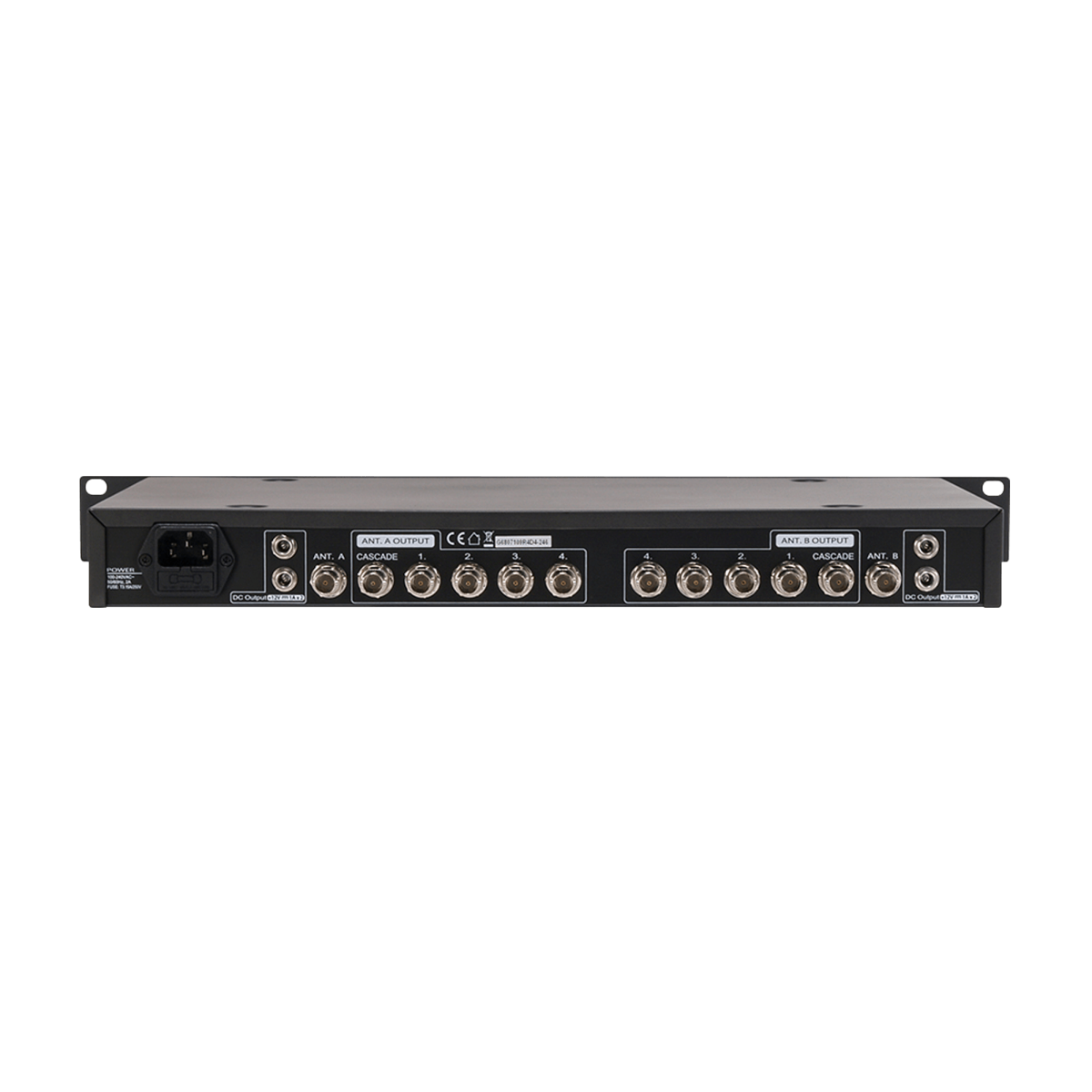

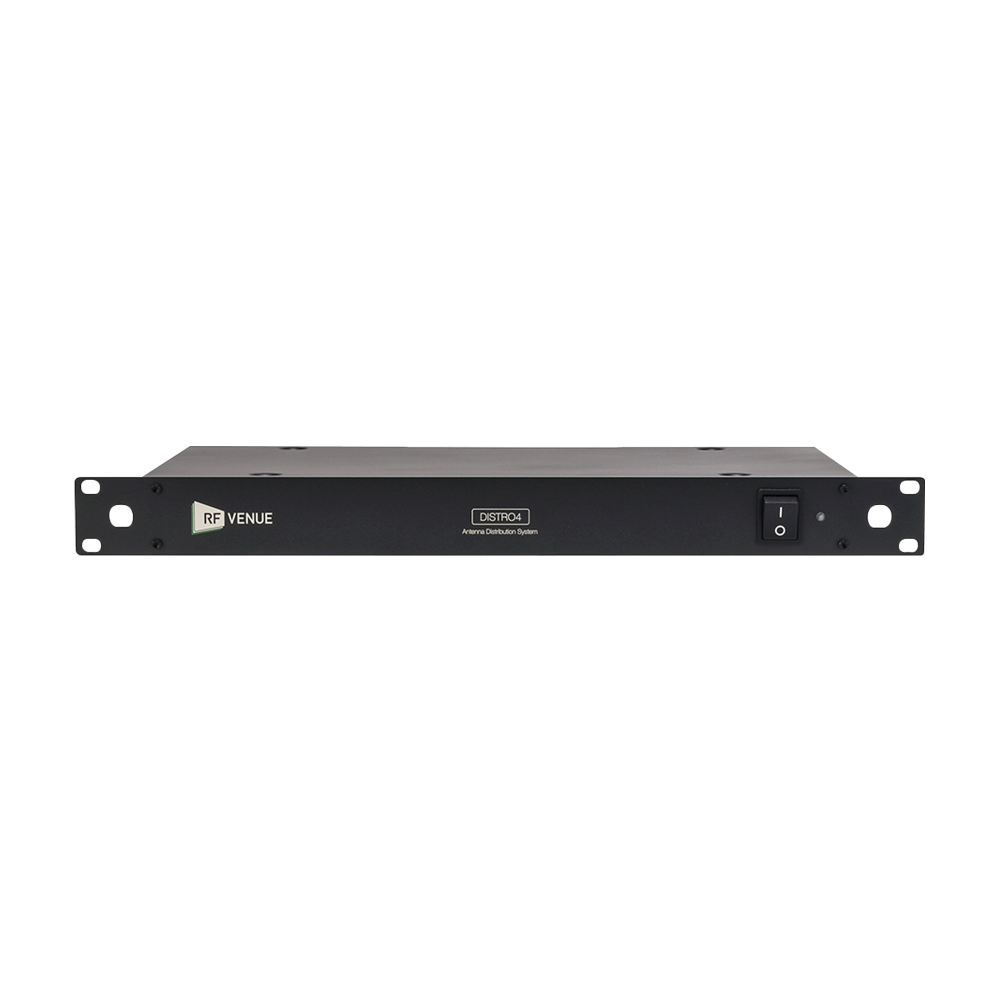

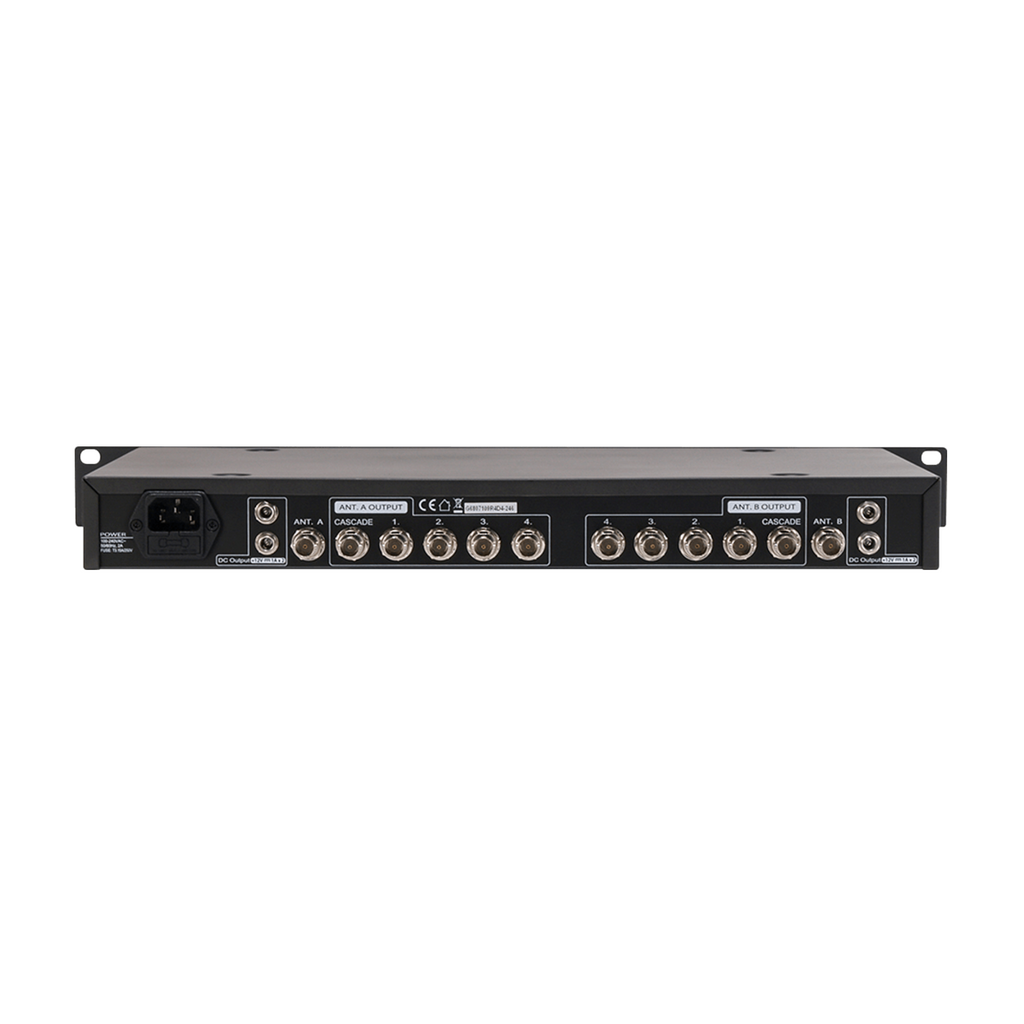

RF Venue DISTRO4 Antenna Distribution System With Cascade

The DISTRO4 includes all RF and DC power cables needed to connect a 4-channel wireless microphone system, as well as cascade to one additional DISTRO4. Available in individually or in the following bundles: DFINDISTRO4 Bundle includes the Diversity Fin antenna with padded protective cover and threaded mounting block (mounts to 1/4-20, 3/8-16 or 5/8-27 threads), the DISTRO4 four-channel antenna distribution system, and two 25' RG8X coaxial cables. DFINBDISTRO4 Bundle (black) includes the Diversity Fin antenna with an L-bracket wall-mount kit, the DISTRO4 four-channel antenna distribution system, and two 25' RG8X coaxial cables. DFINWDISTRO4 Bundle (white) the Diversity Fin antenna with an L-bracket wall-mount kit, the DISTRO4 four-channel antenna distribution system, and two 25' RG8X coaxial cables. Features Four amplified outputs compensate for signal strength lost in the splitting process Cascade output allows two or more units to be connected together to accommodate more than four receivers Internal switch for applying 12V DC power to antenna connections DC output jacks supply power to connected receivers Internal 2000 mA internal power supply (no wall wart) Includes one AC cable, four DC cables, and 10 BNC jumpers Full rack width (1 RU) Specifications Operating frequency: 470 to 952 MHz RF output level (gain): 3 dB (+/-2 dB) Cascade output level: 0 dB ~ +2 dB Output connection isolation: >=25 dB Third order intercept point: 24 dBm Impedance: 50 ohms Power consumption: 60 W Input AC voltage: 100~240 V switching DC over coax (to external antennas): 12-14V DC Output DC voltage (to receiver jacks): +12V Dimensions: 480 mm (18.90) W x 250 mm (9.84) D x 45 mm (1.77) H Weight: 2.15 kg (4.7 lbs) Accessories included: AC cable; DC cable (x 4), BNC jumper (x 10)
