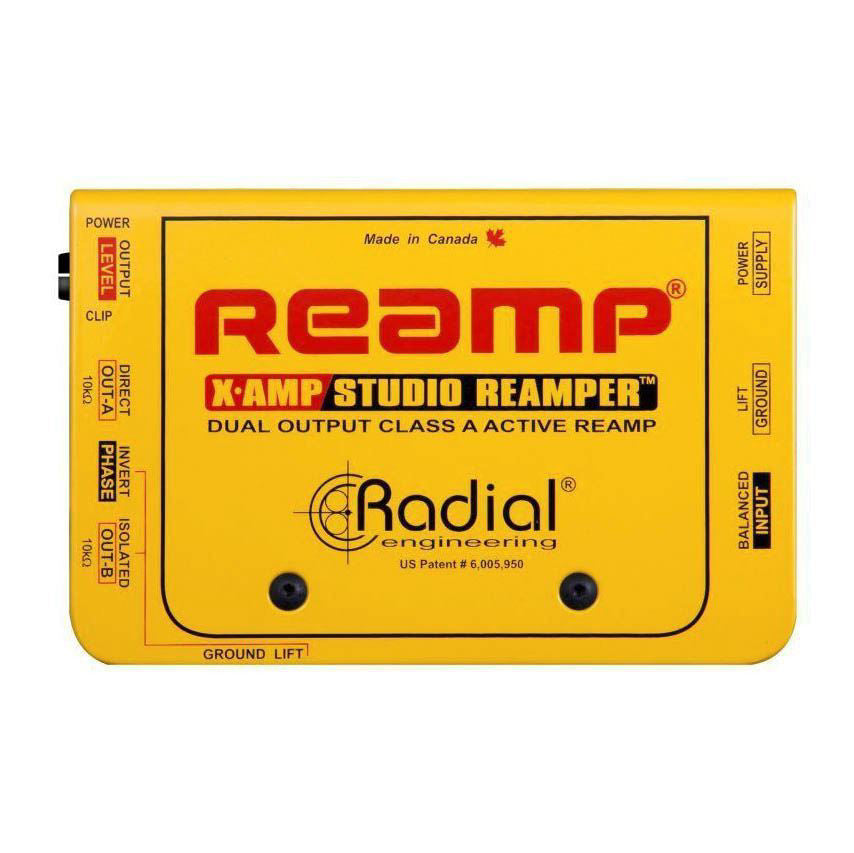

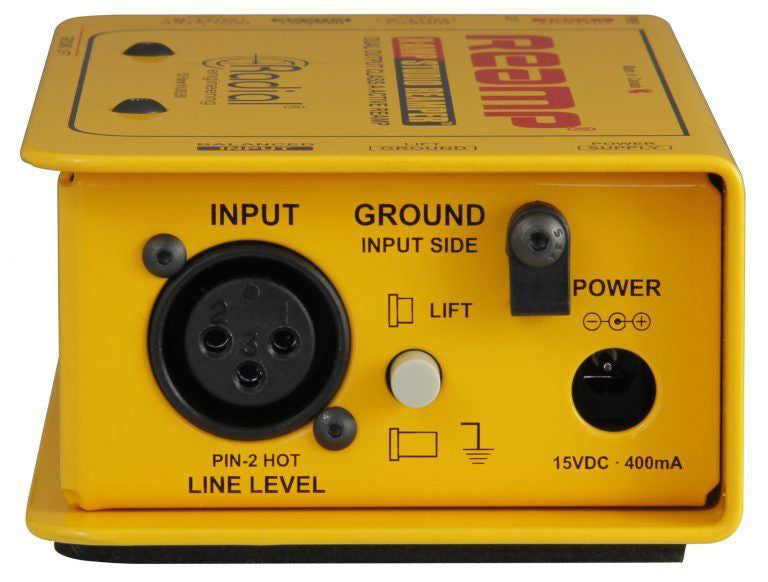

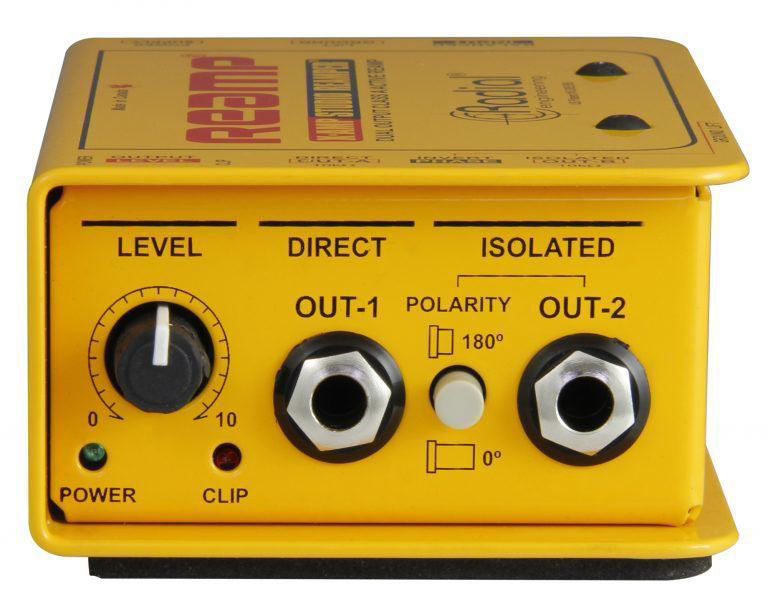

Radial X-Amp Class-A Re-Amping Device effects pedal from Radial Engineering, showing front panel with controls and input/output jacks.
  • Radial X-Amp Class-A Re-Amping Device effects pedal from Radial Engineering, showing front panel with controls and input/output jacks.
  • Radial Engineering X-Amp Class-A Re-Amping Effects Pedal with control knobs and input/output jacks.
  • Radial X-Amp Class-A Re-Amping Device effects pedal by Radial Engineering, showing controls and input/output jacks on a dark pedal.
  • Radial X-Amp Class-A re-amping effects pedal by Radial Engineering, shown with control knobs and input/output jacks.
  • Radial X-Amp Class-A re-amping effects pedal by Radial Engineering with control knobs and input/output jacks visible.
  • Radial X-Amp Class-A re-amping device effects pedal with knobs and input/output jacks on a white background.
Radial X-Amp Class-A Re-Amping Device

Brand: Radial Engineering

Radial X-Amp Class-A Re-Amping Device

SKU: RA-X-AMP
$499.00
Available to Order
Price Match

  • Rent from

  • $41.58/mth for 12 months interest free

    Fees apply

  • $124.75 Pay in 4 interest-free

    Late fees apply

  • $124.75 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

Following the critically acclaimed Radial JD7™ Injector, the X-Amp employs a unique class-A circuit design that has been optimized for use with guitars. Features include balanced line level input with LED peak indicator and level control, class-A circuit topology for optimal reach and frequency response, a transformer isolated output to eliminate hum and buzz caused by ground loops, a 180° polarity reverse switch to bring both amps into phase, and a dual ground lift switch for noise-free operation.

Features

  • Active Reamp® with two outputs
  • 100% discrete class-A signal path
  • Transformer isolated to eliminate noise
  • LED peak indicator and level control

Applications

Reamping Step-1
To Reamp, start by recording a dry track using a Radial J48 and splitting the signal. Record the wet track using a mic so that the guitarist can hear it. Send him to the beach!

Reamping Step-2
Send the dry track back to the guitar amps and pedals using the X-Amp. Adjust the tone and move the mics around till it sounds right. You can always come back and Reamp later.

Reamping – Not just for guitars!
Try sending a vocal track into a Marshall® amp or a Tonebone Classic-V9™ to add tube warmth and grit. Take it a step further by sending your kick drum to a wah pedal. There are no limits!

Specifications

Specifications
Audio circuit type: 100% discrete class-A
Frequency response: 20Hz ~ 15kHz (± 1.0dB)
Dynamic range: 119dB
Total harmonic distortion: 0.02% @ -15dBu
Intermodulation Distortion: 0.02% @ -20dBu
Input Impedance: 600Ω
Noise: OUT-1 -110dB; OUT-2 -108dBu
Maximum Input: +22dBu

Features
180° polarity reverse, Ground lift, Level Control
Input Connectors: XLR
Output Connectors: 1/4" Isolated and Direct

General
Construction: 14 gauge steel chassis & outer shell
Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)
Weight: 1.55lb (720g)
Shipping size (L x W x D): 5" x 2.75" x 10.75" (127 x 70 x 273mm)
Shipping weight: 2.6lb (1.18kg)
Power: +15VDC/400mA adapter included
Conditions: For use in dry locations only between 5°C and 40°C

Watch: Reamping with the X-Amp
