Radial SGI Studio 2-Piece Guitar Live Reamping Interface

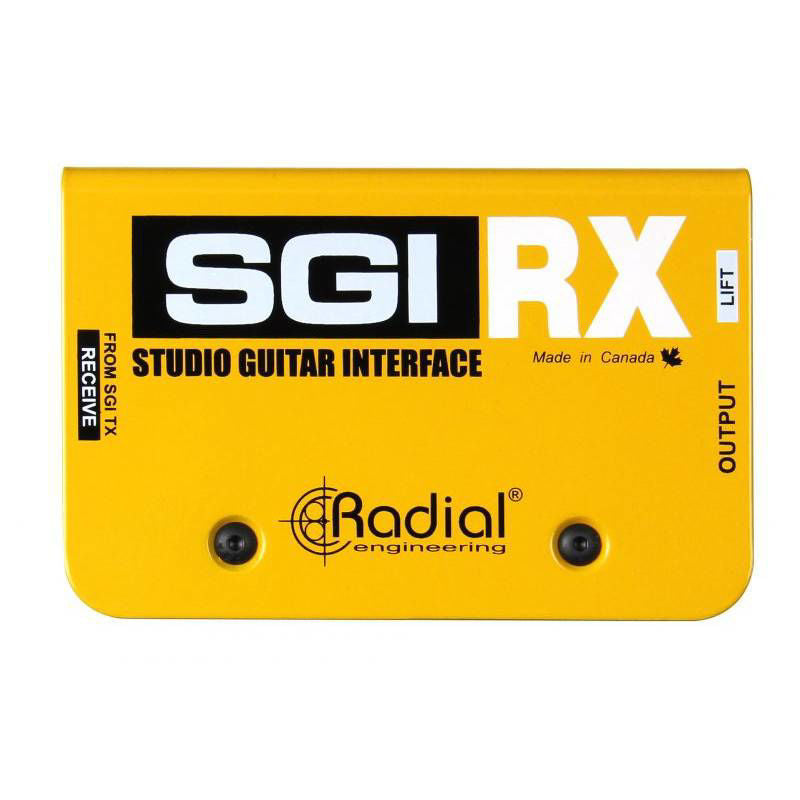

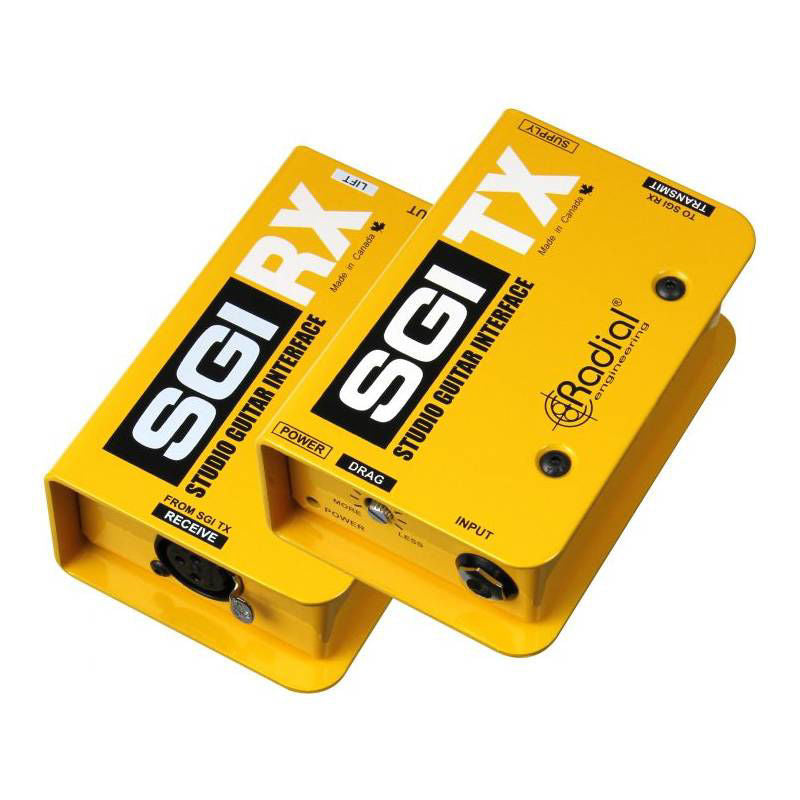

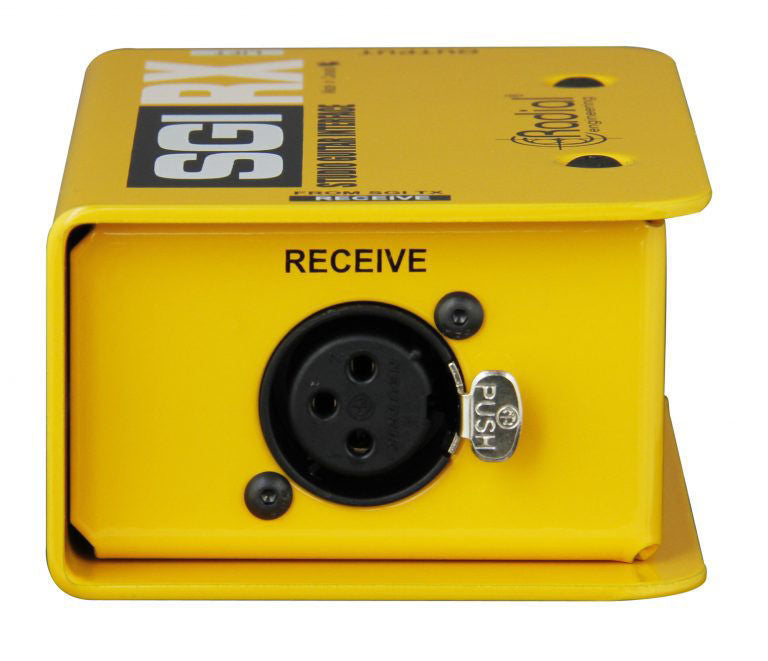

Radial SGI Studio Guitar Interface is a transmit (SGI-TX) and receive (SGI-RX) pair ofmodules that allows a guitar signal to travel across 300 feet of balanced cable to a distantamplifi er. The SGI is a unity gain device that features 100% discreet Class-A circuitry fory great sound and transformer isolation to eliminate ground loops. For the studio, the SGI allows the guitarist to play in the control room while listening to thestudio monitors. For live performance, the SGI allows amplifiers to be located off stage while improving sound and reliability over wireless systems. The guitar connects directly to the SGI-TX which performs level and impedance conversion and outputs a balanced signal. The output is similar to that of microphones and DI’s allowing the SGI to be used with studio wiring and concert snake systems. At the far end of the balanced line sits the SGI-RX which converts the signal back to a hi-Z instrument level output that connects to pedalboards and amplifi ers. With the SGI, the guitarist can now play the roles of performer, engineer and producer, while saving immeasurable time during the recording process. Comes complete with 15VDC power supply for the SGI-TX module. The SGI-RX is passive and does not require power. Features Balanced line driver for guitar and bass Send signal over 100 meters (300ft) without loss 100% discrete class-A circuit with Drag control Delivers natural tone to off-stage amplifiers Applications Connect guitar amps up to 300 feet away (100m) Play in the control room and isolate amps in studio Locate amps off-stage for live performance Cool Stuff Retains original tone of guitar Quiet, adds nothing, unity gain input/output Uses common XLR mic cables and snakes Same buffer circuit used in Radial JD7 Injector ‘Plug & Play’ easy-to-use 3 year transferable warranty Specifications Audio circuit type: Active 100% discrete class-A with transformer isolation Frequency response: 20Hz ~ 18kHz (-2dB) Dynamic range: 112dB Total harmonic distortion: 0.005% @ 1k Intermodulation Distortion: 0.04% @ 1k Input Impedance: Variable from 10k Ohms ~ 1 megaOhm Output Impedance: 4.5k Ohms (¼ unbalanced) Noise: -102dBu Maximum Input: +10dBu Input Connectors: TX: 1/4 | RX: XLR Output Connectors: TX: XLR | RX: 1/4 Construction: 14-gauge steel chassis & outer shell Size (L x W x D): Size: 2.75 x 4.25 x 1.75 (70 x 108 x 44mm) Weight: 3lbs. (1.36kg) Shipping size (L x W x D): 5 x 2.75 x 10.75 (127 x 70 x 273mm) Shipping weight: 3.2lbs (1.45kg) Power: +15VDC/400mA adapter included Conditions: For use in dry locations only between 5°C and 40°C Warranty: Radial 3-year, transferable
