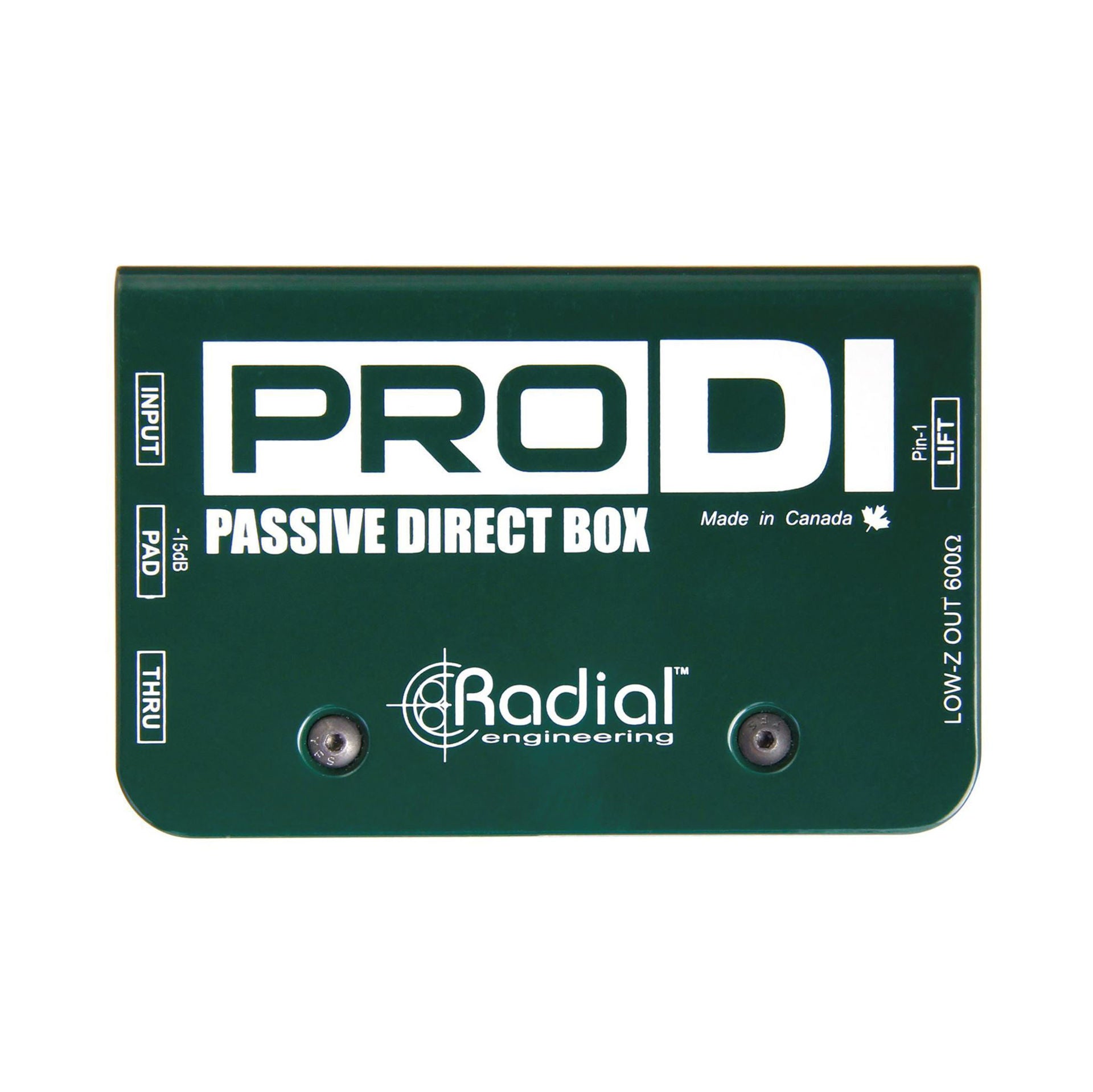

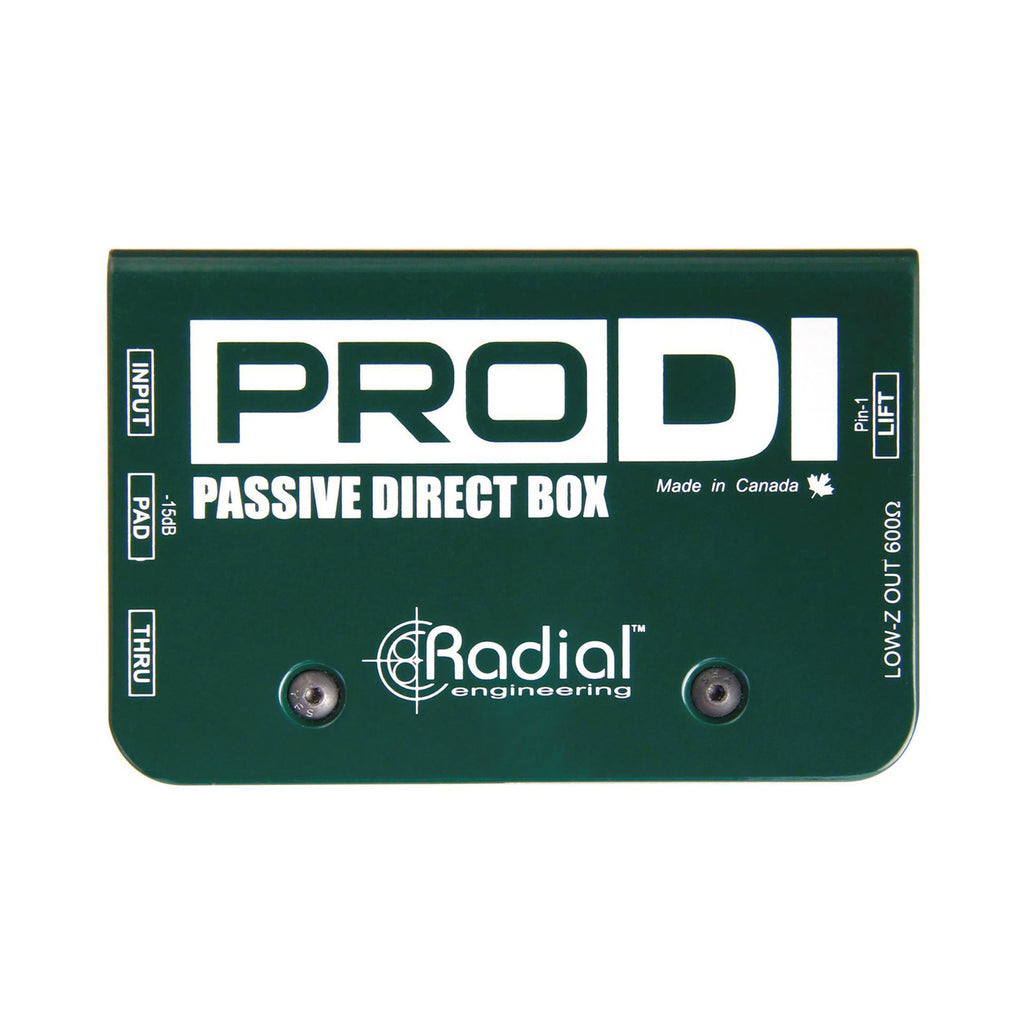

Radial ProDI 1 Channel Passive Instrument Direct Box

Brand: Radial Engineering

Radial ProDI 1 Channel Passive Instrument Direct Box

SKU: RA-PRODI
$165.00 (39% off RRP)
RRP $269.00
Available to Order
Price Match

  • Rent from

  • $13.75/mth for 12 months interest free

    Fees apply

  • $41.25 Pay in 4 interest-free

    Late fees apply

  • $41.25 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Warehouse
  • 0 Mega Music Wangara
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

The heart of the ProDI is a custom wound Radial transformer. It features an exceptionally high 140kΩ input impedance to reduce loading while enabling the ProDI to handle extreme signal levels at all frequencies without distortion. This is further improved upon with an internal MuMETAL® shield to protect against electromagnetic fields that can cause unshielded transformers to distort.

Features

  • Compact passive direct box for stage and studio
  • Able to handle huge transients without distortion
  • Transformer isolation eliminates noisy ground loops
  • Plug and play easy to use feature set – on stage or in the studio

Specifications

  • Audio circuit type: Passive, transformer based
  • Transformer: Eclipse ET-DB2, 12:1 ratio
  • Number of channels: Single channel (mono)
  • Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
  • Dynamic range: 128dB
  • Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
  • Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
  • Input Impedance: 140k Ohms, unbalanced
  • Output Impedance: 150 Ohms, balanced
  • Maximum Input: +18dB @ 20Hz
  • Input Connectors: 1/4" in & thru
  • Output Connectors: XLR-M out
  • Construction: 14 gauge steel chassis & outer shell
  • Size (L x W x D): 4.25” x 2.75” x 1.75" (108 x 70 x 44mm)
  • Weight: 1.2lb (0.54kg)
  • Shipping size (L x W x D): 6.5" x 4" x 3" (165 x 76 x 102mm)
  • Shipping weight: 1.35lb (0.61kg)
  • Power: Passive, no power required
  • Conditions: For use in dry locations only between 5°C and 40°C
