Radial Engineering ProD2 2-channel passive instrument direct box for live outboard audio equipment.
  • Radial Engineering ProD2 2-channel passive instrument direct box for live outboard audio equipment.
  • Radial ProD2 2-channel passive instrument direct box for live outboard audio connections, by Radial Engineering.

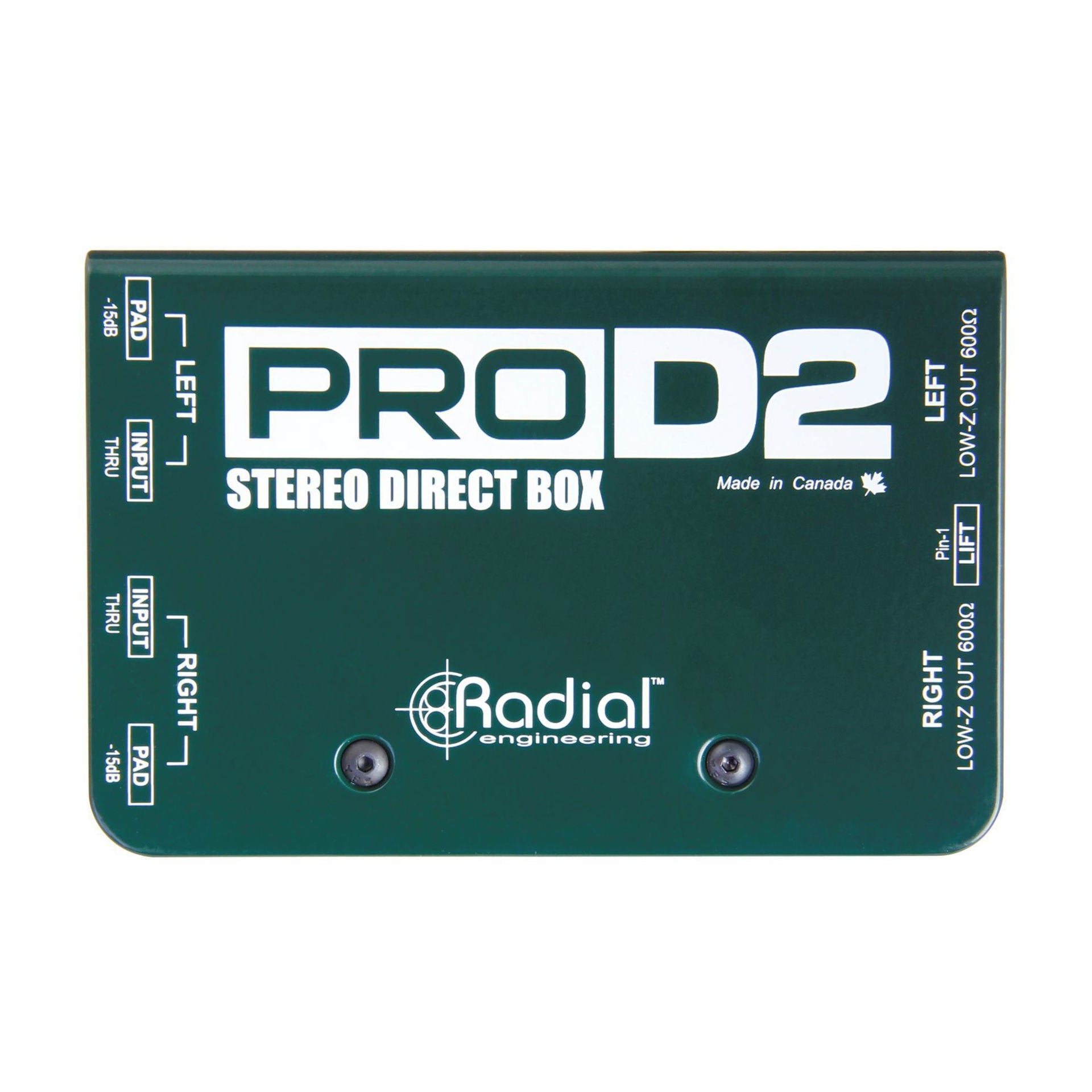

Radial ProD2 2 Channel Passive Instrument Direct Box

Brand: Radial Engineering

Radial ProD2 2 Channel Passive Instrument Direct Box

SKU: RA-PROD2
$315.00 (23% off RRP)
RRP $409.00
Available to Order
Price Match

  • Rent from

  • $26.25/mth for 12 months interest free

    Fees apply

  • $78.75 Pay in 4 interest-free

    Late fees apply

  • $78.75 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Warehouse
  • 0 Mega Music Wangara
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

At the heart of the design are two high performance Eclipse ET-DB2 transformers. These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion.

Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics. Transformers are particularly adept at eliminating hum and buzz caused by ground loops.

Features

  • Stereo direct box designed for keyboards
  • Smooth, warm sound rounds out digital edge
  • Able to handle huge transients without choking
  • May be rack mounted for touring rigs

Specifications

  • Audio circuit type: Passive, transformer based
  • Transformer: Eclipse ET-DB2, 12:1 ratio
  • Number of channels: 2
  • Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
  • Dynamic range: 128dB
  • Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
  • Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
  • Input Impedance: 140k Ohms, unbalanced
  • Output Impedance: 150 Ohms, balanced
  • Maximum Input: +18dB @ 20Hz
  • Input Connectors: 1/4"
  • Output Connectors: XLR, 1/4" thru
  • Construction: 14 gauge steel chassis & outer shell
  • Size (L x W x D): 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm)
  • Weight: .54kg (1.2lbs)
  • Shipping size (L x W x D): 6.5" x 4" x 3" (165mm x 102mm x 76mm)
  • Shipping weight: 0.61 kg (1.35 lbs)
  • Power: Passive, no power required
  • Conditions: For use in dry locations only between 5°C and 40°C
