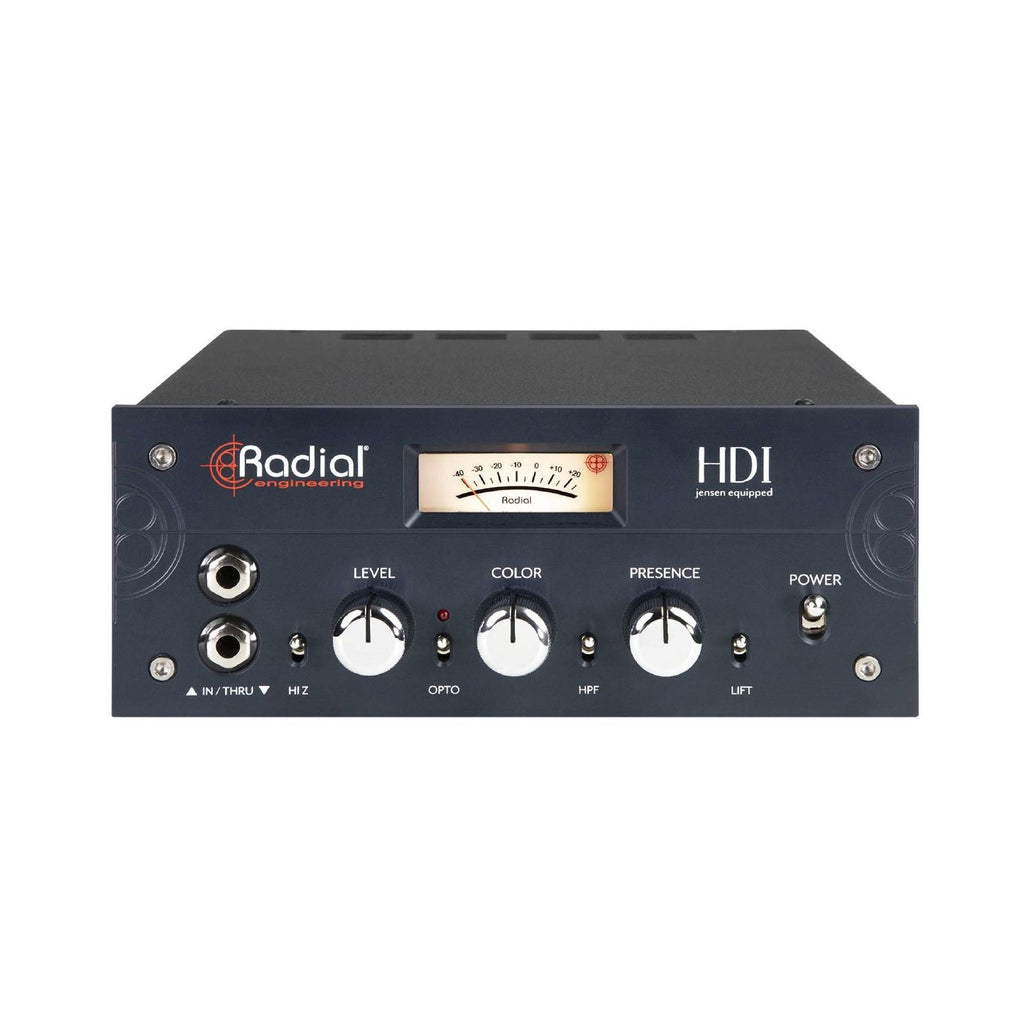

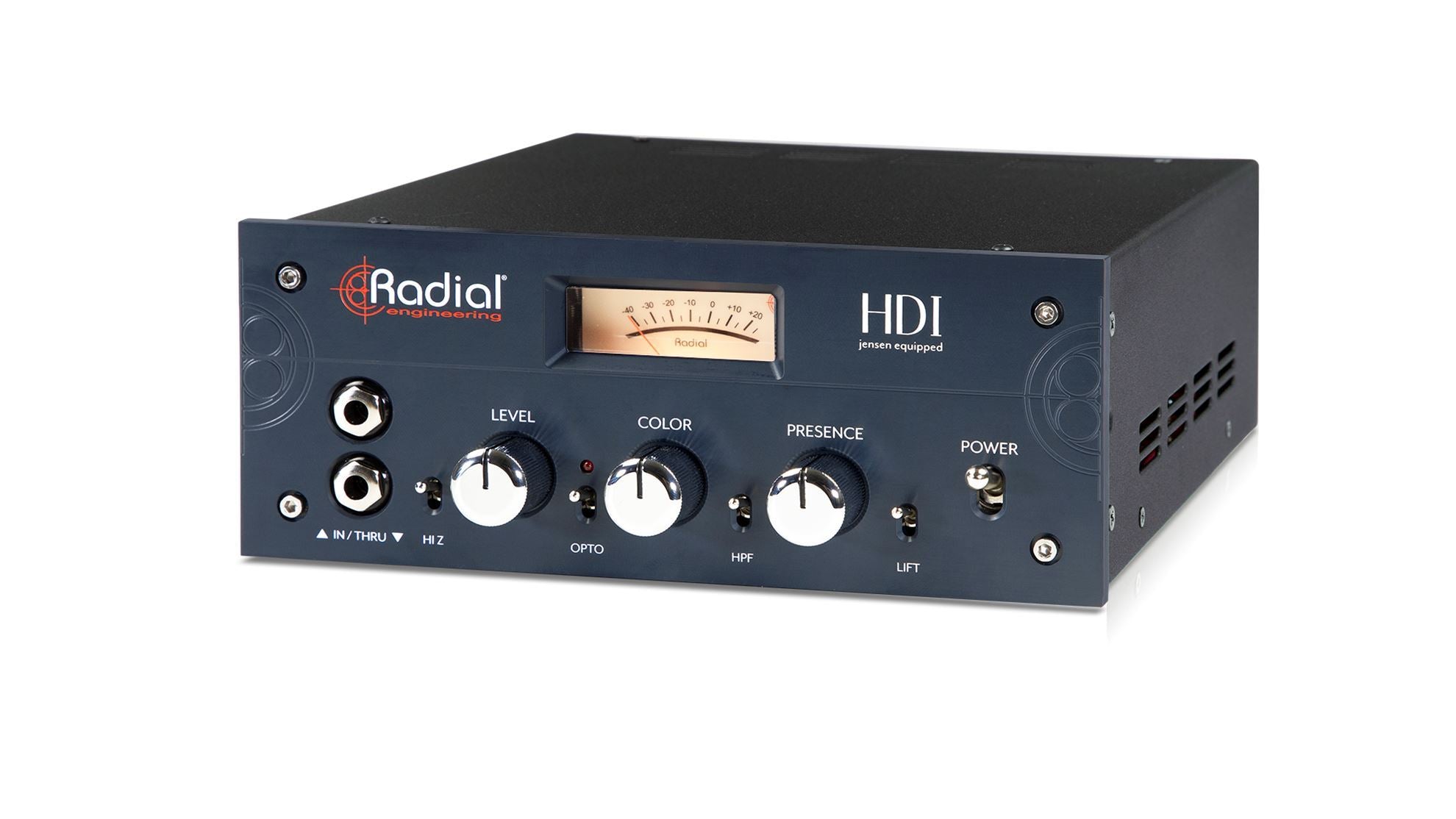

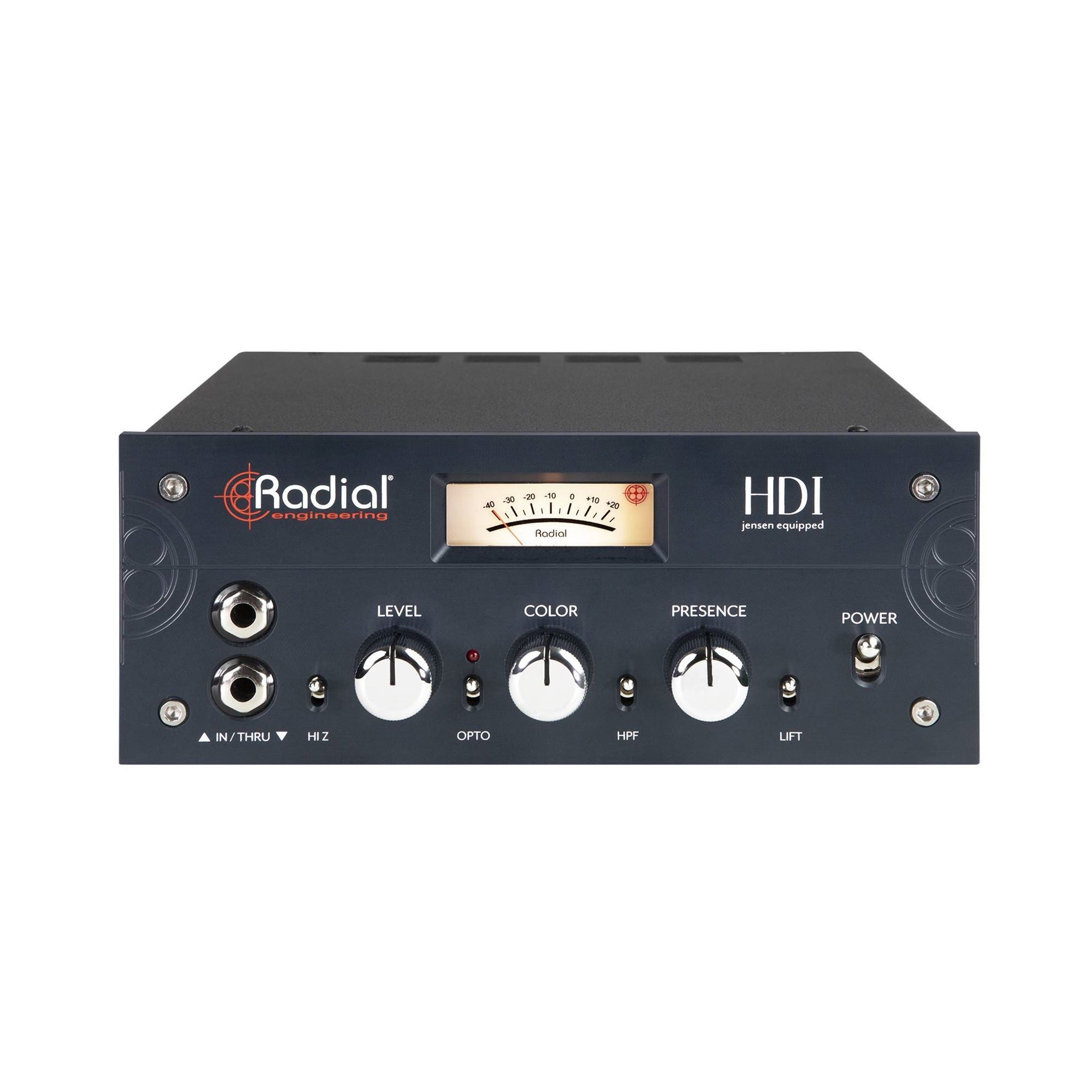

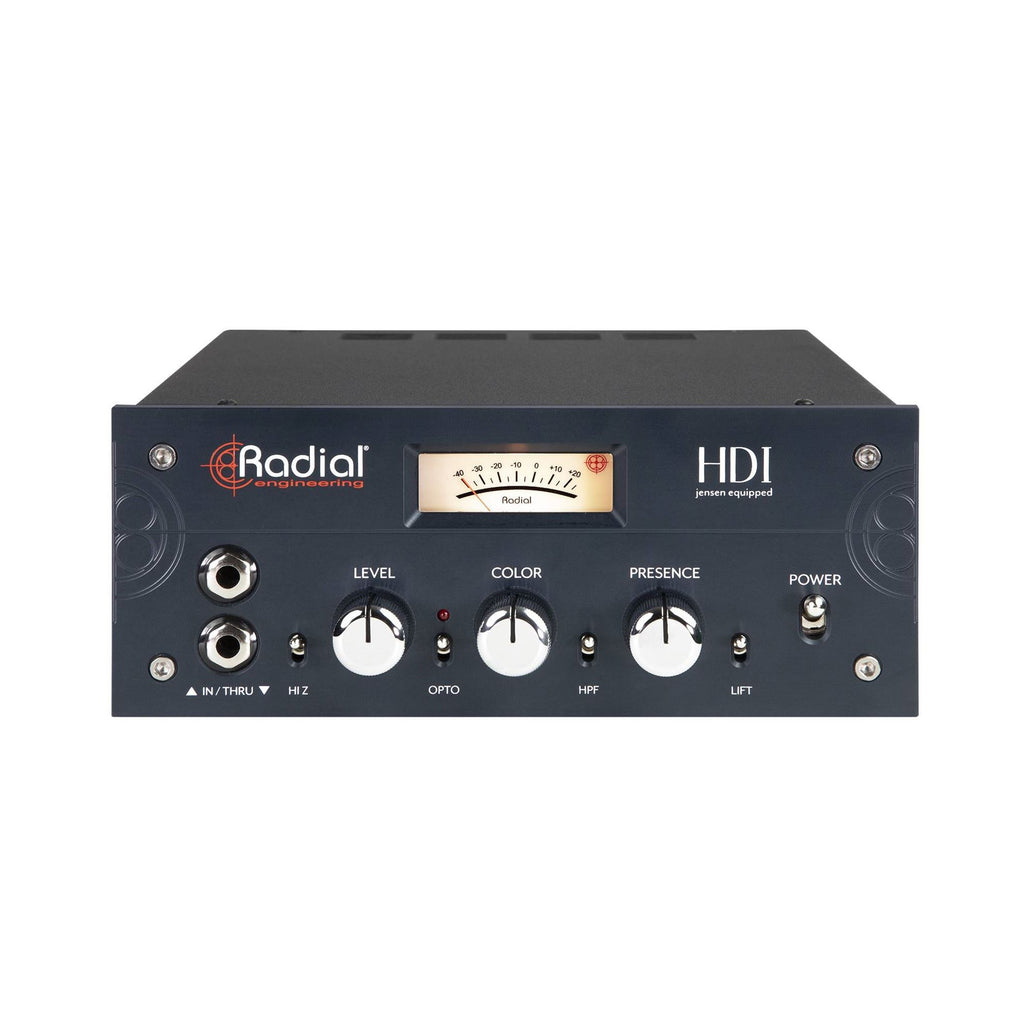

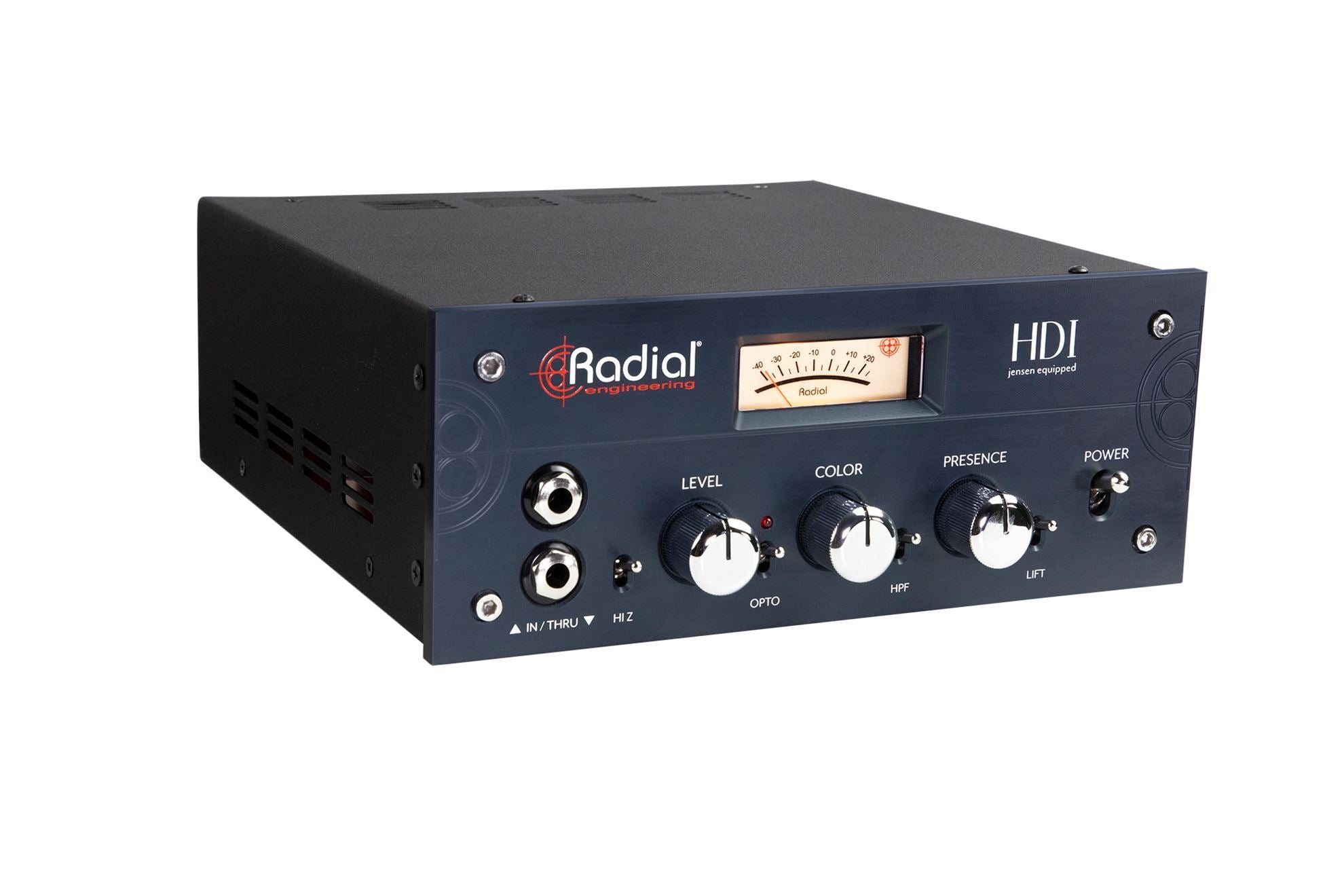

Radial Engineering HDI high-definition studio-grade direct box for live outboard use, showing input and output connections.

Radial HDI High Definition Studio Grade Direct Box

Brand: Radial Engineering

Radial HDI High Definition Studio Grade Direct Box

Name: Radial HDI High Definition Studio Grade Direct Box
Brand: Radial Engineering
SKU: RA-HDI
Price: 1519.00 AUD
Availability: InStock

SKU: RA-HDI

$1,519.00 (16% off RRP)

RRP $1,809.00

Available to Order

Price Match

Rent from
$126.58/mth for 12 months interest free

Fees apply
$379.75 Pay in 4 interest-free

Late fees apply
$379.75 Pay in 4 interest-free

No fees or interest

Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

0 Mega Music Myaree
0 Mega Music Wangara
0 Mega Music Warehouse

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!

Features

Dial in an amazing tone within seconds
Blend from ultra-clean to amp-like distortion
Smooth Opto compressor for peak reduction
Mic and line-level outputs
Oversized custom-wound Jensen transformer

Specifications

Frequency response: Line Output: 1Hz ~ 100kHz +0.25/-3dB, 20Hz ~ 20kHz +/-0.1dB Mic Output: 1Hz ~ 100kHz +0.25/-3dB, 20Hz ~ 20kHz +/-0.1dB
Dynamic range: 112dB (20-20k, unweighted, referred to +25dBu)
Gain: Min Gain (Level CCW): -3dB Max Gain (Level CW): +31dB
Total harmonic distortion: 0.3% @20Hz, 0.22% @100Hz, 0.01% @1kHz (+4dBu In)
Signal to Noise: 91dB (20-20k, unweighted, referred to +4dBu)
Maximum Input: 1/4" TS: +5dBu, 3 VAC RMS, 8.4 V Peak to Peak 3.5mm: +25dBu, 7 VAC RMS, 20V Peak to Peak (Level @ 12:00)
Maximum Output: Line Level XLR: +25dBu (1% THD at 1kHz) Mic Level XLR: +3.7dBu (1% THD at 1kHz) 1/4" Processed Out: +8dBu (Approx. unity gain with Level @ 12:00)
Input pad, Ground lift, HPF
Input Connectors: 1/4” TS (front and rear), 3.5mm Synth
Output Connectors: XLR Line / Mic, 1/4” TS Processed, 1/4” TS Thru
Extras: Opto Compresser: 6:1 ratio, max 8dB gain reduction HPF: 40Hz / 100Hz rolloff @ -6dB/octave
Construction: 14 gauge steel chassis, 1/2” aluminum front panel
Size (L x W x D): 8.25” x 8.25” x 3.5”
Weight: 5.05lbs
Power: 100-200VAC 0.45A ~ 50/60Hz
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
