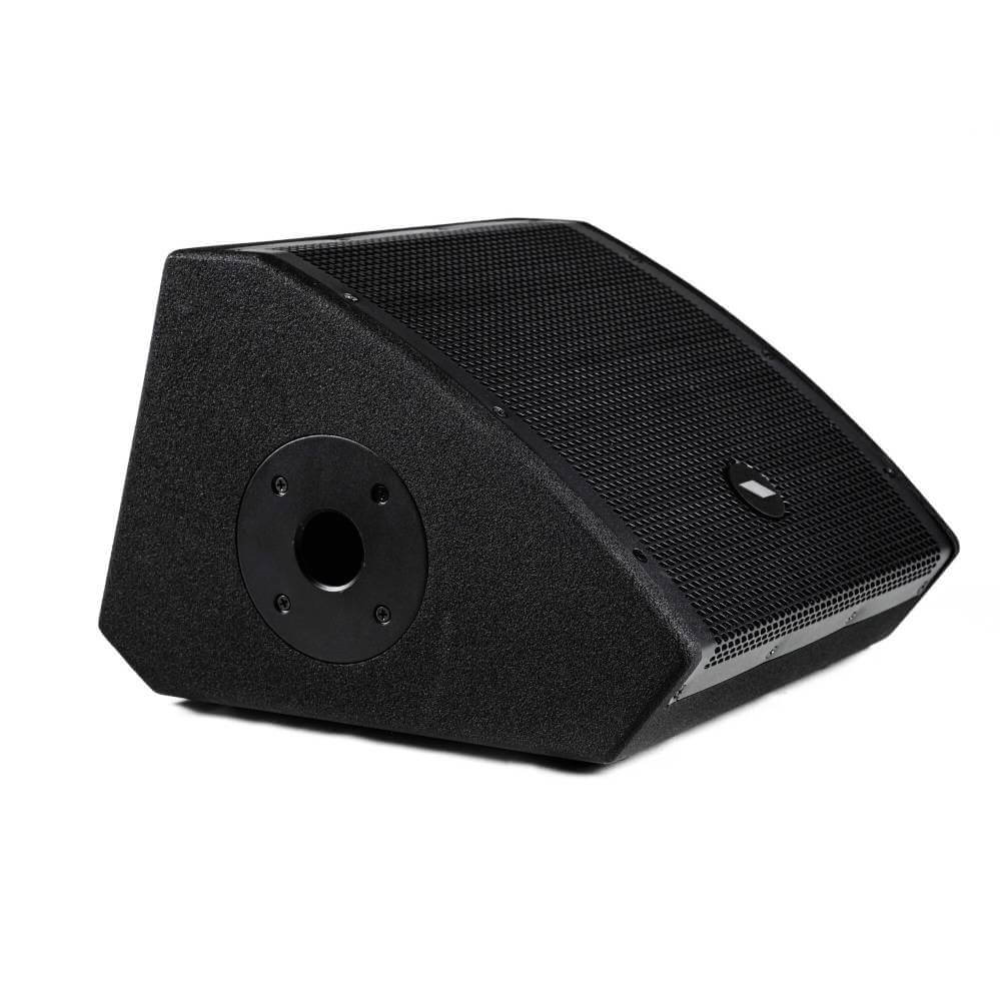

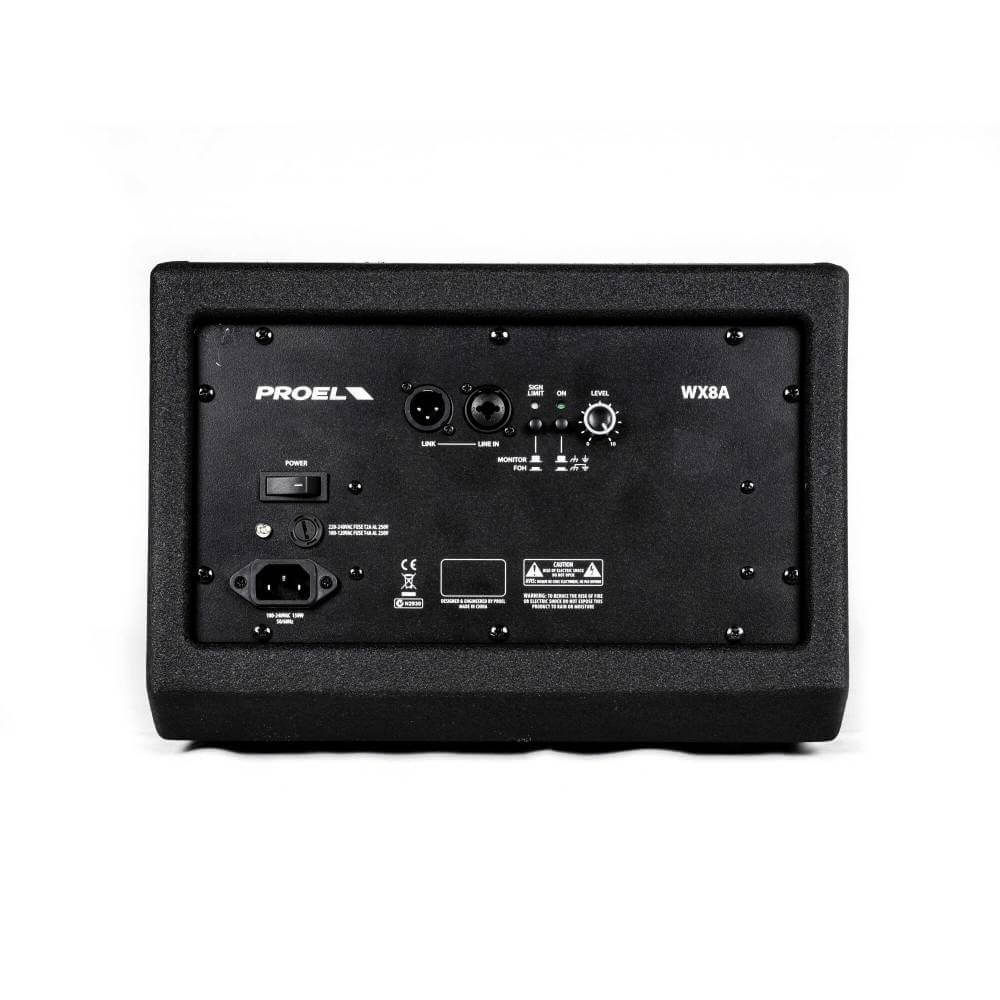

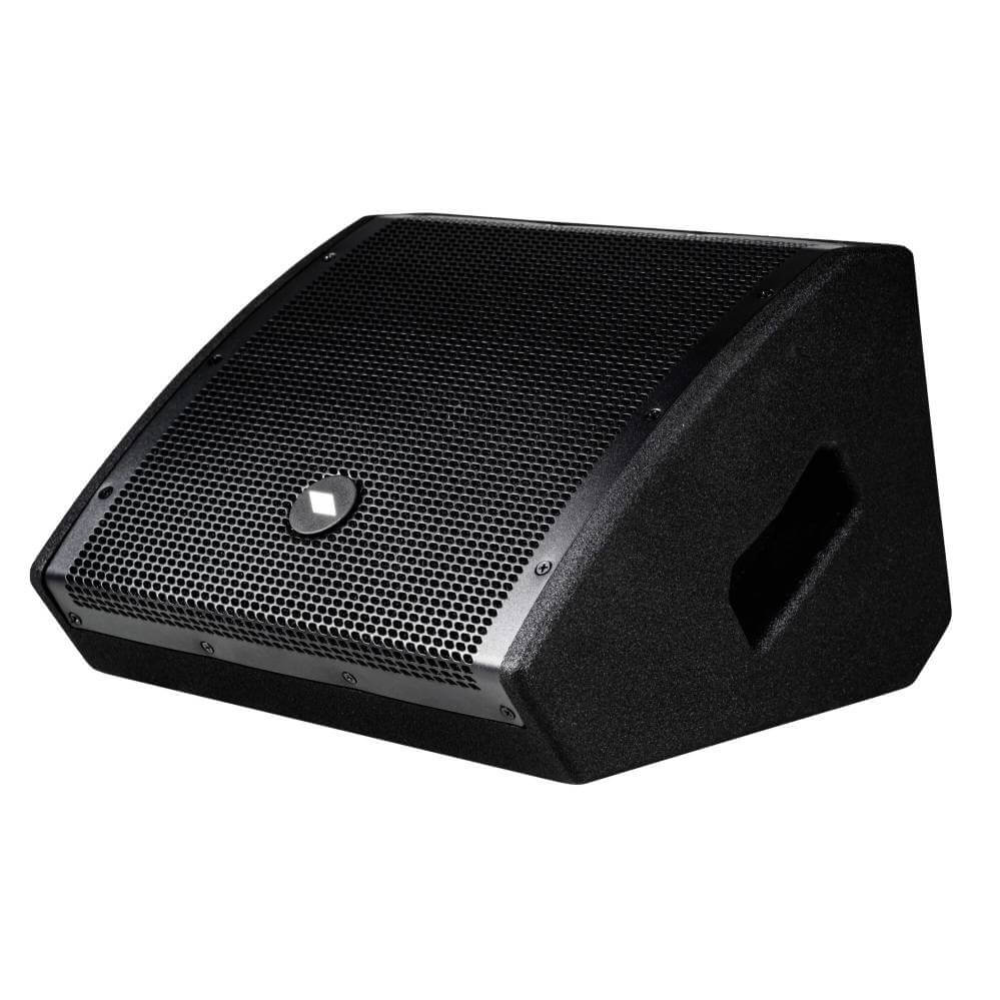

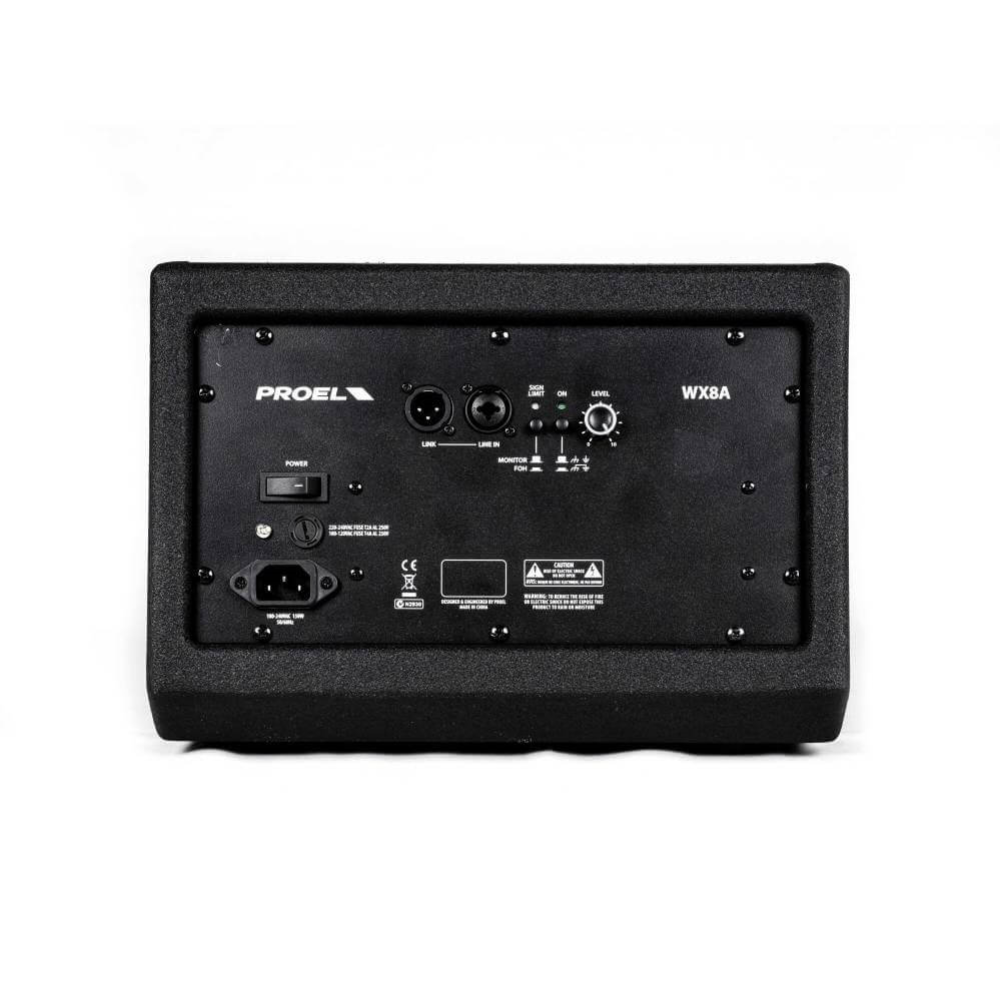

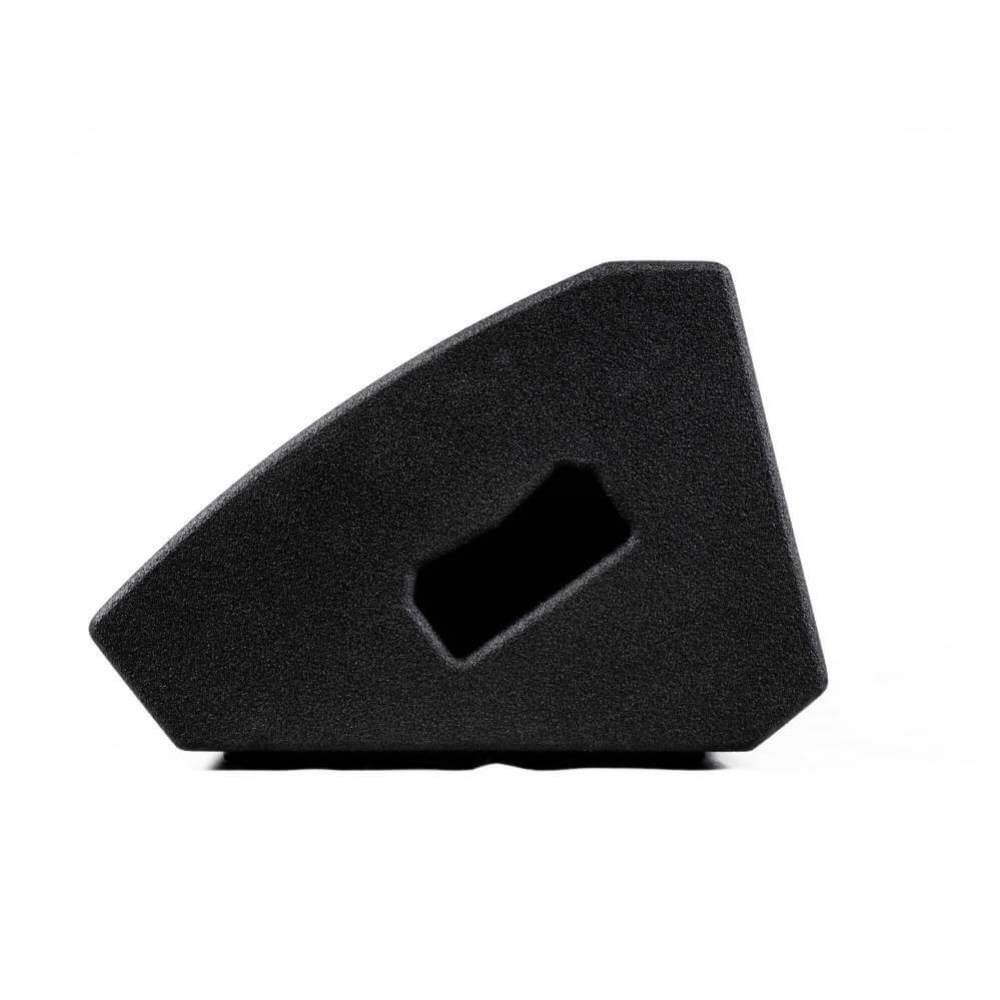

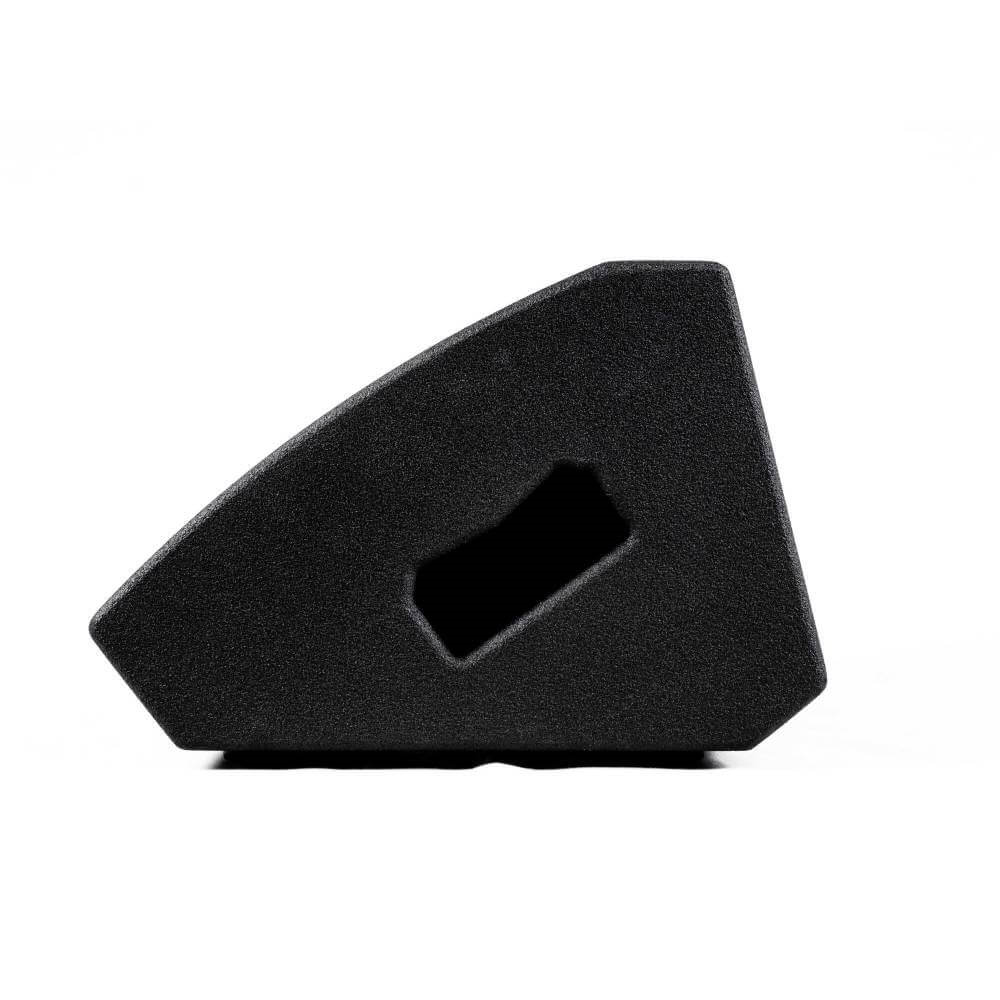

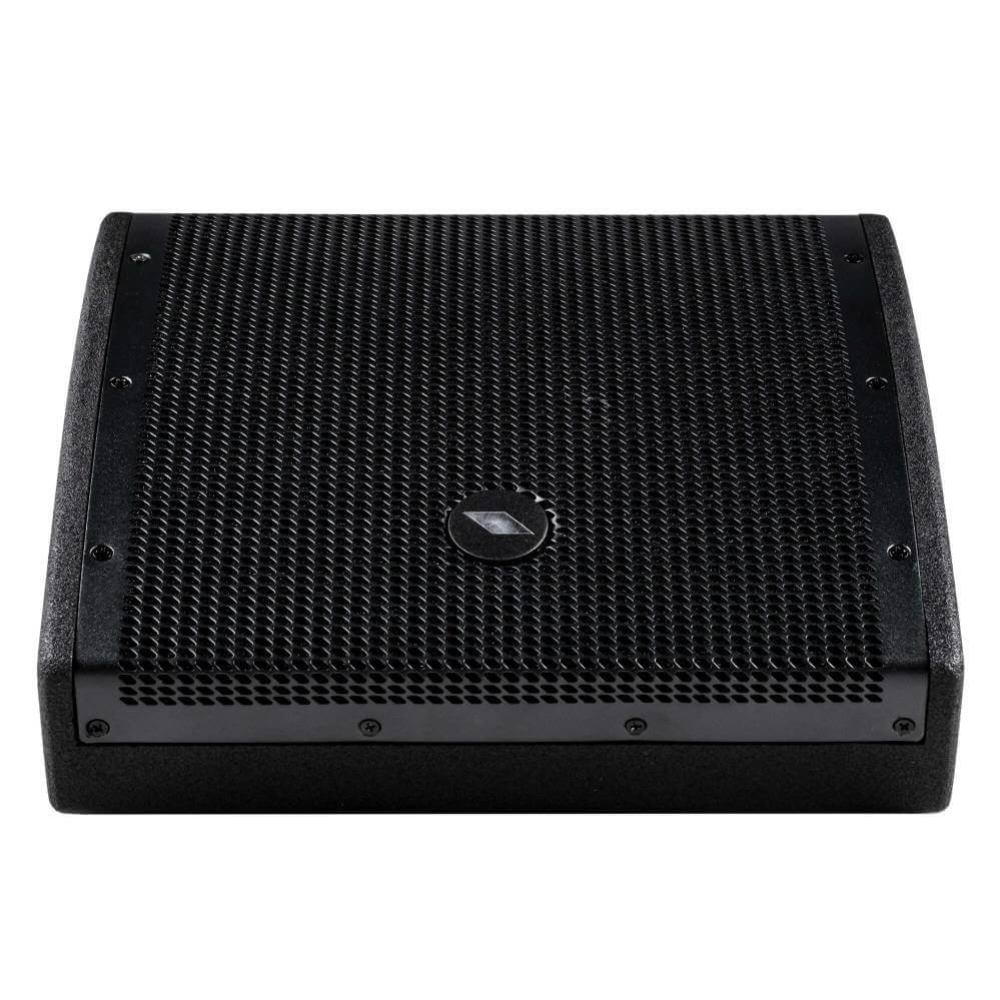

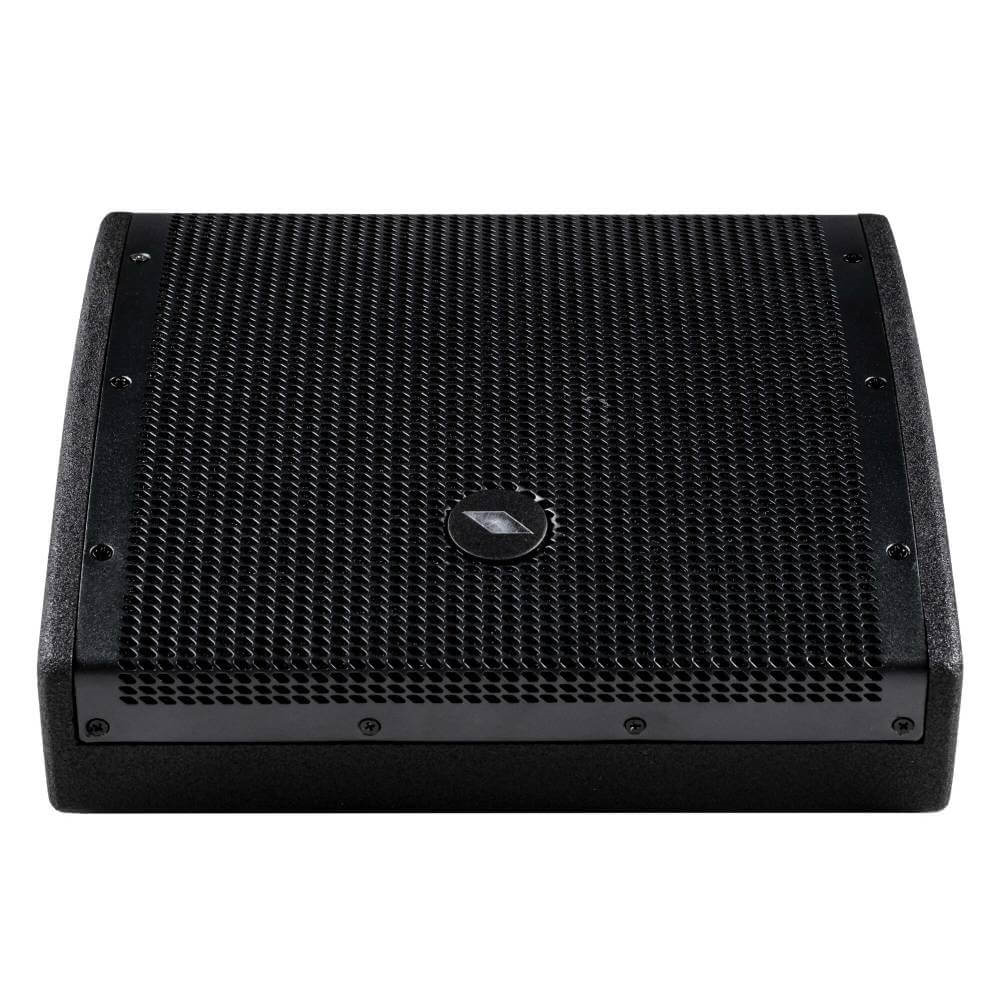

Proel WX8A active 2-way coaxial 8-inch stage monitor powered speaker with control panel and connection ports visible.
1/10
backorder

Proel WX8A Active 2-Way Coaxial 8 Stage Monitor Powered Speaker

$499.00 AUD
Brand: Proel
SKU: WX8A

Rent from

Backorder

Mega Music Myaree

Available to Order In

Mega Music Wangara

Available to Order In

Mega Music Warehouse

Available to Order In

Proel WX8A Active 2-Way Coaxial 8 Stage Monitor Powered Speaker

Mega Music Myaree

Available to Order In

95 N Lake Rd
Myaree WA 6154
Australia

+61893302777

Mega Music Wangara

Available to Order In

5/32 Prindiville Drive
Wangara WA 6065
Australia

+61894081236

Mega Music Warehouse

Available to Order In
Description

The Proel WX Series stage monitors boast perfect signal intelligibility, a high SPL and an incredibly compact format, delivering a professional, but affordable monitoring solution to suit stages of any size.

Features
  • Active 2-way coaxial stage monitor
  • 500 W total power
  • Class D power amplifier with SMPS
  • Dual LIMITER circuit
  • 2 optimized EQ PRESETS for MONITOR or FOH (Front-Of-House) use
  • SPL MAX 122 dB
  • Frequency response 80 Hz - 20 KHz
  • Ultra-compact, lightweight cabinet with black ultra-durable polyurethane paint
  • Reinforced metal grille
  • Recessed handle for easy transport
  • Pole socket

The coaxial design of the transducer optimizes the alignment of the low and high frequencies, controls the directivity for a perfect listening experience from any position, and helps minimize monitor size. The ultra-compact housing with built-in handle and pole mounting socket are designed to have an extremely low profile, minimizing the footprint on stage. The cabinet is finished with a durable polyurethane paint to withstand years of abuse.

A lightweight 500W CLASS D amplifier module with SMPS provides high output and his SPL unexpected for such a small speaker. Sophisticated analog processing ensures detailed response, especially in the vocal range, and noticeable feedback resistance. Two EQ PRESETS are available so that it can be used not only for stage monitoring (MONITOR), but also as a MAIN SOUND SYSTEM (FOH) if desired.

The Proel WX Series boasts a high output and SPL for such small speakers thanks to the lightweight 500W Class D amplifier module with SMPS. Elaborate analogue processing achieves a detailed and articulate response, especially in the vocal range, and outstanding feedback resistance. These speakers can be used in stage monitoring (MONITOR) or main sound (FOH) applications as required by switching between two EQ Presets on the control panel.

Specifications
  • System Type: 2-Way Coaxial Vented Stage Monitor
  • Drivers
    • High Frequency Driver: 1" Compression Driver with 1" Voice Coil
    • Low Frequency Driver: 8" Woofer with 2" Voice Coil
  • Angular Coverage: 60º
  • Frequency Response: 80Hz - 20kHz
  • Max. SPL: 122dB
  • Amplifier Continuous Power: 250W CLASS D with SMPS
  • Input Impedance: 30kΩ Balanced, 15kΩ Unbalanced
  • Input Sensitivity: -10dBu
  • Controls: LEVEL, PRESET selector (MONITOR, FOH), GND Lift
  • Connectors: INPUT: COMBO (XLR-F/JACK), LINK: XLR-M
  • Power
    • Power Supply: 230VAC of 115VAC - 50/60Hz
    • Power Consumption: 200W
  • Construction: MDF with Black Anti-Scratch Polyurethane Paint
  • Monitor Taper: 36º
  • Dimensions
    • 325mm (W) x 336 (H) x 233 (D)
    • 8kg
