PreSonus SL16R StudioLive 16R Rack Mount Rack Mixer/Stage Box

Powerful and compact

Powerful and compact, the PreSonus^® StudioLive^® 16R serves as a 16-channel AVB stage box for StudioLive Series III consoles and as a Series III rack-mount digital mixer with modern and vintage effects, multitrack recording via USB 2.0 and AVB, and a full suite of integrated, easy-to-use software.

Why the SL16R?

PreSonus^®’ 16-channel Series III StudioLive^® 16R is both a versatile AVB stage box for StudioLive Series III consoles and the most powerful rack mixer in its class. It can operate as a simple stage box or as a combined stage box/monitor mixer, including remote control of the preamps and phantom power from the Series III console.

As with Series III consoles, it’s fully recallable and features a plug-in-style signal-processing workflow with vintage-style EQ and compression options on every channel; 6 FlexMixes that can be Aux, Subgroup, or Matrix mixes; 6-band fully parametric EQ on all mix outputs; and built-in AVB networking.

In addition to 18x18 USB and 32x32 AVB recording interfaces, the StudioLive 16R features an onboard stereo SD recorder.

The SL16R in short:

• AVB stage box for StudioLive Series III consoles with simple stage box mode and stage box + monitor mixer mode
• Fully recallable, 16-channel, Series III digital rack mixer
• 18 total inputs, including 16 locking combo mic/line channel inputs with recallable XMAX Class A mic preamps and 2 RCA inputs (Ch. 15-16)
• 6 FlexMixes (Aux mixes, Subgroups, or Matrix mixes)
• 18x18 USB 2.0 recording interface and 32x32 AVB recording interface

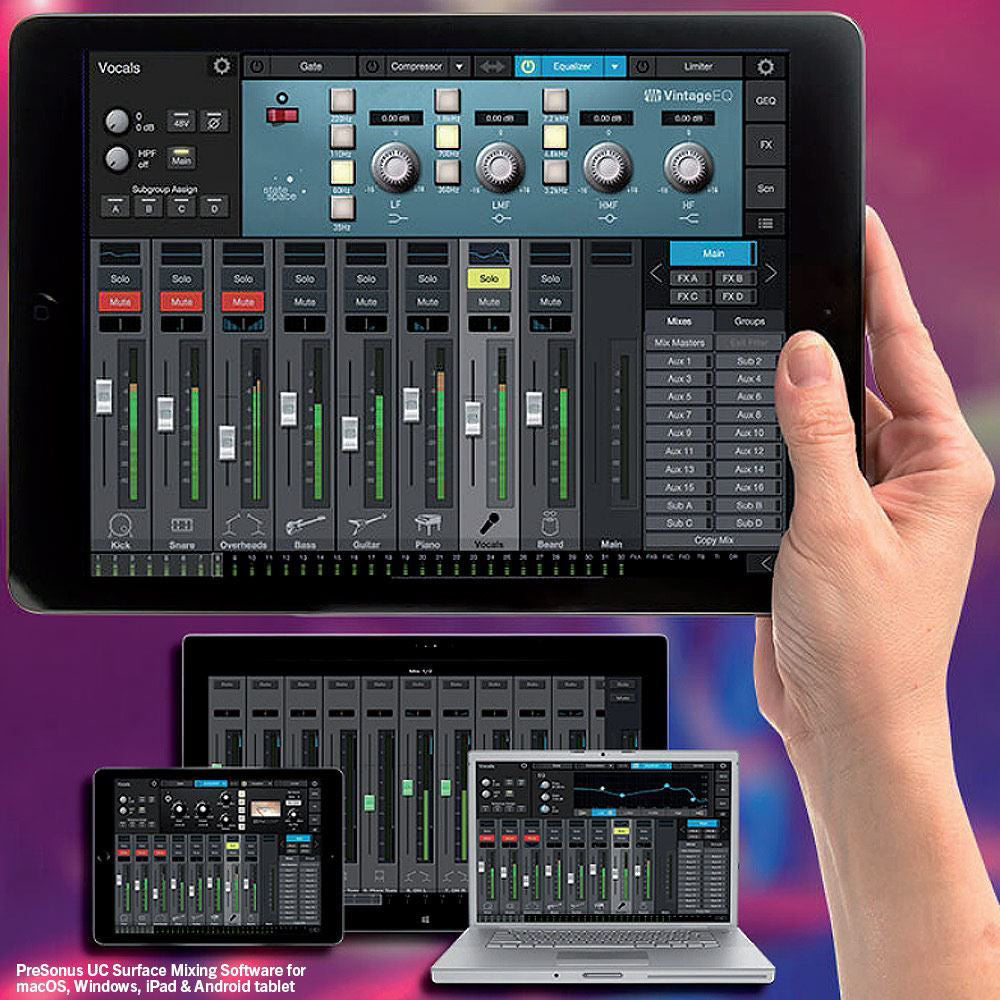

• Complete solution: Includes UC Surface touch-control software for Mac, Windows, iPad, and Android; Capture™ live-recording software and Studio One^® Artist DAW for Mac and Windows; compatible with free QMix-UC^® personal monitoring control for iPhone^®/iPod^® touch, and Android™
