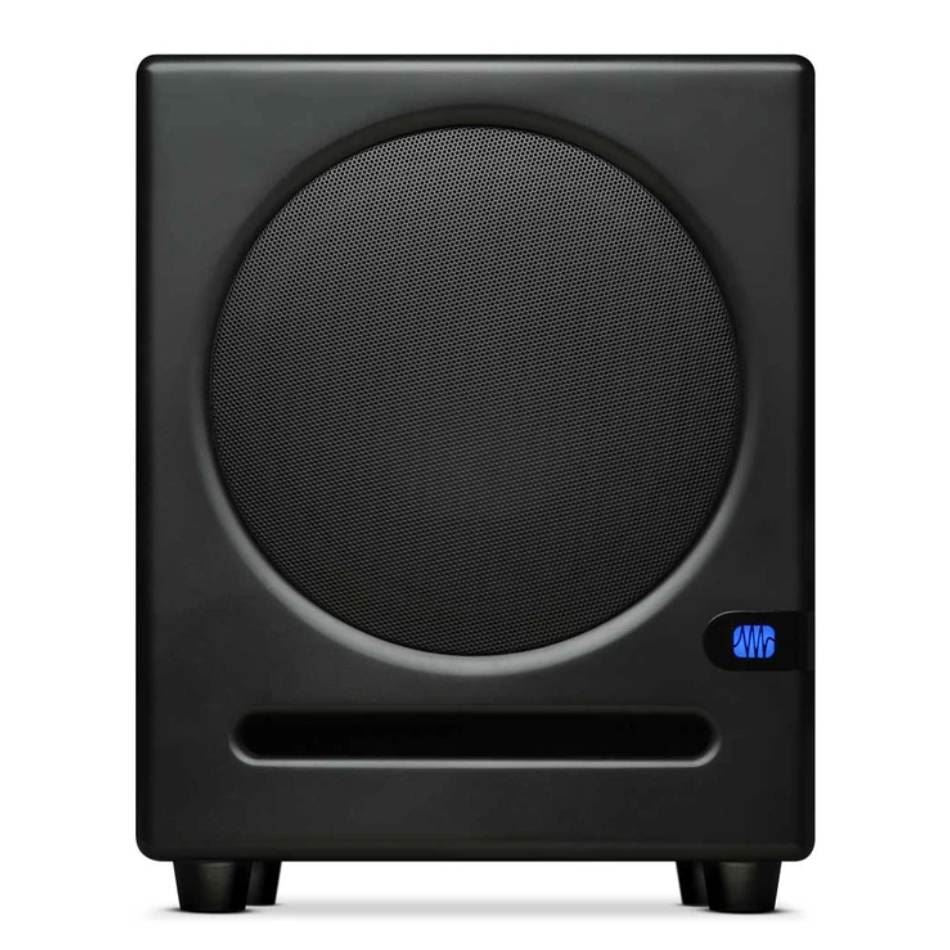

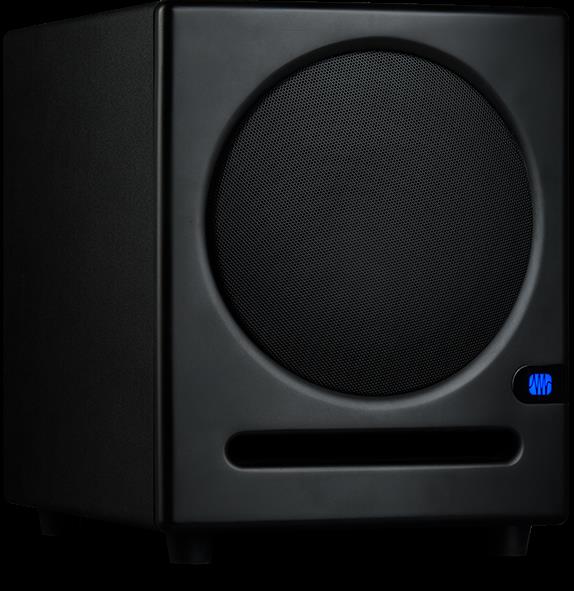

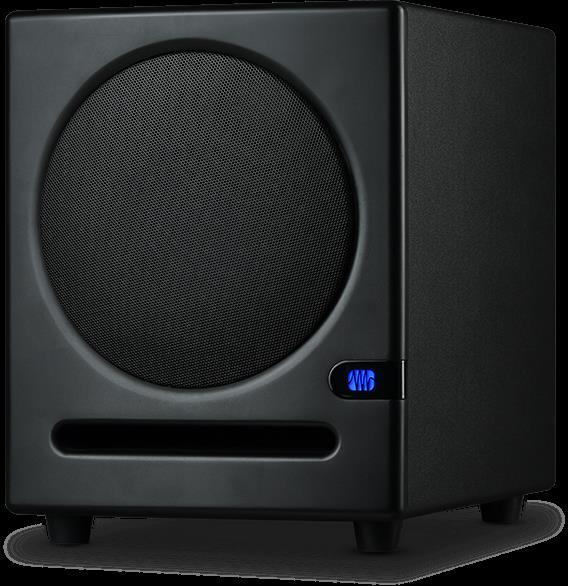

We called it Eris because it’s been designed from the ground up to be part of the family; it compliments the voicing and frequency response of the modern Eris classics.
Of course, they’ll play nice with other monitors, too, but if you’ve got a pair of Eris in your home or studio already, the Eris Sub8 is the single best subwoofer you can get to put a little boom in your room.
Features
- 8-inch, front-firing, paper-composite low-frequency transducer with high-elastisity rubber surround
- Class AB amplifier: 100W peak (50W RMS) power
- Input gain control (-30 dB to +6 dB, continuously variable)
- Continuously variable lowpass filter (50 Hz to 130 Hz)
- Defeatable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Eris Sub8 outputs to the main speakers
- Left and right, balanced ¼-inch TRS and unbalanced RCA main inputs
- Left and right balanced ¼-inch TRS and unbalanced RCA pass-through outputs for connecting satellite speakers
- Polarity invert switch
- Protection: RF interference, Output-current limiting, Over-temperature, Turn-on/off transient, Subsonic filter, External mains fuse
Specifications
- Inputs: 2- Balanced ¼” TRS; 2- Unbalanced RCA
- Outputs: 2- Balanced ¼” TRS (full range with 80 Hz HPF option); 2- Unbalanced RCA (full range with 80 Hz HPF option)
- Performance:
- Frequency Response: 30 Hz – 200 Hz
- Low Pass Filter Frequency: 50 – 130 Hz (variable)
- Signal-to-Noise Ratio: >95 dB (A weighted)
- THD: 0.05%
- Amplifier Power: 100W peak, 50W RMS
- Power Consumption: 100W
- Amplifier Type: Class AB
- Peak SPL at 1m: 113 dB
- Woofer: 8” paper-composite with high-elasticity rubber surround, front-firing
- Acoustic Port: Front-firing bass reflex
- User Controls:
- Input Gain Range: -30 to +6 dB
- Polarity Switch: 0° or 180°
- Low Pass Filter Control: 50 Hz to 130 Hz
- High Pass Filter Switch: On/Off
- Protection:
- RF interference
- Output-current limiting
- Over-temperature
- Turn-on/off transient
- Subsonic filter
- External mains fuse
- Power: 100-120V ~50/60 Hz or 220-240V ~50/60 Hz
- Cabinet: Vinyl-laminated MDF
- Width: 9.8” (250 mm)
- Depth: 12.75” (324 mm)
- Height: 11.6” (295 mm)
- Weight: 16.3 lbs (7.4 kg)
Watch: PreSonus Eris Sub8 studio subwoofer—The best subwoofer for Eris monitors.
