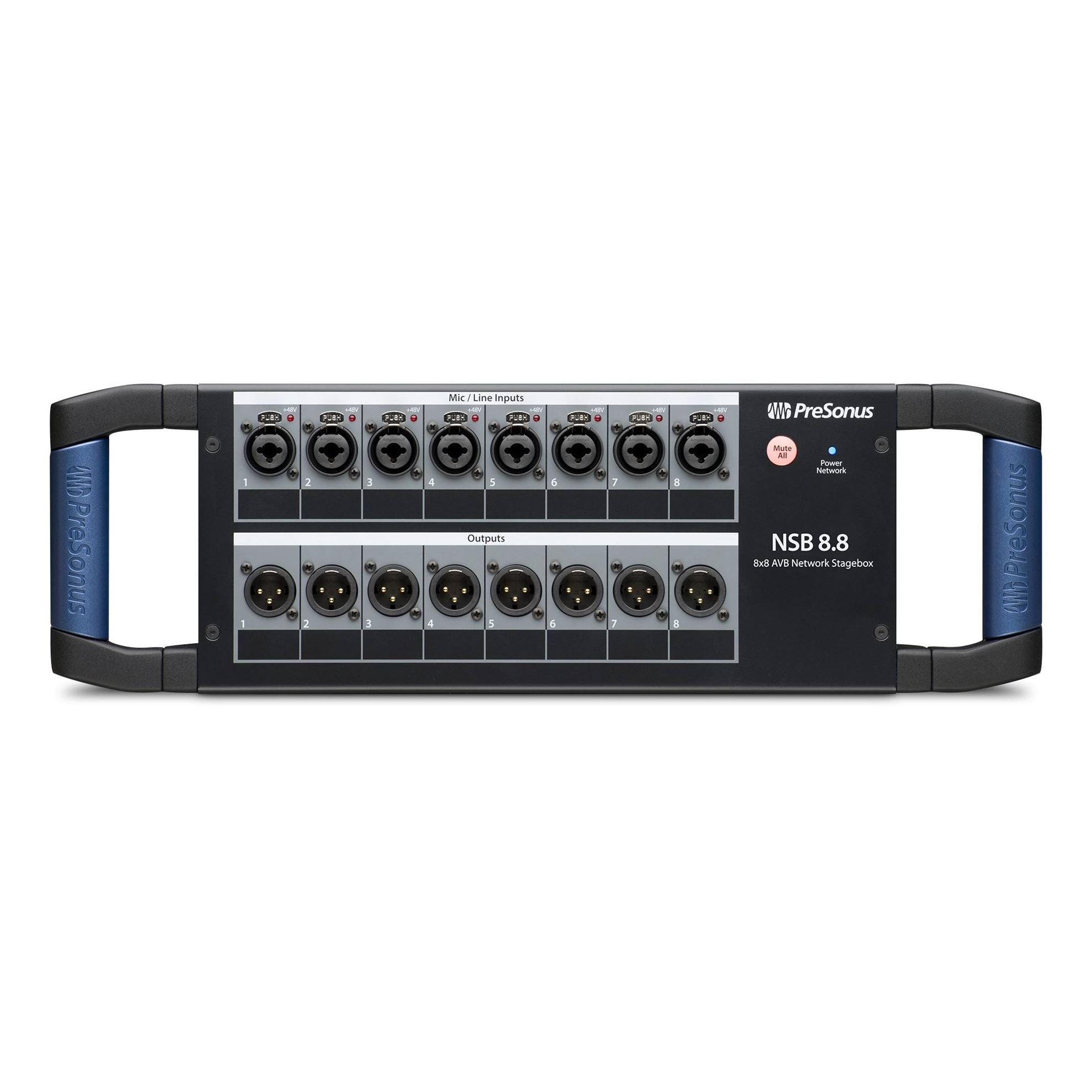

Presonus 8x8 Remote XLR Network Stage Box for SLIII Mixers

Equipped with eight digitally controlled XMAX mic preamps, eight balanced line level inputs and eight analog outputs, the NSB 8.8 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection.

Remote control input trims, phantom power, and more directly from your StudioLive Series III console or from UC Surface remote mixing software on your tablet or laptop.

Features

• 8x8 network stage box for StudioLive Series III console mixers
• 8 digitally controlled XMAX mic/line inputs with gain compensation for shared streams
• 8 line outputs
• Easy configuration from StudioLive Series III console mixers and UC Surface

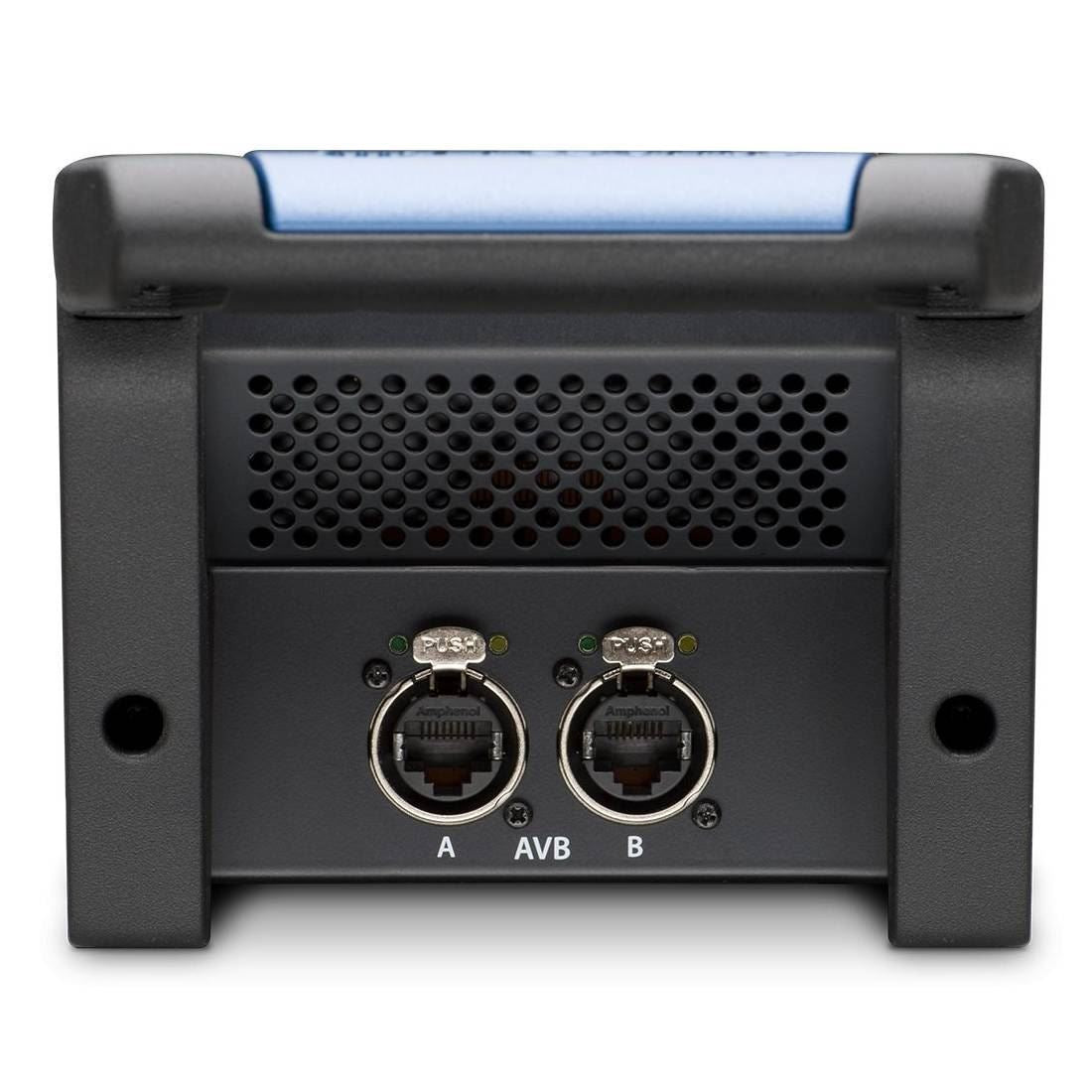

• Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
• Rugged all-metal stage box enclosure
• Optional rack ears
• Compatible with stage pockets from Ace Backstage

Specifications

Mi​crophone Preamplifier

• Input Type: XLR Female, balanced
• Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
• Input Impedance: 1 kΩ
• THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
• Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
• Gain Control Range (±1 dB): 0 dB to +60 dB
• Maximum Input Level (unity gain): +12 dBu
• Phantom Power (±2 VDC): 48 VDC, switchable per channel

Line Inputs

• Type: ¼” TRS Female, balanced
• Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
• Input Impedance: 10 kΩ
• THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
• Maximum Input Level: +18 dBu

XLR Outputs

• Type: XLR Male, balanced
• Maximum Output Level: +24 dBu, ±0.5 dBu
• Output Impedance: 100Ω

Digital Audio

• ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
• DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
• AVB Audio Network Ports: Locking XLR Ethernet
• Sampling Rate: 48 kHz, 44.1 kHz

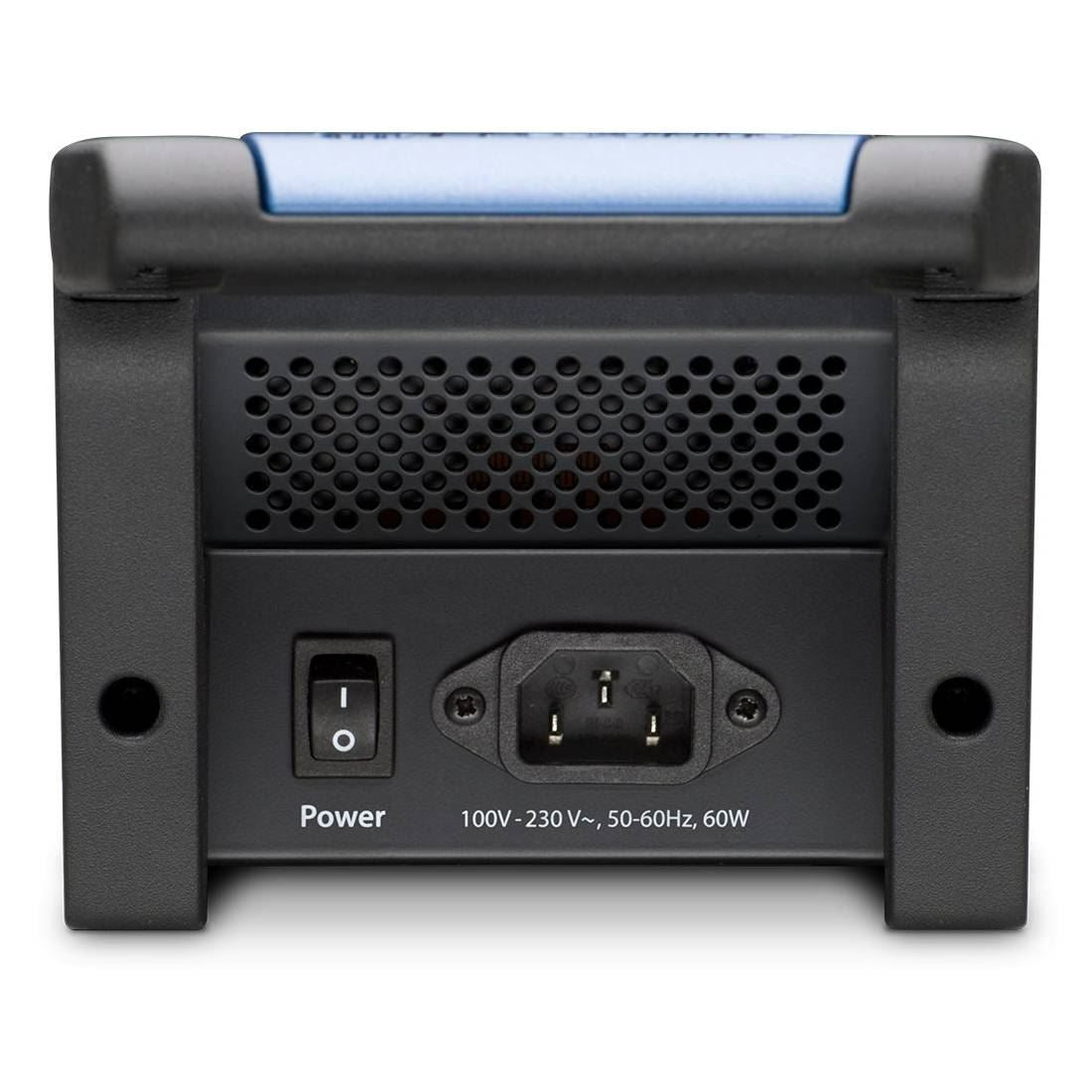

Power

• Connector: Locking IEC
• Input-Voltage Range: 90 to 230 VAC (±10%)

Physical

• Height: 5.2” (132 mm)
• Width: 16.7” (424 mm)
• Depth: 4.5” (114 mm)
• Weight: 5.4 lbs. (2.4 kg)
