PreSonus 16x8 Remote XLR Network Stage Box for SLIII Digital Desk Mixers with multiple XLR inputs and network connection ports
  • PreSonus 16x8 Remote XLR Network Stage Box for SLIII Digital Desk Mixers with multiple XLR inputs and network connection ports
  • PreSonus 16x8 Remote XLR Network Stage Box for SLIII Digital Desk Mixers, with XLR connections and network interface.
  • PreSonus 16x8 Remote XLR network stage box for SLIII digital desk mixers, with multiple XLR input and output connections.
  • PreSonus 16x8 remote XLR network stage box for SLIII digital desk mixers, with multiple XLR inputs and outputs.
Presonus 16x8 Remote XLR Network Stage Box for SLIII Mixers

Brand: PreSonus

Presonus 16x8 Remote XLR Network Stage Box for SLIII Mixers

SKU: PRE-SL-NSB168
$1,699.00 (15% off RRP)
RRP $1,998.82
Available to Order
Price Match

  • Rent from

  • $141.58/mth for 12 months interest free

    Fees apply

  • $424.75 Pay in 4 interest-free

    Late fees apply

  • $424.75 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

Powerful connectivity that’s designed to be shared.

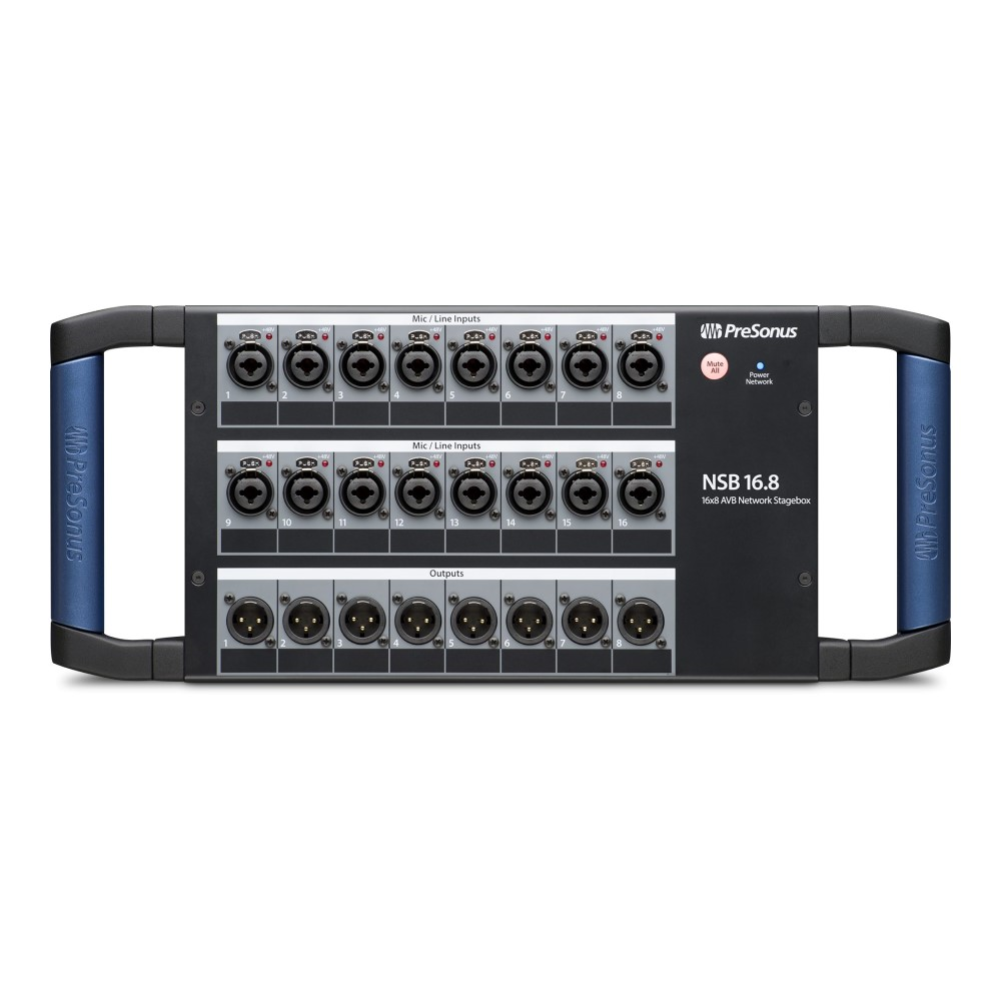

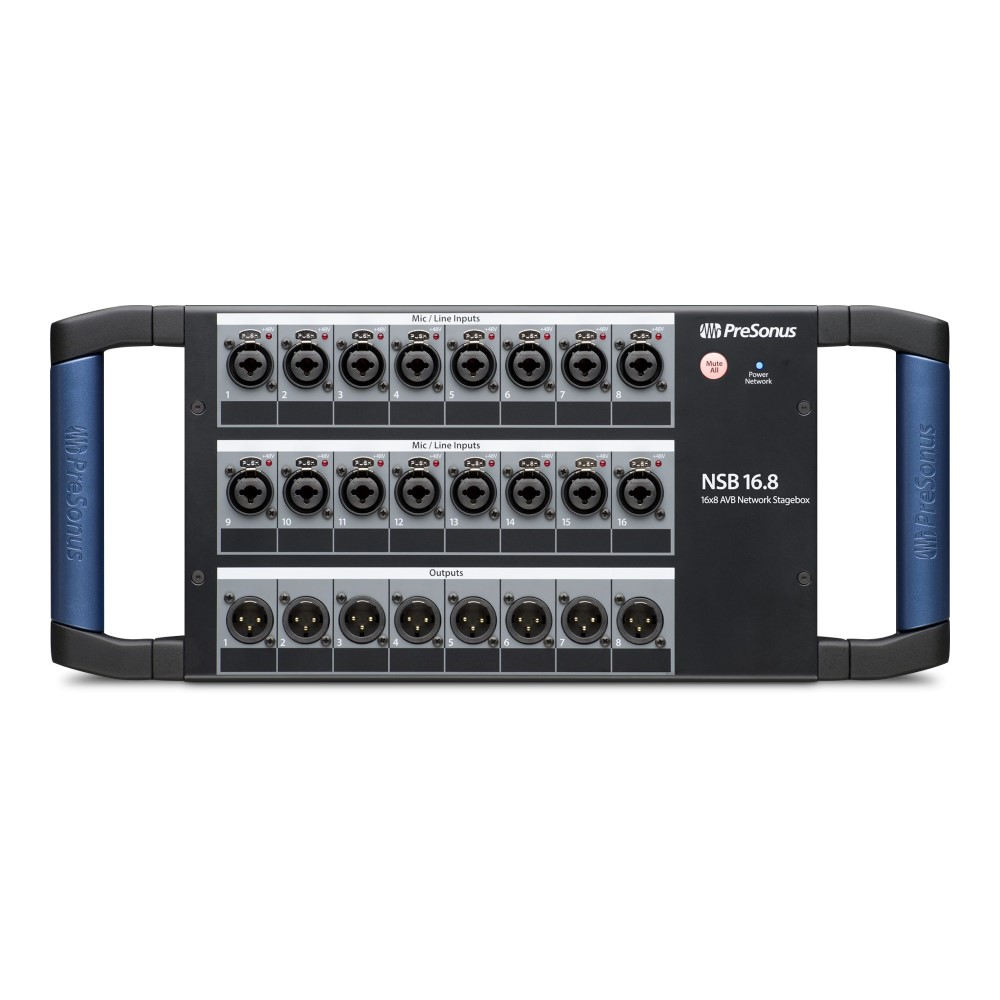

The NSB 16.8 networked stage box is loaded with 16 versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced ¼-inch TRS inputs to connect your line level devices—the NSB 16.8 can handle it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation, every mixer gets individual gain control without affecting the front-of-house mix.

Rugged stage box, flexible installation.

PreSonus built the NSB 16.8 inside a rugged steel chassis with sturdy handles designed to survive the rigors of the most demanding tours. The NSB 8.8 is also install-friendly: Just remove the handles and attach the optional rackmount kit, and your NSB 8.8 can be racked in your studio or backstage. For permanent installations, the NSB 8.8 is also compatible with stage pockets from Ace Backstage.

A complete networked solution.

StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The NSB 16.8 can be used alone or with many other NSB-series stage boxes to add remote audio to one StudioLive Series III digital mixer or to multiple mixers on the same network. For StudioLive Series III mixers that have limited onboard analog I/O, the NSB 16.8 provides a simple expansion to a full 32- or 64-channel mixing system.

Features

  • 16x8 network stage box for StudioLive® Series III console mixers
  • 16 digitally controlled XMAX mic/line inputs with gain compensation for shared streams
  • 8 line outputs
  • Easy configuration from StudioLive Series III console mixers and UC Surface

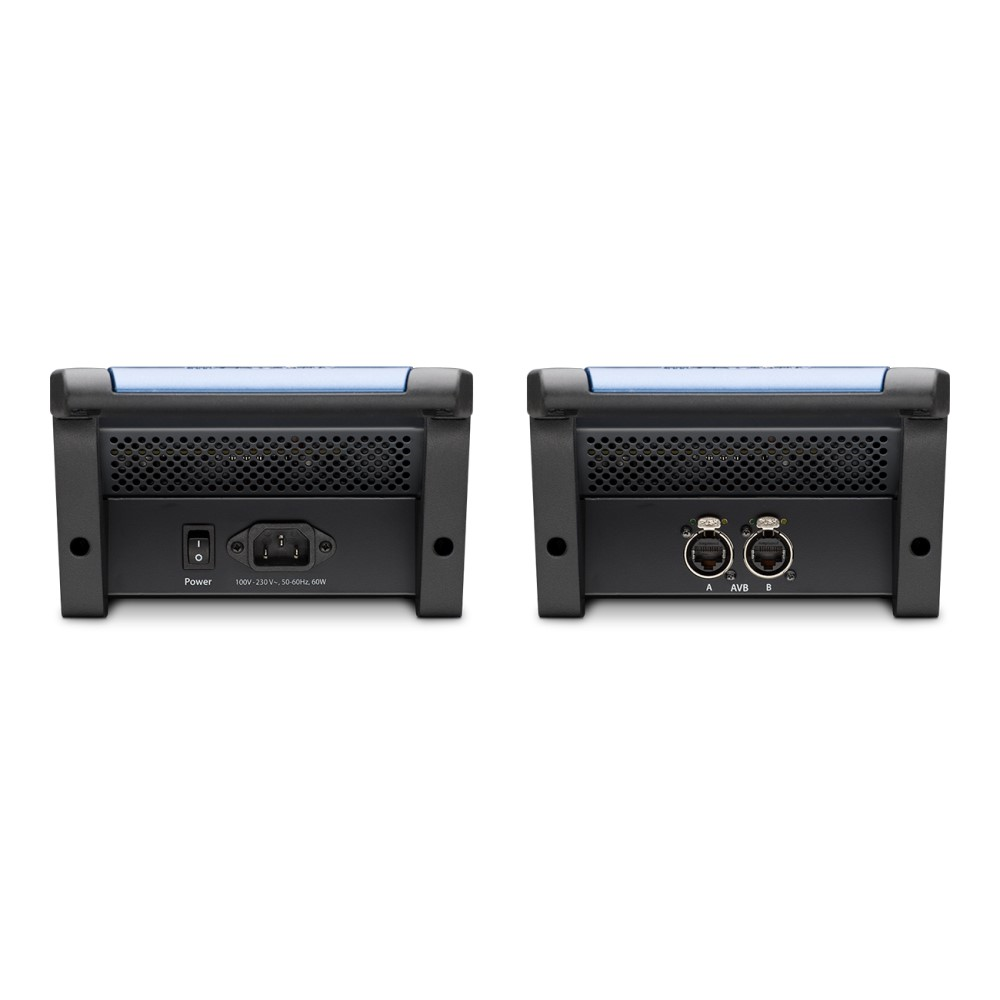

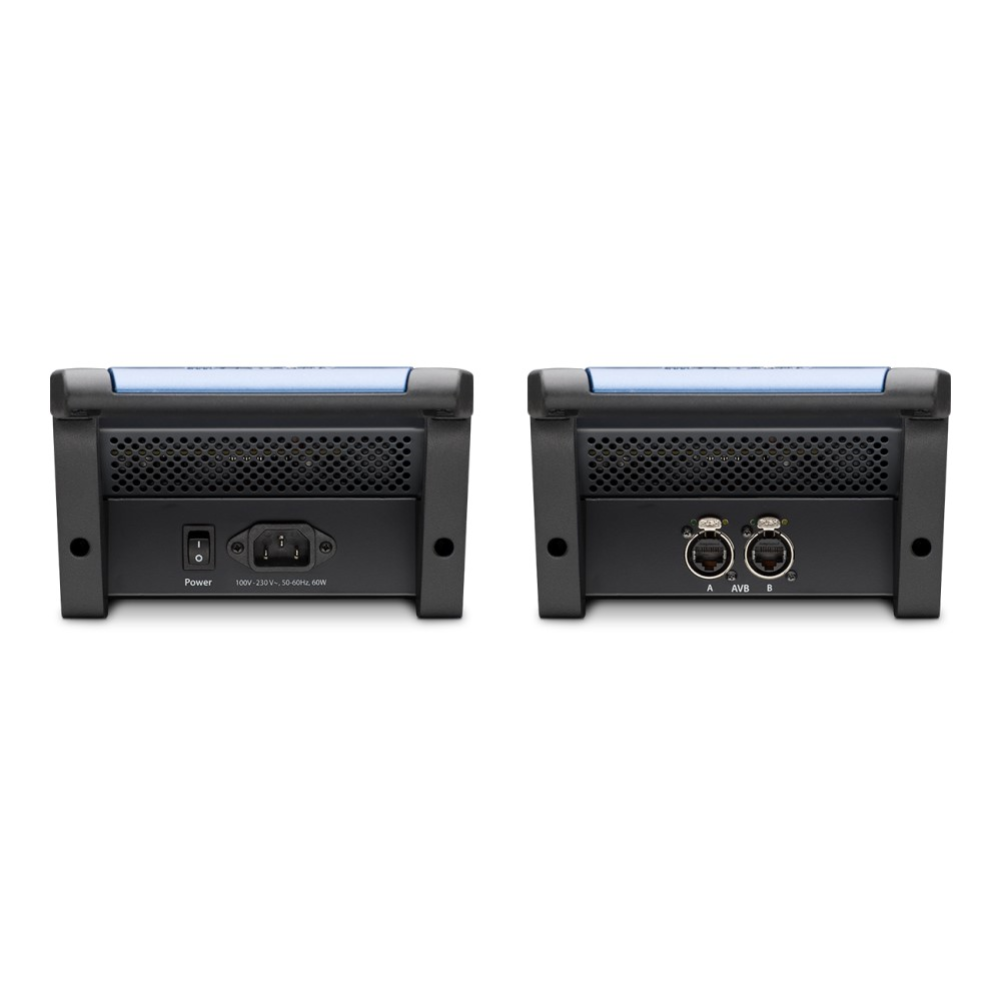

  • Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
  • Rugged all-metal stage box enclosure
  • Optional rack ears
  • Compatible with stage pockets from Ace Backstage

Technical Specifications

Microphone Preamplifier: Input Type: XLR Female, balanced Frequency Response to Main Output (at unity gain): 20-20kHz, ±0.5 dBu Input Impedance: 1 kΩ THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd S/N Ratio to Main Output (ref = +4dB, 20kHz BW, unity gain, A-wtd): 94dB Common Mode Rejection Ratio (1kHz at unity gain): 65dB Gain Control Range (±1 dB): 0dB to +60dB Maximum Input Level (unity gain): +12dBu Phantom Power (±2 VDC): 48VDC, switchable per channel Line Inputs: Type: ¼” TRS Female, balanced Frequency Response to Main Output (at unity gain): 20-20kHz, ±0.5 dBu Input Impedance: 10kΩ THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd S/N Ratio to Main Output (Ref+ +4dB, 20kHz BW, unity gain, A-wtd): 94dB Maximum Input Level:+18dBu XLR Outputs: Type: XLR Male, balanced Maximum Output Level: +24 dBu, ±0.5 dBu Output Impedance: 100Ω Digital Audio: ADC Dynamic Range: 115 dB (A-wtd, 48 kHz) DAC Dynamic Range: 115 dB (A-wtd, 48 kHz) AVB Audio Network Ports: Locking XLR Ethernet Sampling Rate: 48 kHz, 44.1 kHz Power: Connector: Locking IEC Input-Voltage Range: 90 to 230 VAC (±10%) Physical: Height: 7” (178 mm) Width: 16.7” (424 mm) Depth: 4.5” (114 mm) Weight: 6.2 lbs. (2.8 kg)
