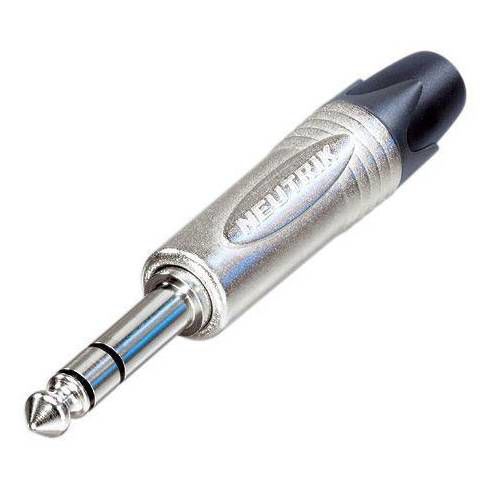

Neutrik NP3X 6.35mm 3-pole jack connector for PA cables and audio equipment, showing metallic plug and black plastic casing.
1/2

Neutrik NP3X 6.35 mm 3-pole Jack Connector

Sale price  $12.00 AUD Regular price  $12.59 AUD
Brand: Neutrik
SKU: NU-NP3X

Rent from

In stock

Mega Music Myaree

Out of stock in store

Mega Music Wangara

Out of stock in store

Mega Music Warehouse

In stock in store

Neutrik NP3X 6.35 mm 3-pole Jack Connector

Mega Music Myaree

Out of stock in store

95 N Lake Rd
Myaree WA 6154
Australia

+61893302777

Mega Music Wangara

Out of stock in store

5/32 Prindiville Drive
Wangara WA 6065
Australia

+61894081236

Mega Music Warehouse

In stock in store
Description

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.


Features

  • Extra slim 1/4" plug for highest packing density
  • Proven chuck type strain relief for reliable cable retention
  • Precision machined one-piece contacts - avoid hook up of tip contact
  • Robust diecast shell in stylish design
  • Sleek design for best handling convenience

Specifications

Product

  • Connection Type: Plug
  • Gender: male

Electrical

  • Contact resistance: depends on mating connector mΩ
  • Dielectric strength: 1 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact: depends on mating connector A
  • Rated voltage: < 50 V

Mechanical

  • Cable O.D.: 4 - 7 mm
  • Lifetime: > 1000 mating cycles
  • Wiresize: 1 mm²
  • Wiresize: 18 AWG
  • Wiring: Solder contacts

Material

  • Bushing: Polyacetal (POM) + PU
  • Contact plating: 2 µm Ni (Su)
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)

Environmental

  • Standard compliance: IEC 60603-11 / EIA RS-453
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -20 °C to +65 °C
