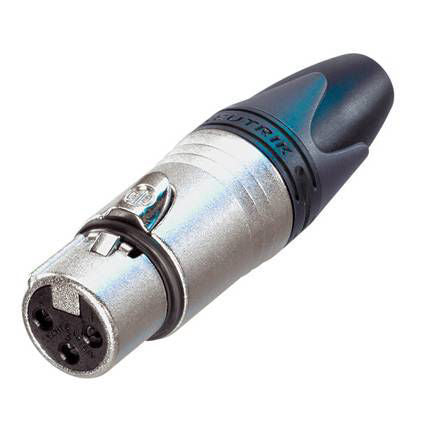

Neutrik NC3FXX female 3-pin XLR connector for PA cables and audio connections, showing the metal housing and pin contacts.
  • Neutrik NC3FXX female 3-pin XLR connector for PA cables and audio connections, showing the metal housing and pin contacts.
  • Neutrik NC3FXX female 3-pin XLR connector for PA cables and audio equipment, showing the metal body and pin contacts.
Neutrik NC3FXX Female 3-pin XLR Cable Connector

Brand: Neutrik

Neutrik NC3FXX Female 3-pin XLR Cable Connector

SKU: NU-NC3FXX
$10.00 (3% off RRP)
RRP $10.29
In stock
Price Match

  • Rent from

  • $0.83/mth for 12 months interest free

    Fees apply

  • $2.50 Pay in 4 interest-free

    Late fees apply

  • $2.50 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 5+ Mega Music Myaree
  • 0 Mega Music Warehouse
  • 0 Mega Music Wangara
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Colored rings and boots available for coding or identification
  • Rugged zinc diecast shell, longlasting and dependable
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Additional ground spring contacts for better shell ground continuity
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
  • Internal thread on shell is well protected against any damage

Specifications

Product

  • Connection Type: XLR
  • Gender: female

Electrical

  • Capacitance between contacts: 4 pF
  • Contact resistance: 3 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V

Mechanical

  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: 20 N
  • Withdrawal force: 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG
  • Locking device: Latch lock

Material

  • Boot: Polyurethan
  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA66)
  • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)

Environmental

  • Flammability: UL 94 V-0
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
