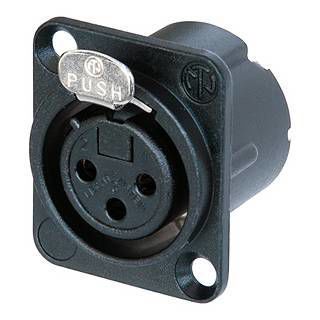

Neutrik NC3FD-LX-B Female 3pin Chassis Panel Mount Black with Gold Pins

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

Features

• All metal housing offers best overall RF protection and electromagnetic shielding
• Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
• Larger solder contacts for easier termination
• D-style housing provides installation compatibility with industry standard D mounting dimensions
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Optional connection to easily join pin1 to chassis ground

Specifications

Product

• Connection Type: XLR
• Gender: female

Electrical

• Capacitance between contacts: 4 pF
• Contact resistance: 5 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V

Mechanical

• Insertion force: 20 N
• Withdrawal force: 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 2.5 mm²
• Wiresize: max. 14 AWG
• Wiring: Solder contacts
• Locking device: Latch lock
• Chassis shape: D

Material

• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Bronze (CuSn6)
• Insert: PA66
• Locking element: Steel Ck67
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium

Environmental

• Flammability: UL 94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
