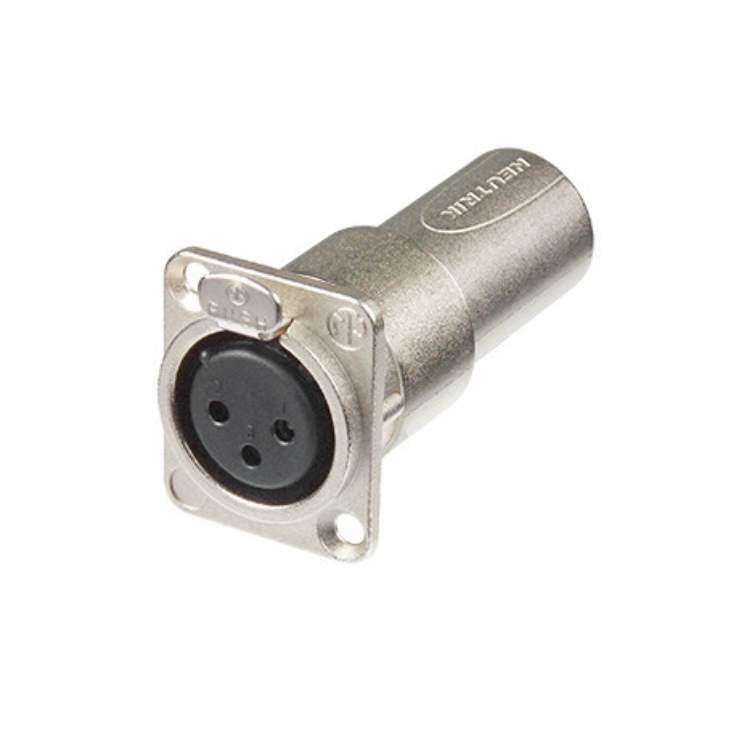

Neutrik NA3FDM XLR Male to Female Feedthrough Chassis Panel Connector

Name: Neutrik NA3FDM XLR Male to Female Feedthrough Chassis Panel Connector
Brand: Neutrik
SKU: NU-NA3FDM
Price: 23.00 AUD
Availability: InStock

$23.00 AUD

Brand: Neutrik

SKU: NU-NA3FDM

Rent from

In stock

Mega Music Myaree

Out of stock in store

Mega Music Warehouse

In stock in store

Mega Music Wangara

Out of stock in store

Specifications

Product Title: NA3FDM Connection: Type Adapter Electrical Capacitance between contacts: 4 pF Contact resistance: 5 mΩ Dielectric strength: 1,5 kVdc Insulation resistance: > 2 GΩ (initial) Rated current per contact: 16 A Rated voltage: < 50 V Mechanical Insertion force: 20 N Withdrawal force: 20 N Lifetime: > 1000 mating cycles Wiresize: max. 2.5 mm² Wiresize: max. 14 AWG Wiring: Solder contacts Locking device: Latch lock Chassis shape: D Material Contact plating: 2 µm Ag over 2 µm Ni Insert: Polyamide (PA 6.6 30 % GR) Locking element: Steel Ck67 Shell: Zinc diecast (ZnAl4Cu1) Shell plating: Nickel Environmental Flammability: UL 94 HB Standard compliance: IEC 61076-2-103 Protection class: IP 40 Solderability: Complies with IEC 68-2-20 Temperature range: -30 °C to +80 °C
