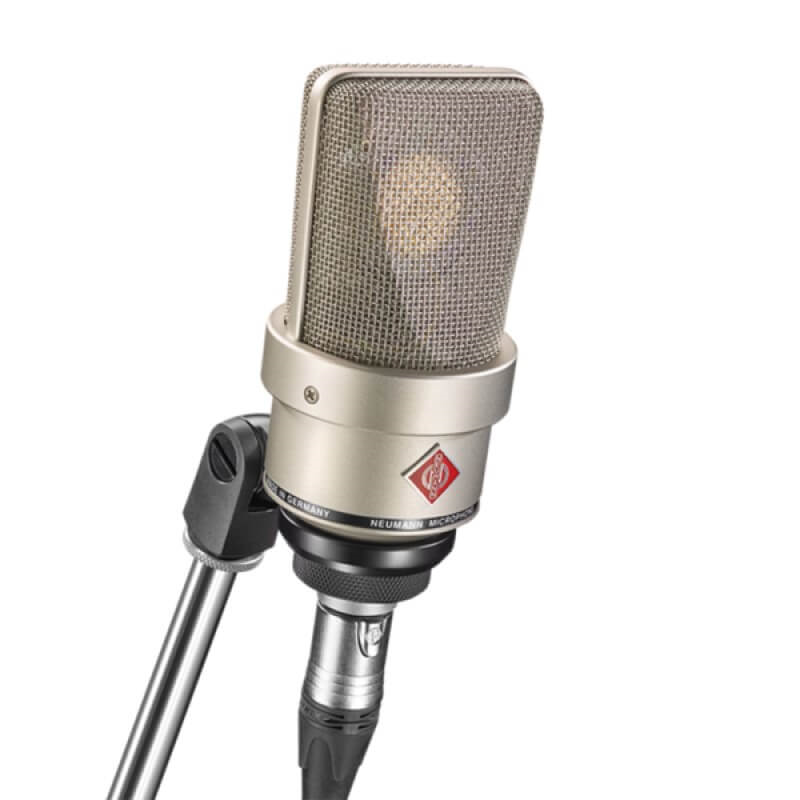

Launched in 1997 as a cheaper alternative to the legendary U87, the TLM 103 has evolved into a modern classic in its own right. Today, the TLM 103 sets the standard for modern studio microphones. Its classic tapered head grille design gives the TLM 103 the unmistakable Neumann look.
The TLM 103 is a cardioid large diaphragm condenser microphone with a capsule based on the classic K67/87 capsule of the iconic Neumann U87. However, the TLM 103 has a slightly more modern character, with a wide presence boost for frequencies above 5 kHz. Its very direct yet sophisticated sound is ideal for capturing vocals and solo instruments that stand out of the mix without breaking a sweat. Of course, the TLM 103 also features the famous midrange that has become a staple of Neumann microphones and the first choice in studios worldwide. A unique feature of the TLM 103 is its incredibly deep, yet controlled low frequency response, perfect for low voices and powerful bass instruments.
TECHNICAL EXCELLENCE
For technical performance, The TLM 103 has set the new standard. With an impressively low self-noise of just 7 dB-A, it's among the quietest microphones on the market. A high sensitivity of 23 mV/Pa guarantees ultra low noise even with low cost preamps, audio interfaces and vintage tube gear. At the same time, the TLM 103 can handle massive sound pressure levels up to 138 dB without needing to attenuate. A wide dynamic range of 131dB makes the TLM 103 a very easy-to-use studio microphone, capturing anything from soft whispers to chest-thumping bass drums without producing noise or distortion.
As a member of Neumann's TLM family, the TLM 103 utilizes a transformerless output stage to minimize transmission losses, resulting in a very direct, pure sound, accurate to the source, as well as clear, powerful bass response even with the hottest signal levels.
APPLICATIONS
The TLM 103 was predominantly designed for project studios and broadcast, but its superior performance quickly made it a popular studio tool as a more contemporary-sounding alternative to the U87 - for speech, vocals, drums, guitar amps and piano. The TLM 103 is also often used as a spot mic for classical recordings, like cello and double bass.
- Large diaphragm capsule derived from the classic U 87 microphone
- Balanced sound with enhanced presence
- Cardioid pattern
- Transformerless circuitry with high SPL capability
- Extremely low self-noise: only 7 dB-A

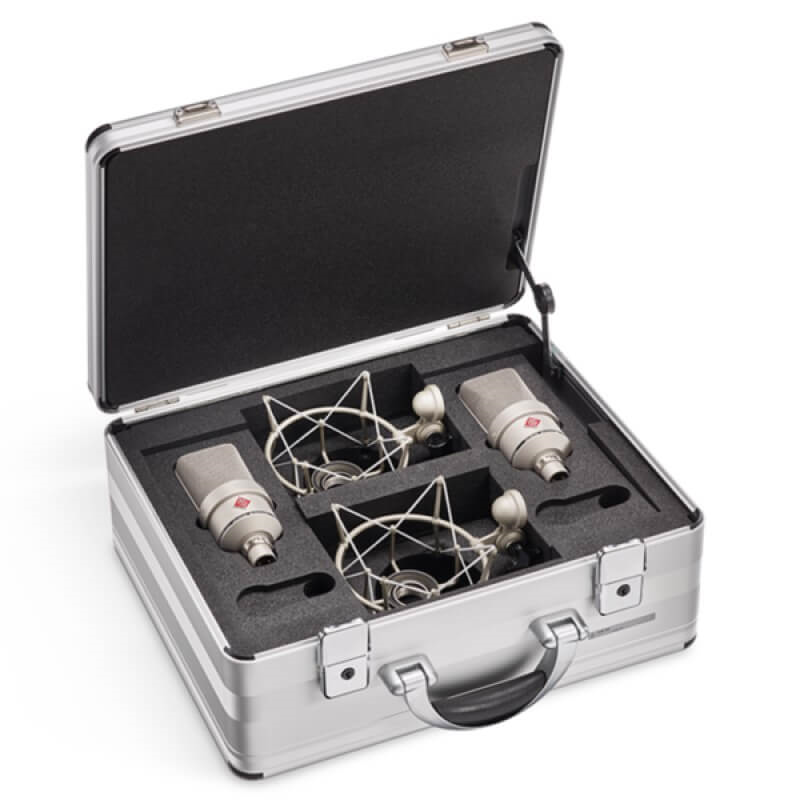

What's In The Box?
- 2 x TLM 103 Microphone
- 2 x EA 1 Shock Mount
- Aluminium Case
Specifications
-
Polar Pattern: Cardioid
-
Frequency Range: 20Hz - 20kHz
-
Rated Impedance: 50Ω
-
Rated Load Impedance: 1kΩ
-
Sensitivity: 23 mV/Pa = –32.5 dBV ± 1 dB
-
Equivalent Noise Level (A-Weighted): 7dB-A
-
Max. SPL: 138dB
-
Signal to Noise Ratio (A-Weighted): 87dB
-
Supply Voltage: 48 V (±4 V)
-
Current Consumption: 3mA
-
Dimensions
- Diameter: 60mm
- Length: 132mm
- Weight: approx. 450g
