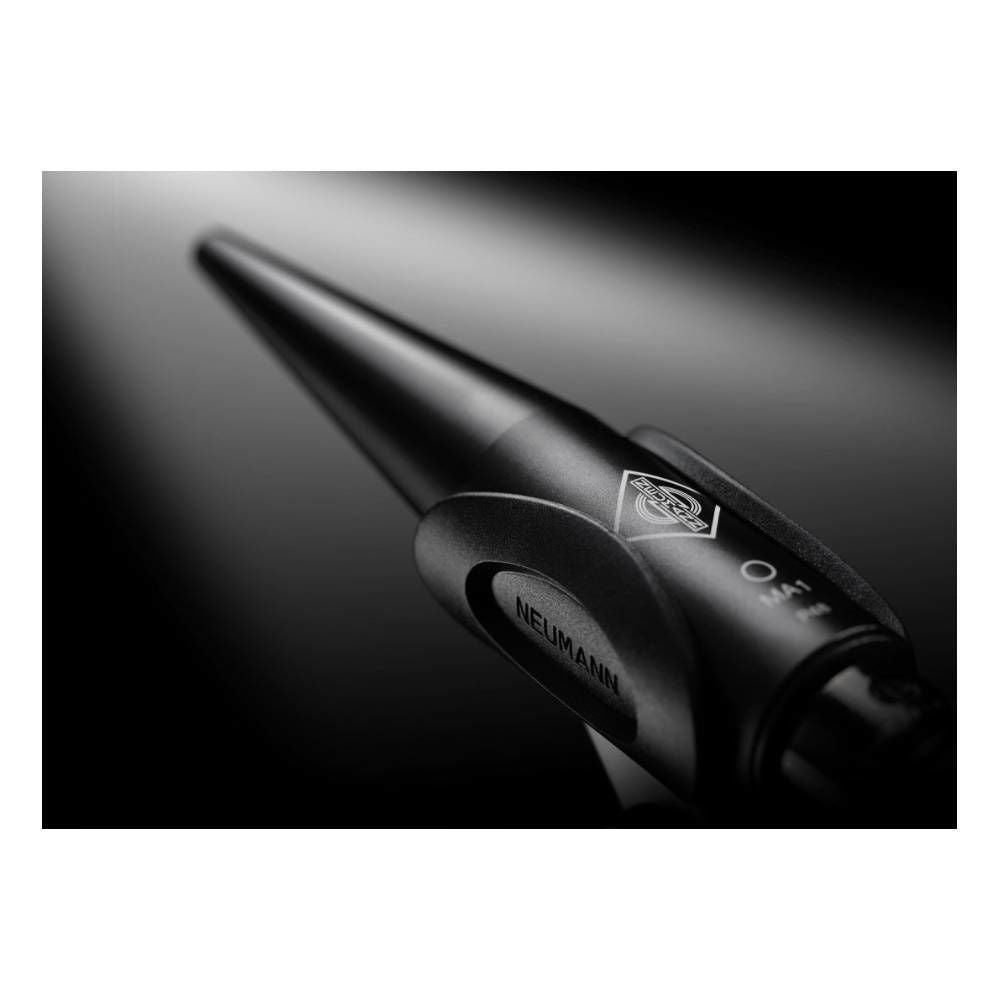

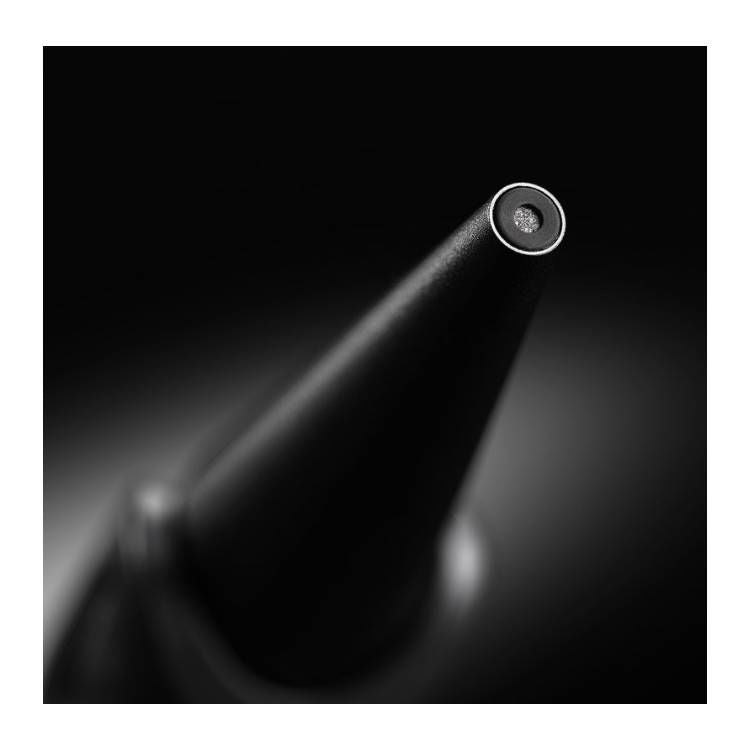

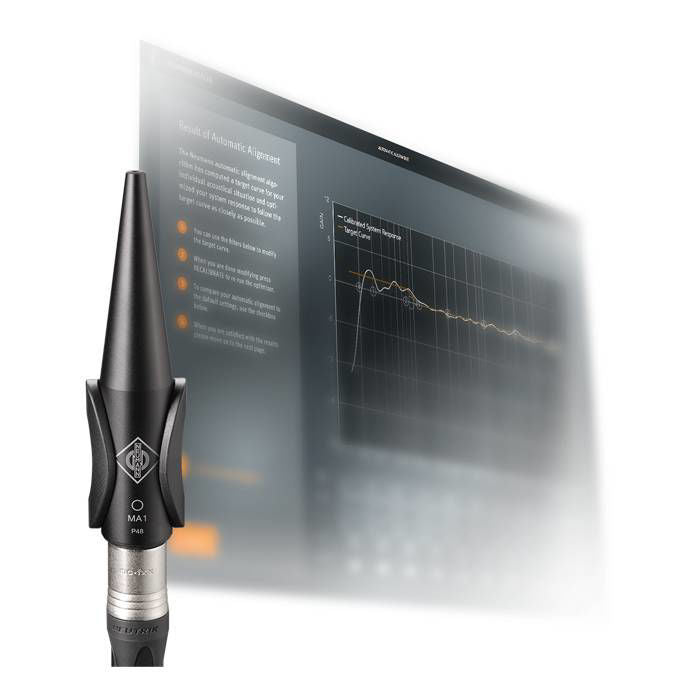

Neumann MA 1 Automatic Monitor Alignment Measurement Microphone

Neumann’s Automatic Alignment is a dedicated tool for stereo sets of KH 80 DSP monitors with or without the KH 750 DSP as well as two non DSP-based KH-Line monitors connected to the analog outputs of a KH 750 DSP subwoofer. Unlike conventional correction software it is an integrated solution with novel algorithms, jointly developed with the Fraunhofer Institute for Integrated Circuits (IIS) specifically for Neumann studio monitors. No plug-in or special audio driver is required: Alignment data is stored and processed within the DSP-powered monitors themselves. As a unique benefit, the software not only optimizes the amplitude response but also optimizes the phase. This provides highest accuracy in terms of tonality and impulse reproduction.

Features

• Calibration algorithms jointly developed with Fraunhofer IIS
• Individually calibrated measurement microphone
• For Mac and PC

Specifications

• Acoustical operating principle: Pressure transducer
• Directional Pattern: Omnidirectional
• Frequency Range: 20 Hz - 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 30 mV/Pa -30 dBV +/- 3 dB uncalibrated | 30 mV/Pa -30 dBV +/- 0,5 dB Calibrated (via software)
• Rated Impedance: 50 Ohms
• Rated load impedance: 1000 Ohms
• Equivalent noise level, CCIR1): 39 dB
• Equivalent noise level, A-weighted1): 27 dB-A
• Maximum SPL for THD 0.5%2): 132 dB
• Signal-to-noise ratio, CCIR (re. 94 dB SPL)1): 55 dB
• Signal-to-noise ratio, A-weighted (re. 94 dB SPL)1): 67 dB
• Maximum output voltage: 10 dBu
• Supply voltage (P48, IEC 61938): 48 V ± 4 V
• Current consumption (P48, IEC 61938): 3 mA
• Matching connector: XLR3F
• Weight: 37 g
• Diameter: 23 mm
• Length: 117 mm
• Operating conditions: 0 °C - +70 °C (32 °F - 158 °F); max. 90 % at +20 °C
• Transport/storage conditions: −20 °C - +70 °C (−4 °F - 158 °F); max. 90 % at +20 °C
