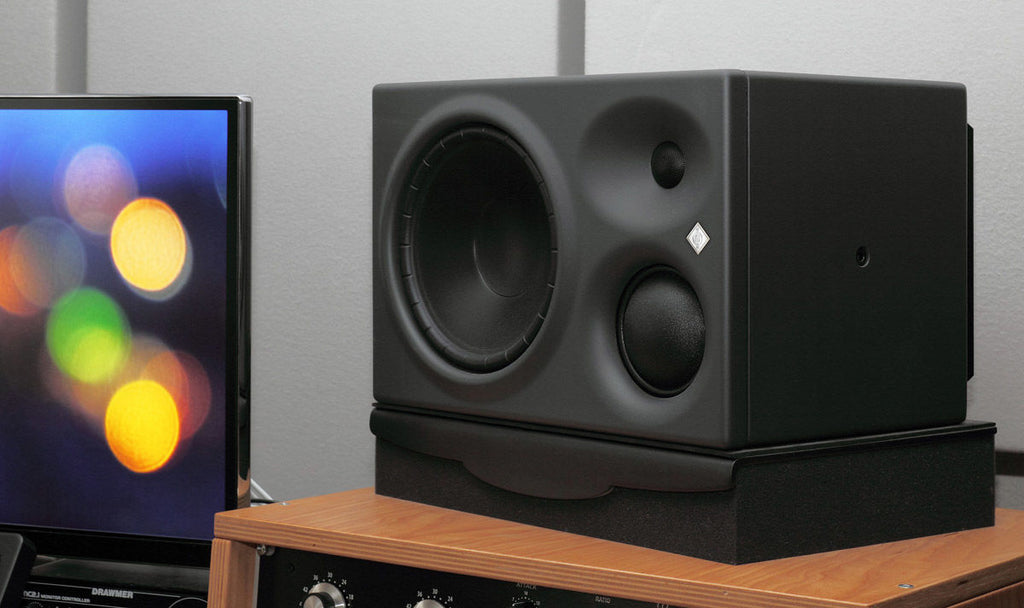

EXPANDED MIDRANGE PRECISION – DRY BASS SOUND
With its specially designed midrange driver, the compact KH 310 is particularly suited for precise work with speech, vocals, guitars and other instruments that have a midrange emphasis. Its closed design enables a very fast transient response. The associated low harmonic distortion guarantees a neutral reference sound to meet the highest standards.
The KH 310 is a three-way tri-amplified monitor with thermally protected Class AB amplifiers (210 W and two times 90 W). Its Mathematically Modeled Dispersion™ (MMD™) waveguide delivers sound waves into the room with superior accuracy. The drivers are modeled using Neumann’s in-house developed software, which reduces non-linear distortion in every situation. Sound distributed in a horizontally precise manner ensures flexibility in the listening position; the narrower vertical dispersion reduces the negative effects of nearby reflections, for example from a desk or mixing console. The precisely controlled dispersion characteristics optimize reproduction in different room configurations and the response is extremely adaptable through various acoustical control settings.
Features
- Quickest transient response of its class
- Tremendous bass capability down to 34 Hz
- Higher precision in the midrange through a specially designed driver
- As a stereo system with KH 750 DSP and optional tools, controllable and alignable to the room
Specifications
- Free field frequency response ±6 dB: 30 Hz … 22 kHz
- Free field frequency response ±3 dB: 34 Hz … 21 kHz
- Free field frequency linearity deviation between 100 Hz and 10 kHz: ± 1.1 dB
- Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced: ±0.87; ±0.39; ±0.23 dB
- Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu): <20 dB(A) SPL
- Sine wave output with a THD < 0.5 % at 1 m in half space: 95 dB SPL (>85 Hz)
- Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 116.3 dB SPL
- Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 110.3 dB SPL
- Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz): 106.8 dB SPL
- Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions: 108 dB(C) SPL
- Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range): 100 dB(C) SPL
- Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer): 107 dB(C) SPL
- Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range): 93 / 99 dB(C) SPL
- Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer): 94 / 100 dB(C) SPL

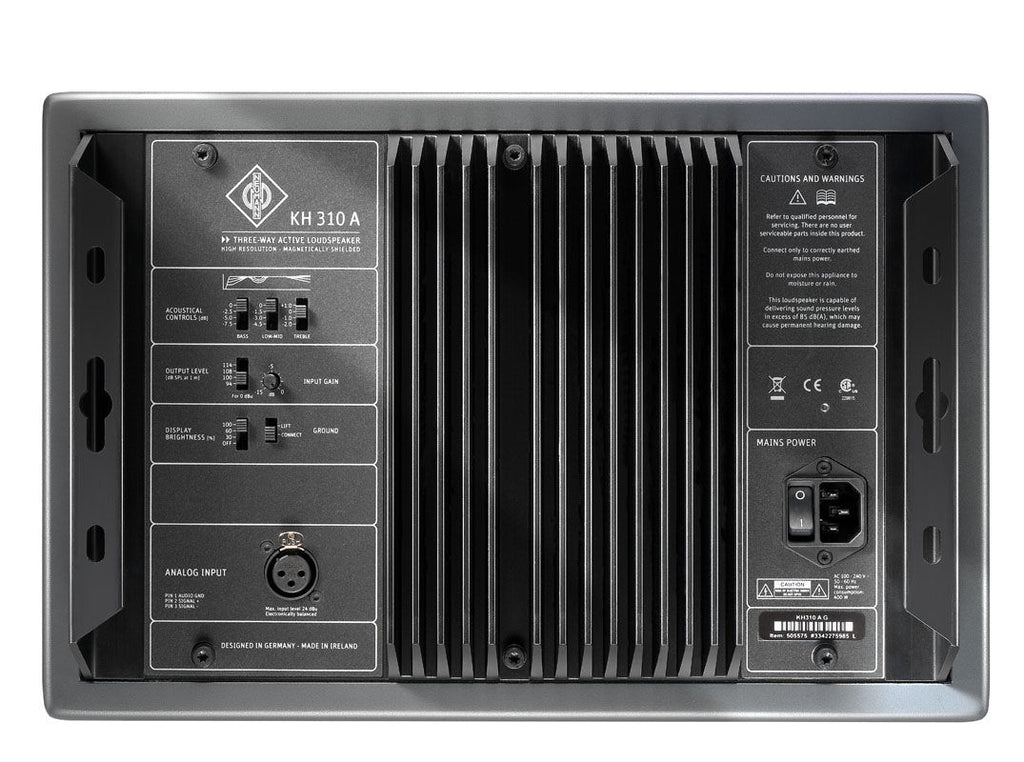

- Analog input(s): XLR: analog electronically balanced
- Analog input impedance: >13k Ohms
- Max. input level: +24 dBu
- Common mode rejection ratio (CMRR): >56 dB @ 15kHz
- Input gain control (sensitivity): 0 dB ... -15 dB
- Output level control (output level in 1 m based on 0 dBu input level): 94; 100; 108; 114 dB SPL
- Controller design: Analog; active
- Crossover frequency: 650 Hz and 2.0 kHz
- Crossover slope: 24 dB/oct; 4th order
- Equalization: Bass: 0; -2.5; -5; -7.5 dB
- Equalization: Low-Mid: 0; -1.5; -3; -4.5 dB
- Equalization: Treble: +1; 0; -1; -2 dB
- Protection circuitry: Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters. Amplifier overheat.
- Infrasonic filter: frequency; slope: 15 Hz; 6 dB/oct.
- Display: On; Normal Operation: Neumann logo “White”
- Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute: Neumann logo “Red”
- Display Brightness: White: 100%/60%/30%/off; Red: 100%/60%/30%
- Output power woofer amplifier (THD+N with limiter deactivated: 10%): 210 W
- Output power midrange amplifier (THD+N with limiter deactivated: 10%): 90 W
- Output power tweeter amplifier (THD+N with limiter deactivated: 10%): 90 W
- Output power woofer amplifier (THD+N with limiter deactivated: 0.1%): 150 W
- Output power midrange amplifier (THD+N with limiter deactivated: 0.1%): 70 W
- Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%): 70 W
- Mains Power Supply: input voltage; frequency: 100-240V; 50/60 Hz
- Power consumption (230 V / 100 V): Idle: 24 W
- Power consumption (230 V / 100 V): Full output: 300 W
- Cabinet material: Polyurethane front, wooden sleeve, aluminum electronics panel
- Cabinet surface finish; color (front / back): Painted; metallic anthracite (RAL 7021) / black (RAL 9005)
- Operating conditions: +10° C to +40° C (+50° F to +104° F); <90% RH, non-condensing
- Transport/storage conditions: -25° C to +70° C (-13° F to 158° F); <90% RH; non-condensing

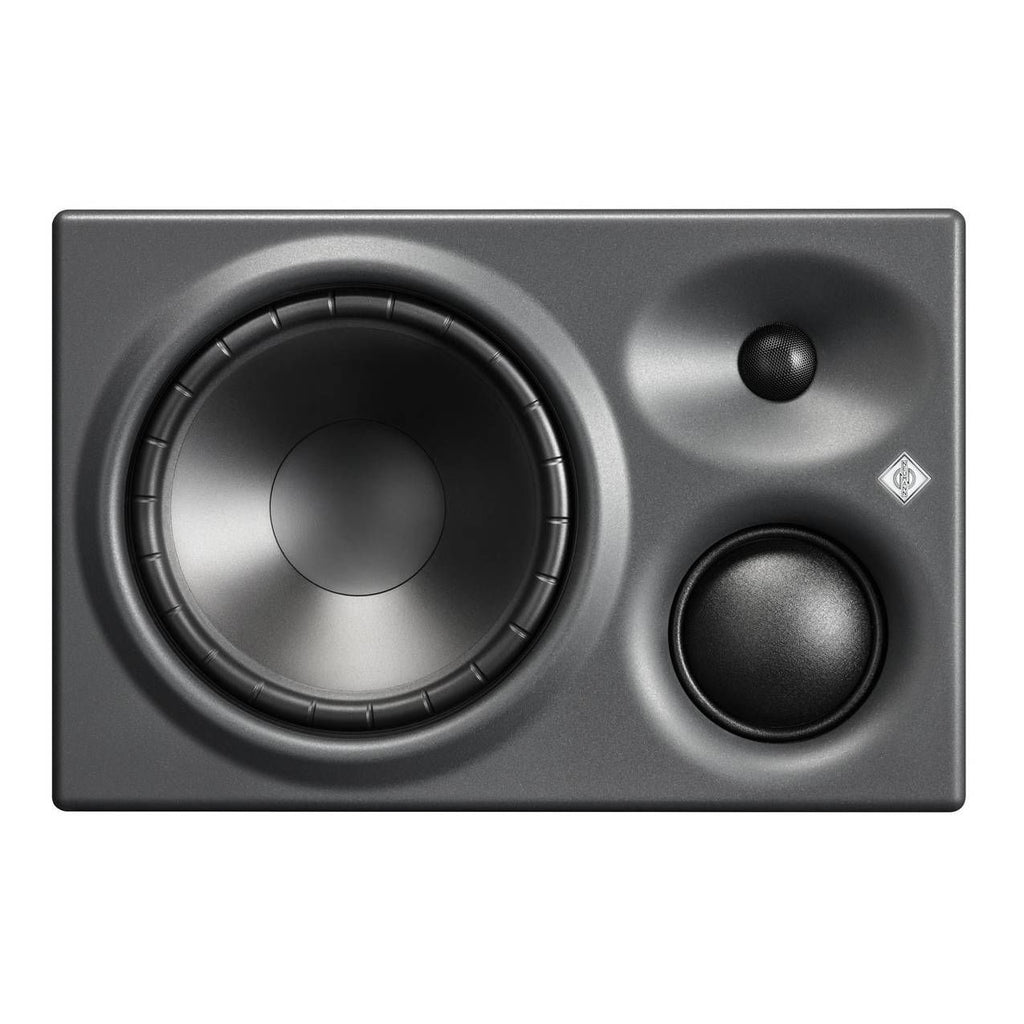

- Woofer: 210 mm (8 1/4") magnetically sheilded
- Midrange: 75 mm (3") with magnetic sheilding
- Tweeter: 25 mm (1") with protecting black metal grille
- Mounting points: 2 x M8 on side panels; thread depth from outside of cabinet 25 mm (1”);Rear panel screws for attaching LH 41 base plate
- Product dimensions (height x width x depth): 253 x 383 x 292 mm (10" x 15 1/8" x 11 1/2")
- External net volume: 28.3 liters
- Product weight: 13.0 kg (28 lbs 11 oz)
- Packed dimensions (height x width x depth), mm (inches): 360 x 380 x 590 mm (14 1/8" x 15" x 23 1/4")
- Packed weight: 16.8 kg (37 lbs 1 oz)
- Packed cube: 0.081 m³
