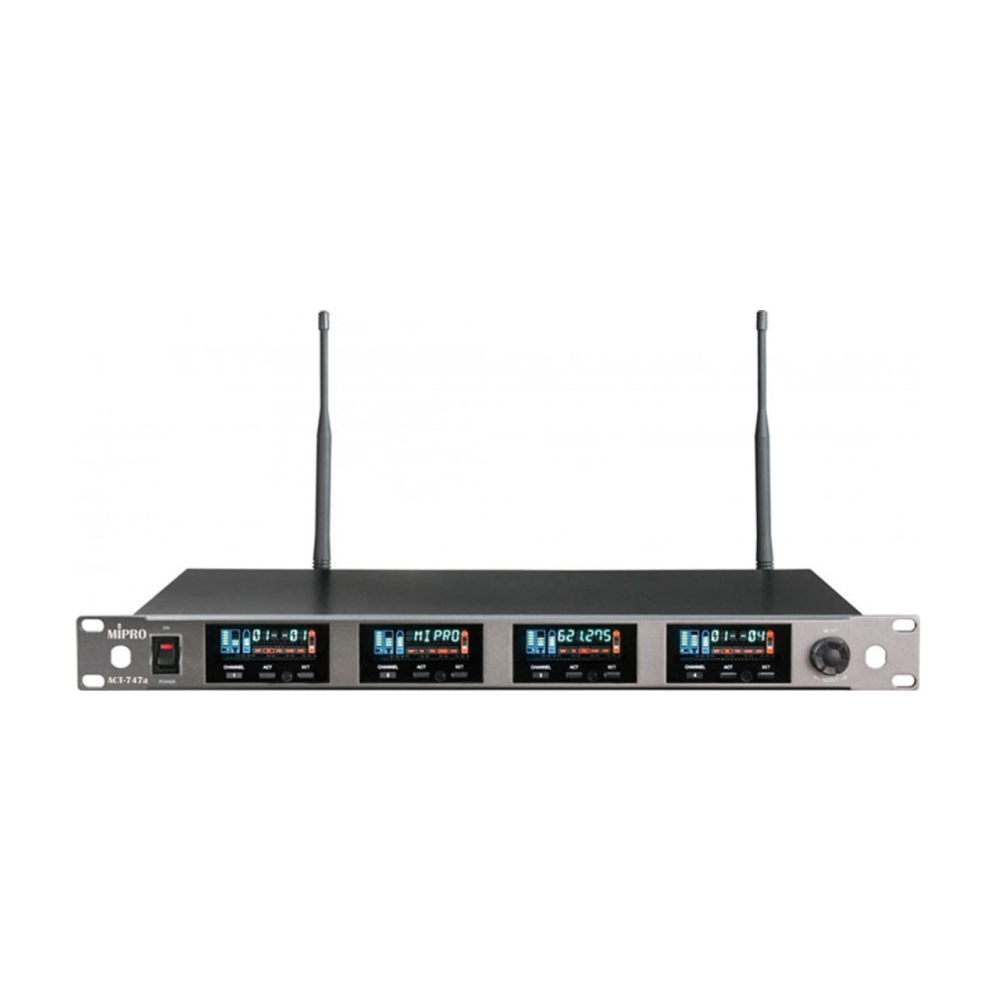

Mipro Quad Channel Wideband Diversity Receiver

Features • EIA standard 1U rack-mountable metal receiver. • Advanced true diversity technology for best reception quality. • 104 selectable frequencies and 16 preset compatible channels per band. More with multiple bands. • Industry’s only full-color VFD screen delivers a bright, clear viewing in day/night environments. • Displays Group, Channel, Frequency, Performer’s Name, transmitter battery level, RF, Audio, SQ level meters, diversity operation, RF interference warning indicator and Lock status. • One-touch Autoscan for a clear, interference-free frequency. • One-touch ACT™ syncs the transmitter and receiver frequency automatically. • Dual PiloTone & NoiseLock circuits minimize interference. • MIPRO RCS.Net software allows real-time computer set up, control and monitoring. • Industry’s only RF interference warning indicator and control for management. • Displays all pertinent parameters on the same screen for easy control and monitoring. • All controls are intuitive and easily setup via a single rotary knob. • RF, audio and transmitter battery status meters. • Superb RF reliability and transparent audio performance. • Receiver provides bias voltage for MIPRO antenna systems. • 100m(330ft.) operating range. • 100% made in Taiwan ensures high product quality and value. Specifications Receiver Bandwidth: Narrow Channel: Quad Chassis: EIA standard 19 1U Display: Color VFD displays Frequency, Frequency Code, RF & Audio Meters, Transmitter Battery Meter, Diversity Signals, Interference Warning Indicator. Programmable User Name, Group, Channel, Squelch Meter, PC Address and Lock Status. Frequency Range UHF 480~934MHz Bandwidth 24MHz Preset Frequencies 104 selectable channels Group 1~6 > 8 compatible channels Group 7~8 > 12 compatible channels Group 9~10 > 16 compatible channels Receiving Mode True diversity Oscillation Mode PLL synthesized Stability ±0.005% (-10~+60?) Sensitivity 6dBµV, at S/N>80dB S/N Ratio >105dB(A) T.H.D. <0.5% @ 1kHz Frequency Response 50Hz~18kHz, with high-pass filter Squelch PiloTone & NoiseLock dual-squelch circuit Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. Maximum Output Level Balanced: +16dBV / 0dBV / -6dB; Unbalanced: +10dBV / 0dBV / -6dB Output Connectors Balanced XLR Output Switch Single channel output or mixed output Operation Manual or PC remote control via optional software Squelch Adjustment Rotary Controller Squelch Display VFD Screen Power Supply Built-in 100~240V AC Switching Power Supply
