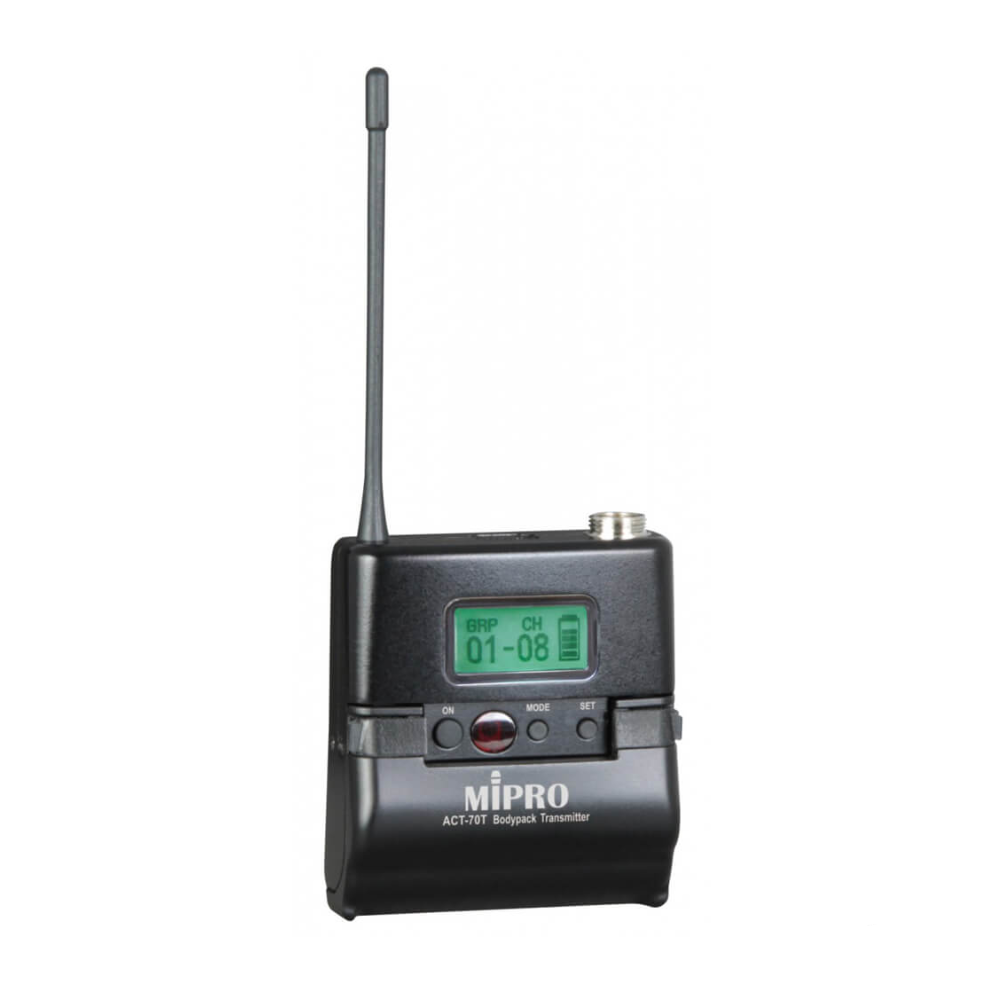

Mipro ACT70T Beltpack Transmitter

Features

• Ultra slim bodypack transmitter with sturdy magnesium alloy housing.
• On the top features mute switch, mini-XLR connector and antenna.
• Backlit LCD displays all operational parameter information.
• Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
• Mute button with remote-control jack for easy activation of mute function.
• Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
• Can directly match to high-low input impedance for microphone or guitar without switching.
• The input sensitivity is adjustable with six selectable gain settings.
• Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
• Adjustable belt clip allows wearing transmitter in up or down position.
• High-efficiency circuitry design provides 12~14 hours of operation from 2 AA batteries (depending on the battery quality).

Specifications

• Frequency Range US Band : 482~698 MHz
• EU Band : 482~790 MHz
• Bandwidth 72 MHz
• Oscillation Mode PLL Synthesized
• Channel Set-Up ACT Sync
• RF Output Power 10 mW / 50 mW switchable (country dependent)
• Spurious Emissions <-55dBc
• Gain Setting +12dB, +6dB, 0dB, -6dB, -12dB, -18dB (6 settings)
• 0 dB = input microphone sensitivity
• Max. SPL N/A
• Max. Input Level 0dBV
• Mute Connector Optional MJ-70 remote mute switch
• LCD Display Group, Channel, Frequency, AF gain, Frequency band, RF power, Mute mode, Lock status, Battery status and error codes
• Capsules Headworn: MU-13 / MU-23 / MU-210 / MU-53HN / MU-55HN
• Lavalier: MU-53L / MU-55L
• Battery Type 2 AA alkaline
• Current Consumption High Power: approx. 161mA ; Low Power: approx. 120 mA
