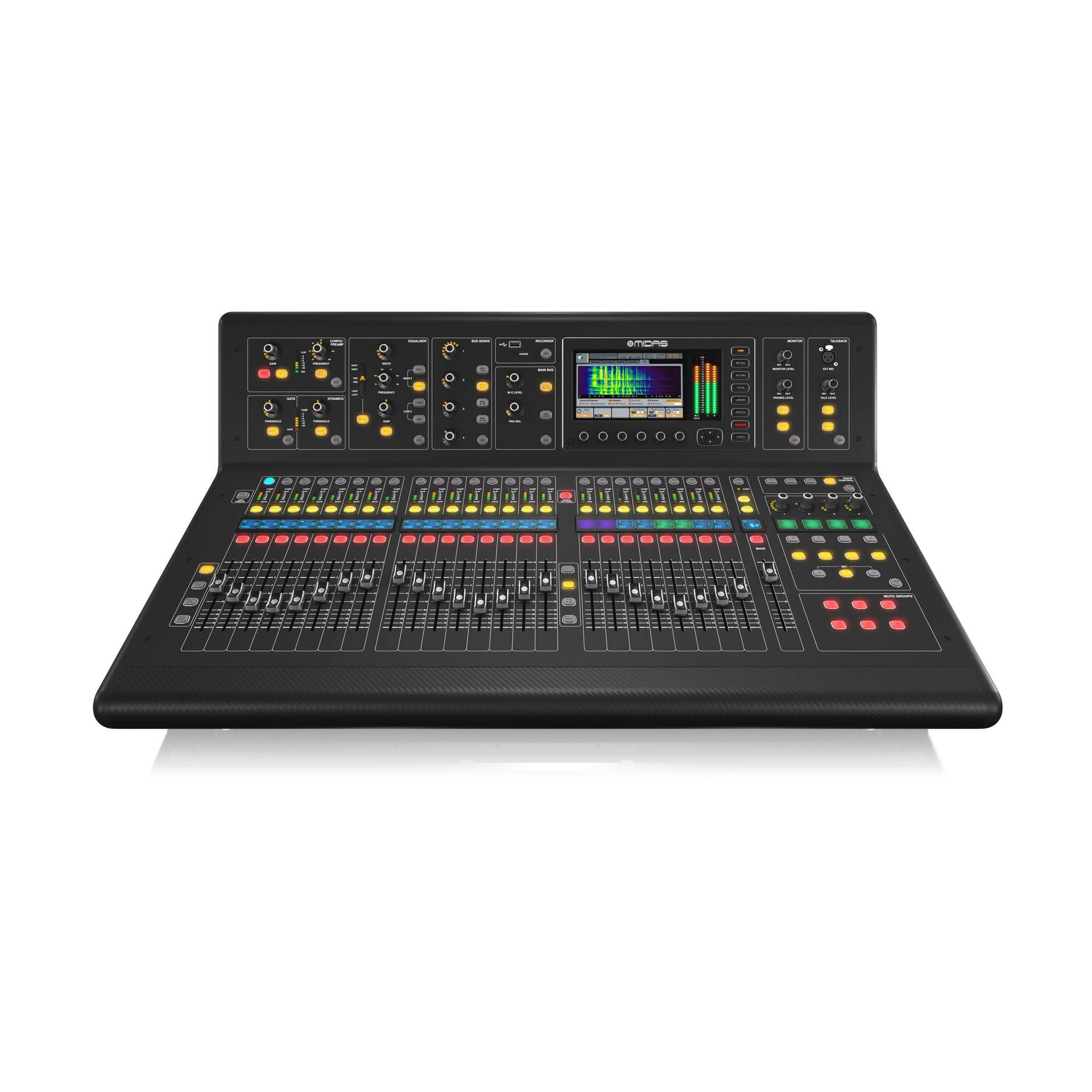

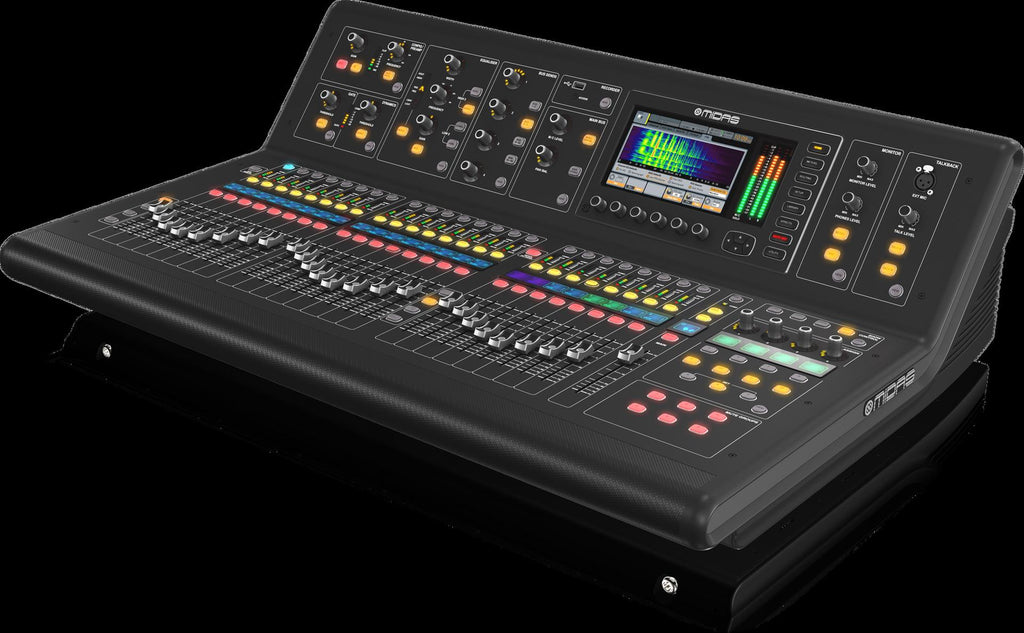

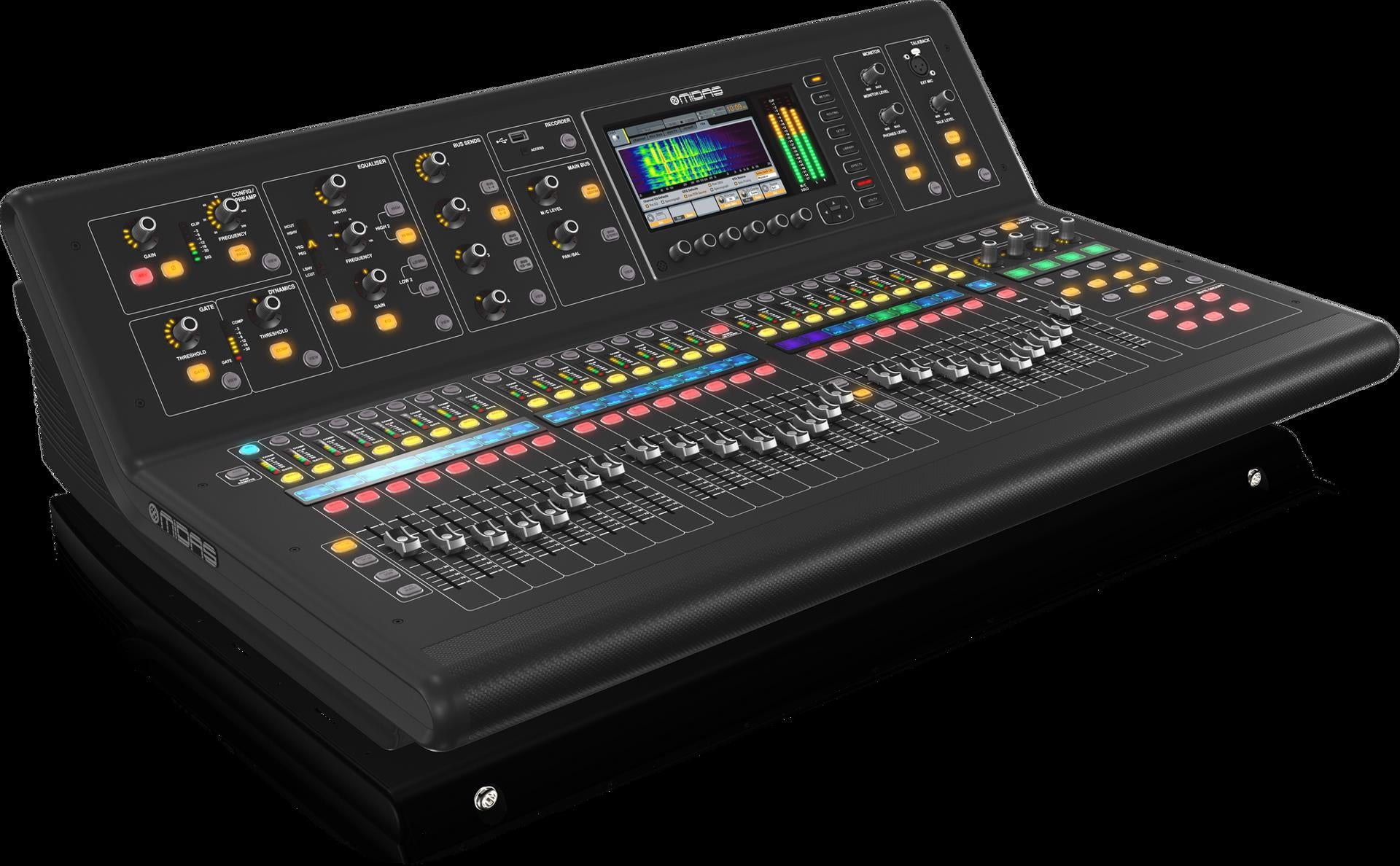

Our goal for M32 was to combine the best of classic British console designs with advanced modern technology to completely redefine what a medium-format live console can offer.
We began the industrial design process by drawing inspiration from a somewhat unexpected source – the luxury and high-performance car industry.
Simply because the design teams at Aston Martin*, Bentley*, Rolls Royce*, and other leading manufacturers are skilled at introducing innovative technological advancements while simultaneously maintaining the feel, essence, and intangible qualities of their cherished brands.
And in essence, that’s the challenge we too faced when creating the M32 console.
So in order to create a future-forward design that took the MIDAS legacy even further, we enlisted the help of Rajesh Kutty, a leading industrial designer known for his work with celebrated luxury auto manufacturers such as Bentley, etc.
Kutty started by examining the design elements that have made MIDAS consoles so highly sought after – from the straightforward, logical layout to the unparalleled usability and ergonomics. These are characteristics that live sound engineers around the world have come to rely on, and are key aspects of the MIDAS legacy.
With these design elements in mind, Kutty set forth to create a styling that would be modern, innovative, futuristic, and stunningly elegant.
Many different construction materials were tested. Countless design variations were explored. And in the end, a styling was chosen that represented the perfect marriage between aerodynamic artistry and uncompromising performance. The design is both ultramodern and distinctly classic at the same time.
Features
- Live performance and studio recording digital console with up to 40 simultaneous input channels
- 32 award-winning Midas microphone preamplifiers
- 25 time-aligned and phase-coherent mix buses
- AES50 networking allows up to 96 inputs and 96 outputs
- 192 kHz ADC and DAC converters for outstanding audio performance
- Industry-leading design by Bentley* Motors Designer
- High-performance carbon fibre, aluminium and high-impact steel structure
- 40 bit floating point digital signal processing
- 8 DCA and 6 mute groups
- 8 stereo signal processing effects engines
- 25 Midas PRO motorised 100 mm faders
- Daylight viewable 7" full colour TFT display screen
- 32 x 32 channel USB 2.0 audio interface
- DAW remote control emulations of Mackie Control* and HUI* protocols
- Optional wireless remote control with Midas Apps for iPhone* and iPad*
- Auto-ranging universal switch-mode power supply
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Specifications
- Processing
- Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
- Output Processing Channels: 16
- 16 aux buses, 6 matrices, main LRC: 100
- Internal Effects Engines (True Stereo / Mono): 16
- Internal Show Automation (structured Cues / Snippets): 500 / 100
- Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100
- Signal Processing: 40-Bit Floating Point
- A/D Conversion (8-channel, 96 kHz ready): 114 dB Dynamic Range (A-weighted*)
- D/A Conversion (stereo, 96 kHz ready): 120 dB Dynamic Range (A-weighted*)
- I/O Latency (Console Input to Output): 0.8 ms
- Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms
- Connectors
- MIDAS PRO Series Microphone Preamplifier (XLR): 32
- Talkback Microphone Input (XLR): 1
- RCA Inputs / Outputs: 2
- XLR Outputs: 16
- Monitoring Outputs (XLR / ¼" TRS Balanced): 2
- Aux Inputs/Outputs (¼" TRS Balanced): 6
- Phones Output (¼" TRS): 2 (Stereo)
- Digital AES/EBU Output (XLR): 1
- AES50 Ports (KLARK TEKNIK SuperMAC): 2
- Expansion Card Interface: 32 Channel Audio Input / Output
- ULTRANET P-16 Connector (No Power Supplied): 1
- MIDI Inputs / Outputs: 1
- USB Type A (Audio and Data Import / Export): 1
- USB Type B, rear panel, for remote control: 1
- Ethernet, RJ45, rear panel, for remote control: 1
- Mic Input Characteristics
- Design: MIDAS PRO Series
- THD+N (0 dB gain, 0 dBu output): <0.01% (unweighted)
- THD+N (+40 dB gain, 0 dBu to +20 dBu output): <0.03% (unweighted)
- Input Impedance (Unbalanced / Balanced): 10 kO / 10 kO
- Non-Clip Maximum Input Level: +23 dBu
- Phantom Power (Switchable per Input): +48 V
- Equivalent Input Noise @ +45 dB gain (150 ? source): -125 dB (22 Hz-22 kHz, unweighted)
- CMRR @ Unity Gain (Typical): >70 dB
- CMRR @ 40 dB Gain (Typical): >90 dB
- Input/Output Characteristics
- Frequency Response @ 48 kHz Sample Rate: 0 dB to -1 dB (20 Hz-20 kHz)
- Dynamic Range, Analogue In to Analogue Out: 106 dB (22 Hz-22 kHz, unweighted)
- A/D Dynamic Range, Preamplifier and Converter (Typical): 109 dB (22 Hz-22 kHz, unweighted)
- D/A Dynamic Range, Converter and Output (Typical): 109 dB (22 Hz-22 kHz, unweighted)
- Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
- Output level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
- Output Impedance, XLR Connectors (Unbalanced / Balanced): 50 O / 50 O
- Input impedance, TRS Connectors (Unbalanced / Balanced): 20 kO / 40 kO
- Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
- Output Level, TRS (Nominal / Maximum): +4 dBu / +21 dBu
- Output Impedance, TRS (Unbalanced / Balanced): 50 O / 50 O
- Phones Output Impedance / Maximum output Level: 40 O / +21 dBu (Stereo)
- Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz unweighted
- Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz-22 kHz unweighted
- Residual Noise Level, TRS and Monitor out XLR Connector: -83 dBu 22 Hz-22 kHz unweighted
- Display
- Main Screen: 7" TFT LCD, 800 x 480 Resolution, 262k Colours
- Channel LCD Screen: 128 x 64 LCD with RGB Colour Backlight
- Main Meter: 24 Segment (-57 dB to Clip)
- Power
- Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
- Power Consumption: 120 W
- Physical
- Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
- Dimensions: 891 x 612 x 256 mm (35.1 x 24.1 x 10.1")
- Weight: 25 kg (55 lbs)
