Brand: Midas

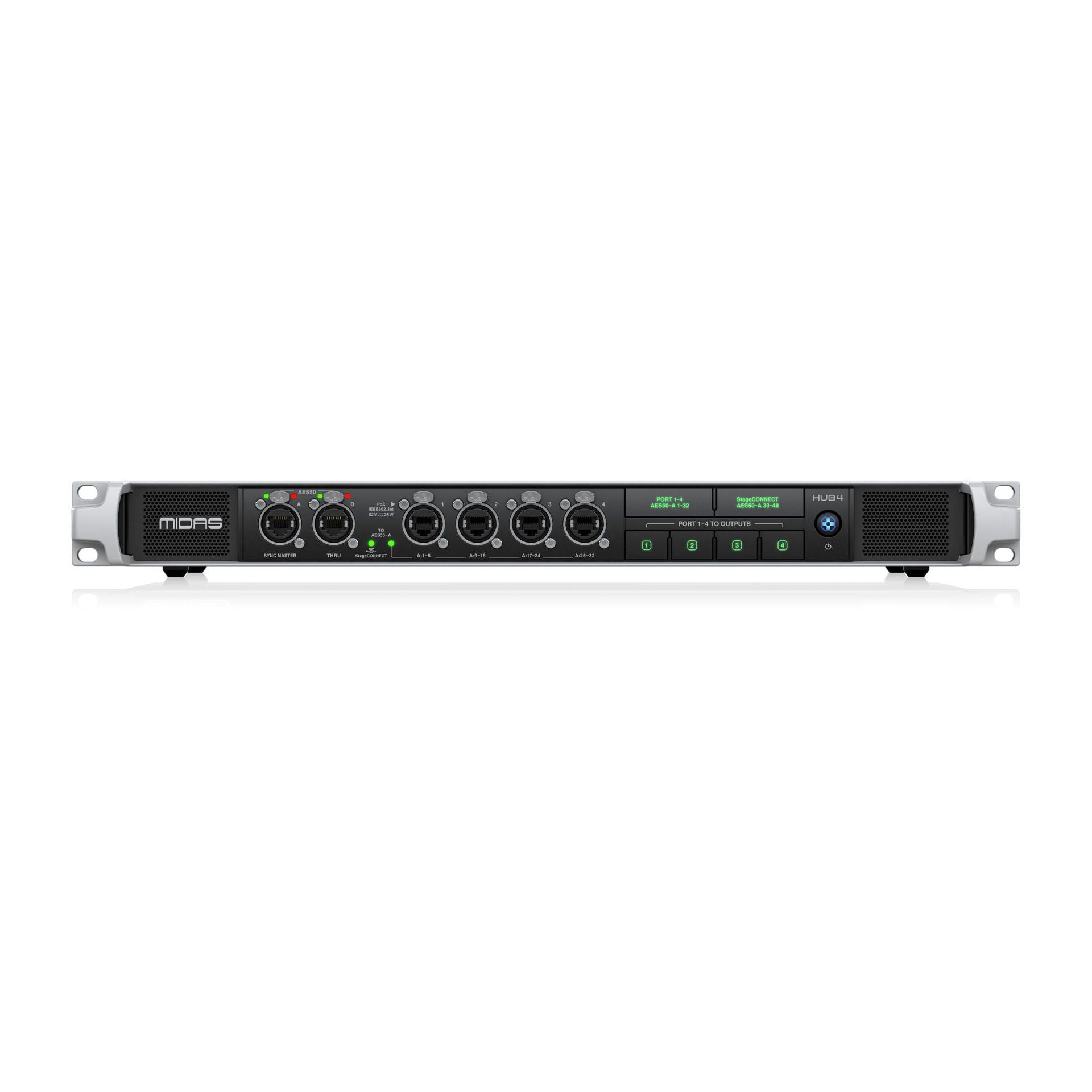

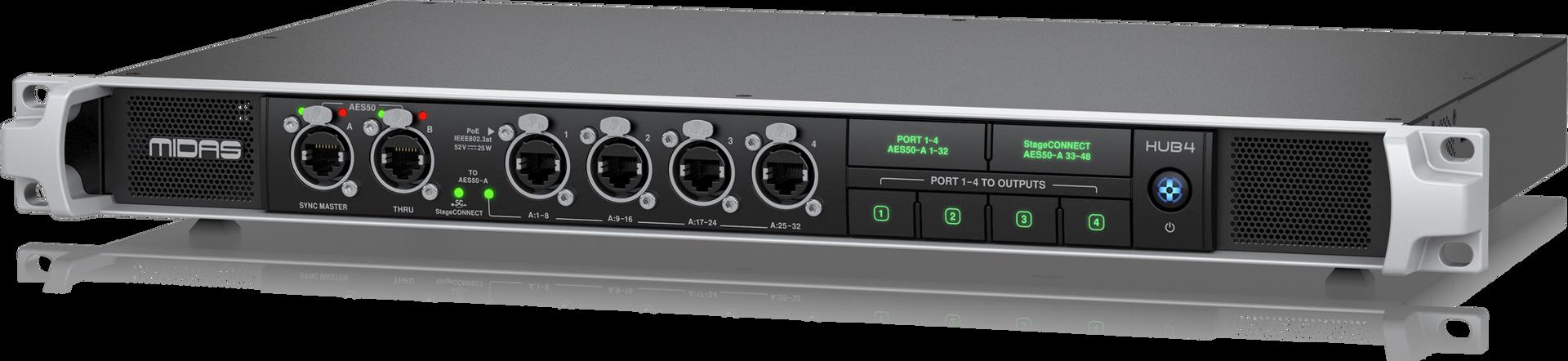

Midas HUB4 Monitor System Hub

Name: Midas HUB4 Monitor System Hub
Brand: Midas
SKU: 453024
Price: 1399.00 AUD
Availability: OutOfStock

SKU: 453024

$1,399.00

Enquire now

Price Match

Rent from
$116.58/mth for 12 months interest free

Fees apply
$349.75 Pay in 4 interest-free

Late fees apply
$349.75 Pay in 4 interest-free

No fees or interest

Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

0 Mega Music Myaree
0 Mega Music Wangara
0 Mega Music Warehouse

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!

Midas HUB4 is the multi-tool in your stage rack providing analogue and digital outputs for various applications. HUB4 can supply up to four DP48 personal monitor mixers with PoE (Power over Ethernet) and 48 channels of 24-bit / 48 kHz audio.

HUB4 also collects 48 channels of upstream audio and forwards this audio to the FOH console, either from stage boxes connected to the AES50-B (THRU) Port or 8 return channels from each of Ports 1-4.

Features

Personal monitoring system hub with PoE remote powering for up to 4 DP48 personal mixers and compatible stage boxes
AES50 IN and THRU ports for cascading hubs or stage boxes with 48 bidirectional channels at 48/44.1 kHz
16 balanced analogue outputs for sending 4x2 personal stereo mixes to IEM transmitters in the side rack
Channel naming and Group assignments can be distributed from compatible M32 consoles
Midas DL8 Stage Boxes can be connected and powered from ports 1-4
Personal mix outputs can be monitored via AES50 upstream to connected consoles
Supports remote control forwarding of a DP48 personal mixer from another DP48
Front panel buttons for sending signals to analogue output groups 1-4, for StageCONNECT and for AES50-A upstream
StageCONNECT output with phantom power for connecting other StageCONNECT devices, sharing 32-channel audio, 24-Bit uncompressed PCM, 44.1/48 kHz, at sub-milisecond latency, over any standard XLR microphone or DMX cable
Remote operation via shielded CAT5e cable up to 260 ft / 80 m length recommended
Features Neutrik etherCON* AES50 network ports
Rugged 1U chassis for durability in portable applications
Auto-ranging universal switch-mode power supply
10-Year Warranty Program*
Designed and engineered in the U.K.
