Column systems have literally revolutionized numerous application areas for bands and DJs. Never has it been easier to provide a consistent sound solution from a simple, inconspicuous PA system - even in large spaces. The MAUI® 44 G2 is now the practical, powerful solution for the professional segment.
Features
- Professional column PA system with 1500 W RMS and 132 dB max. SPL
- Cardioid column for controlled low- and mid-range frequency dispersion and cardioid subwoofer application (with additional subwoofer)
- TrueWireless™ stereo technology for wireless stereo pairing of two column systems
- aptX™ coding and advanced audio coding (AAC) for high-resolution Bluetooth® streaming
- BEM-optimized high-frequency waveguide for uniform dispersion pattern, phase plug for coherent mid-range wavefront and flow-optimised bass-reflex ports
- DynX® DSP technology for distortion-free sound at maximum volume
- Automatic setup detection
- Fast and simple assembly without stands or cables
- Rugged subwoofer housing made out of polyurea-coated birch plywood and lightweight, powder-coated aluminium column
Specifications
- Product type: PA Complete Systems
- Type: Powered
- Color: Black
- Max. SPL (peak): 132 dB
- Frequency response: 37 - 20000 Hz
- Dispersion (H x V): 120 x 25
- Total Height: 2256 mm
- Weight: 47.6 kg
- Features: Bluetooth Audio Streaming , DSP-based Signal Processing , Excellent Sound Dispersion , Mono/ Stereo Application
Subwoofer
- Woofer dimensions: 15 "
- Woofer size: 381 mm
- Woofer magnet: Neodymium
- Woofer brand: Custom-made
- Woofer voice coil: 4 "
- Woofer voice coil (mm): 101 mm
- Cabinet construction: Bass Reflex
- Housing material: 15 mm Birch Plywood , 18 mm Birch Plywood
- Cabinet surface: Polyurea
- Dimensions Subwoofer (W x H x D): 434 x 634 x 637 mm
- Subwoofer weight: 36.4 kg
Mid/Hi System
- Midrange size: 12 x 3,5 "
- Midrange size: 12 x 89 mm
- Midrange magnet: Neodymium
- Midrange brand: Custom-made
- Midrange voice coil: 1 "
- Midrange voice coil: 25.4 mm
- Tweeter dimensions: 4 x 0.5 "
- Tweeter dimensions (mm): 12.7 mm
- Tweeter magnet: Neodymium
- Tweeter brand: Custom-made
- Tweeter voice coil: 1 "
- Tweeter voice coil (mm): 25.4 mm
- Wave Guide: CD Waveguide
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Closed
- Mid/Hi system cabinet material: Aluminum
- Mid/Hi system cabinet surface: HD coated aluminum , multi layer mesh (cloth)
- Mid/Hi system width: 103 mm
- Mid/Hi system height: 1621 mm
- Mid/Hi system depth: 135 mm
- Mid/Hi system weight: 11.2 kg
Amplifier module (integrated in subwoofer)
- Amplifier: Class D
- System output (RMS): 1500 W
- Protection circuits: DC protection , Multiband limiter , short circuit , thermal protection
- Cooling: Convection

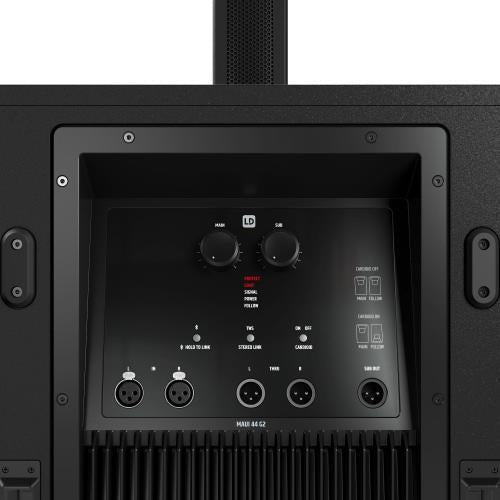

- Controls: Bluetooth HOLD TO LINK button , Bluetooth STEREO LINK button , Cardioid On/Off , Main level , Power On/Off , Sub level
- Indicators: Bluetooth , Bluetooth STEREO LINK , Cardioid On/Off , Limit , Power , Protect (protection circuit engaged) , Signal , slave mode , Subwoofer Mode
- Mains connector: Neutrik PowerCon
- Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz , 220 V AC - 240 V AC, 50-60 Hz
- Ambient temperature (operating): 0 - 40 °C
- Relative Humidity: < 80% (non-condensing)
- Line Inputs: 2
- Line Input Connectors: XLR female
- Line Outputs: 2
- Line Output Connectors: XLR male
- Number of speaker outputs: 1
- Loudspeaker Output Connectors: Custom-made multipin
- Bluetooth Standard: A2DP
- Bluetooth Audio Decoder: AAC , aptX , SBC
DSP Characteristics
- Bit depth AD/DA converter: 24 bit
- Sampling frequency: 48 kHz
- Signal-to-noise ratio: 106 dB
