LD Systems LDMON121AG2 12in Active Stage Monitor

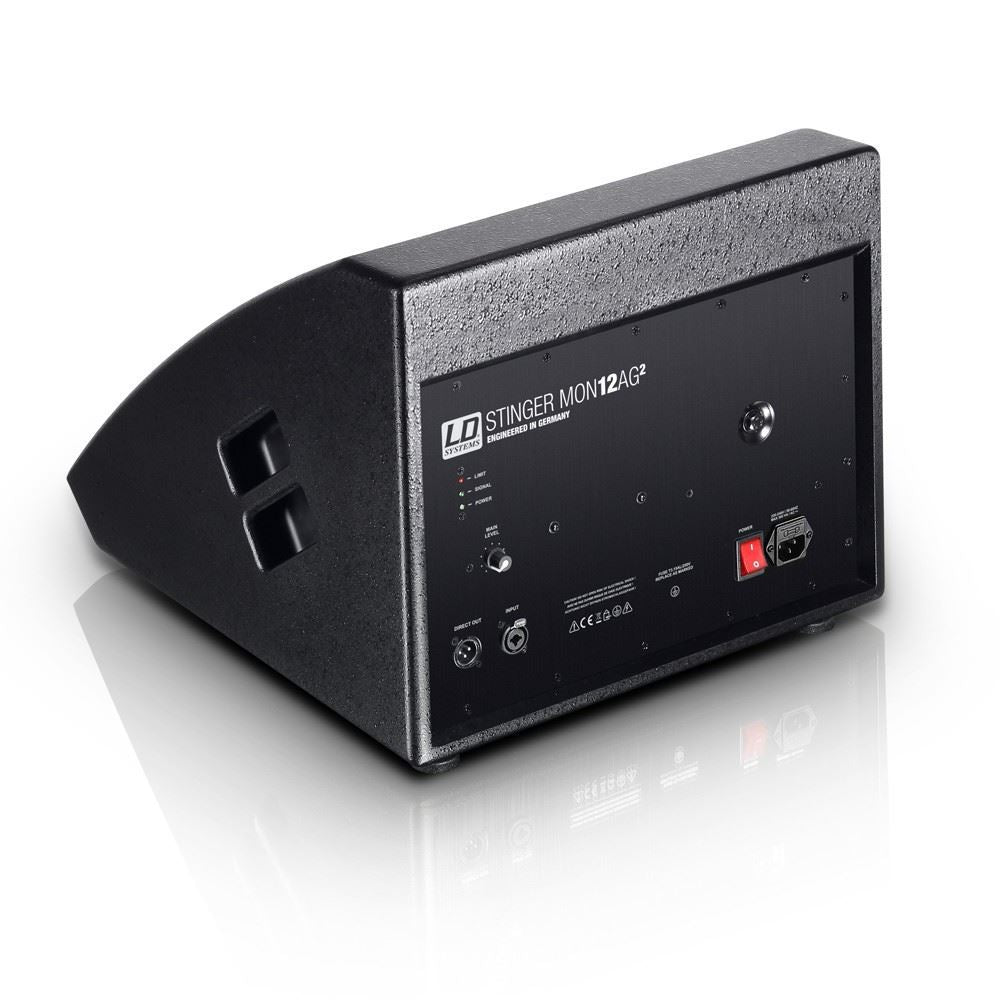

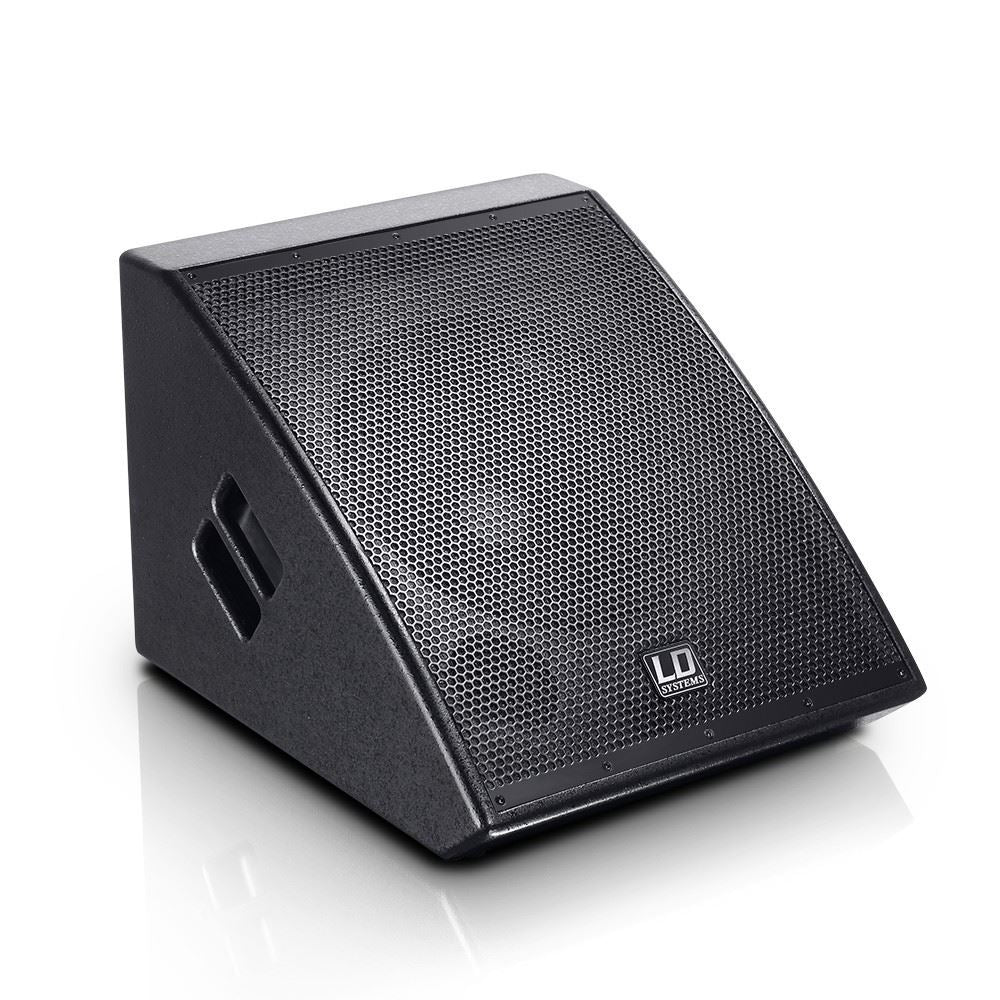

The specially developed 12 coaxial speaker with an integral 1 HF driver and powerful ferrite magnets stands out because of a precisely symmetrical dispersion over 75° x 75° and attains a maximum sound-level pressure of 124dB with maximum resistance to feedback. It is driven by a Class AB power amplifier with a power output of 1000W Peak. The frequency response curve is 80Hz - 20kHz. Dependable operation of the LD MON121AG2 is ensured by a limiter that prevents overloading of the speaker and a protection circuit that guards against short-circuiting. The input is a XLR-jack combo socket, an XLR output permits looping through of the signal. Other connector panel features include a volume control, IEC power socket, LED indicators of various colours for power, signal, and the limiter function. The elegant looking bass-reflex enclosure of the LD MON121AG2 is made of 15mm-thick multiplex finished with a durable coating. A sturdy metal grille guards against speaker damage, and ergonomically milled handles make transport easier. The monitor angle is 35°. Specifications Product type: PA loudspeaker Type: Powered Low/mid driver dimensions: 12 Woofer size: 304 mm Woofer type: coaxial loudspeaker Woofer magnet: Ferrite Woofer brand: Custom-made Woofer voice coil: 2 Woofer voice coil (mm): 50.8 mm HF driver dimensions: 1 HF Driver Size: 25.4 mm HF driver magnet: Ferrite HF driver brand: Custom-made HF driver voice coil: 1 HF Driver Voice Coil: 25.4 mm Amplifier: Class A/B Dispersion (H x V): 75 x 75 ° RMS: 250 W Peak power: 1000 W Frequency response: 80 - 20000 Hz Crossover frequency: 2200 Hz SPL (1W/1m): 100 dB Max. SPL (continuous): 116 dB Max. SPL (peak): 124 dB Protection circuits: limiter , short circuit Controls: On / Off , volume Indicators: Limit , Power , Signal Line Inputs: 1 Line input connectors: 6.3 mm jack , XLR Line Outputs: 1 Line output connectors: XLR Operating voltage: transformer Operating voltage: 230 V AC / 50-60 Hz Cabinet material: 15 mm Plywood Cabinet construction: Bass Reflex Monitor angle: 35 ° Width: 440 mm Depth: 360 mm Height: 514 mm Weight: 17,8 kg Features: ergonomically shaped insert handles
