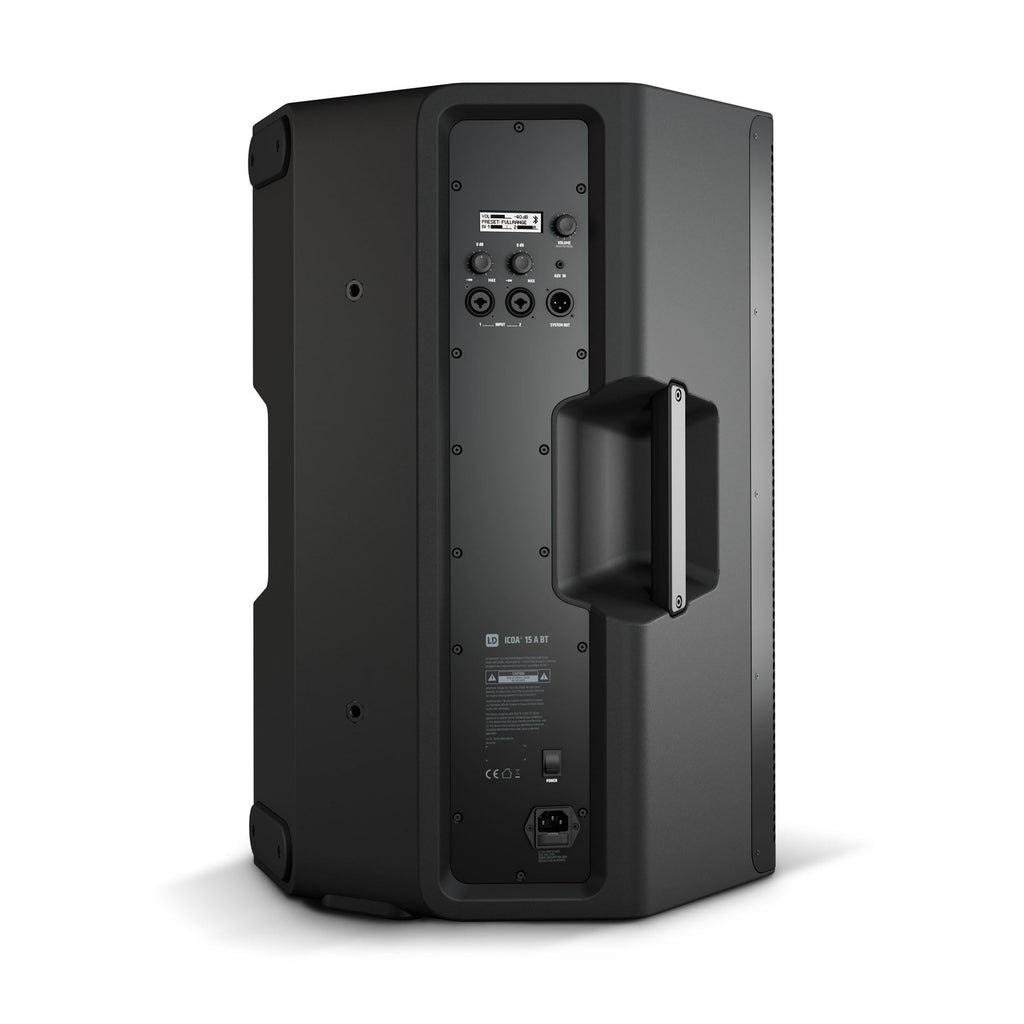

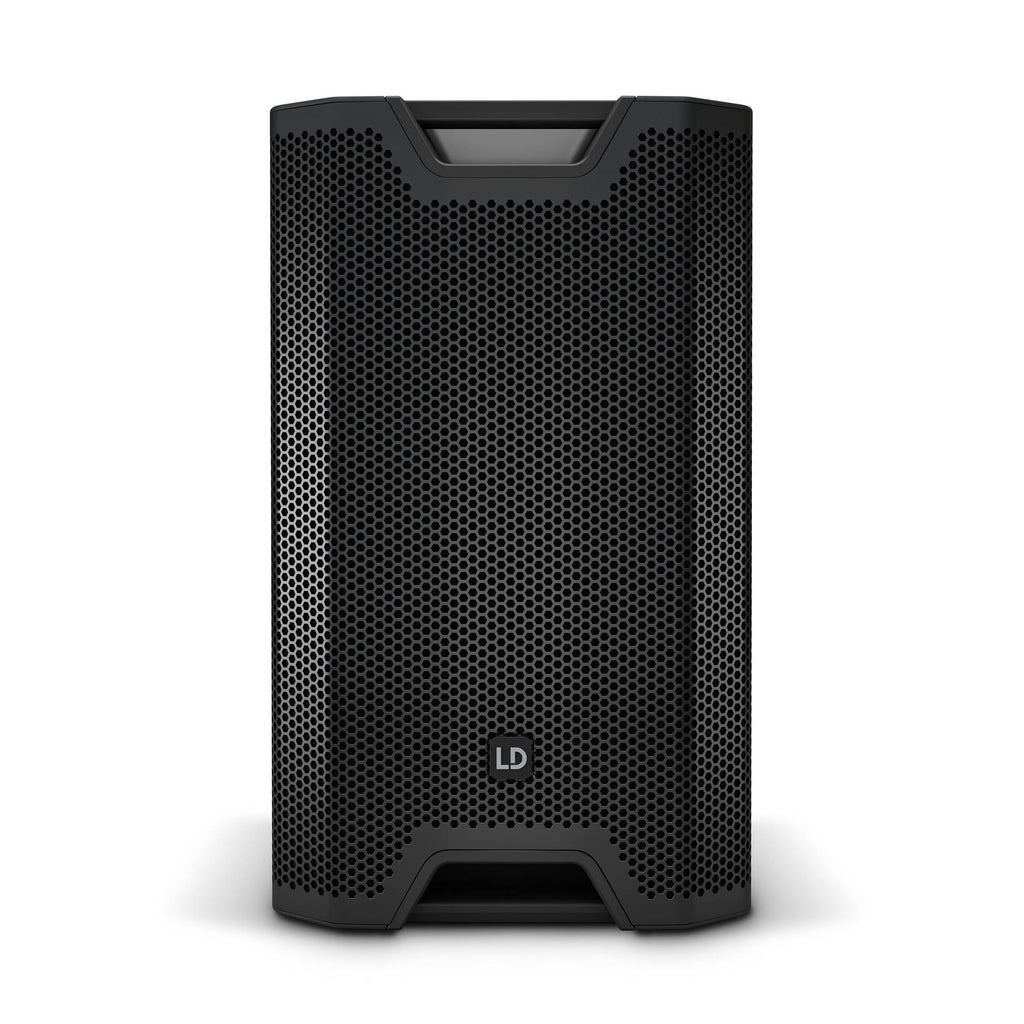

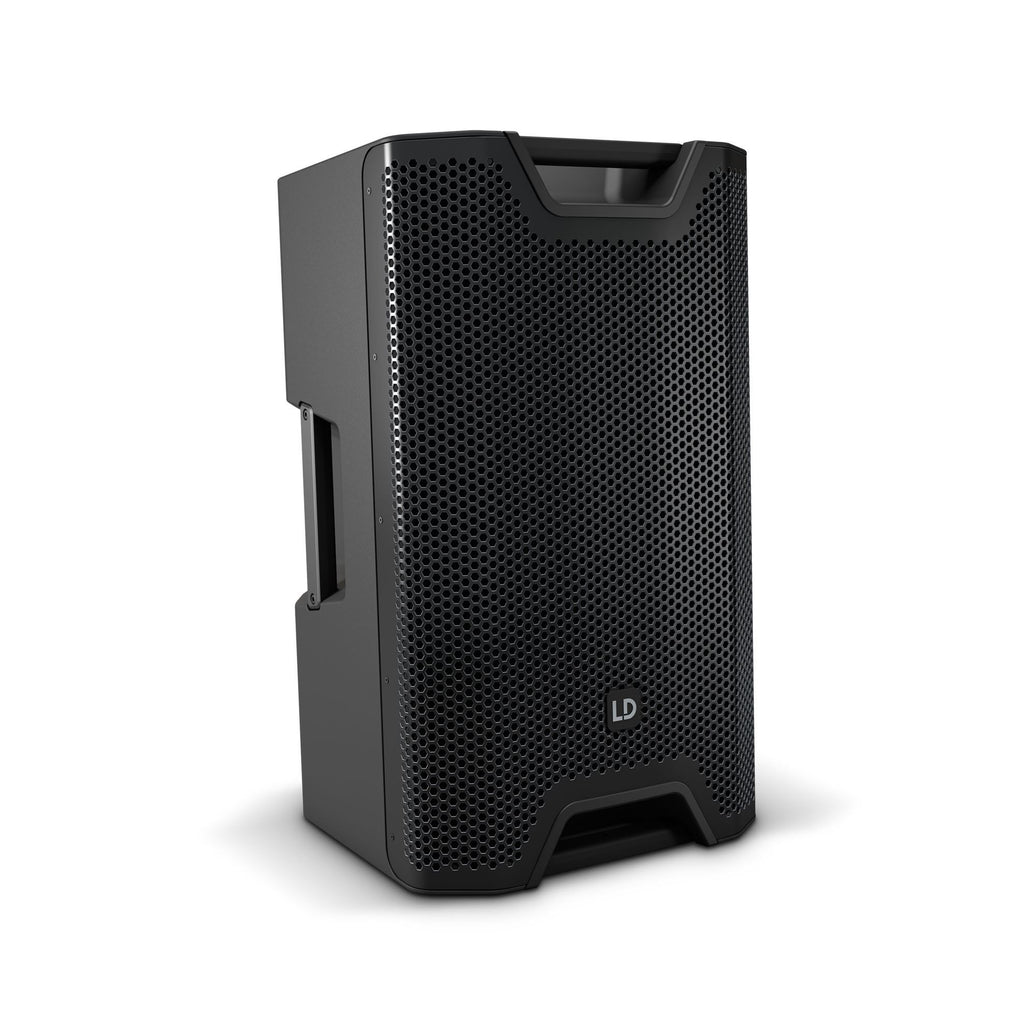

LD Systems ICOA15ABT 15in Powered PA Speaker with Bluetooth Streaming

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this aktive 15" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it''s excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth® streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Features

• A genuine all-rounder for full-range, satellite and monitor applications
• 128 dB max. SPL and 1200 W peak power
• Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
• Horn-loaded woofer
• DynX DSP with 4 presets, 3-band EQ and delay function
• 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
• 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
• 6 x M10 flying points
• Shock-resistant front grille for optimal protection of the speaker
• 4 aluminium grips with ergonomic, rubber surface
• Extensive, optionally available accessories for installation and transport

Specifications

• Product type: PA loudspeaker
• Type: Powered
• Bluetooth Audio Decoder Bluetooth: 4.0
• Low/mid driver dimensions: 15 "
• Woofer size: 381 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Horn: BEM optimized CD Horn
• HF driver dimensions: 1 "
• HF Driver Size: 25.4 mm
• HF driver magnet: Ferrite
• HF driver brand: Custom-made
• HF driver voice coil: 1 "
• HF Driver Voice Coil: 25.4 mm
• Amplifier: Class D
• Dispersion (H x V): 90 ° x 50 °
• RMS: 300 W
• Peak power: 1200 W
• Frequency response: 48 - 20000 Hz
• Crossover frequency kHz: 2 kHz
• Max. SPL (peak): 128 dB
• Protection circuits: Multiband limiter , over voltage , over-current , thermal overload
• Controls: 2 x gain , On / off switch , Rotary/push encoder
• Indicators: LC display
• Mic/ line inputs: 2
• Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical) , XLR
• Line inputs: 1
• Line input connectors: 3.5 mm TRS
• Line outputs: 1
• Line output connectors: XLR
• Operating voltage: SMPS
• Power consumption: 150 W
• Ambient temperature ( in operation ): 0 - 40 °C
• Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
• Relative Humidity: < 80 %, not condensing
• Fuse: T4AL 250 V
• Cabinet material: Polypropylene
• Cabinet construction: Bass Reflex
• Mounting: 36mm flange (0°, 5°) , 6 x M10 flying points
• Monitor angle: 55 °
• Width: 416 mm
• Height: 695 mm
• Depth: 415 mm
• Features: Bluetooth
• Weight: 24,3 kg
• Accessories (included): Power cord
