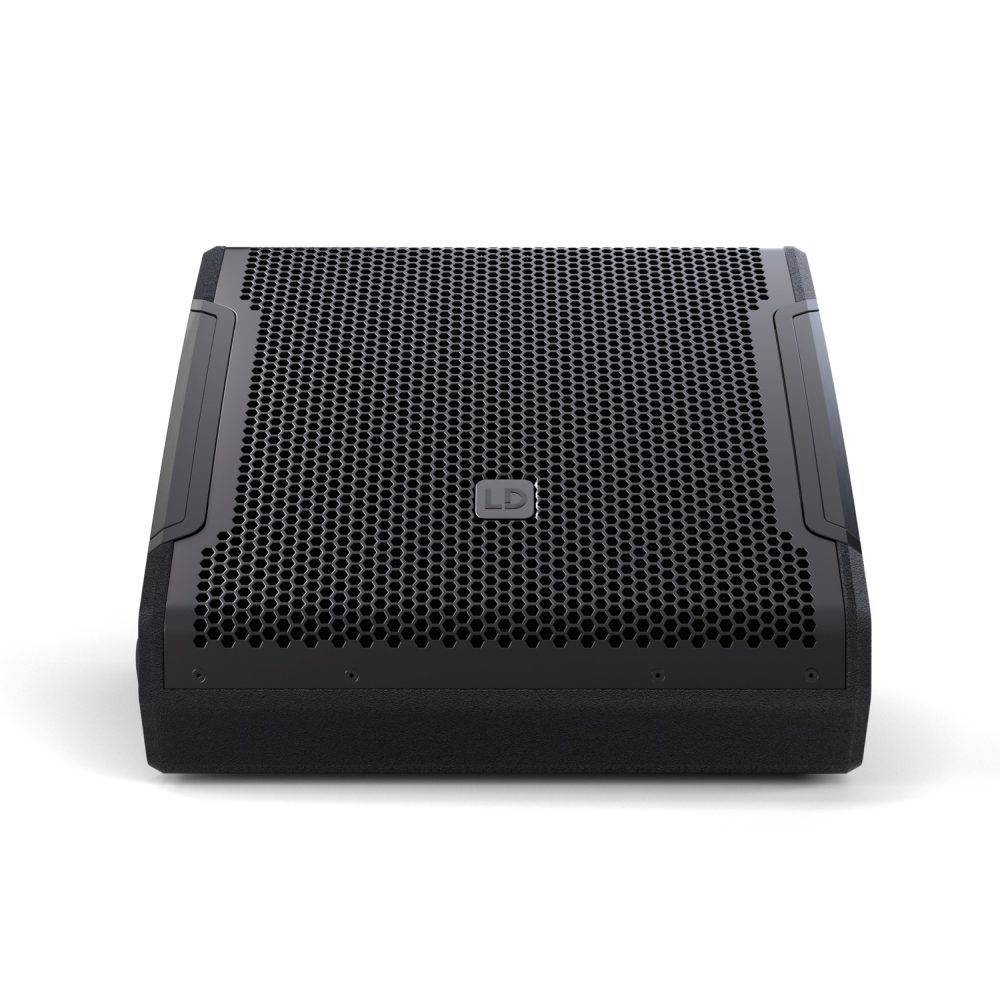

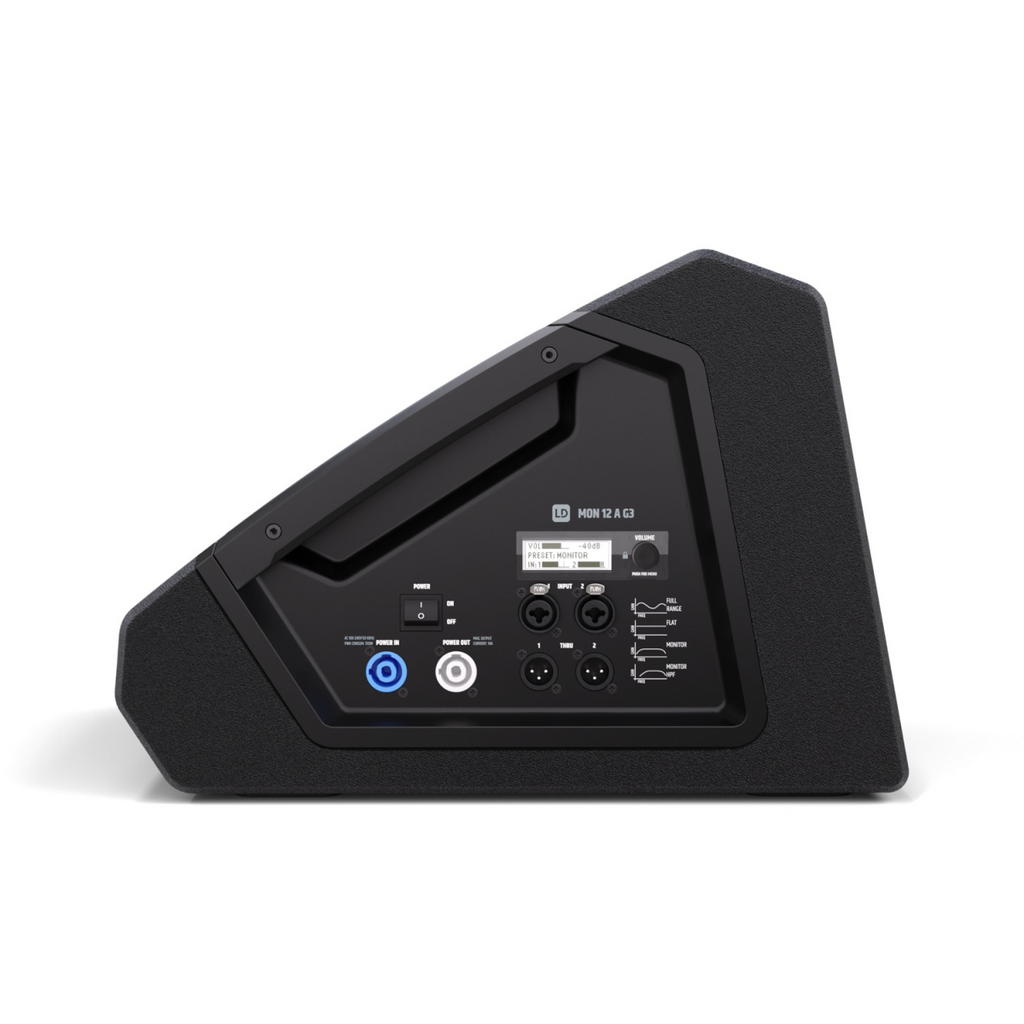

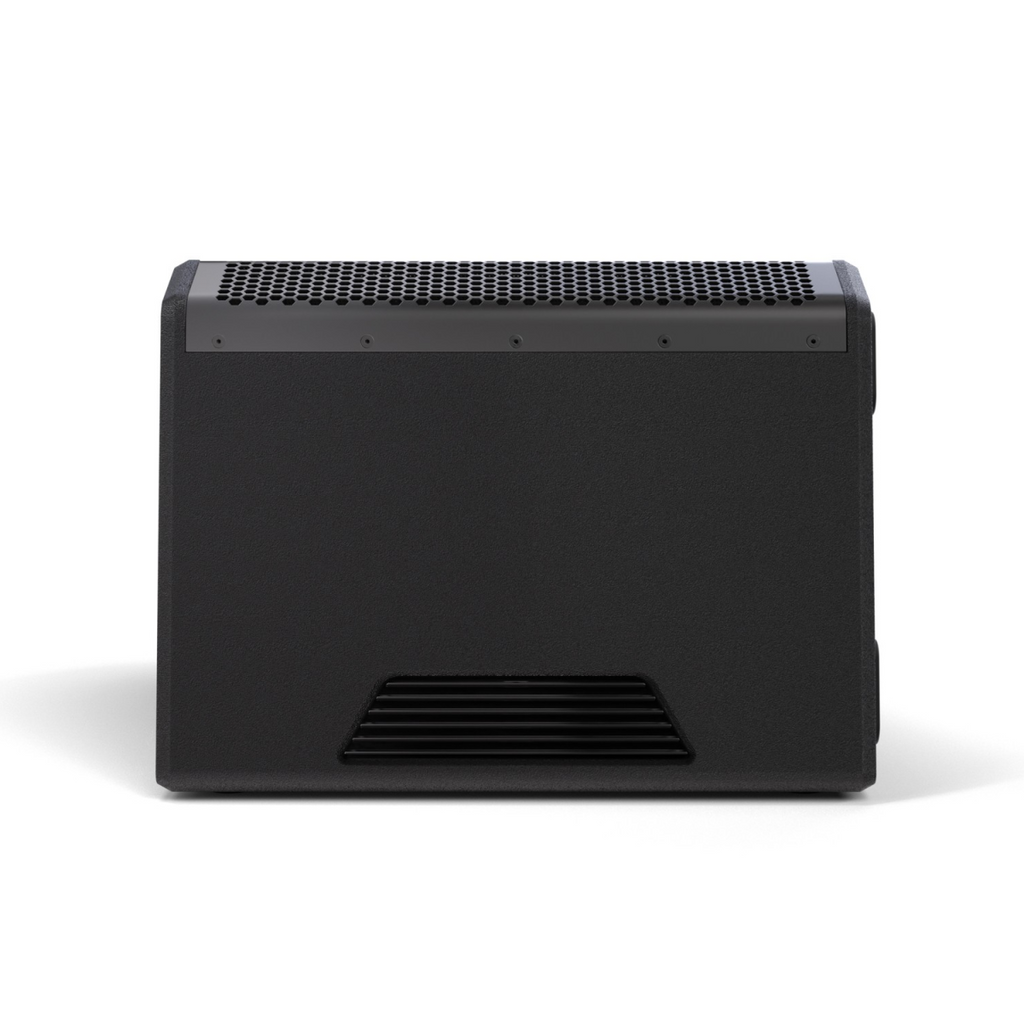

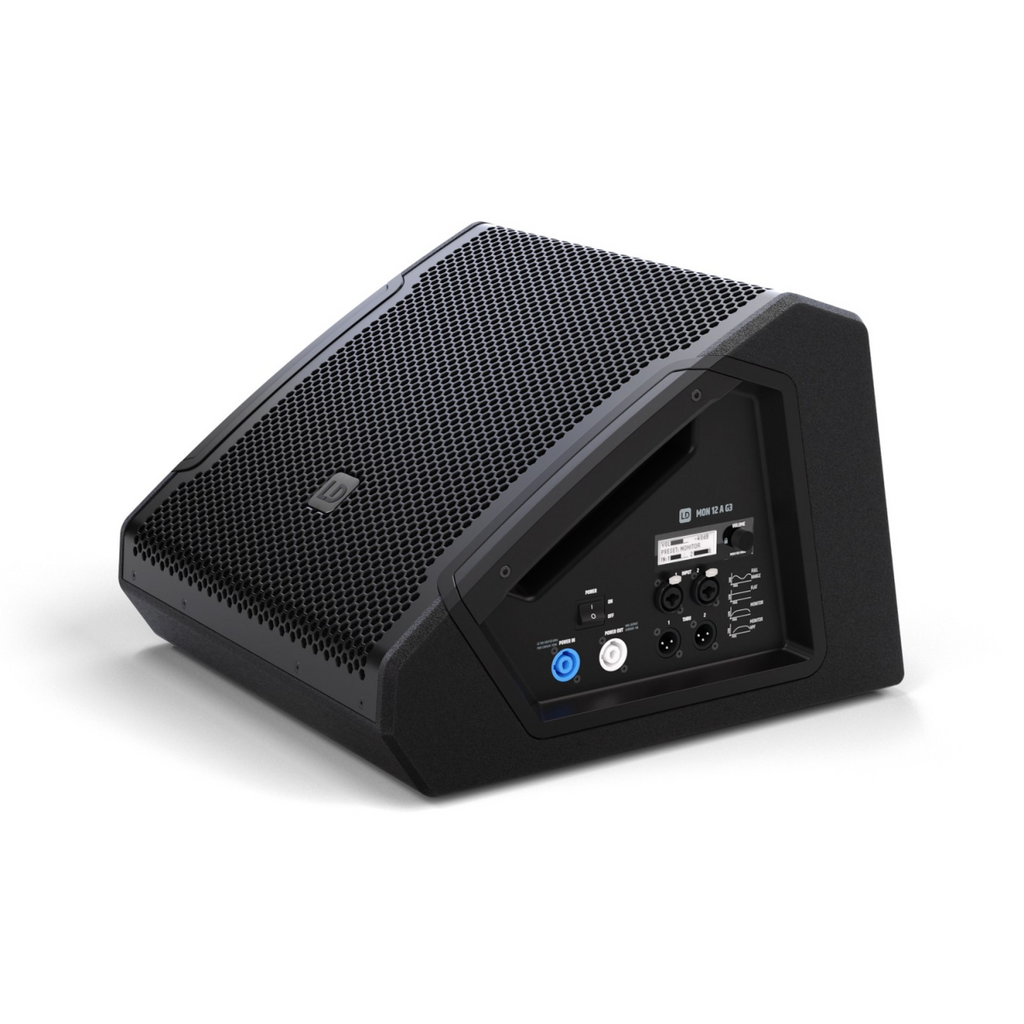

LD Systems G3 Series MON 12 A 1200W 12 inch Active Coaxial Stage Monitor
Demo

LD Systems G3 Series MON 12 A 1200W 12 inch Active Coaxial Stage Monitor

$999.00 AUD
Brand: LD Systems
SKU: LDS-MON12AG3

Rent from
In stock

Mega Music Myaree

In stock in store

Available to demo in store

Mega Music Warehouse

Out of stock in store

Mega Music Wangara

Out of stock in store

LD Systems G3 Series MON 12 A 1200W 12 inch Active Coaxial Stage Monitor

Mega Music Myaree

In stock in store
Available to demo in store

95 N Lake Rd
Myaree WA 6154
Australia

+61893302777

Mega Music Warehouse

Out of stock in store

Mega Music Wangara

Out of stock in store

5/32 Prindiville Drive
Wangara WA 6065
Australia

+61894081236
Description
12"/1" stage monitors have been a satisfying medium for decades in terms of sound quality, sound pressure and portability. With its coaxial construction, smart electronics and professional optics, the MON 12 A G3 brings this concept into the "modern era". Its optimal radiation shapes of 50° x 90° for monitor applications and 90° x 50° for FOH applications make it an all-rounder offering the right solution for many tasks. Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant and tidy cable routing in case of multi-monitor setups or distributed sound reinforcement.

Features

  • Compact high-performance stage monitor with top-of-the-range technologies
  • Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL
  • Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
  • 12" woofer with 2.5" voice coil
  • Optimised, practical radiation pattern due to 50° x 90° CD horn
  • DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
  • 3-band EQ, Notch filter, 4 application presets and delay function
  • PowerCON compatible loop-through professional power connection
  • 35 mm speaker stand flange for FOH applications
  • Durable Polyurea coating and heavy-duty front grille

Specifications

General Product type: Stage monitors Type: Powered Colour: Black System output (RMS): 300 W System output (Peak): 1200 W Max. SPL Average (Sine burst): 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD) Max. SPL Peak (Sine burst): 127 dB (fullspace @1m, 10% THD) Frequency response (-3 dB): 68 - 18000 Hz Frequency response (-10 dB): 55 - 20000 Hz Crossover frequency: 1400 Hz Monitor angle: 33° Dispersion (H x V): 50° x 90°
Features: 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter
Product Dimensions and Weight: Width: 425 mm Depth: 453 mm Height: 315 mm Weight: 17,4 kg Low/mid Woofer Low/mid Woofer dimensions: 12 " Woofer dimensions (mm): 304.8 mm Woofer magnet: Ferrite Woofer brand: Custom-made Woofer type: Coaxial loudspeaker Woofer voice coil (inch): 2.5 " Woofer voice coil (mm): 65 mm Cabinet construction: Bass Reflex Cabinet material: 15 mm Birch Plywood, 15 mm MDF HF Horn: CD Horn Tweeter dimensions: 1 " Tweeter dimensions (mm): 25.4 mm Tweeter magnet: Ferrite Tweeter brand: Custom-made Tweeter voice coil: 1.75 " Tweeter voice coil (mm): 44.45 mm Amplifier module (integrated) Amplifier: Class D Protection circuits: Multiband limiter, over voltage, over-current, thermal overload Operating Temperature: 0 - 40 °C Humidity Range: < 80 % ( non-condensing ) Fuse: T4AL 250 V Controls: On / off switch, Rotary/push encoder Indicators: LC display Power supply: SMPS Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz Power consumption: 150 W Power in / out: PowerCON compatible Line inputs: 2 Line input connectors: 6.3 mm jack, XLR - combo Line thru: 2 Line through connector: XLR
