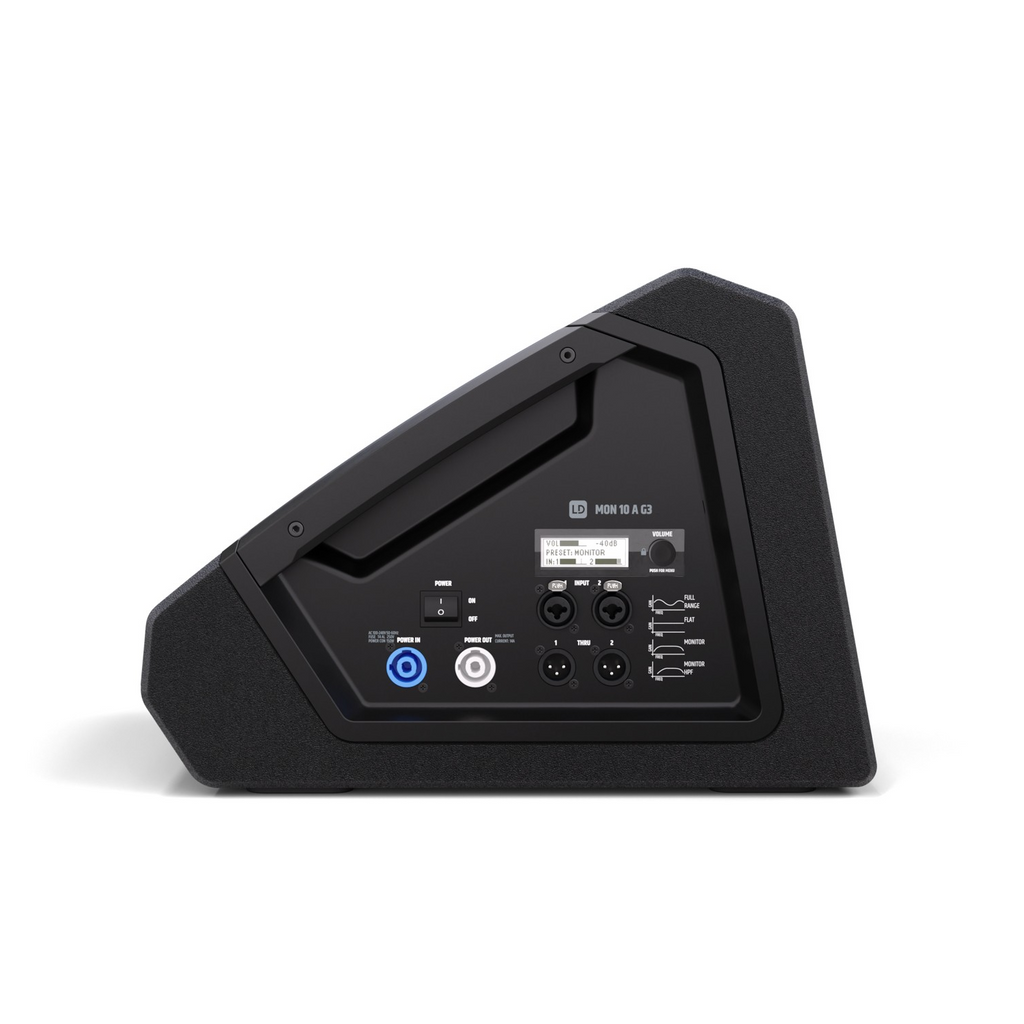

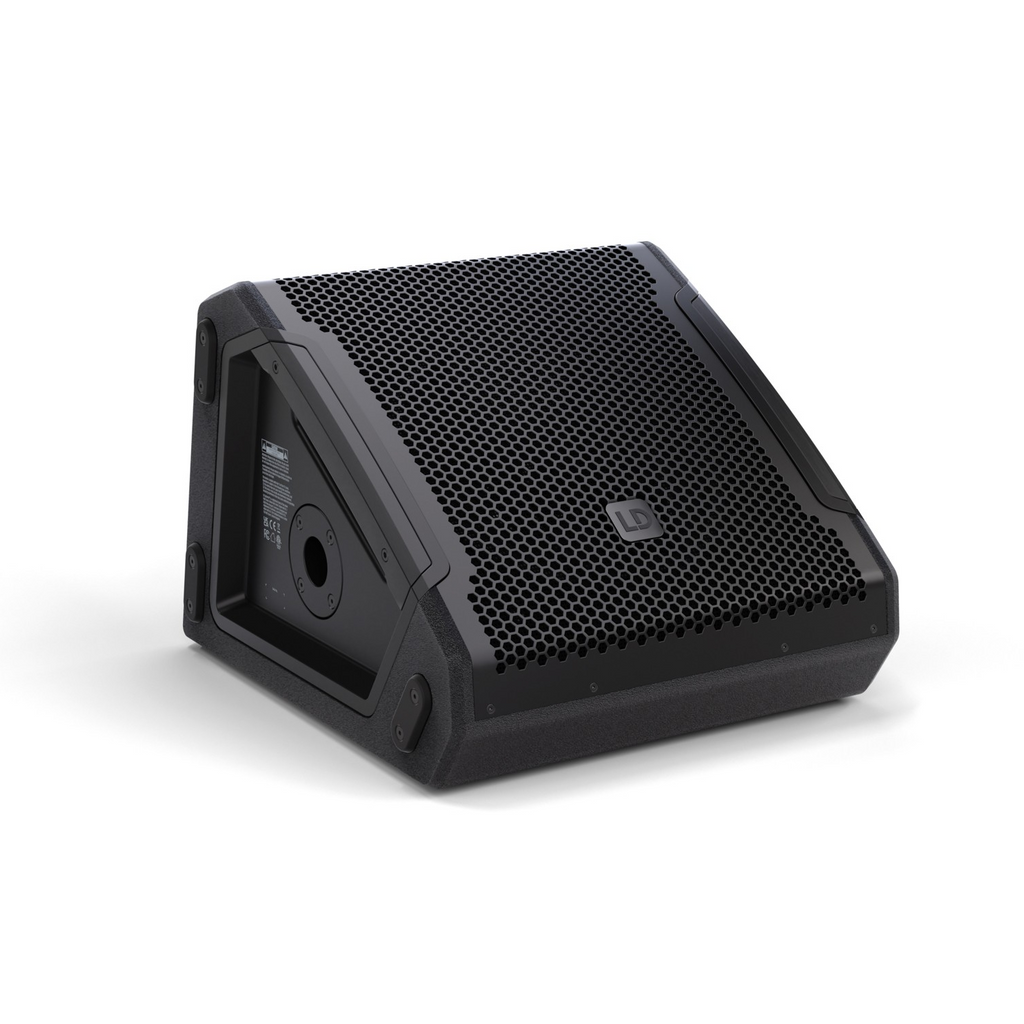

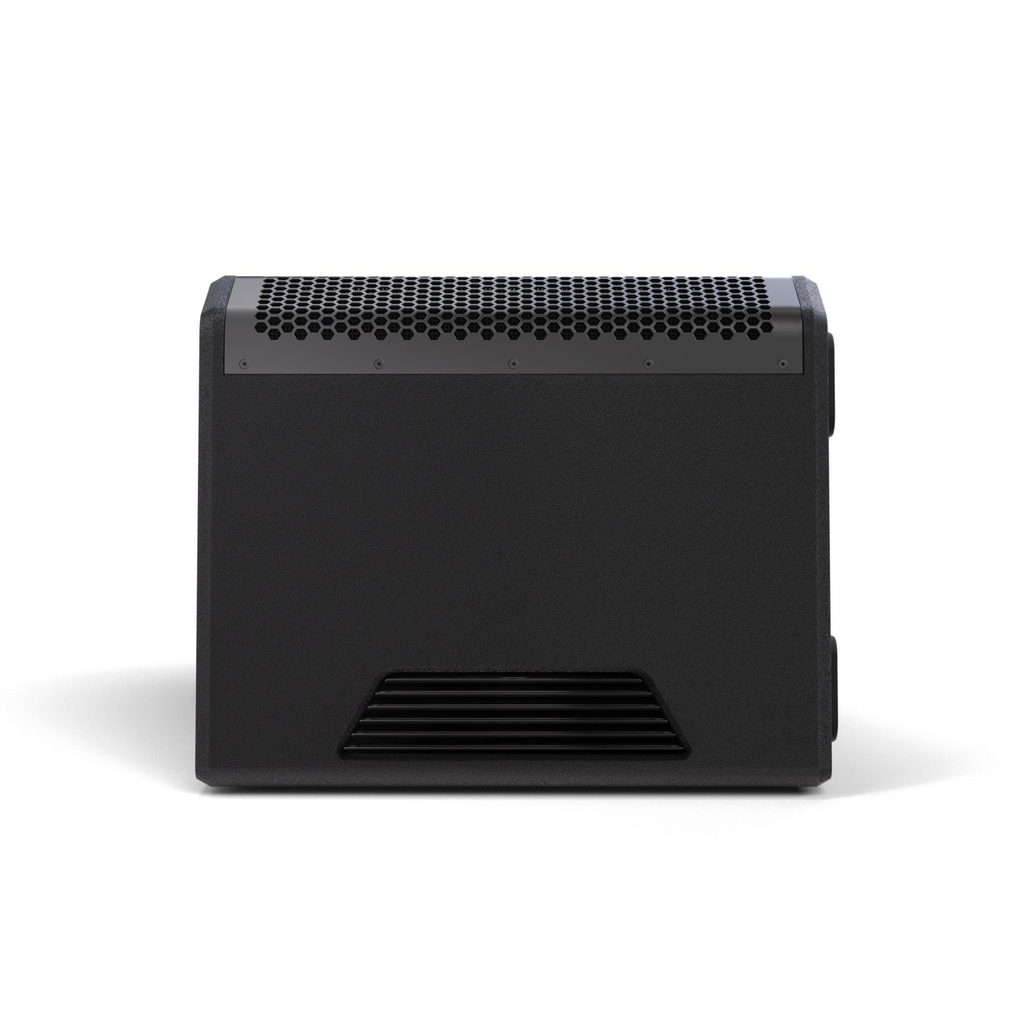

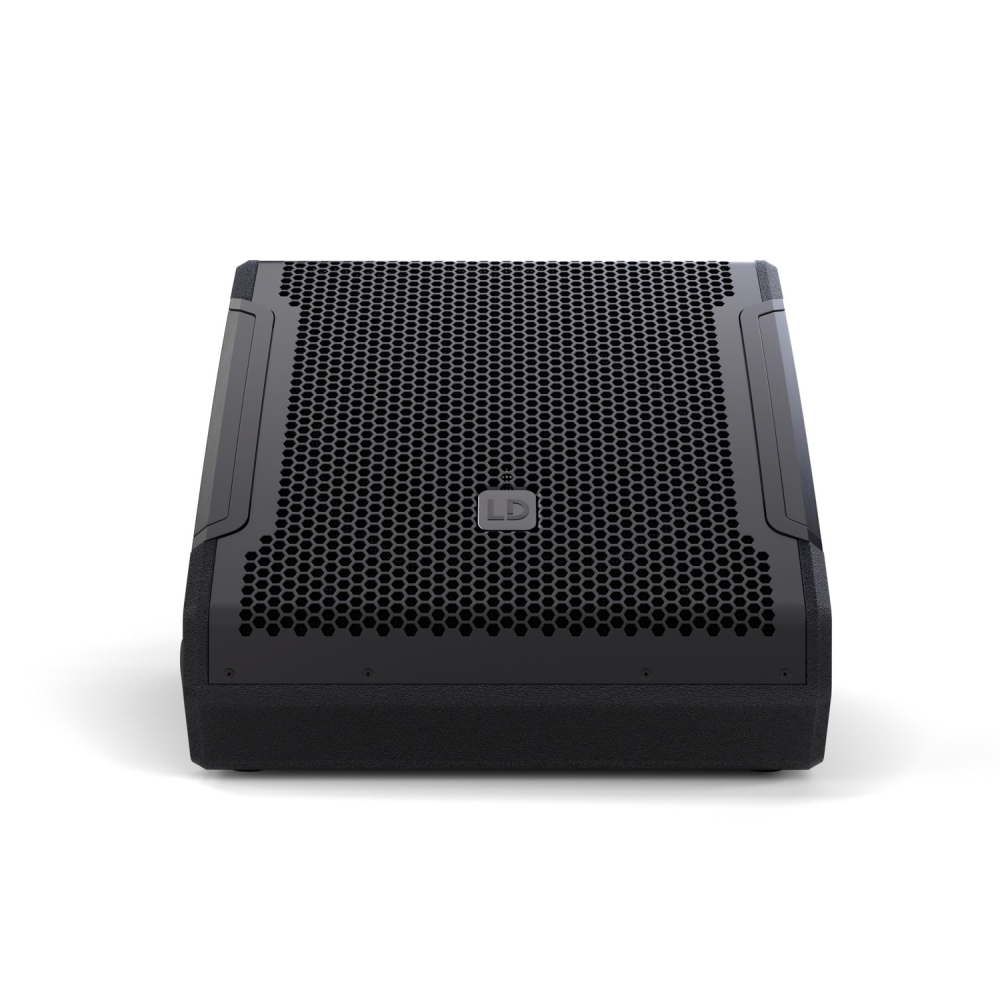

LD Systems G3 Series MON 10 A 1200W Active Coaxial Stage Monitor

The MON 10 A G3 is very compact, allowing it to be unobtrusively integrated into a stage set, yet provides enough sound pressure to make its presence felt even in loud band situations. With its optimal beam shape of 50° x 90° for monitor applications and 90° x 50° for FOH applications, it is an all-rounder that offers the right solution for many tasks. Both the signal (XLR/jack combination) and the power connection (PowerCON compatible) can be looped through. This allows for elegant and tidy cable routing in case of multi-monitor setups or distributed sound reinforcement. Features Compact high-performance stage monitor with top-of-the-range technologies Class-D power amplifier with 300 W RMS/1200 W peak and 126 dB max. SPL Coaxial design for true point source with a 1.75 titanium-diaphragm HF driver 10 woofer with 2.5 voice coil Optimised, practical radiation pattern due to 50° x 90° CD horn DynX® DSP (Gen.2) for distortion-free sound even at maximum volume 3-band EQ, Notch filter, 4 application presets and delay function PowerCON compatible loop-through professional power connection 35 mm speaker stand flange for FOH applications Durable Polyurea coating and heavy-duty front grille Specifications General Product type: Stage monitors Type: Powered Colour: Black System output (RMS): 300 W System output (Peak): 1200 W Max. SPL Average (Sine burst): 118 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD) Max. SPL Peak (Sine burst): 126 dB (fullspace @1m, 10% THD) Frequency response (-3 dB): 72 - 18000 Hz Frequency response (-10 dB): 58 - 20000 Hz Crossover frequency: 1700 Hz Monitor angle: 33° Dispersion (H x V): 50° x 90° Features: 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter Product Dimensions and Weight: Width: 380 mm Depth: 426 mm Height: 305 mm Weight: 15,21 kg Low/mid woofer Low/mid Woofer dimensions: 10 Woofer dimensions (mm): 254 mm Woofer magnet: Ferrite Woofer brand: Custom-made Woofer type: Coaxial loudspeaker Woofer voice coil (inch): 2.5 Woofer voice coil (mm): 65 mm Cabinet construction: Bass Reflex Cabinet material: 15 mm Birch Plywood, 15 mm MDF HF Horn: CD Horn Tweeter dimensions: 1 Tweeter dimensions (mm): 25.4 mm Tweeter magnet: Ferrite Tweeter brand: Custom-made Tweeter voice coil: 1.75 Tweeter voice coil (mm): 44.45 mm Amplifier module (integrated) Amplifier: Class D Protection circuits: Multiband limiter, over voltage, over-current, thermal overload Operating Temperature: 0 - 40 °C Humidity Range: < 80 % ( non-condensing ) Fuse: T4AL 250 V Controls: On / off switch, Rotary/push encoder Indicators: LC display Power supply: SMPS Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz Power consumption: 150 W Power in / out: PowerCON compatible Line inputs: 2 Line input connectors: 6.3 mm jack, XLR - combo Line thru: 2 Line through connector: XLR
