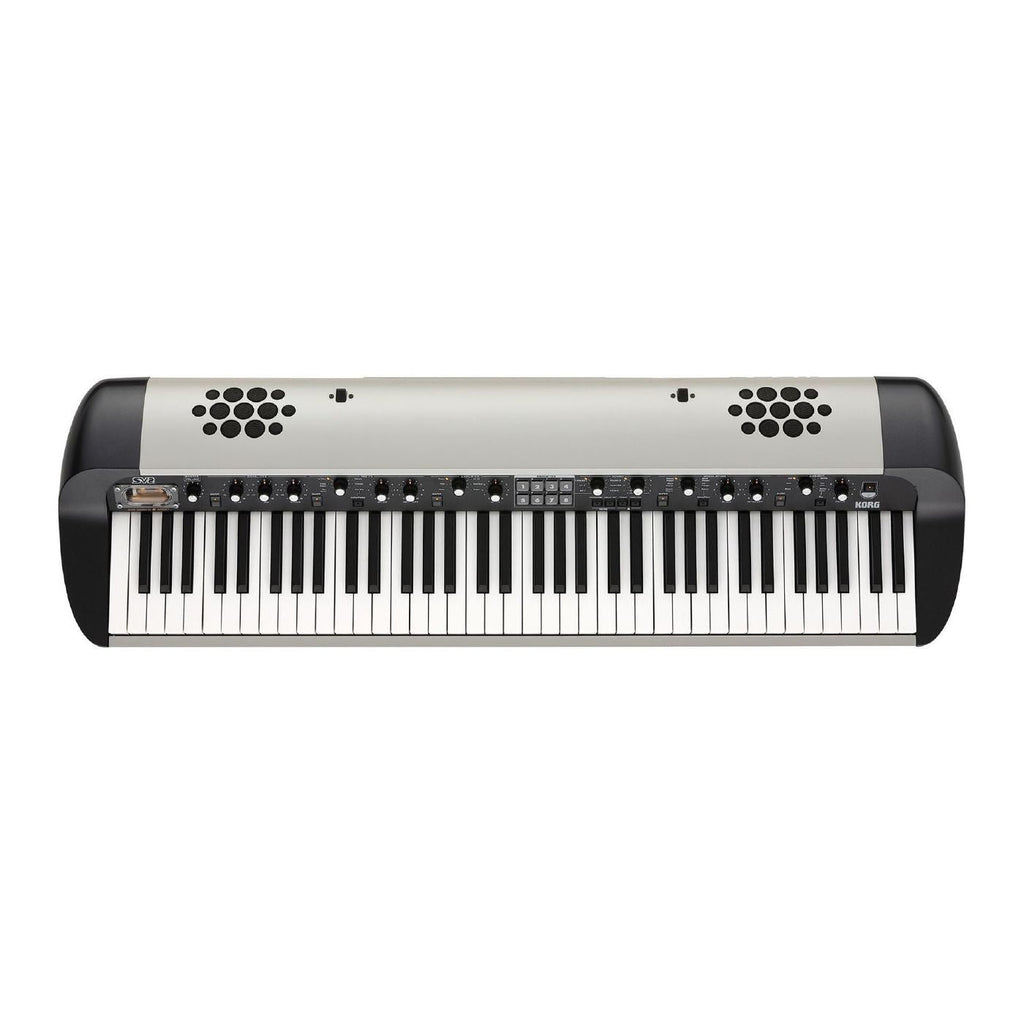

Korg SV-2 73-Key Stage Vintage Piano with Speaker System

Ten years ago, KORG launched the Stage Vintage line to wild acclaim. The combination of an intuitive live panel, the premier keybed, the ultimate realization of coveted vintage sounds, the clarity of world-class pianos, the warmth and character of period-proper effects, and the distinctively smooth shape has inspired musicians from around the globe for over a decade.

Available with either 88 keys or 73 keys, these SV-2 models are the latest additions to the Stage Vintage series, featuring more of everything that makes an SV great. More Sounds. More Memory. More Polyphony. More Presets. More Control.

It is quite literally everything one could want in a performance stage piano … and more. Plus, be sure to check out the SV-2S models, equipped with an internal K-ARRAY speaker system.

Specifications

Keyboard

• SV-2 /SV-2S (73key)73 keys (A0 to C8), Velocity-sensitive KORG RH3 (Real Weighted Hammer Action 3)
• Touch selection: Eight curves
• Tuning: Master Transpose, Master Tune, Tuning curves

Sounds

• Sound generation: EDS-X (Enhanced Definition Synthesis - eXpanded)
• Maximum Polyphony: 128 notes
• Multi Sound: Layer, Split
• Factory Sounds: 72 (6 Basic sounds x 2 sets, 6 variations)
• EP1 (Vintage): MK I Suitcase, MK I Stage, MK II Suitcase, MK II Stage, MK V Stage, MK V Bright, Dyno EP, Dyno EP Bright, Wurly, Wurly Classic, Wurly Dark, Wurly Bright
• EP2 (Various): FM Piano 1, FM Piano 2, FM Piano 3, FM Piano & Pad, Pianet T, Pianet N, Hybrid Piano, Hybrid Tine, Wurly & Strings, FM & Strings, MK II & Pad, FM & Pad
• Piano 1 (Acoustic): German Grand, German Classic, Italian Grand, Italian Bright, Japanese Grand, Japanese Bright, Austrian Grand, Austrian Classic, Japanese Upright,
• Upright Bright, German Upright, Rock Piano
• Piano 2 (Various): Electric Grand, German Mono, KORG M1 Piano, KORG SG-1D, Digital Piano, Electra Piano, Tack Piano, Honky-Tonk, Piano & Strings, Piano & Pad,
• Piano & Synth, Piano & Brass
• Clavier: Clav AC, Clav AD, Clav BC, Clav BD, Harpsichord, Harpsichord Oct, Perc. Organ, Rock Organ, Jazz Organ, VOX Organ, Church Organ, Pipe Organ
• Other: Full Strings, Classic Strings, Tape Strings, Strings & Voices, Warm Pad, Bright Pad, Orchestra, Pizzicato & Glock, Brass, Synth Brass, Pad/Mini Lead,
• Pad/SynthLead
• Favorite sounds: 64 (8 banks x 8 variations) for saving of customized settings

Effects

• Structure: 6 effects (5 effects + 1 total effect)
• Equalizer: Bass, Mid, Treble
• Pre FX: Red Comp, Treble Boost, U-Vibe, Vibrato, Tremolo, VOX Wah (Auto or Pedal control)
• Amplifier models: Clean, Twin, Tweed, AC30, Boutique, Organ Amp + Cabinet Models, Valve Reactor Technology – 12AX7 (ECC83) valve
• Modulation: Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, MX Flanger, Rotary (Slow/Fast control)
• Ambient: Room, Plate, Hall, Spring, Tape Echo, Stereo Delay (Tap tempo)
• Total FX (only editable with SV-2 Editor): Stereo Mastering Limiter, Stereo Limiter

Panel controls

• Sound Select: TYPE knob, VARIATION knob, FAVORITES 1–8 switches
• Favorite Sound select: 1–8 switches, SOUND TYPE knob
• Effect Control: Equalizer: On/Off switch, BASS knob, MID knob, TREBLE knob
• Pre FX: On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, AUTO/PEDAL switch (available when the TYPE = Vox Wah)
• Amplifier: On/Off switch, TYPE knob, DRIVE knob
• Modulation: On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, Slow/Fast switch (available when the TYPE = Rotary.)
• Ambient: On/Off switch, TYPE knob, DEPTH knob, Tap (available when TYPE = Stereo Delay)
• Volume: Master Volume
• Switches: Transpose, Local Off, Touch, Function
• Demo Songs: 72 songs (one song for each preset sound)

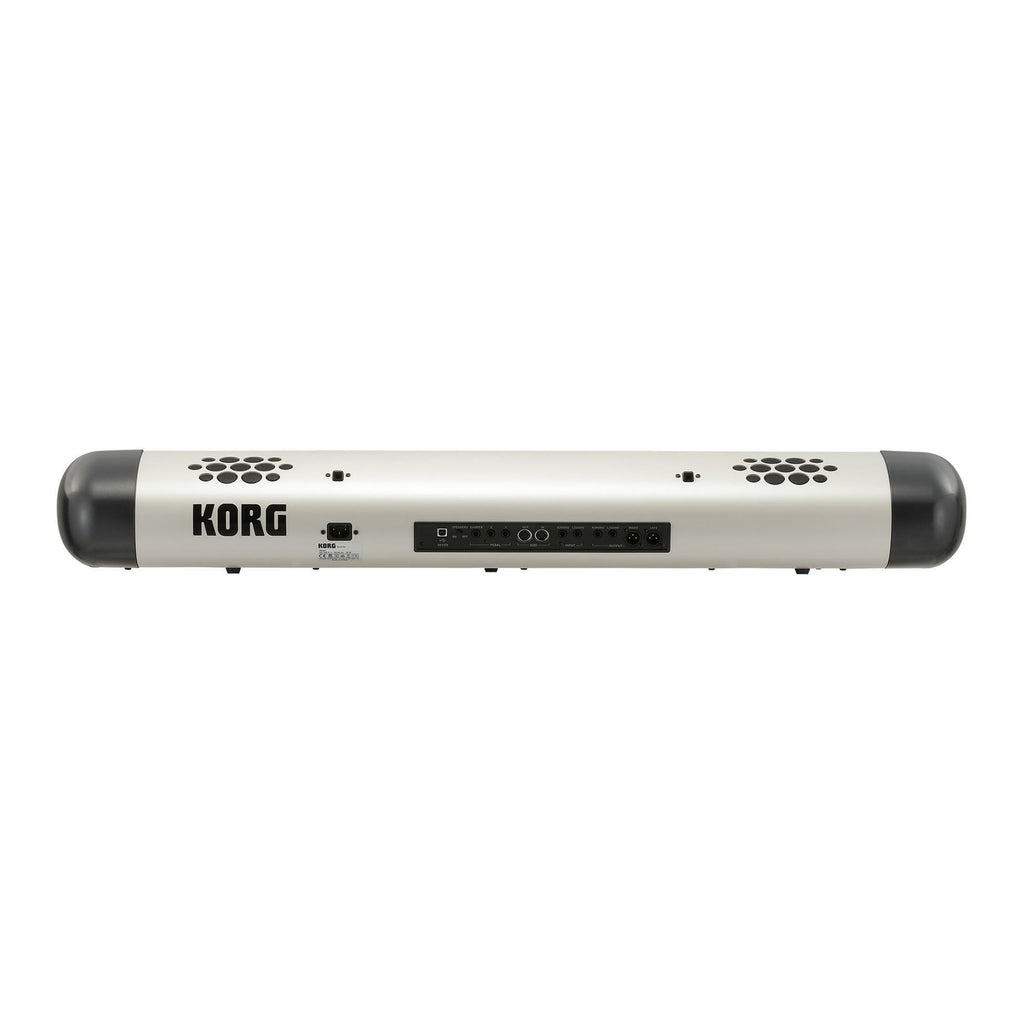

Input/Output connections

• Audio Output: L, R connector (XLR balanced), L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)
• Headphone: Headphone jack（6.3 mm [1/4”] stereo jack)
• Audio Input: L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)
• MIDI: IN, OUT
• USB: USB: 2.0 Type B connector (doubles the MIDI Interface)
• Damper Pedal: KORG DS-2H (included), DS-1H(sold separately)
• Pedal 1: PS-1 foot switch, PS-3 foot switch (sold separately)
• Pedal 2: Volume/Expression, XVP-20, EXP-2, PS-1 foot switch, or PS-3 foot switch (sold separately)

Amplification (SV-2S)

• Speakers: 2 x 2.5" with 2 x 3" passive radiator
• Amplification power: 2 x 15 W

Main specifications

• Power Supply: Internal switching adapter, AC 100~240 V, 50/60 Hz
  • Power Consumption: SV-2S 25 W;
• Dimensions (W x D x H, excluding music stand): SV-2／SV-2S (73key)45.0" x 13.66" x 6.18"
• Weight (excluding music stand) SV-2S 73 key 18.3 kg/40.34 lbs

Others

• Included Items: Power cable, Music stand, DS-2H damper pedal, Quick Guide.

WATCH: Korg SV-2: The evolution of a modern classic
