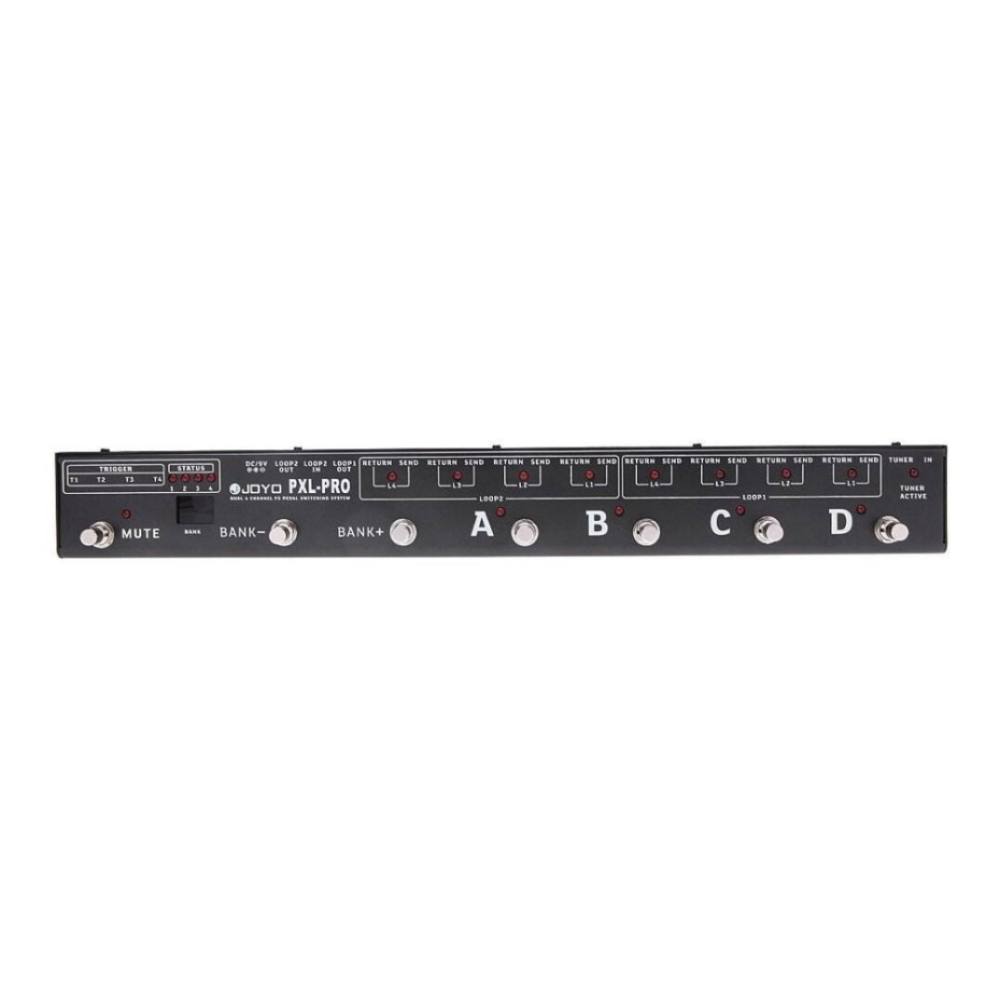

Joyo PXL Pro effects pedal with multiple control knobs and input/output jacks for guitar effects processing.
  • Joyo PXL Pro effects pedal with multiple control knobs and input/output jacks for guitar effects processing.
  • Joyo PXL Pro effects pedal for guitar, showing control knobs and input/output jacks on a black metal enclosure.

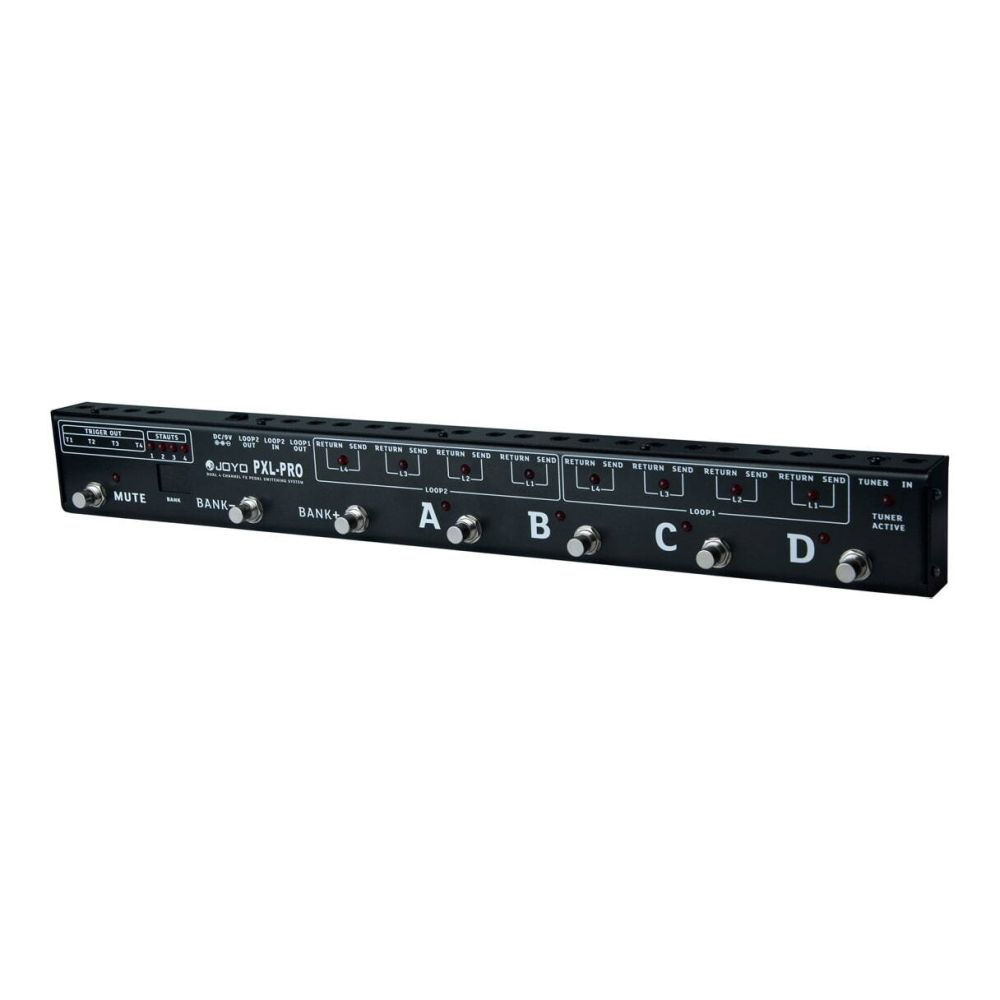

  • Joyo PXL Pro effects pedal with multiple footswitches and control knobs for guitar sound modulation.
  • Joyo PXL Pro effects pedal with multiple control knobs and footswitch, designed for guitar effects processing.
Joyo PXL Pro

Brand: Joyo

Joyo PXL Pro

SKU: JY-PXL-PRO
$259.00
Available to Order
Price Match

  • Rent from

  • $21.58/mth for 12 months interest free

    Fees apply

  • $64.75 Pay in 4 interest-free

    Late fees apply

  • $64.75 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

Features

  • The JOYO PXL-PRO Guitar FX Single 8 or Dual 4 Channel Switching Pedal The PXL-PRO is a programmable FX pedal switching system for guitarists, and bassists that presents the player with an array of options for combining their effect pedals in their set up. The unit has 2 separate banks, that enables the it to be used as a single 8 channel switcher or as a dual 4 channel set up, with a total of 32 different preset combinations.
  • Trigger Points and Looping Options The PXL-PRO features 4 trigger point options that can be programmed to complete external operations such as amp channel switching, bypass, and amp mode. The Loop function on the unit is an added feature that lets you loop in and out to another preamp, amp or effects chain. Importantly, the Loop in and outs will determine whether you are using the PLX-PRO in single 8 or dual 4 channel mode.
  • Connect Up To 8 Loops of Pedals With 8 separate Effects send/return channels, you can take full control of your set up through the PLX- PRO. Placement of either a single pedal on a bank, or grouping multiple pedals to form a loop on another will provide you with a specific sounds that can be programmed and switched between in an order that is the most suitable for you. The PLX-PRO will let you take the focus away from where your feet land on your pedal board and let you concentrate on your playing.


Specifications

32 presets combinations over 4 Banks. Store and Edit push button functions Bank display, trigger status and on/off indicator light Independent send and return 1/4" jacks for pedals Connection: 1/4" jack input and output connectors. Tuner Out Mute Switch Dedicated Trigger in/out points 2 x Loop in, 1 x Loop out Buffered Bypass switch design. Power Supply: 9VDC. 240mA (negative centre polarity) Power working current: 200mA Weight: 1.68kg Dimensions: 541(L)x67(W)x53(H)mm
