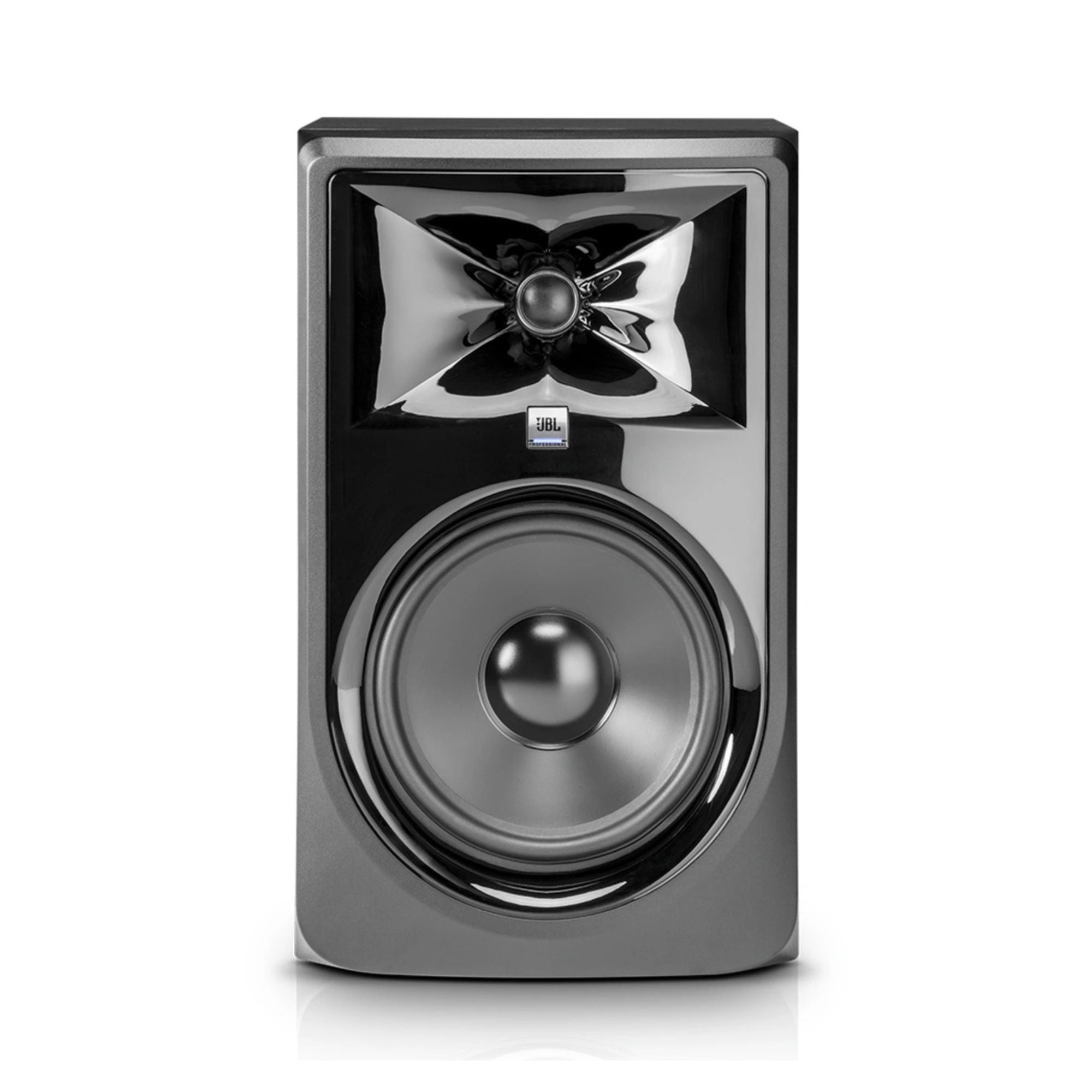

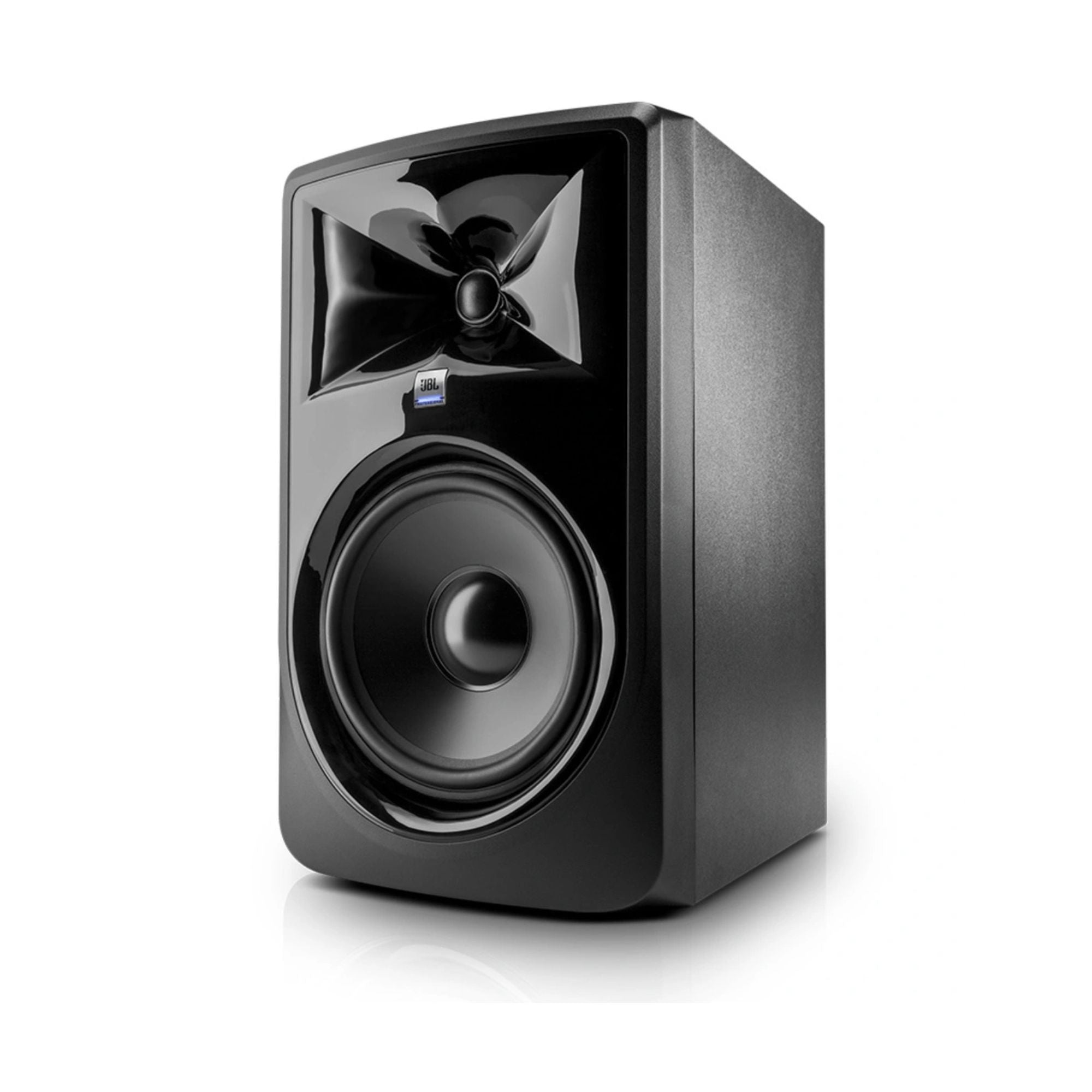

JBL LSR308MKII 8 inch 2 Way Studio Monitor Speaker - Single

With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 308P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace.

Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 308P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

Features

• Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
• Next-generation JBL transducers for optimized transient response and improved linearity
• Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
• Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
• New Boundary EQ settings compensate for low frequency variants introduced by the environment
• HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
• Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
• Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
• Strenuous JBL 100-hour full-power test ensures years of reliability
• Sleek, modern design provides a visual upgrade to any studio

Specifications

System Type
Bi-Amplified Speaker

Drivers
LF Driver Size: 203 mm (8")
HF Driver Size: 25 mm (1")
HF Driver Type: Soft Dome
Crossover: 1800 Hz, 4th Order Acoustic Linkwitz-Riley

Audio Performance
Input Sensitivity (-10 dBV Input): 92 dB / 1 m
Frequency Response (±3 dB): 45 Hz – 20 kHz
Frequency Response (-10 dB): 37 Hz – 24 kHz
Low Frequency Extension (-10 dB): 37 Hz
Maximum Continuous SPL: 102 dB
Maximum Peak SPL: 112 dB
Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu
System Distortion Criteria: <10% THD at maximum output with full compressor/limiter engagement
Electrical Distortion Criteria: 0.2% THD @ 1 kHz / 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
Signal to Noise Ratio: 75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output
Coverage Angle: 120° x 90°

Amplification
HF Driver Power Amp: 56W, Class-D
LF Driver Power Handling: 56W, Class-D

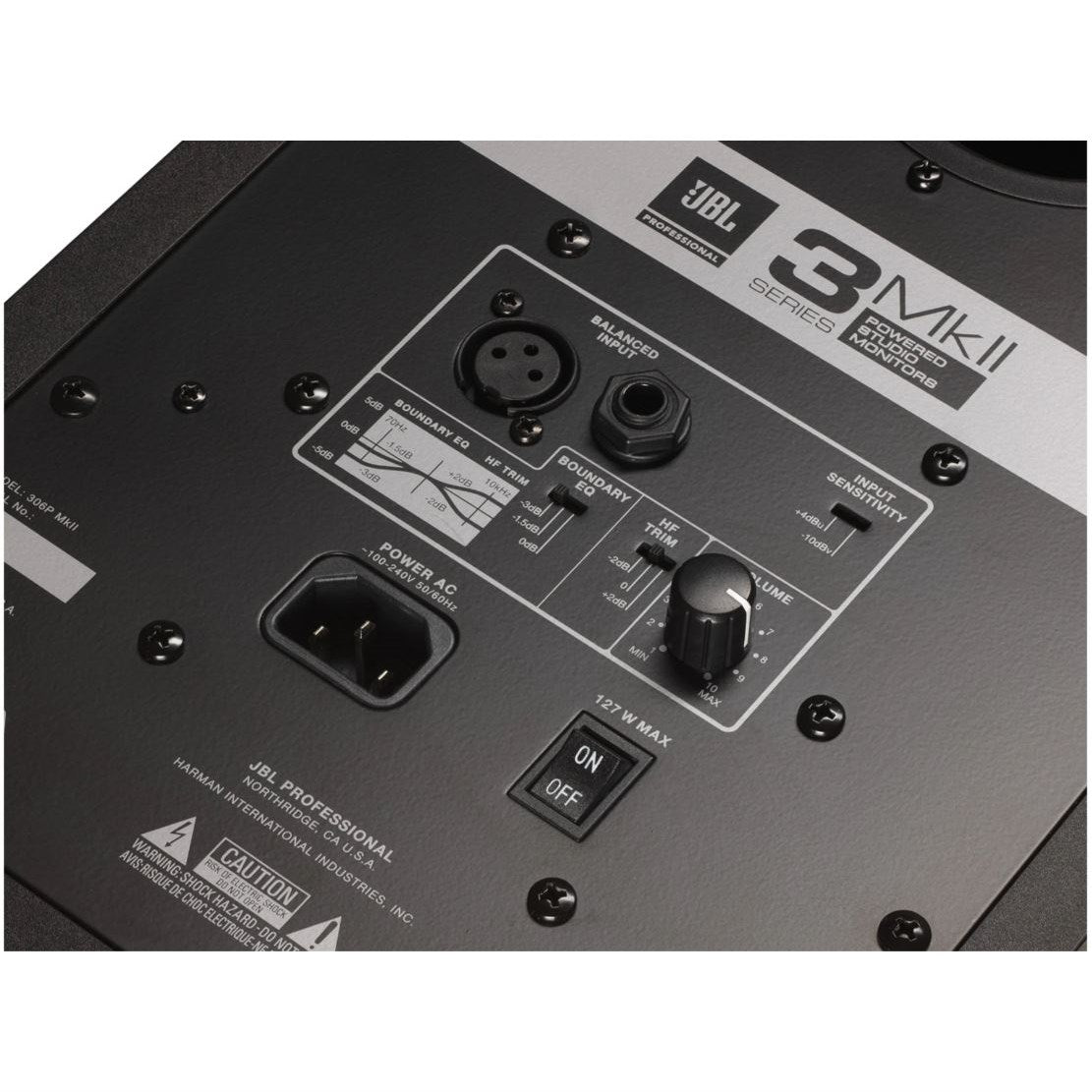

Controls
HF Trim Control: -2 dB, 0 dB, +2 dB
Boundary EQ: LF Shelf @ 50 Hz: -3 dB, -1.5 dB, 0 dB

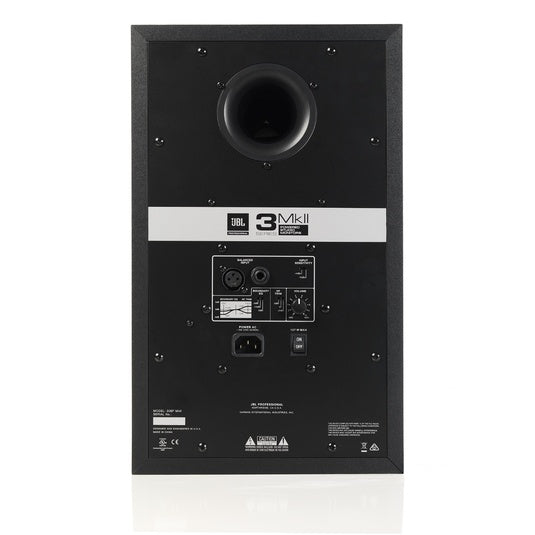

Connectivity
Input Connectors: 1 x XLR Female, 1 x TRS Female, Balanced

Power
AC Input Voltage: 100 – 240 VAC (±10%), 50 / 60 Hz

Enclosure
Enclosure Type: Ported
Enclosure Material: 15 mm MDF
Enclosure Finish: Matte Black PVC
Baffle Construction: Injection-Molded Structural ABS

Dimensions
Height: 419 mm (16.5")
Width: 254 mm (10")
Depth: 308 mm (12.1")

Weight
Net Weight (Each): 8.1 kg (17.87 lbs)
